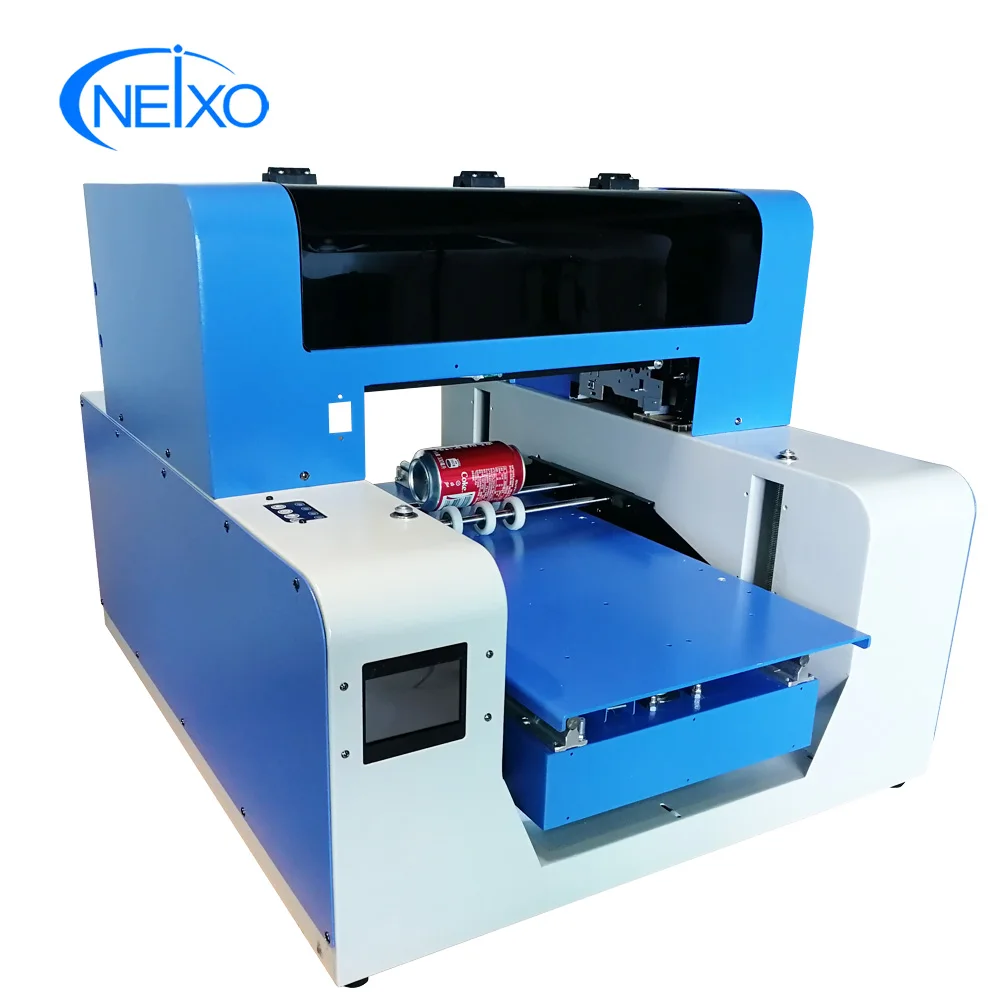

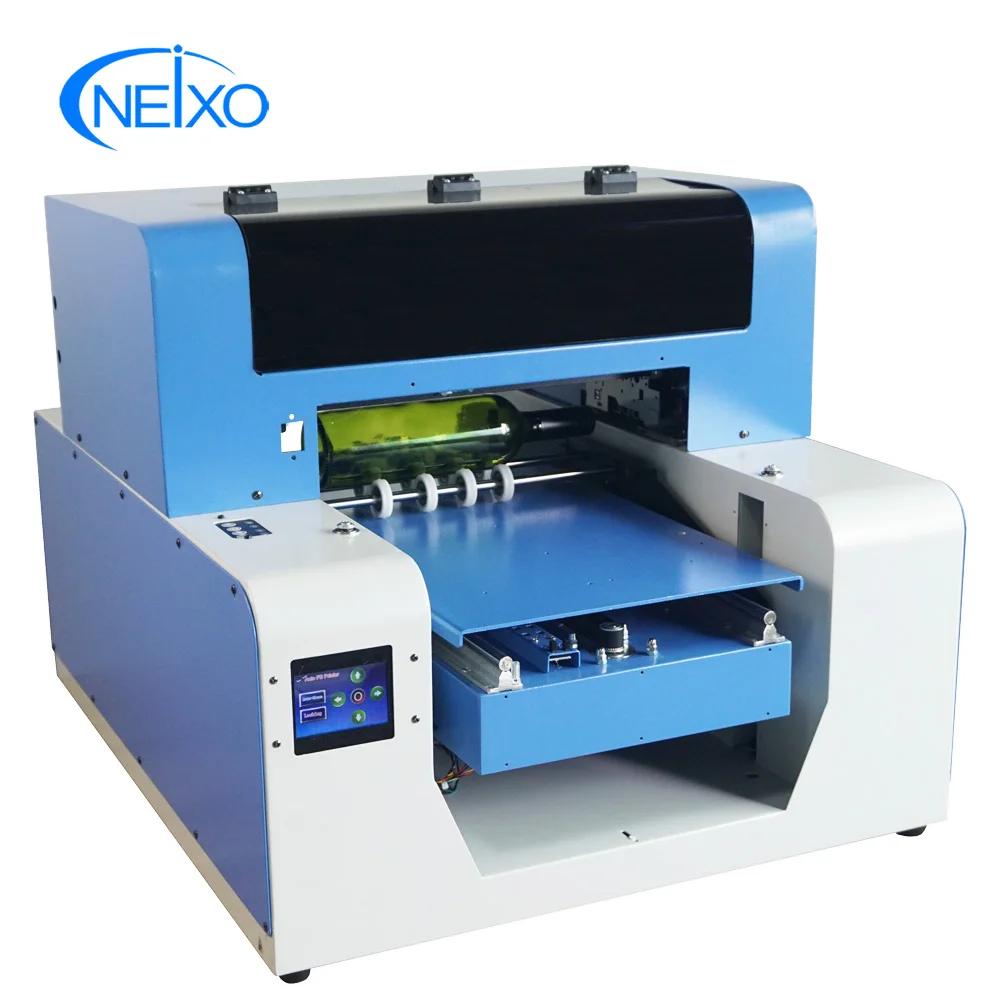

Full-automatic UV priter is suitable for printing on flat and cylindrical objects.
Model
NX3230UV
Printhead
Epson L1800
Dimension
75 * 63 *55.5 CM
Print Size
28*45CM
Print Hight
19CM
Net weight
52KG

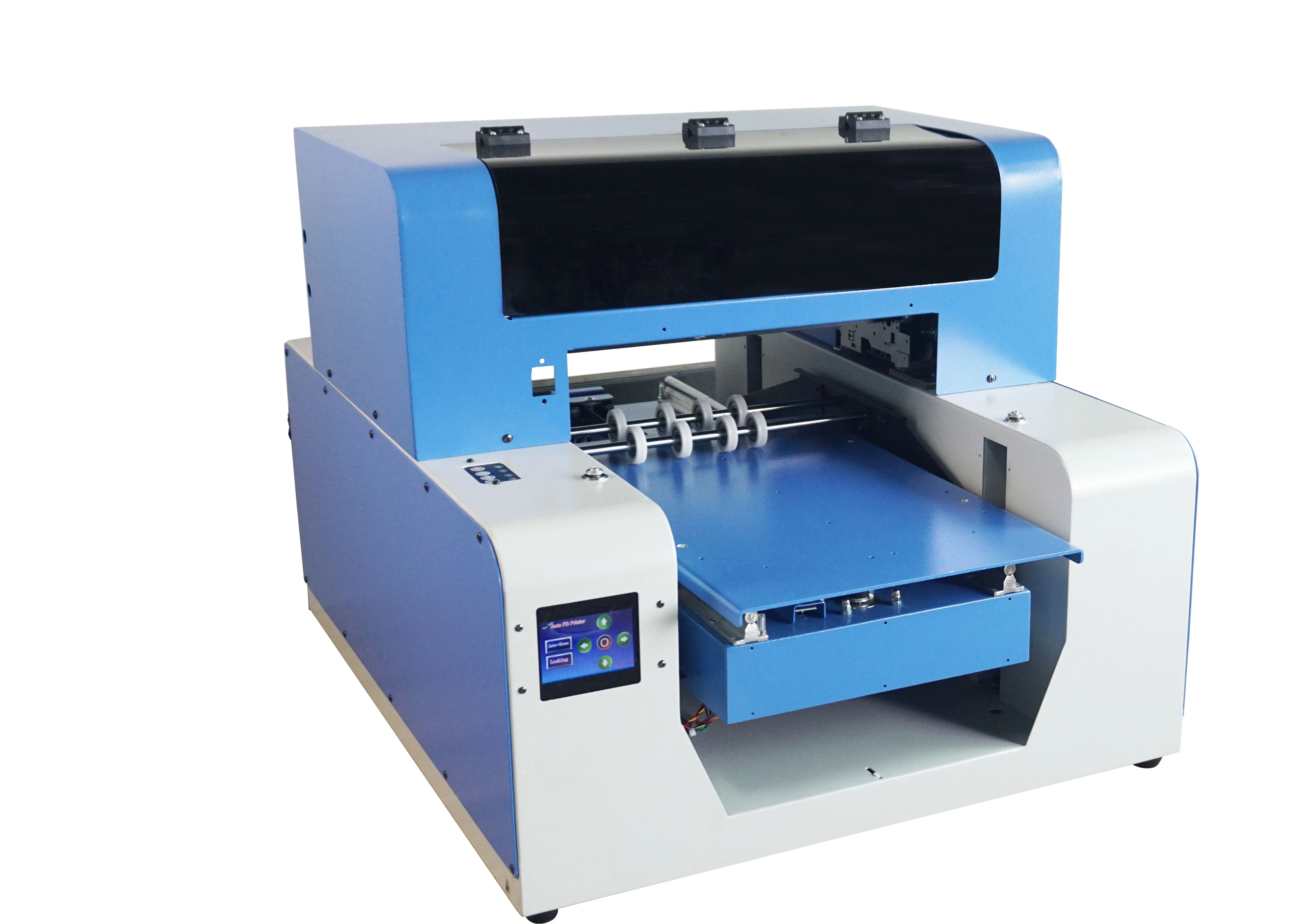

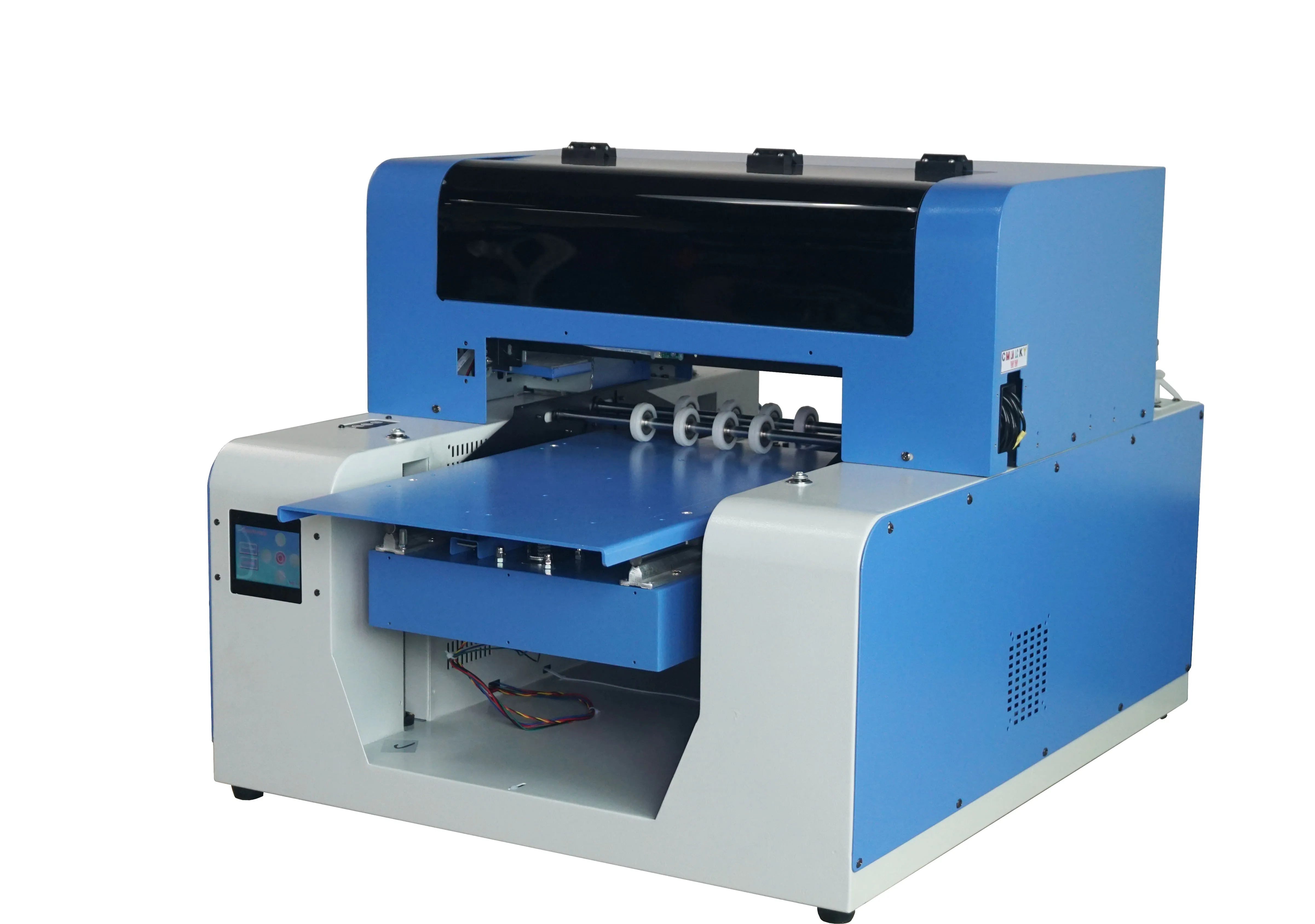

Details Images
Specification
Model
NX3230UV
Print head technology
Micro Piezo Technology
UV lamp system
Automatic
UV Power
50W
UV lamp life time
50000hours
UV light wavelength
390-400nm
Cooling system
Duo-Cooling System (Water circulating and wind cooling system)
Control software
RIP software
Ink system
UV damper CISS ink refilling system
Printer size
750 *630 *555 mm
Max. printing size
280mm*450mm
Print head
Epson L1800
Print color
CMYK+WW
Print speed
2 min A4 size
Max. media thickness
19CM
Ink consumption
15 ML/SQM (Appr. 1250-1500 A4 for 500ml set ink)
Printing resolution
RIP(1440*7201440*1440dpi)
Ink type
UV Environmentally ink
Working power
110-220V 50-60HZ 100W
Interface
USB2.0
System require
Windows XP/Vista/ Win7/WIN8/WIN10
Working enviroment
25-30C, 50% Humidity, Dust free
Net weight/Gross weight
52KG/71KG
Packing size
860 x 740 x 690mm
Packing&Shipping
Packing detail
Size
86 x 74 x 69CM
Weight
58KG
Packaging Details
The normal package is Strengthed wooden box, with buffer material inside for preventing the machine from any damage during delivery.
International Strengthed wooden carton can be used for Couriers shipment, Air shipment, and Sea shipment.
Company Introduction
Neixo Flatbed Printer
We are a real factory with our own worksshop for producting our own flatbed printer,wiith our prroduction team,we can control our lead time.We can arrange printer delivery within 1 working day! This is because we have enough stocks of our series flatbed printer.

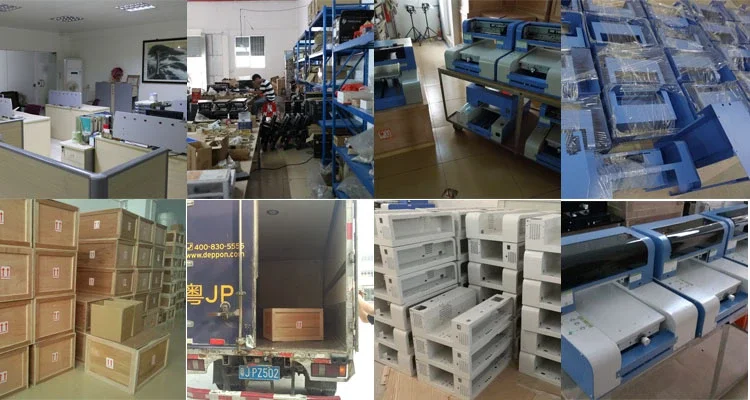

Here we can only show some corner of our workshop and office, if you are interesting, welcome to visit our factory in person to experience how Neixo flatbed printer coming out !
