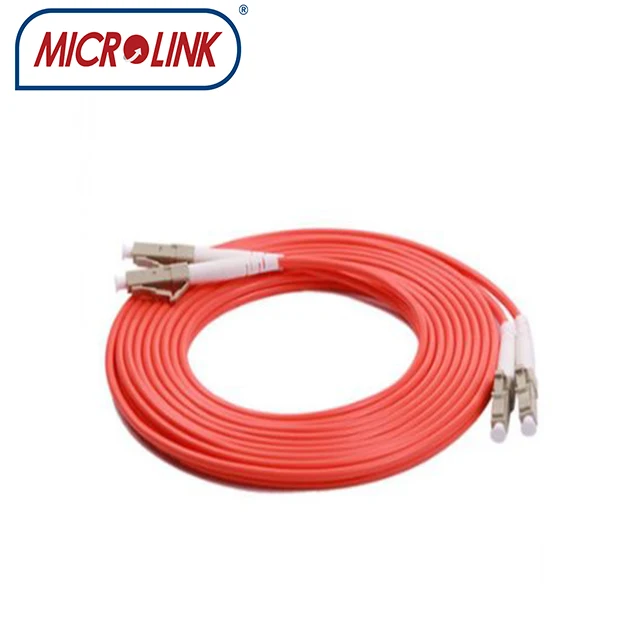

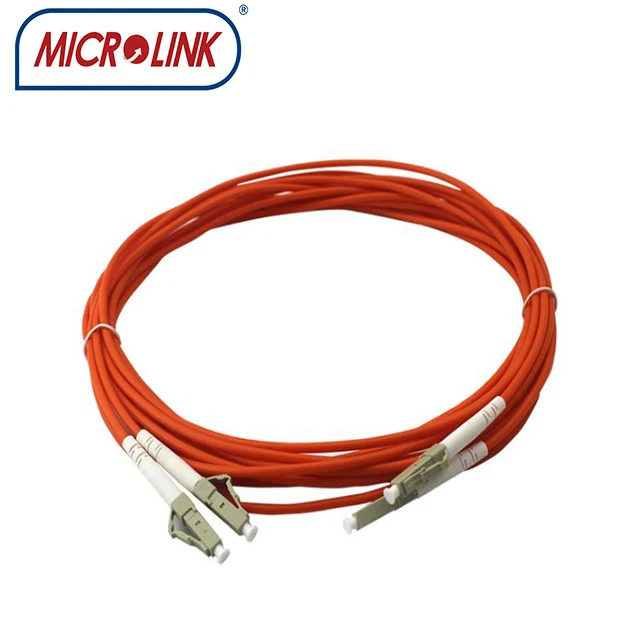

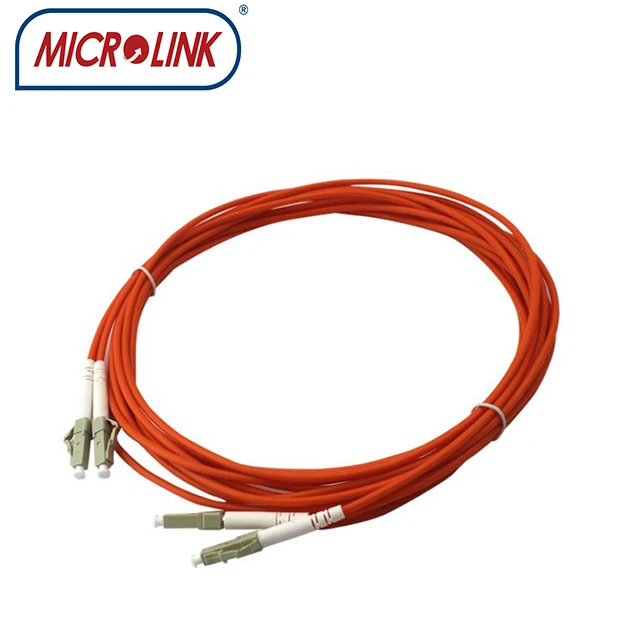

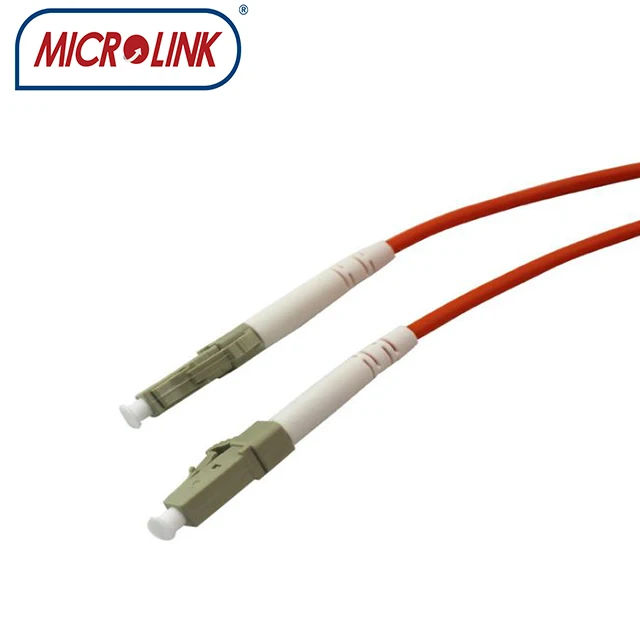

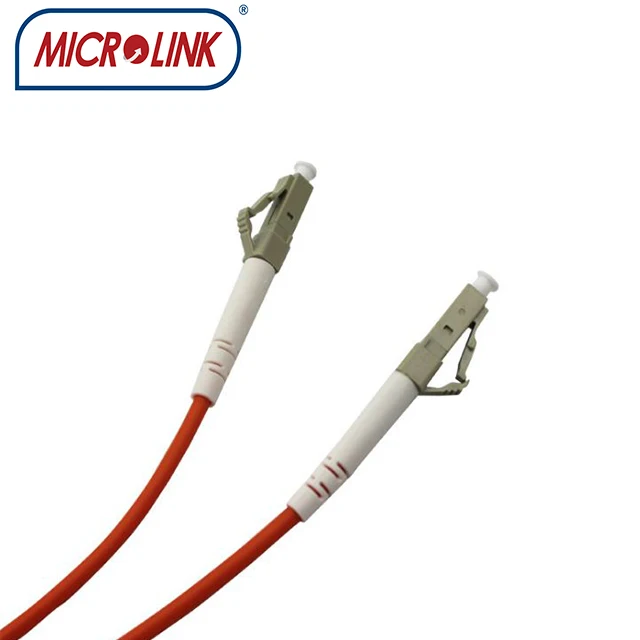

lc lc pre terminated cable fiber optic cable patch cord
- Category: >>>
- Supplier: Microlink Electronics Co. Ltd.
Share on (62403873722):
Product Overview
Description

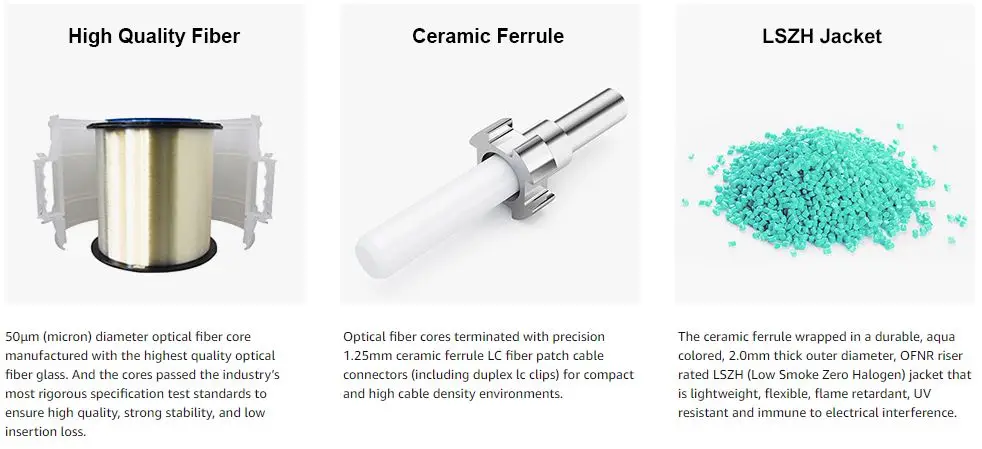

Product Advantages
High Quality Material | Brand fiber core to transfer data more stable over farther span | ||||||||
Real Length | Meter or feet marked on whole cable coil, no shortage | ||||||||
Incredible Durability | Durable thicker PE sheath for maximum curve protection and weather-proof and long lifetime | ||||||||
Product Description
Features
Low insertion loss.
Good waterproof preformance.
Low smoke, zero halogen and flame retardant sheath.
Smaller diameter, simple structure, light weight, and high practicability.
Special low-bend-sensitivity fiber provides high bandwidth data transmission.

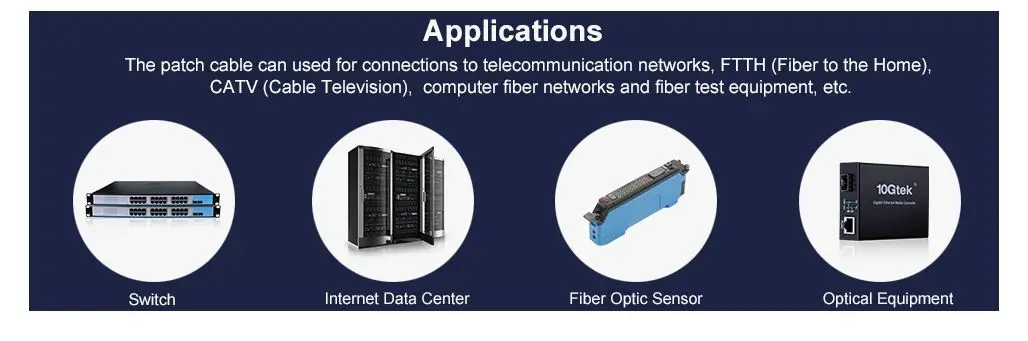

Applications
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system ODF
FTTX applications
Datasheet
Mode | Single Mode ( SM) | Multi Mode (MM) | |||||
End-face Polish | UPC | APC | APC | ||||
Insertion Loss | Typical ≤0.2dB; Maximum ≤0.3dB | ≤0.25dB | |||||
Return Loss | ≥50dB | ≥65dB | ≥35dB | ||||
Interchangeability | ≤0.2dB | ||||||
Repeatability | ≤0.1dB | ||||||
Durability | ≤0.2dB (1000 times mating) | ||||||
Tensile Strengh | > 10kg | ||||||
Temperature | ≤0.2dB (-40 ,+85 sustain 100 hours) | ||||||
Humidity | ≤0.2dB (+25 ,+65 93 R.H.100 hours) | ||||||
Optional Fiber Patch Cord Customize | ||||||||
Connector type | FC, SC, LC, ST | |||||||
Ferrule End-face | UPC, APC | |||||||
Fiber Core Type | Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um) | |||||||
Fiber Count | Simplex, Duplex | |||||||
Cable Diameter | φ3.0mm,φ2.0mm, φ0.9mm | |||||||
Length | 1, 2, 3, 5, 10 ,20,50 meter or customized | |||||||
Jacket | PVC, LSZH | |||||||
Detailed Images
Packing & Delivery
Related Products
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 2000USD, 100% in advance. Paymen more than 2000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
