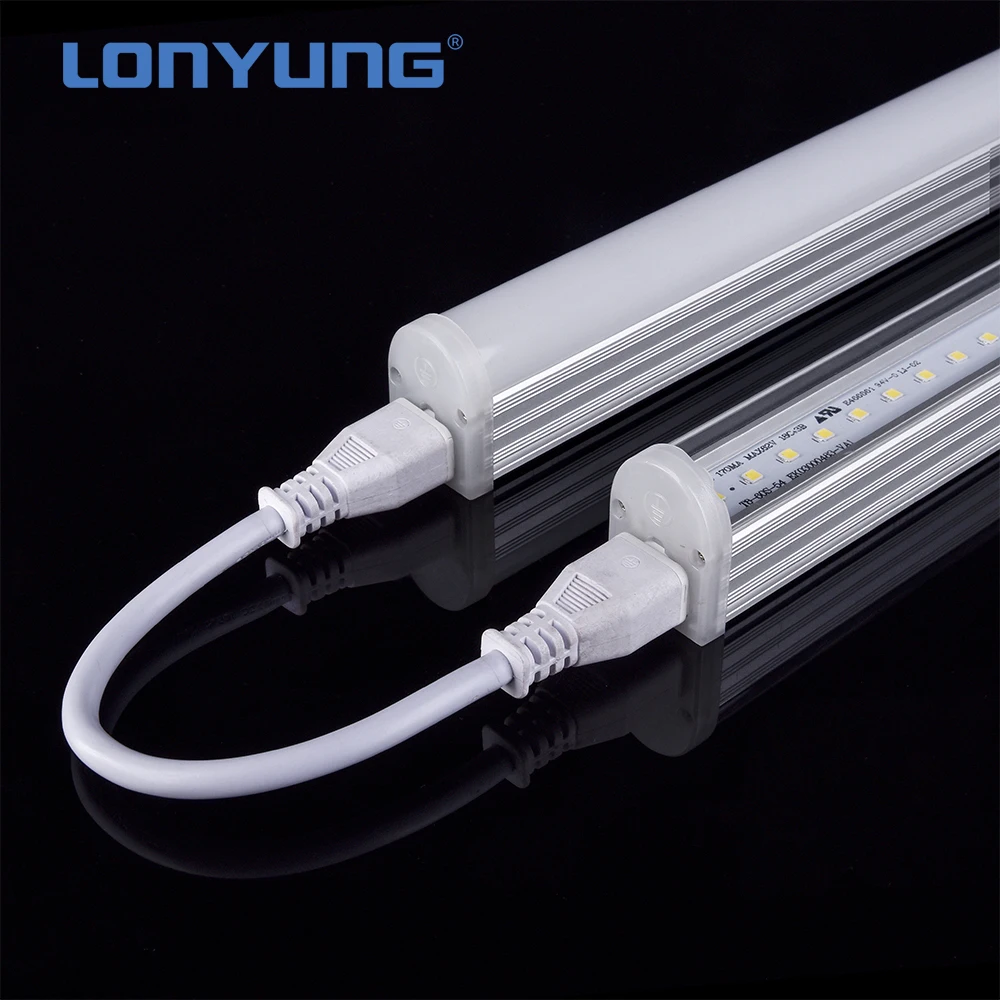

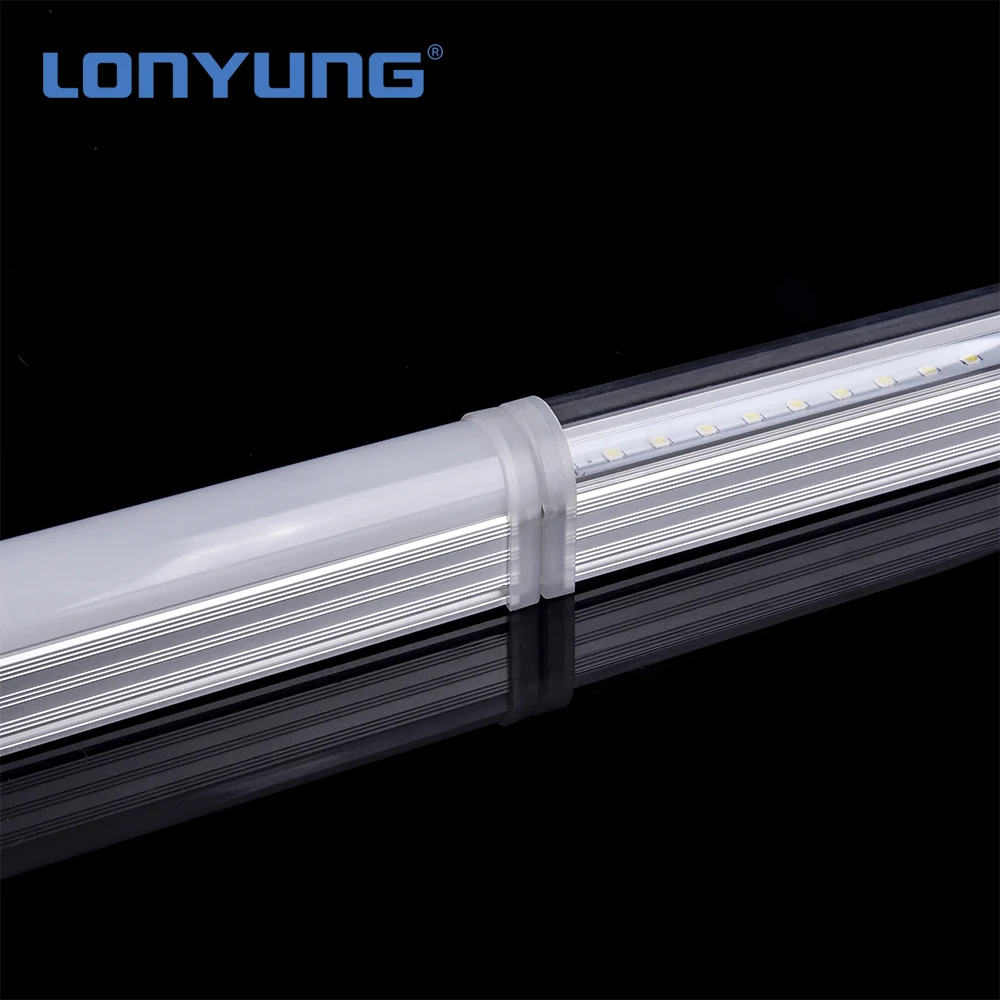

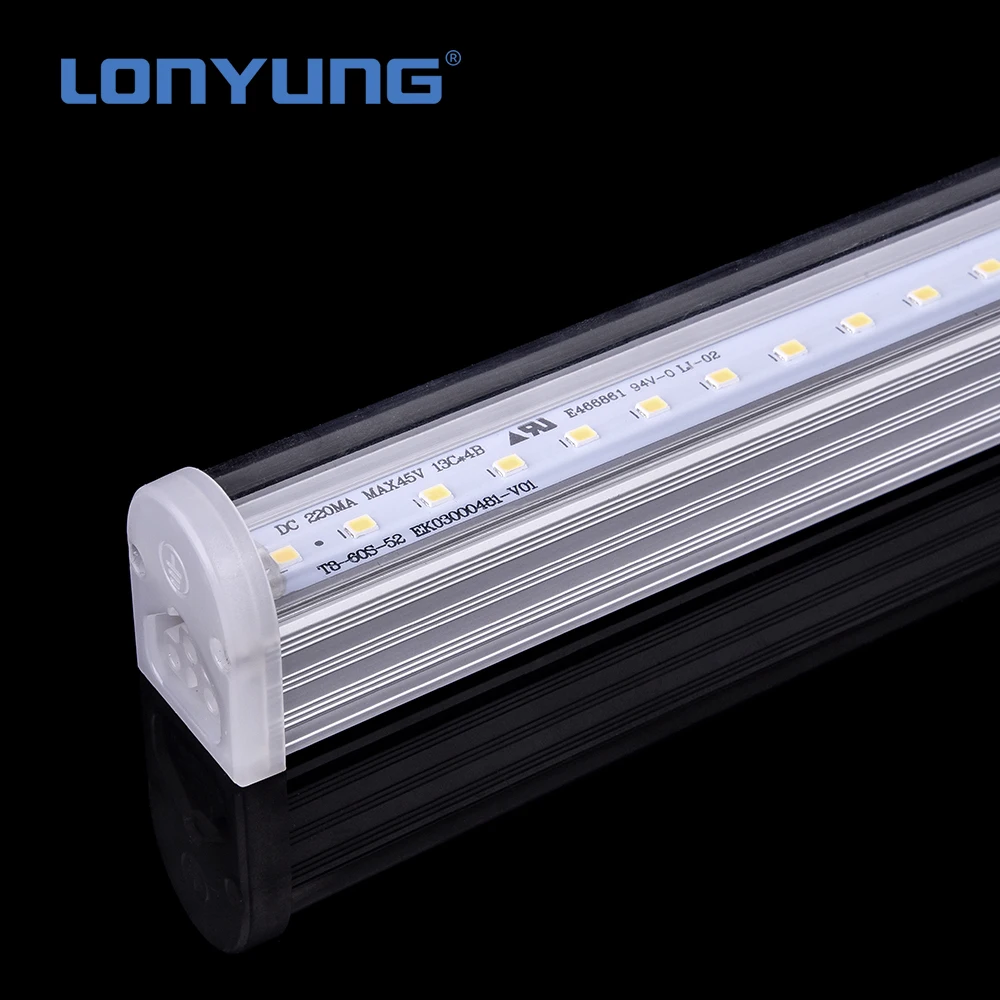

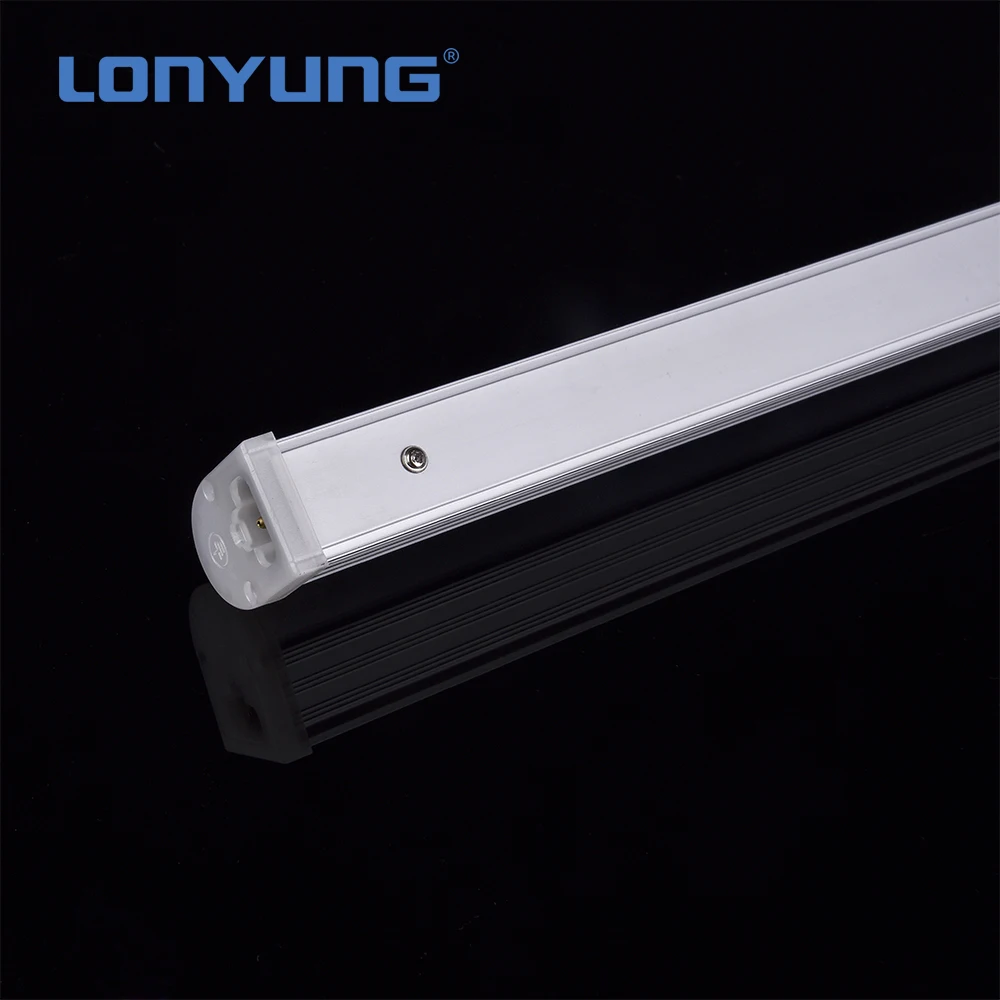

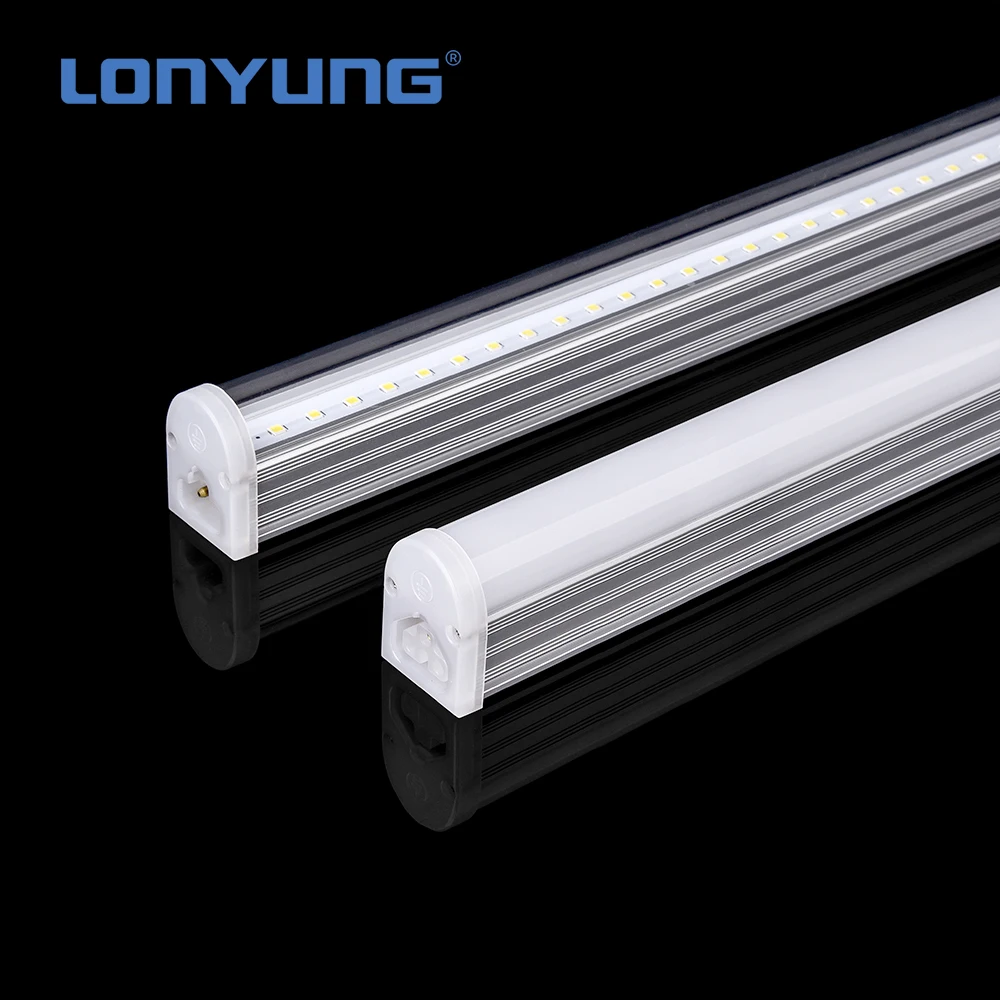

- Universal mounting standard. Come with integral hanging loops and with standard surface mounting application - Directly install with 100-277V/180-240V Power. Can be choice with Europe or American Cable Plugs. - Directly installing, suitable for new installing project.
- Life Span: 50,000 hours
Technical Specifications
Input Voltage
AC100-277V 50/60Hz
Total harmonic distortion
THD<19%
Power Factor
PF>0.95
Efficiency
120-150LM/W
Color Index
Ra>82
Switching Time
100,000
Lumen maintenance @6000h
>80%
Operation Temperature
-20°C ~ +60°C
UGR
<19
Life Span
50,000 hours
CCT
3000K,4000K,5000K,6000K
Material
AL+PC
Specification
Model
Size
Power
Led type
Lumens (lm)±10%
Package
LY-T5DL300-4W
1ft
4W
SMD2835
440 - 480
490*175*230 (mm) 25pcs/ctn
LY-T5DL600-7W
2ft
7W
SMD2835
770 - 840
780*175*230 (mm) 25pcs/ctn
LY-T5DL900-12W
3ft
12W
SMD2835
1320 - 1440
1085*175*230 (mm) 25pcs/ctn
LY-T5DL1200-15W
4ft
15W
SMD2835
1650 - 1800
1390*175*230 (mm) 25pcs/ctn
LY-T5DL1500-20W
5ft
20W
SMD2835
2200 - 2400
1690*175*230 (mm) 25pcs/ctn
LY-T5DL1800-22W
6ft
22W
SMD2835
2420 - 2640
1950*175*190 (mm) 20pcs/ctn
LY-T5DL2400-30W
8ft
30W
SMD2835
3300 - 3600
2565*175*145 (mm) 15pcs/ctn
- Options
- Fuctions: Normal / Triac Dimmable
- Connection Way: Lead in wire / M-F Connection / Power cord with Plug
- Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
- To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
- Please use it under correct input power range
- Do not use in the outdoor environment
- Before installation, turn off the power to make sure safety - Follow the diagram for below for proper installation
Company Information
FAQ
♥ Reliability
1. As long as 72h aging test with automatic switching before each shipment. 2. 100% vibratility test will make sure the fastness of the assembling. 3. 100% resist voltage test of AC85-305v makes sure those tubes compatible for both 120v and 277v.
4. More than 95% lumen maintenance based on the 6000h LM-80-08 test
5. -40°C to 50°C(-40°F to 122°F) extreme environment compliant.
♥ Shipping options
- By express: Such as DHL,UPS, TNT, FEDEX etc. The dispatch time is about 3-7 working days.
- We will search for an economical shipping company to transport the goods safely. - Air Freight: When you order more than 100kg which will be more economical than express. - Agent designated by client: Please tell us the contact details of your shipping agent/forwarder
♥ Trade Terms
- Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
- Production lead time for 100~500pcs: 7days, 500~1000pcs:10days
- Sample can be delivered in 3 days
- Shipping port: ZHONGSHAN/SHENZHEN
- Discounts are offered based on order quantities
