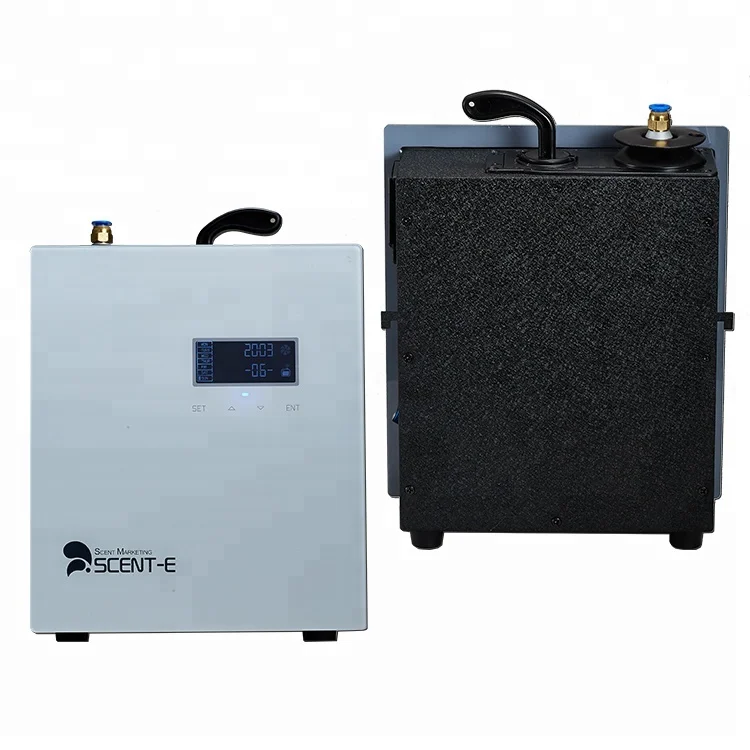

2024 Christmas new idea products metal material scent diffuser air freshener for hotel & home scent air machine

Product Overview

Description

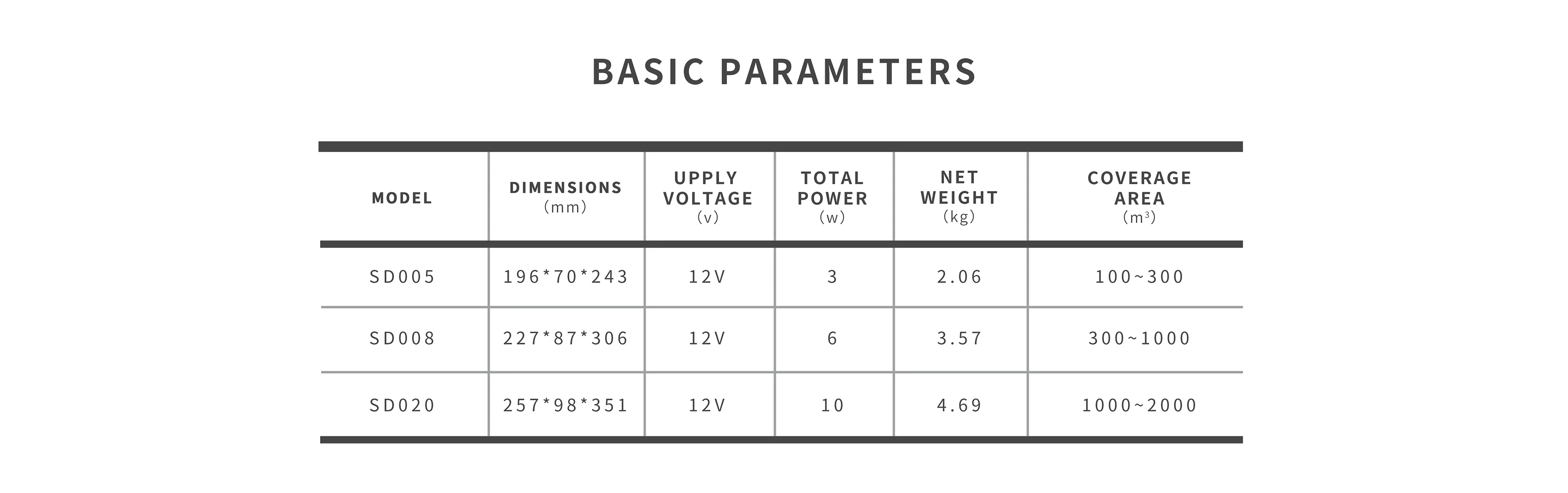

Products Information



Products Name	HVAC aroma diffuser
Model	SD005
Voltage	12V/1A
Power	3W
Weight	2.06kg
Coverage	300m³/10600ft³
Color	Black, white, customization
Size	196*70*243
Function	cleaning air, fill the air with fragrance

Essential oil capacity

150ml



Package information



the device size	196*70*243mm
the package of device size	355*300*120mm
Net Weight of package of device	2.06kg
Gross weight of package of device	2.85kg

One delivery cartion contains 5 cartons

the size of delivery carton	790*420*350mm
Gross weight of delivery carton	20.1kg



Application



hotel, exhibition hall, spa, shop, coffe shop, office, bread shop,car 4S shop,etc..



Features



Using advanced nano technology, essential oil particles is more exquisite, no residue

Strong rapid atomization enjoy the moment possession

Noise reduction design, enjoy comfortable in the quiet environment

Fragrance distribution, and stay for a long time

Atomaization at room temperature, the flavor is more natural

User-friendly design, easy to install

Direct atomization at room temperature without heat treatment

Intermittent work can increase the usefull life of equipment(work 300 seconds then stop 30 seconds)

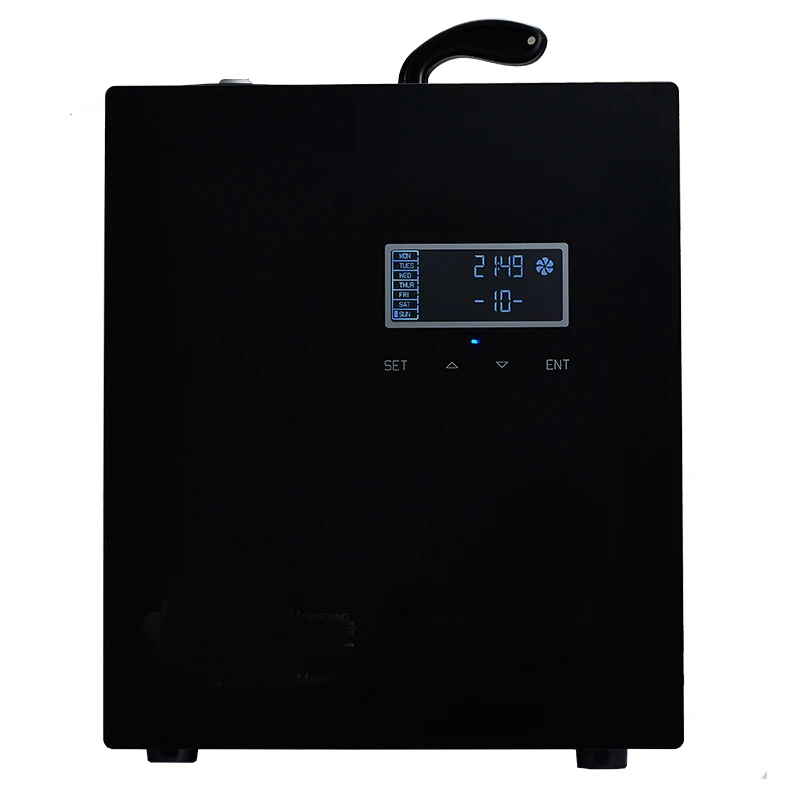

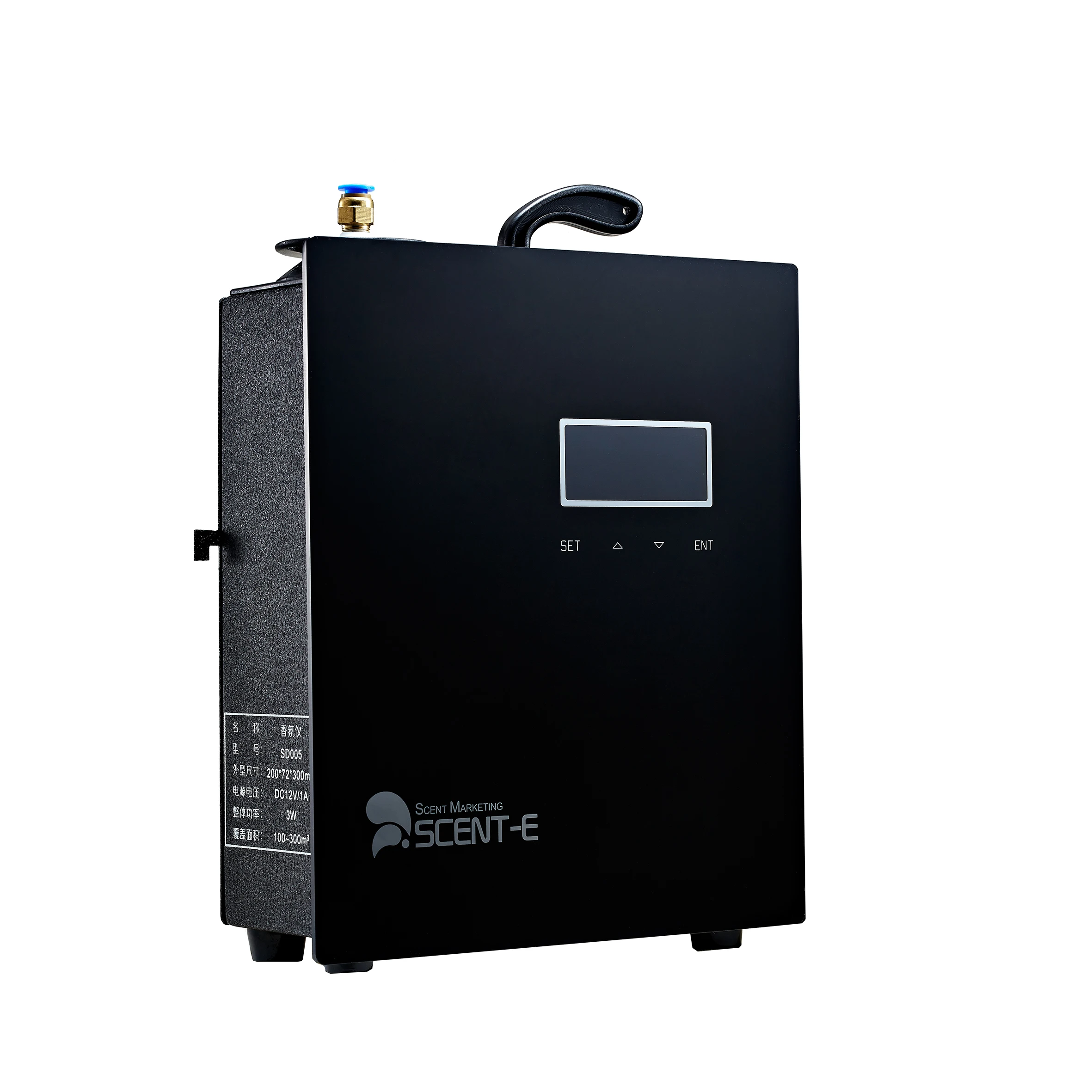

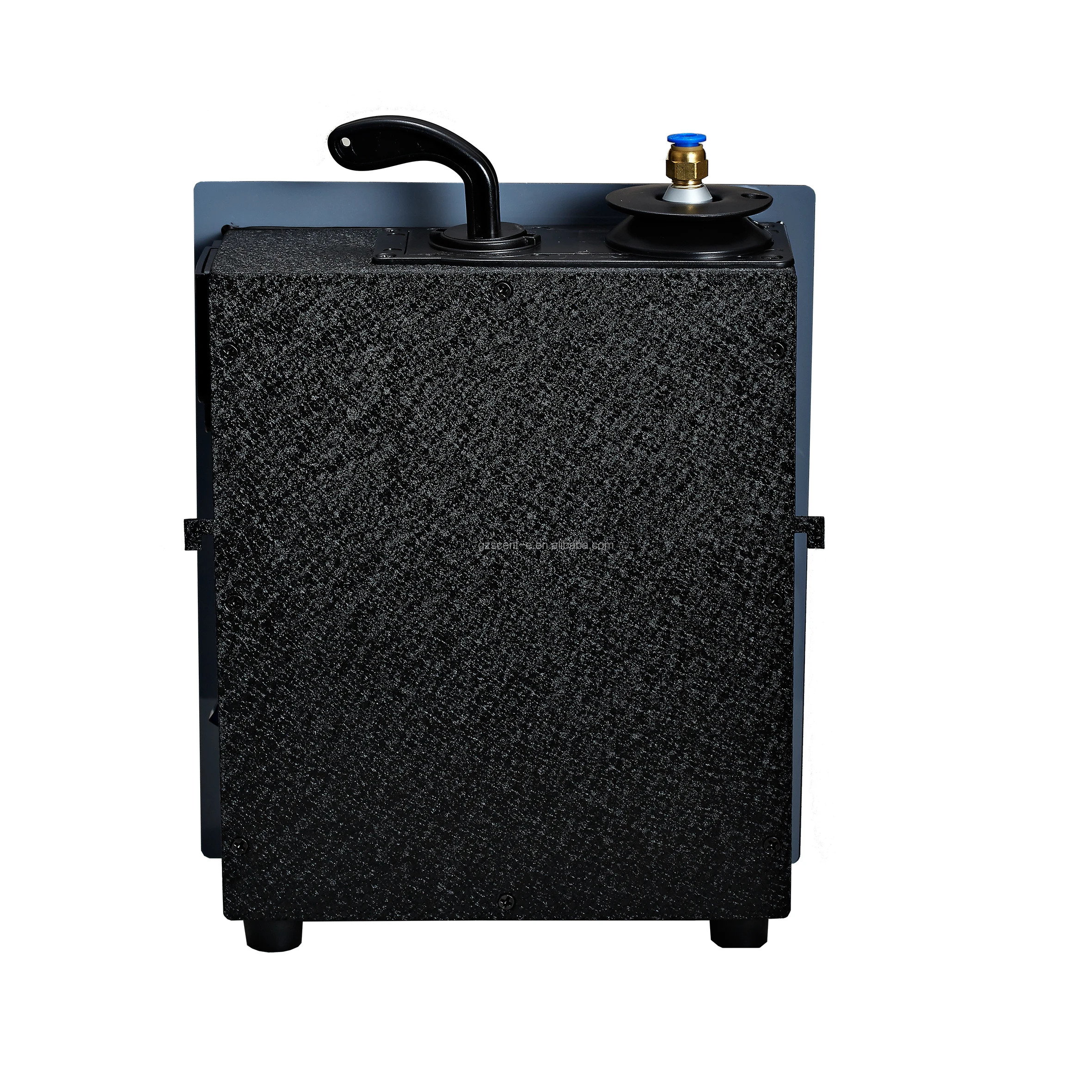

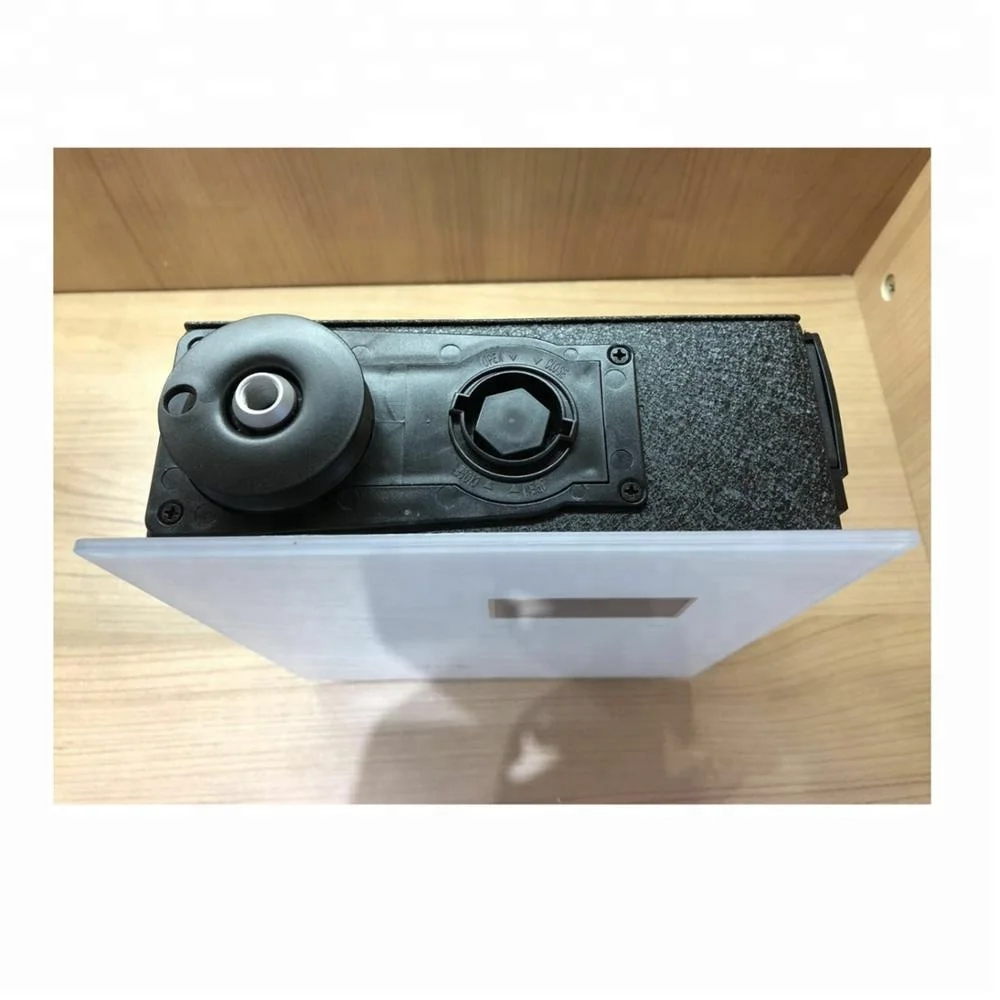

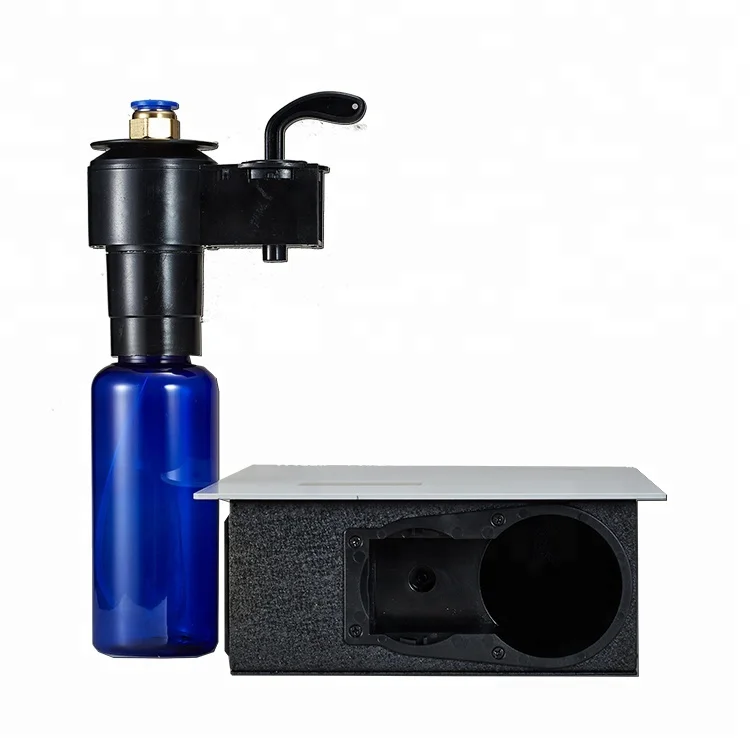

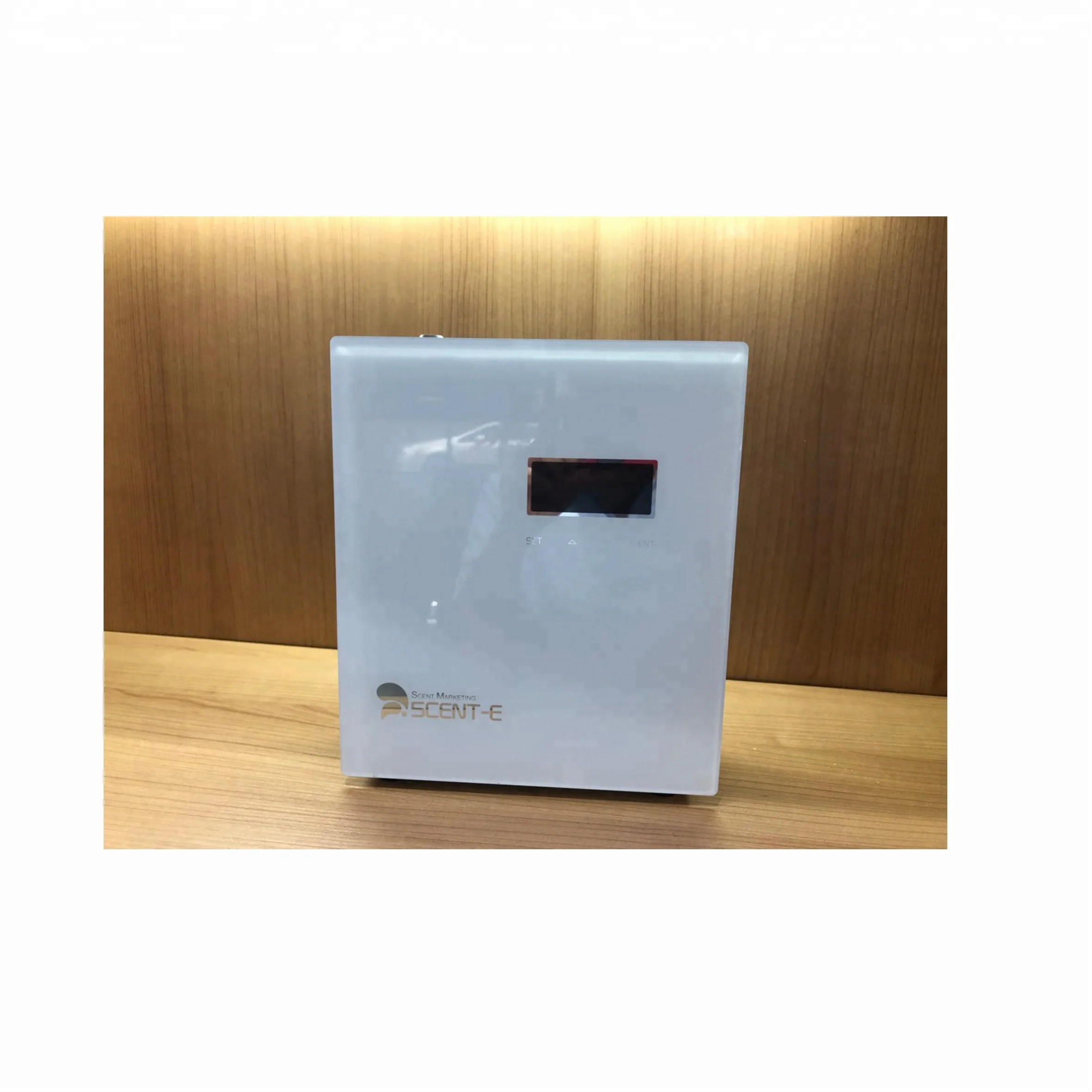

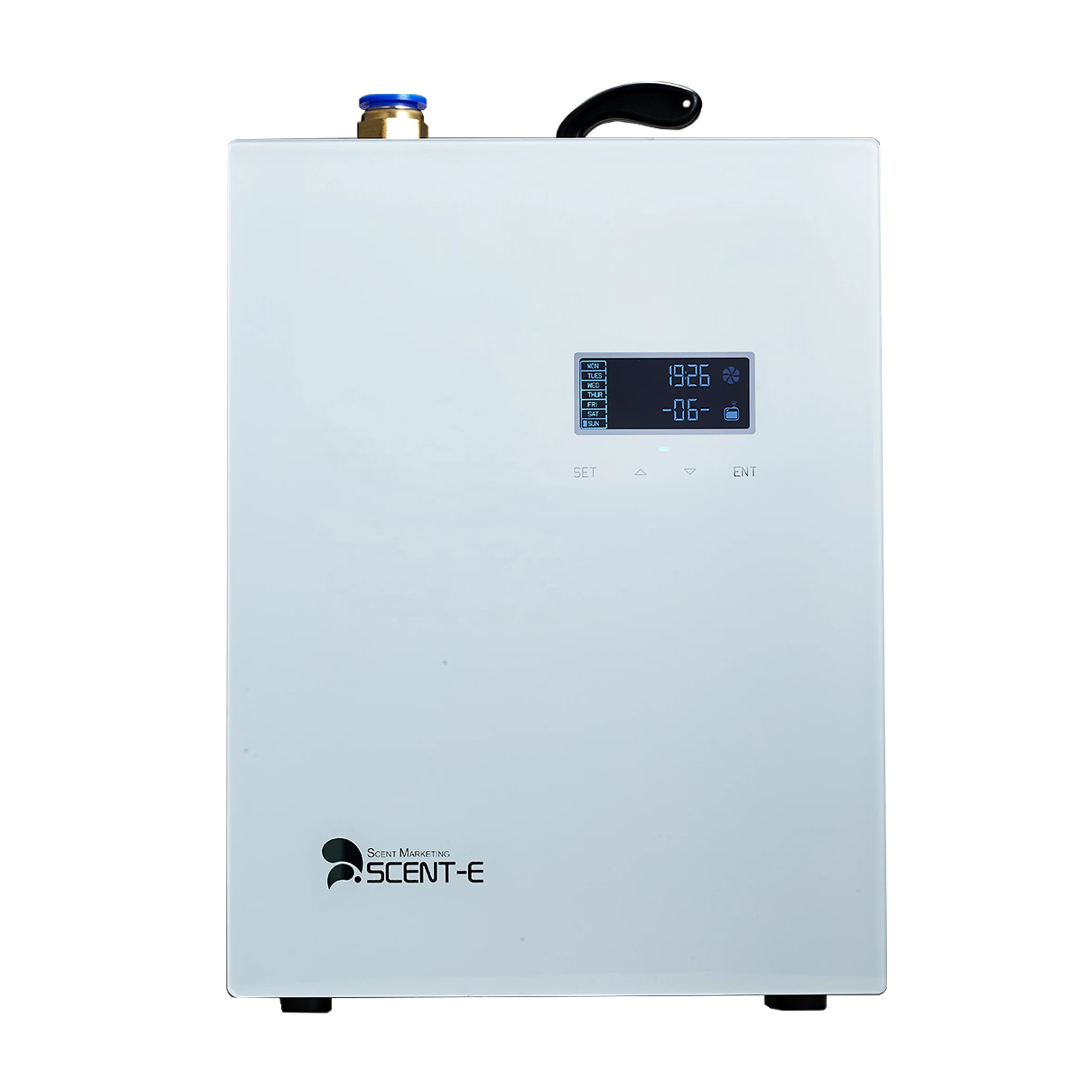

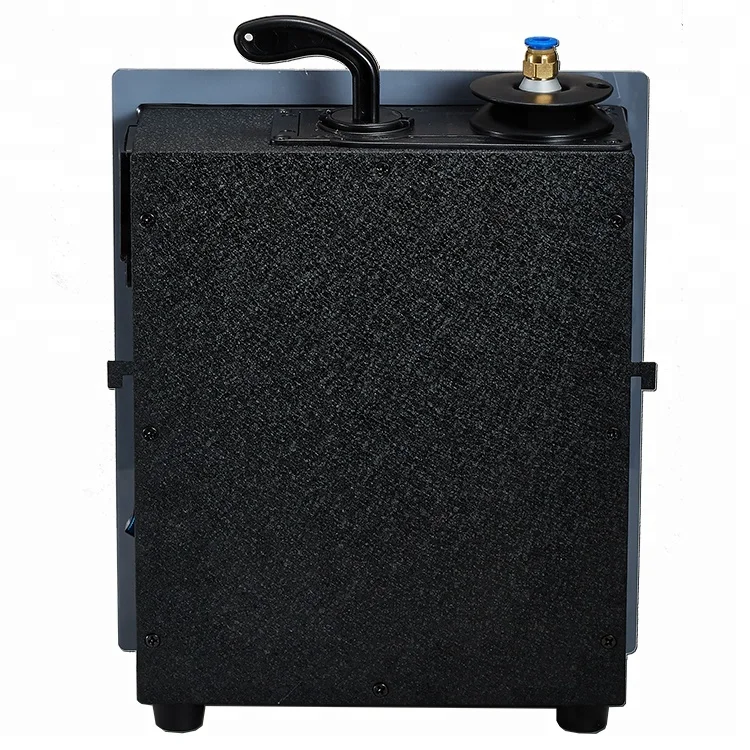

The model of SD005 picture

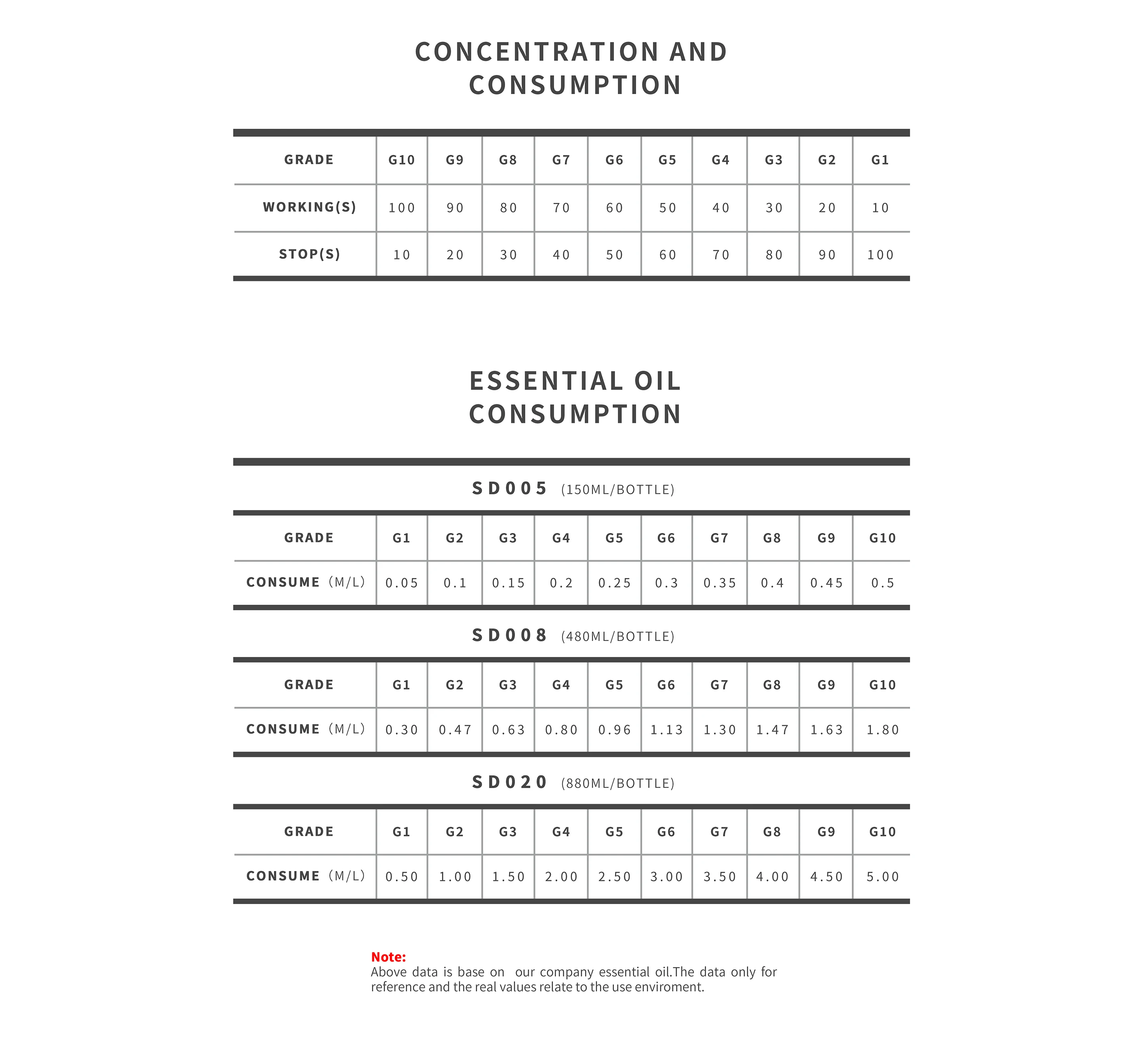

The essential oil consumption





Work time-Pause time

Essential oil work days(Working 10h a day)

G1:10-100	300
G2:20-90	150
G3:30-80	100
G4:40-70	75
G5:50-60	60
G6:60-50	50
G7:70-40	43
G8:80-30	38
G9:90-20	33
G10:100-10	30



 ♥Plese noted, this essential oil consumption testing based on SCENT-E pure essential oil, if used other brand essential oils testing, maybe the result is different.

• The aroma diffuser cleaning

When the essential oil needs to be replaced or the amount of atomization is reduced after the equipment has been running for a while, the equipment needs to be cleaned.

•  Cleaning steps:

1. Carefully open the aroma diffuser and take out the essential oil bottle, which the essential oil has been run out.


2.


    Add a small amount of alcohol to the essential oil bottle, then install it on the aroma diffuser device and turn on the device for 5-10 minutes.





3.


    After cleaning, turn off the aroma diffuser.





4.


    Take out the essential oil bottle and add the essential oil you need to replace. Carefully install the essential oil bottle onto the device and continue working.

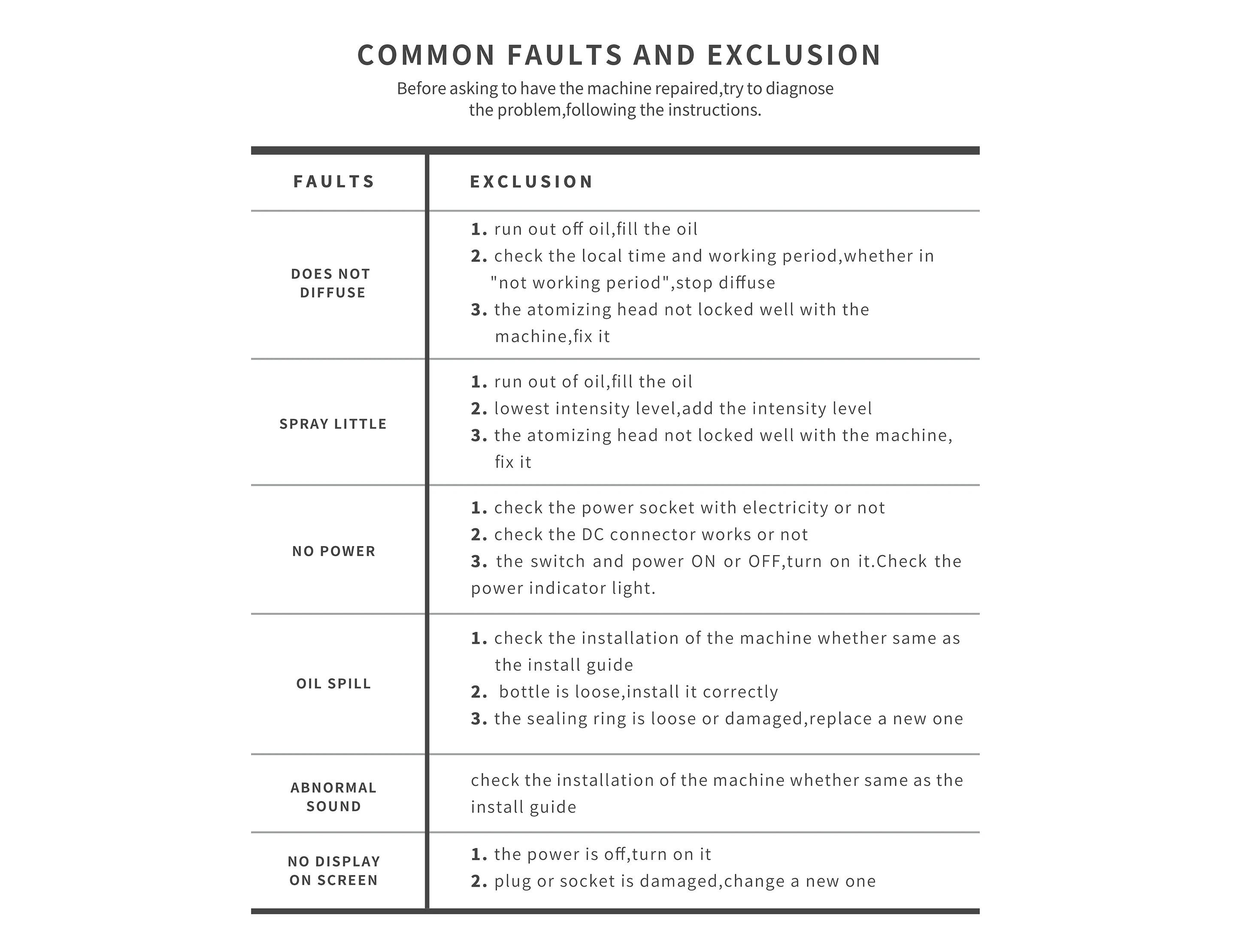

• The trouble shooting

Symptom	Remedy
No diffusion	Check if it has run out of oil Check if it working at the working period Check if the nebulizer is well locked
Small spary	Check if the oil is enough Check if it is working at the lowest intensity level Check if the nebulizer is well locked
No power	Check if the power socket is working well Check if the power adapter is well in connection Check if the power switch in at ON condition

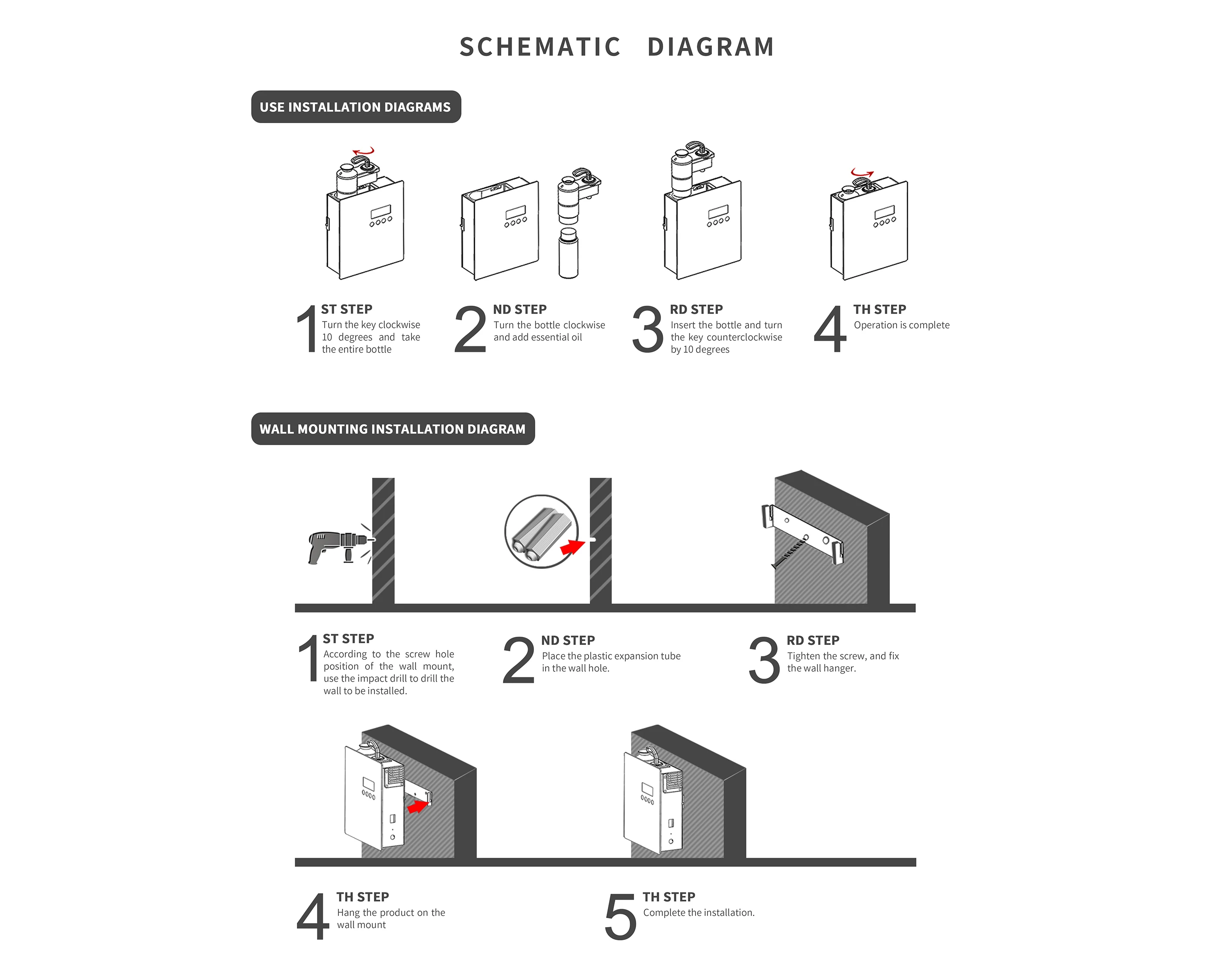

Oil spill	Check if the machine is in the right installation, see the installation guide Check if the bottle is well fixed Check if the gasket is well installed or damaged
Abnormal sound	Check if the machine is in the right installation, see the installation guide
Screen no working	Check if the power is on Check if the socket or plug is damaged



The related products





If you want to know more details about our commercial aroma diffuser and our factory, pls contact me, thanks.
