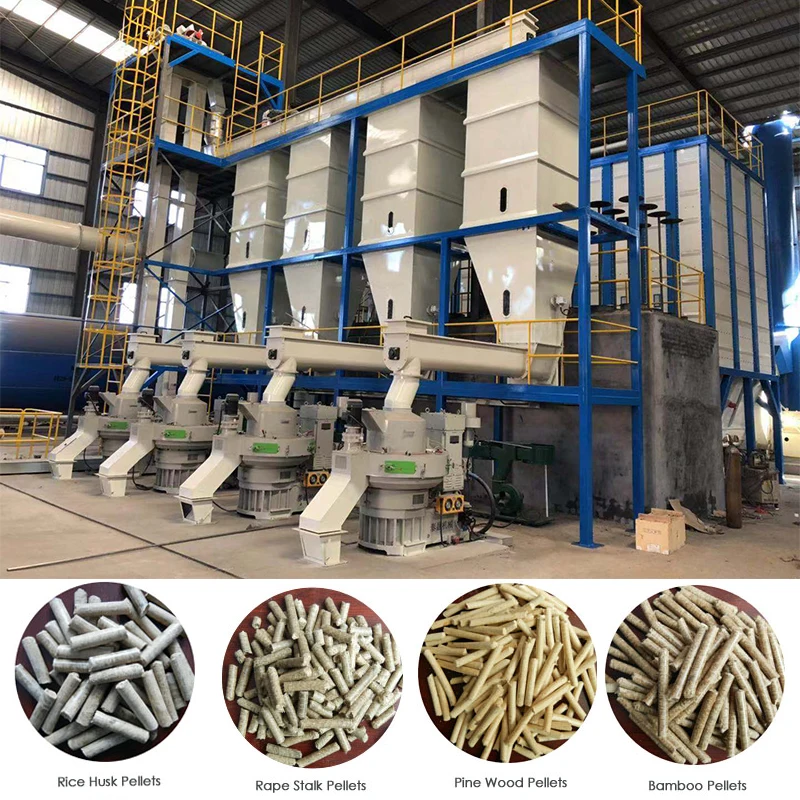

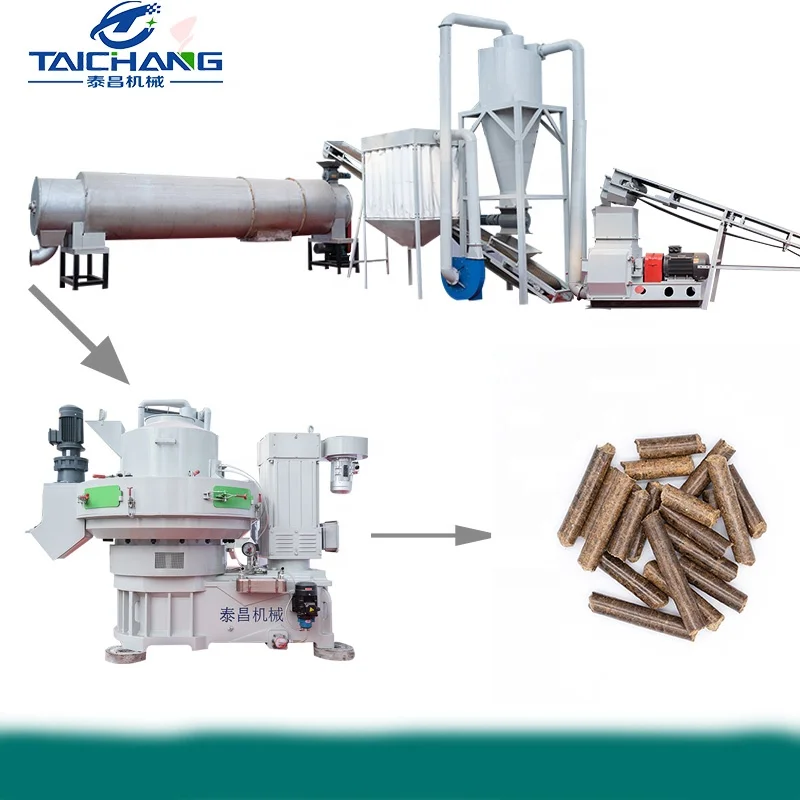

Professional Supplier Complete Biomass Wood Sawdust Pellet Line/Pelletizing Extruder

Product Overview

Description

China Special Automatic Gear Oil Lubrication Type Wood Biomass Pelletizing Machinery/Whole Pellet Mill Line

Production Description

Wood pellet machine can produce 6-12mm final pellet pellets.
Wood pellet machines mainly apply to coarse fiber granulation, such as: sawdust, rice husk, cotton rod, cotton hull seeds, weed and all kinds of straw crops, waste and plant waste material low adhesion level, dense forming.

Main Features of Pellets:
1.Pellets is green and low carbon energy fuel is renewable, environmental protection .
2.Pellet is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source.
3.Density 0.9-1.6g/cm3,easy store and transportation ,3500-5500 Kilocalorie.

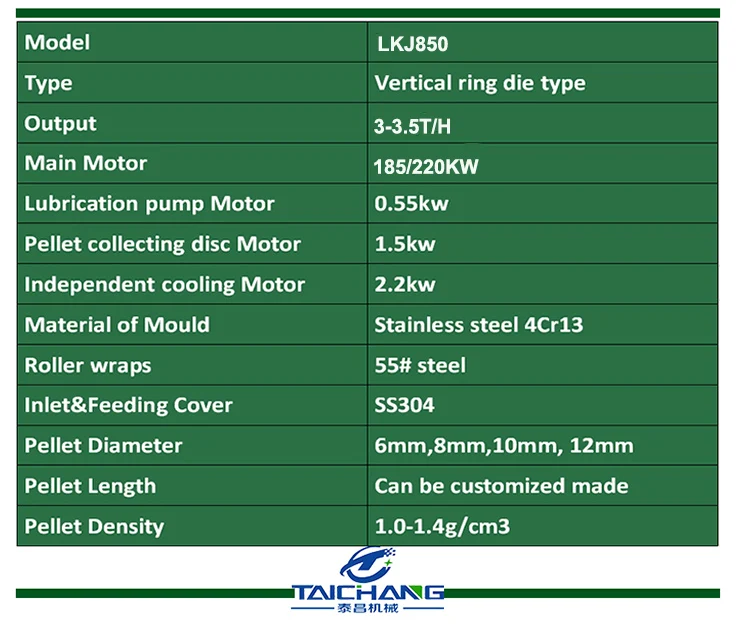

 Main technical parameter of  pellet  machine

Model	Power(kw)	Capacity(t/h)	Pellet Size(mm)	Weight(t)	Dimension(mm)
LKJ560	90/132+1.5+0.55+1.5	1-2	6-12	4.5	1600x1210x1700
LKJ700	132/160+1.1+1.5+0.55+2.2	2-3	6-12	5.5	1650x1261x1783
LKJ850	185/220+1.1+1.5+0.55+2.2	3-3.5	6-12	7	1800x1450x1850

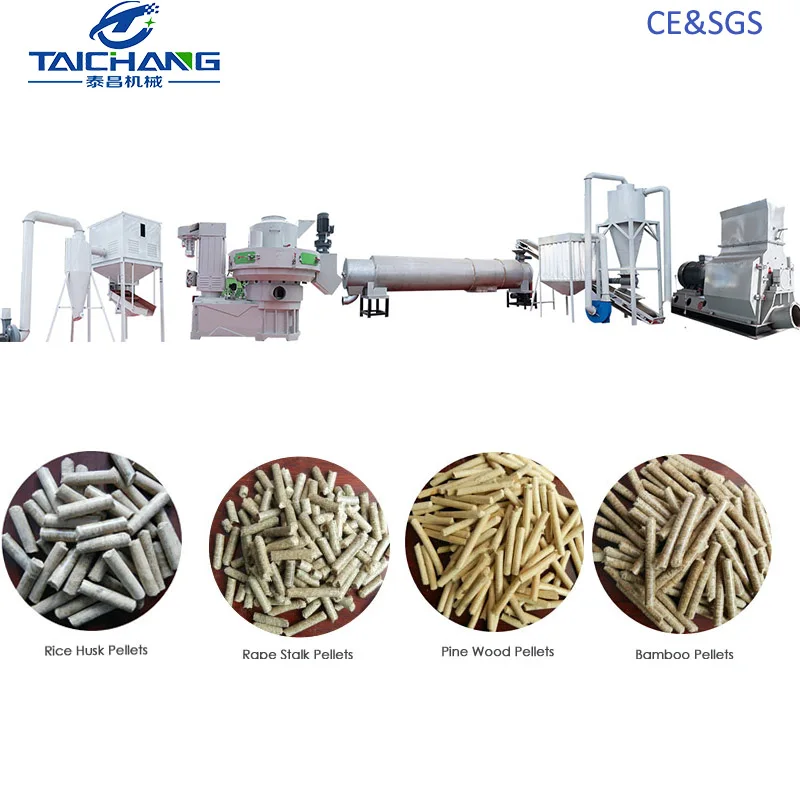

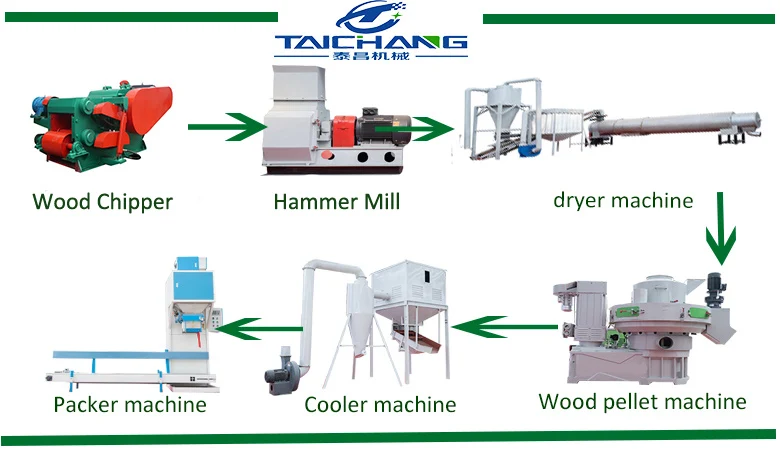

We produce biomass pellet making line machines, such as wood logs debarking machine, wood logs splitter, wood sawdust making machine ,wood chipper, hammer mill, grass/straw cutter , straw bale crusher ,pellet machine and briquette machine, dryer and cooler, screener, mixer , biomass pellet boiler ,pellet packing machine and all conveyors e. c. t. for wood crusher details

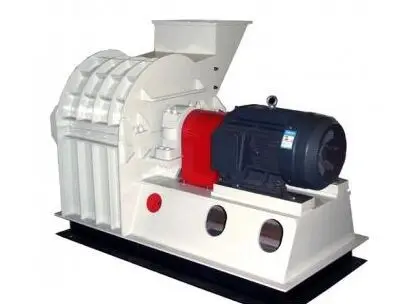

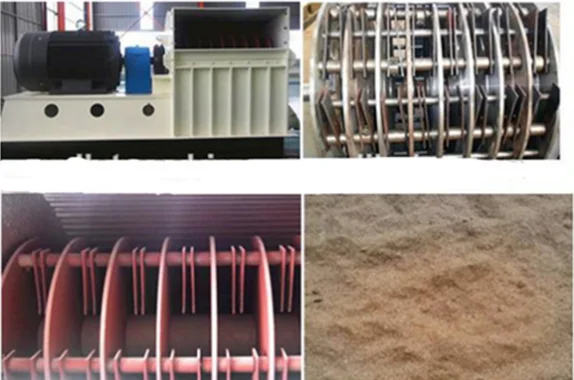

Main Structure of Taichang Brand Hammer Mill

1)     Base: Connect and support all the components of the hammer mill to form a whole. The crushed material will be sucked out by air pressure from the side of the base.

2)     Rotor: Is consisted of  the main shaft, hammer shelves, pin, hammer, bearings and other parts, is the mill's main moving parts. Rotor speed is high. The balancing test will be made under the condition of not installing the pin and the hammers.

3)     Fan Blower: Independent. The air pipe is connected with the main engine.

4)     Upper Rind: The upper part has the inlet and strip liner. Its below part connects with the base . Composition of the grinding chamber by the rotor. Materials are grinded in the crushing chamber.

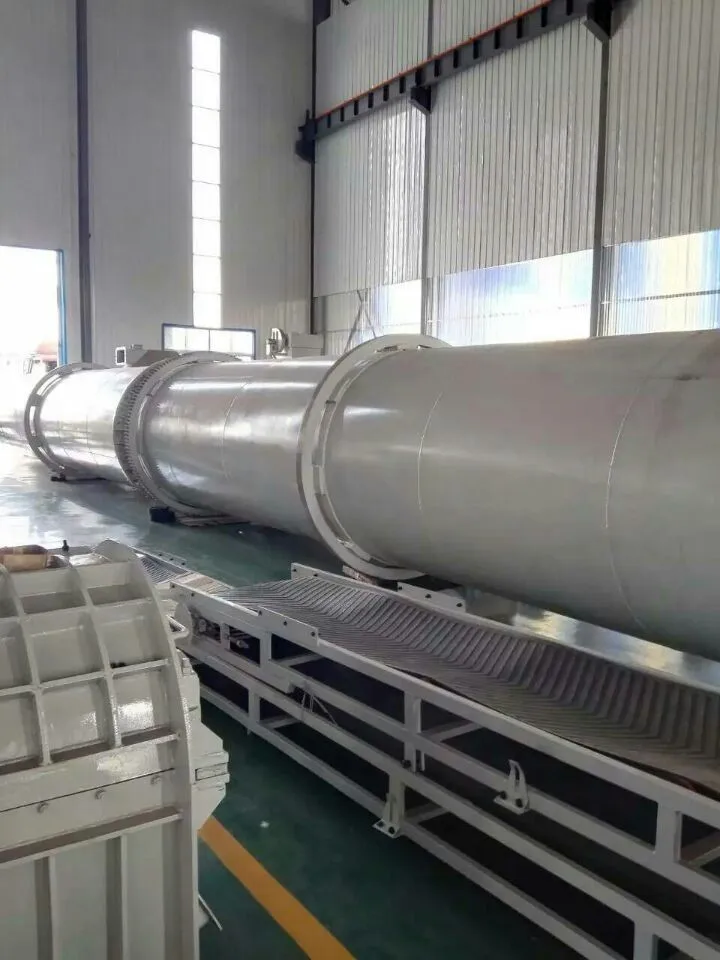

wood dryer
The wood chipps of sawdust produced by wood chipper has too much moisture which can effect the quality of pellets, so before pelletzing, a wood drying machine is needed to make the moisture reaches about 15%-18%

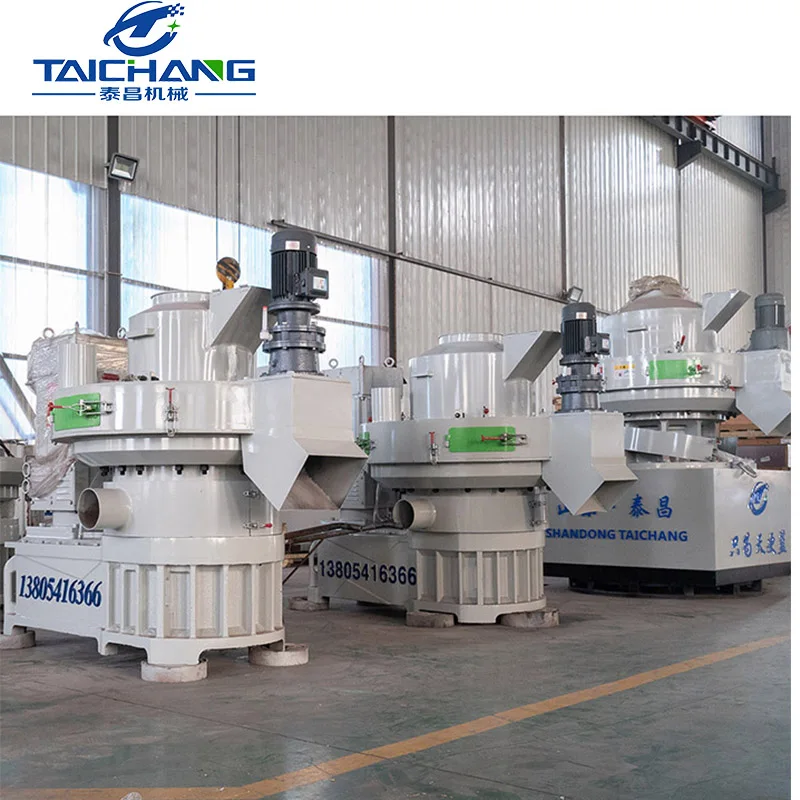

Pellet machine
The pellet fuel is a new type of bioenergy. It can replace wood, raw coal, fuel oil, liquefied gas etc and is widely used
in heating stoves, hot water boilers industrial boilers ,biomass power plants, wood processing plant, chemical plants.
1. Husks: rice husk, sunflower seed husk, peanut shell, coffee husk etc.
2. Wood: tree branches, Stem, trunks, barks, EFB sawdust, wood waste etc.
3. Crop straw: corn stalk, wheat straw, rice straw, cotton straw, etc.
4. waste: rubber, cement, ash,ect.

Advantage

1. High efficiency and output with low energy consumption

2. Movable machine with motor, creates no oily fume or pollution, of low noise

3.Die fixed, rollers rotating, materials centrifugal, evenly ditributed around

4.Double-layer die, up and down dual-use, high capacity, saving energyround

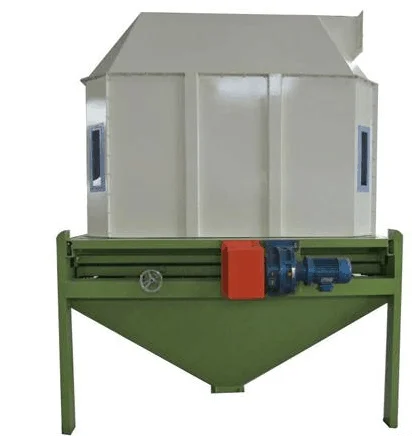

Pellet cooler
Our pellet cooler has high and low level indicator controlling high position of pellet materials in the cooling box,it is control components to stop the motor discharging.When the batch layer reached height of high level indicator,the motor start to discharging through circuit.

Pellet making mahcine

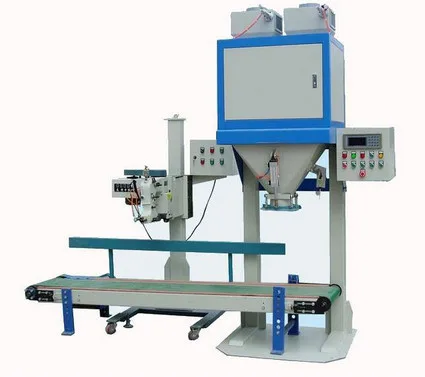

The series of machines are designed for for materials of irregular granules,non free flowing powders or granule mixture into open mouth bags. Wood pellet is feed into the surge bin from customer's hopper, then it drops into the belt though the gate of surge bin and then is conveyed to weighing hopper.



Finished Pellets of  wood pellet machine

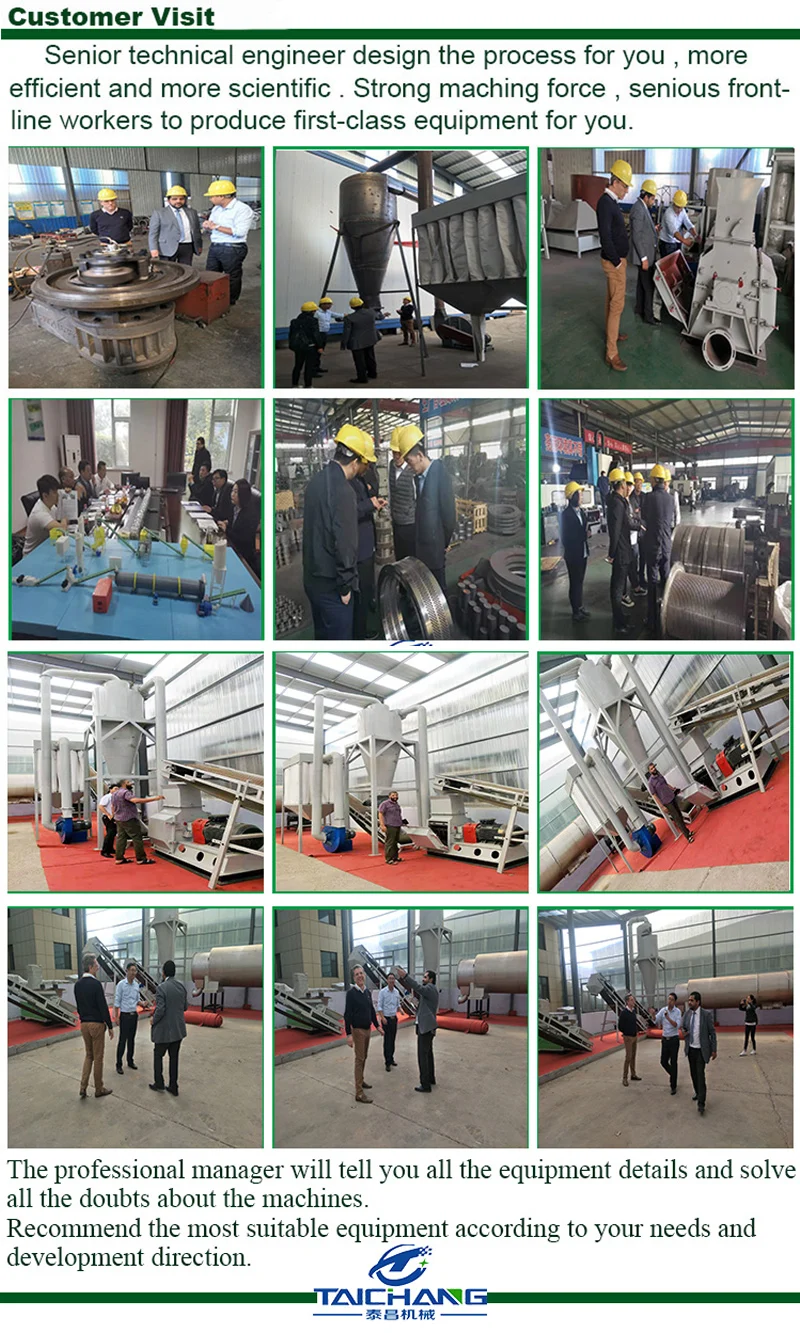

Welcome Customers Visit Our Factory

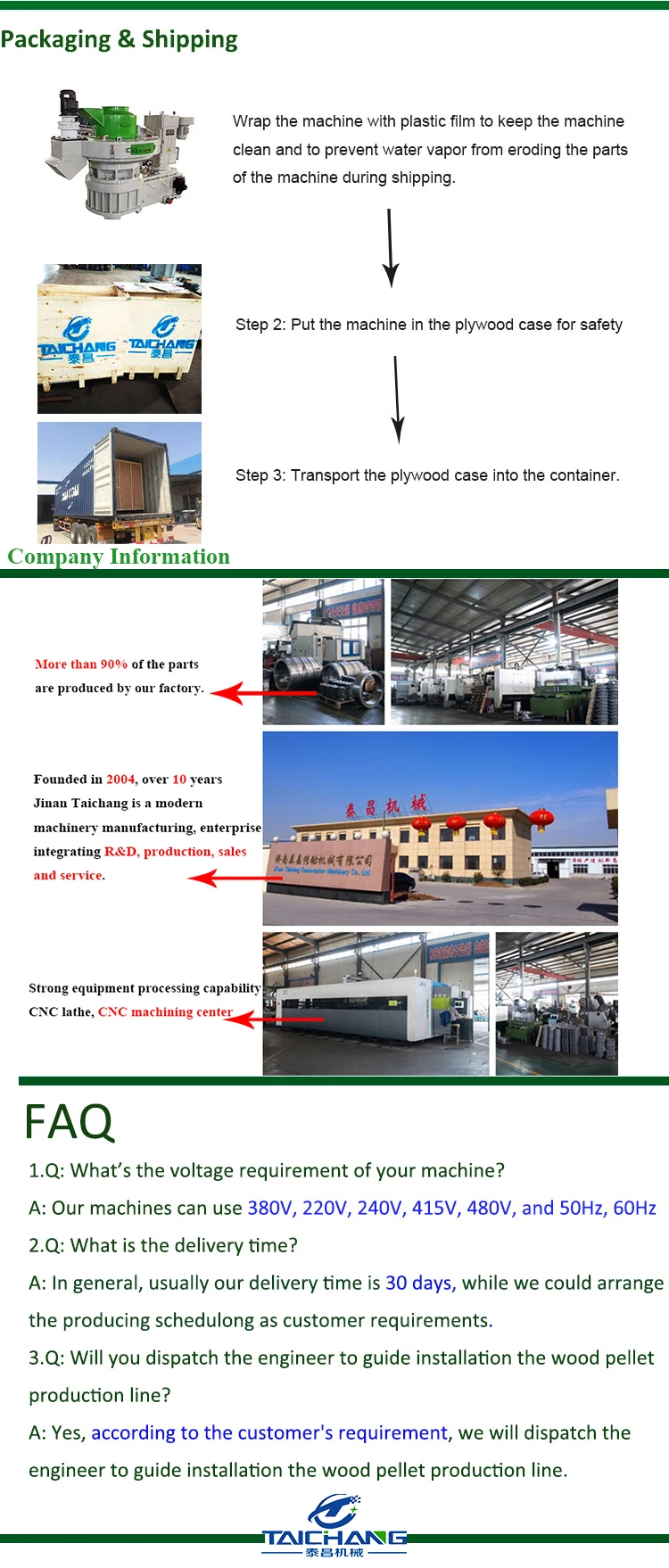

 Company Information

Jinan Taichang Transmission Machinery Co., Ltd. has 12 years of production experience.

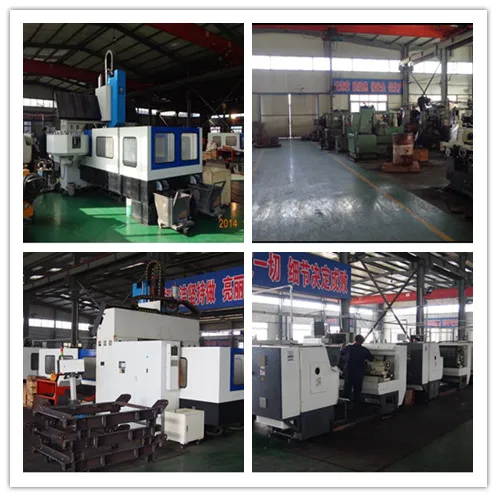

We specialize in producing particle production lines, and we have our own cnc center.

More than 90% of the parts are produced by ourselves, and the quality is absolutely guaranteed.



  Thanks for reading my information,If you have any questions, please contact me at any time , I will provide you the best service .
