Product Overview
Description
Product introduction

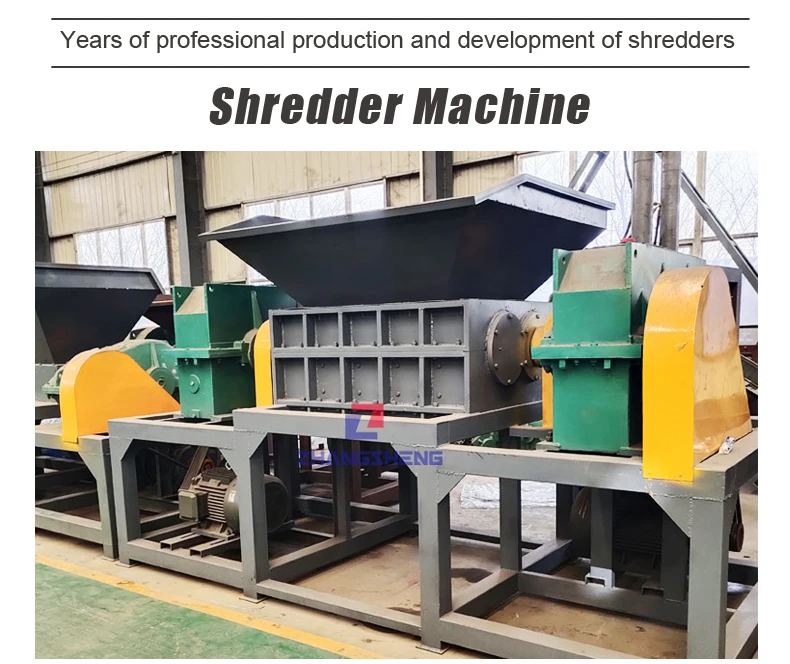

The twin-shaft shredder is mainly used for the shredding and processing of solid wastes such as bulk garbage, domestic waste, industrial waste, electronic waste, waste plastic, and scrap metal, and realizes volume reduction and secondary recycling.
Working principle
The material enters the box through the feeding system, the box carries the shredding blade, and the material is shredded into small pieces through the comprehensive action of the shredding blade, such as tearing, squeezing, and shearing, and is discharged from the lower box.

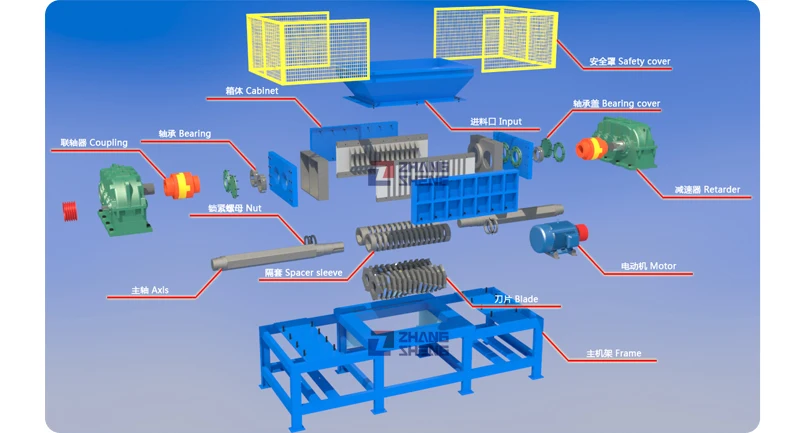

Structure Introduction
Model | Power (kw) | Rotating speed (r/min) | Capaticy (t) | Cutter diameter (mm) | Reducer | Dimensions (m) |
ZS400 | 4-11*2 | 12-25 | 1.5-1 | φ200 | 250*2 | 1.8*1.5*1.6 |
ZS600 | 4-15*2 | 10-24 | 2-3 | φ200 | 350*2 | 2.6*2*1.9 |
ZS800 | 4-22*2 | 10-24 | 3-4 | φ360 | 500*2 | 2.8*2*1.9 |
ZS1000 | 6-30*2 | 8-22 | 4-5 | φ400 | 600*2 | 3*2*1.9 |
ZS1200 | 6-37*2 | 8-22 | 6-10 | φ450 | 650*2 | 3.4*2.2*2.2 |
ZS1400 | 6-45*2 | 2-24 | 10-18 | φ520 | 750*2 | 4*3*2.4 |
ZS1600 | 6-55*2 | 8-24 | 10-18 | φ560 | 750*2 | 5*3*2.4 |
ZS1900 | 6-75*2 | 6-20 | 14-22 | φ650 | 800*2 | 6*3.5*2.5 |
ZS2200 | 6-110*2 | 6-20 | 18-26 | φ750 | 850*2 | 7.5*4*4.5 |
Applicable materials
The shredder can easily pre-shred: materials; electronic waste; metal; aluminum cans; wood; waste tires, rubber;Waste home appliances; waste paper; textiles; animal bones and organic waste.

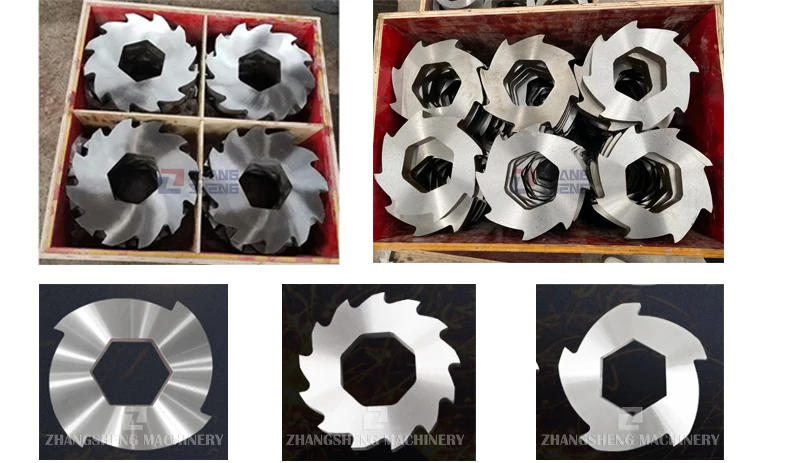

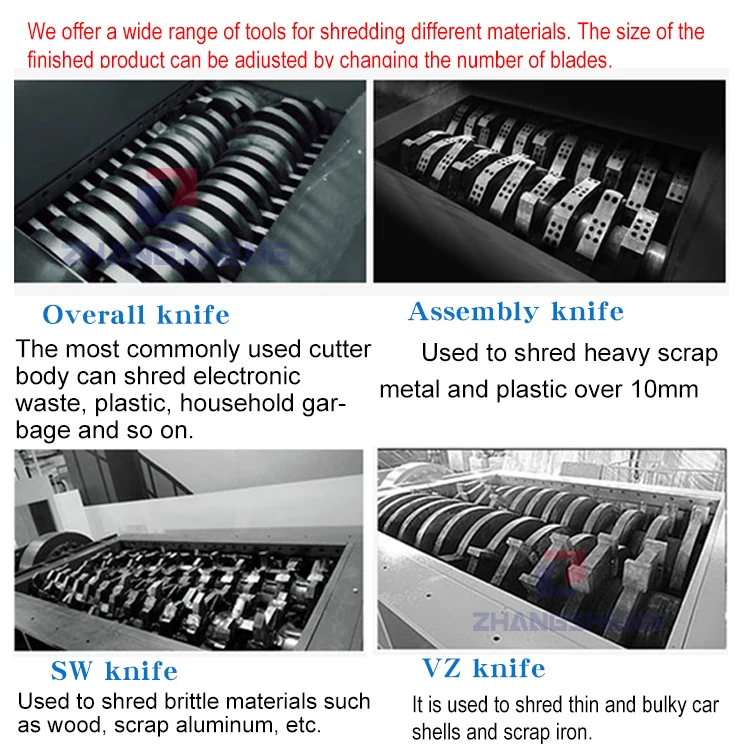

Blade selection
According to the material characteristics, choose different knife rollers to enhance the shredding effect and increase the output
1. The 10mm-20mm blade is suitable for thinner and more easily broken products, such as medical servers and circuit boards.
2. 40mm-50mm thick blade are commonly used for general products, such as plastic products, films, plastic barrels, tires, wood boards, etc.
3. Blades above 75mm are suitable for thicker plastic or metal composite products, as refrigerators, metal cans , with a thickness of less than 10m.
Details create quality

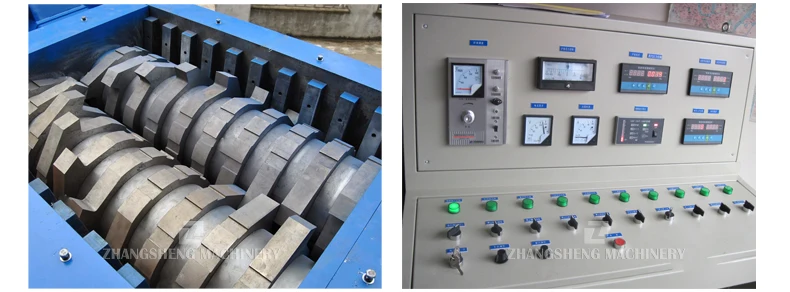

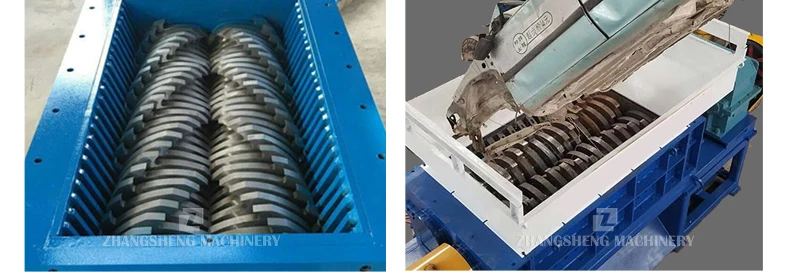

High-quality blades
By studying the thickness, shape, arrangement order, etc., a unique rotary blade is designed for processing, with strong shearing force and sharp blade. With special alloy steel tools, it can easily crush more than 50 materials.
Large feeding port
The combined structure of the extra-thick plate precision processing frame, the large-angle hexagonal column rotating shaft, and the large-diameter sturdy input hopper, so you can put large-scale raw materials.
High-strength and stable bearings
The spindle adopts 40cr quenching and tempering to enhance the stability of the spindle. The bearing seat can be easily maintained and replaced by removing the blades and other parts. The sealing structure can block the contact of broken objects and grease, handling of liquid materials can also protect the bearings and gears.
Intelligent electrical control system
The electrical control system adopts branded electrical components and an intelligent control system. It is equipped with protections such as main motor start-up protection, automatic loosening of feeding and anti-overload, motor jam and overload, automatic reverse reversal and re-shredding of materials (the number of reversal is adjustable)

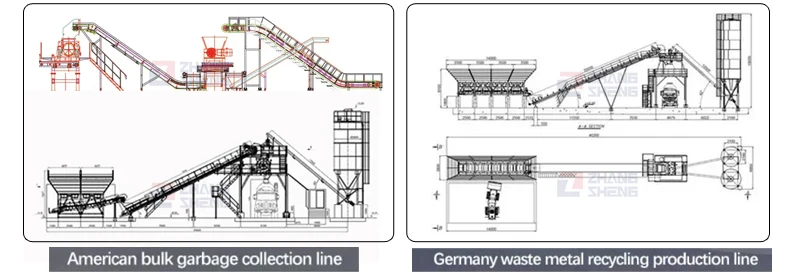

Design Scheme
We can plan the production line for you according to your raw materials and site, such as waste sorting production line,Waste recycling projects such as plastic crushing and cleaning production lines, metal crushing and sorting production lines, etc.
Packing & Delivery
Packaging and Delivery
We provide suitable packaging solutions according to the order quantity and quantity of goods to ensure no damage during transportation.
Packaging can be: plywood box, steel frame box, iron pallet..etc.
We provide suitable packaging solutions according to the order quantity and quantity of goods to ensure no damage during transportation.
Packaging can be: plywood box, steel frame box, iron pallet..etc.

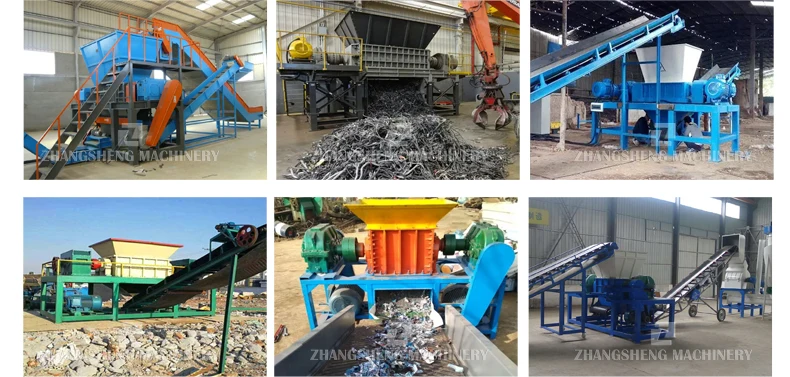

Case Show

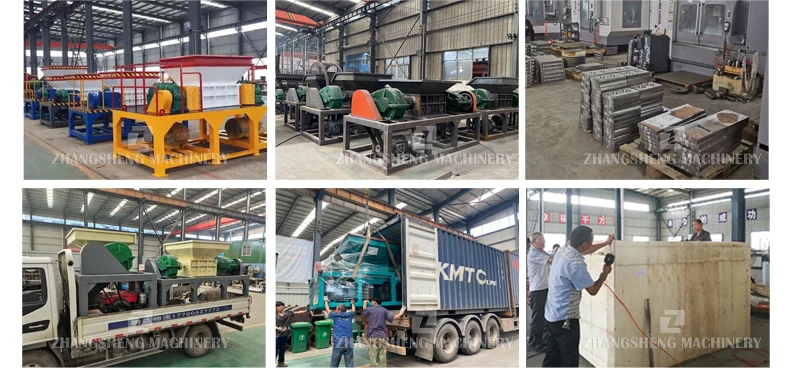

Henan Zhangsheng Environmental Protection Equipment Co., Ltd. was established in 2005, headquartered in Zhengzhou City, Henan Province, and has passed ISO and CE certification. The products have been widely exported to more than 60 countries and have been well received by customers. We understand the importance of quality and the importance of timely delivery. We know how to survive and thrive because we always focus on long-term development.
3 sets of high-power laser cutting machines can meet the material preparation work of 1,000 sets per month.
5 imported CNC lathes, with fast processing speed and high precision of workpieces.
Five dynamic balancing machines ensure that the rotors of each crusher are accurately calibrated.
Has an assembly workshop of 5,000 square meters Meet the monthly production task of 1,000 units.
5 imported CNC lathes, with fast processing speed and high precision of workpieces.
Five dynamic balancing machines ensure that the rotors of each crusher are accurately calibrated.
Has an assembly workshop of 5,000 square meters Meet the monthly production task of 1,000 units.
As a professional OEM and exporter of wood chippers, Zhangsheng has exported to more than 45 countries. All shredder machine have CE certification of TUV-SUD and TUV-Rheinland. The total number of shredder machine exported to Europe and North America each year is more than 1000 units..
FAQ
Q1:What payment methods do you accept?
We support various payment methods, we can accept 20% or 30% as deposit. If it is a return order, we can receive 100% payment by copy B/L.
Q2:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10 days for goods with sufficient inventory. If you need to customize the equipment, it takes 20-30 days. We will do our best to deliver as soon as possible.
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service. After this period, we will charge a lower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust.
Q2:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10 days for goods with sufficient inventory. If you need to customize the equipment, it takes 20-30 days. We will do our best to deliver as soon as possible.
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service. After this period, we will charge a lower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust.
