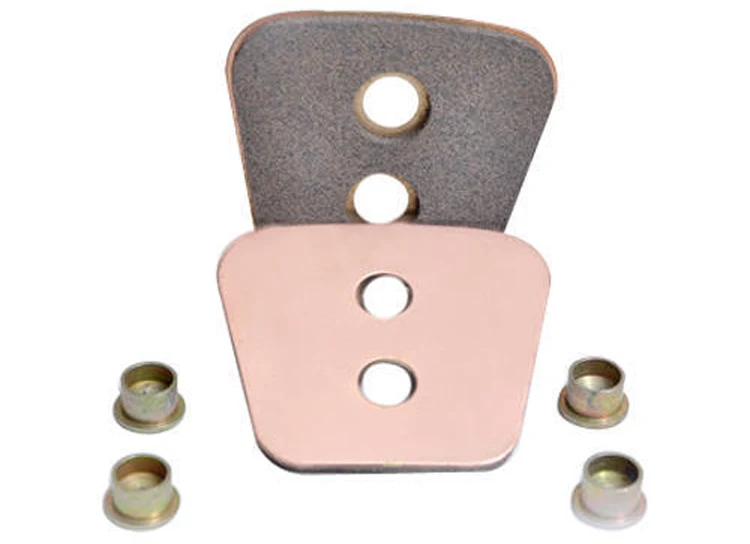

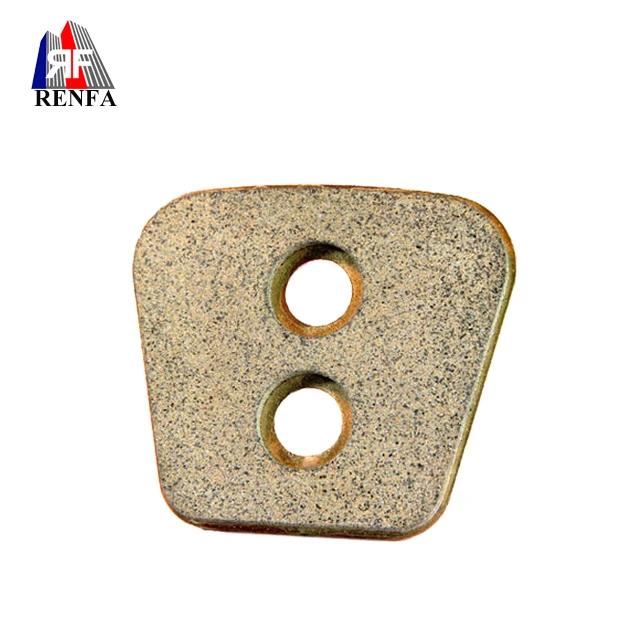

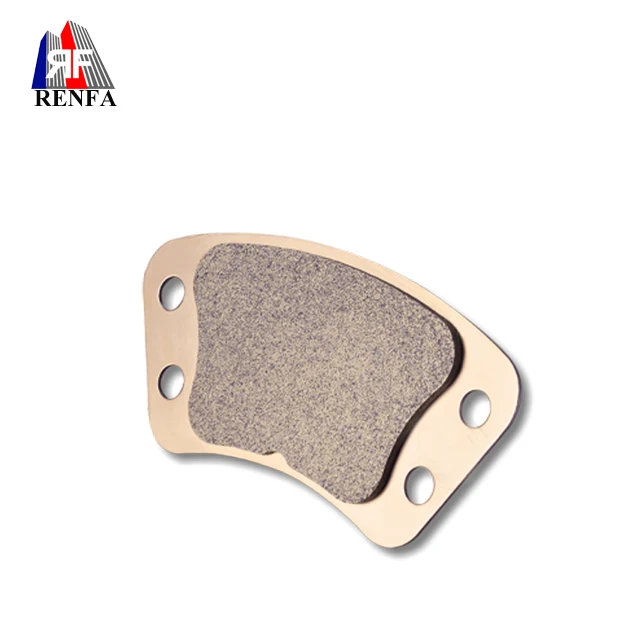

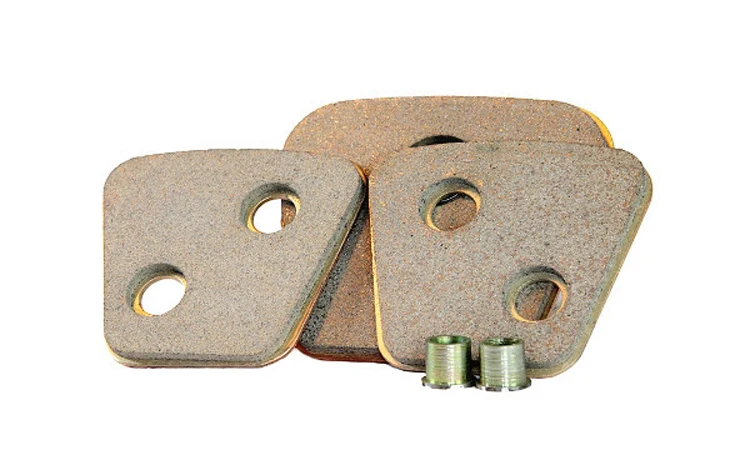

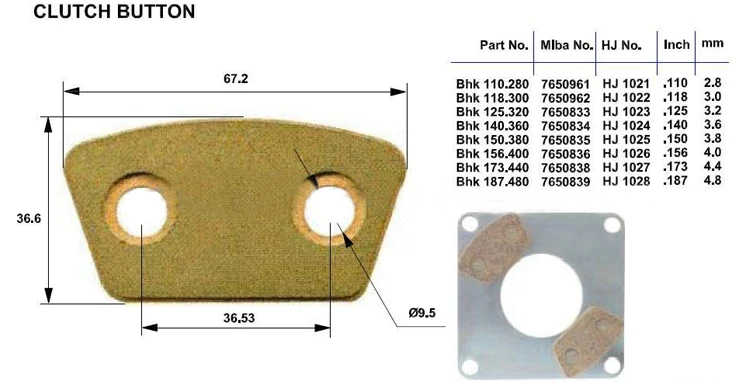

Ceramic Clutch Disc Clutch Button with Rivet

Product Overview

Description

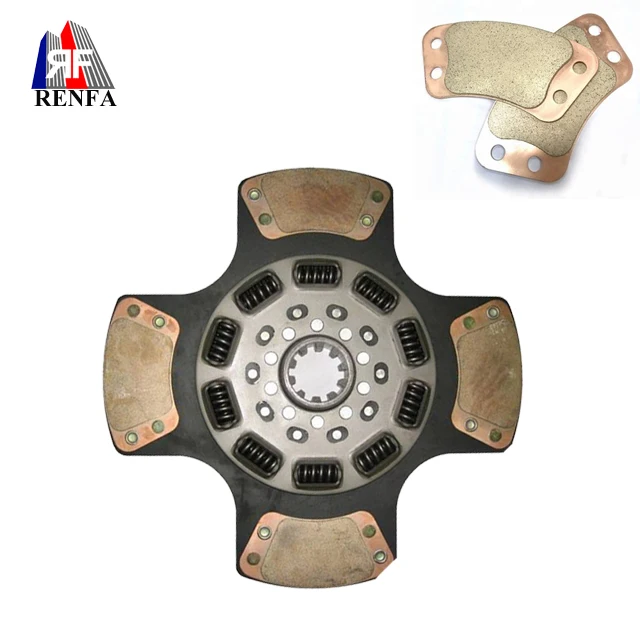

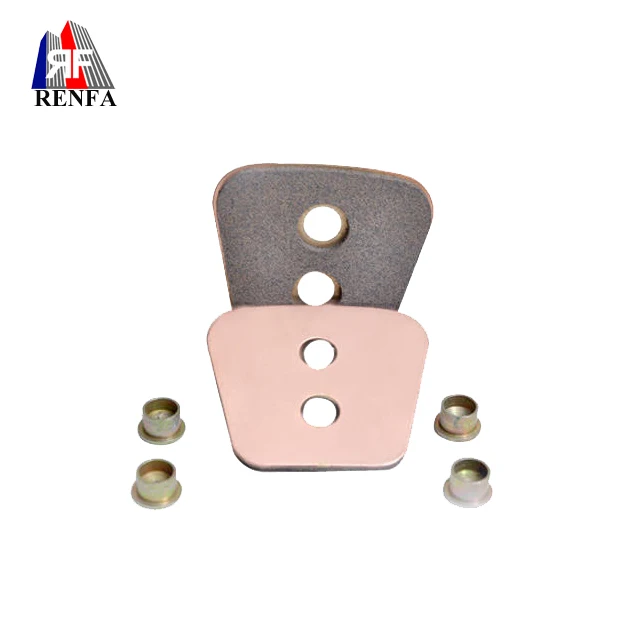

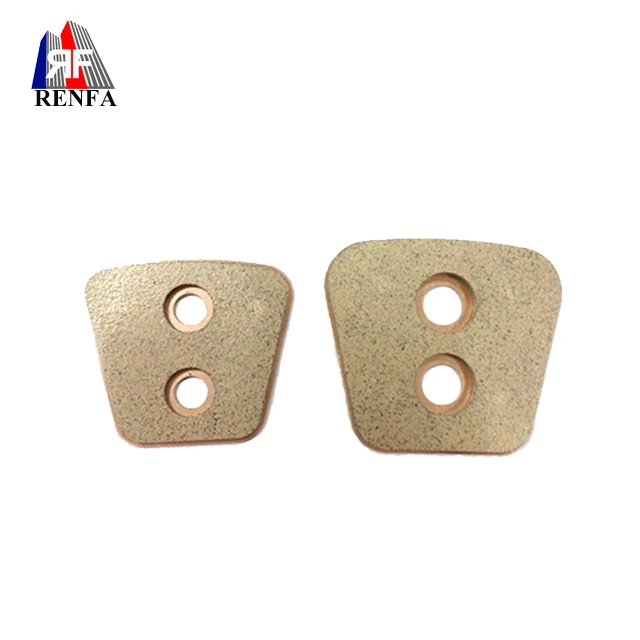

Ceramic Clutch Disc Clutch Button with Rivet

Product Description

Item	Clutch Button
Model	VSR series
Size:	Standard size or customized
Application:	Clutch assembly for car,truck and trailer
Material:	Copper, Semi-metallic, Ceramic etc
Dynamical friction coefficient (µd)	≥ 0.20
Static friction coefficient (µS)	≥ 0.25
Wear out rate (m3/J)	≤ 3×10-13
Density of friction layer (g/cm3)	5.5-6.4
Apparent hardness (HB)	25-50
Difference of apparent hardness (HB)	≤ 20
Procress	Mixing powder-Forming-Sintering-Sizing-After treatment-Carbonitriding quenching treatment-Oil impregnant-Packing-Shipping

Features

1. Sintered clutch button with stable coefficient of friction, resistance to high temperature.

2. Low wear, no noise with stand high operating temperature.

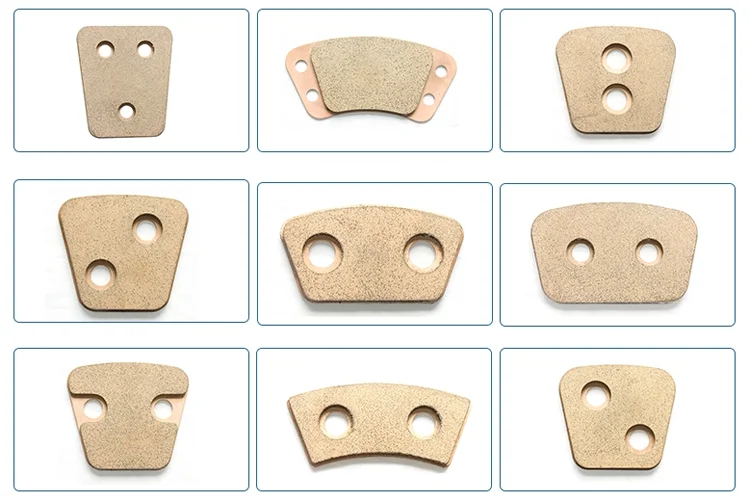

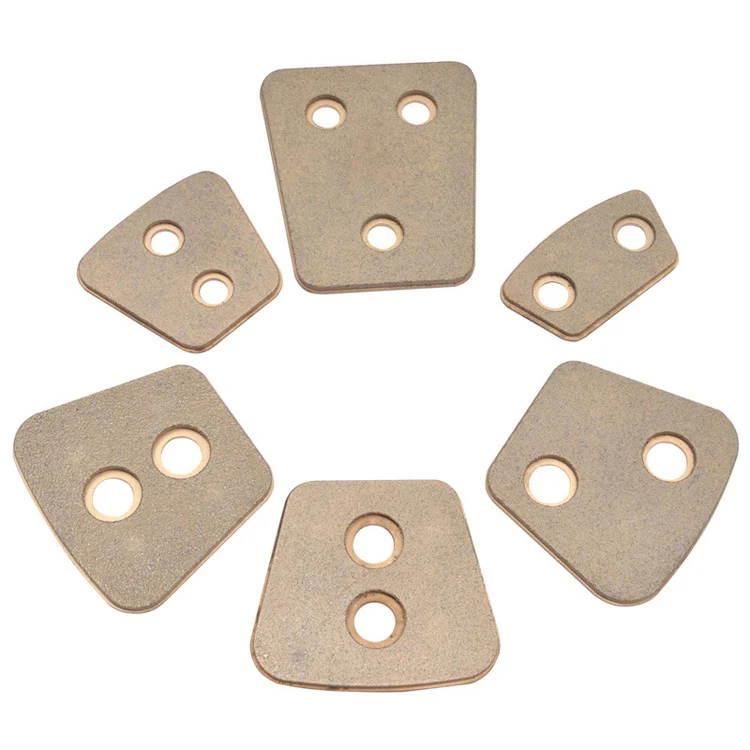

3. Various kinds sizes and thickness of clutch buttons are available.

4. Clutch buttons with copper material, can make as per your sample and drawing.

5. Very competitive prices, can do customized printing and packing

6. We can offer many kinds of clutch button  for car,truck and tractor.
