Custom Made Oem Carbon Steel Ball Eye For Overhead Line Fitting
- Category: >>>
- Supplier: Hebei Jinyong Power Equipment Manufacturing Co. Ltd.
Share on (62404305709):
Product Overview
Description
Custom Made Oem Carbon Steel Ball Eye For Overhead Line Fitting.
Product Description

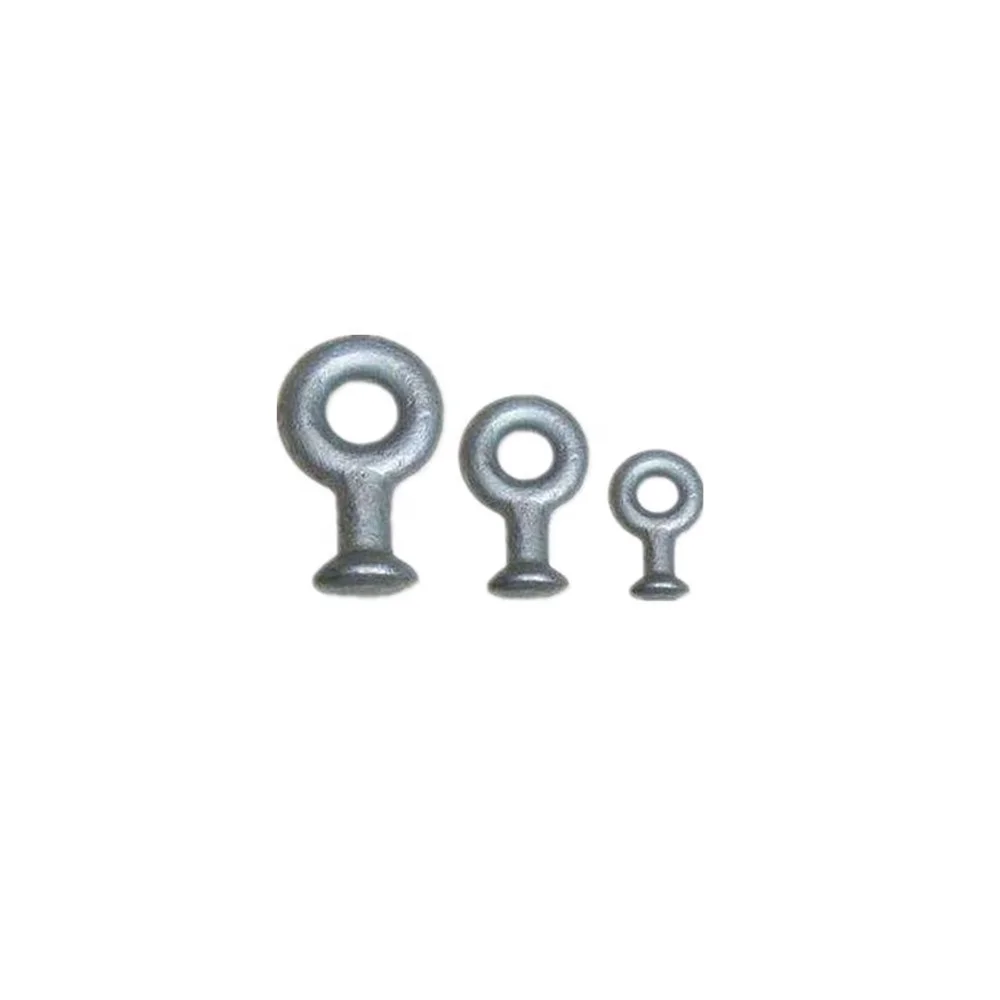

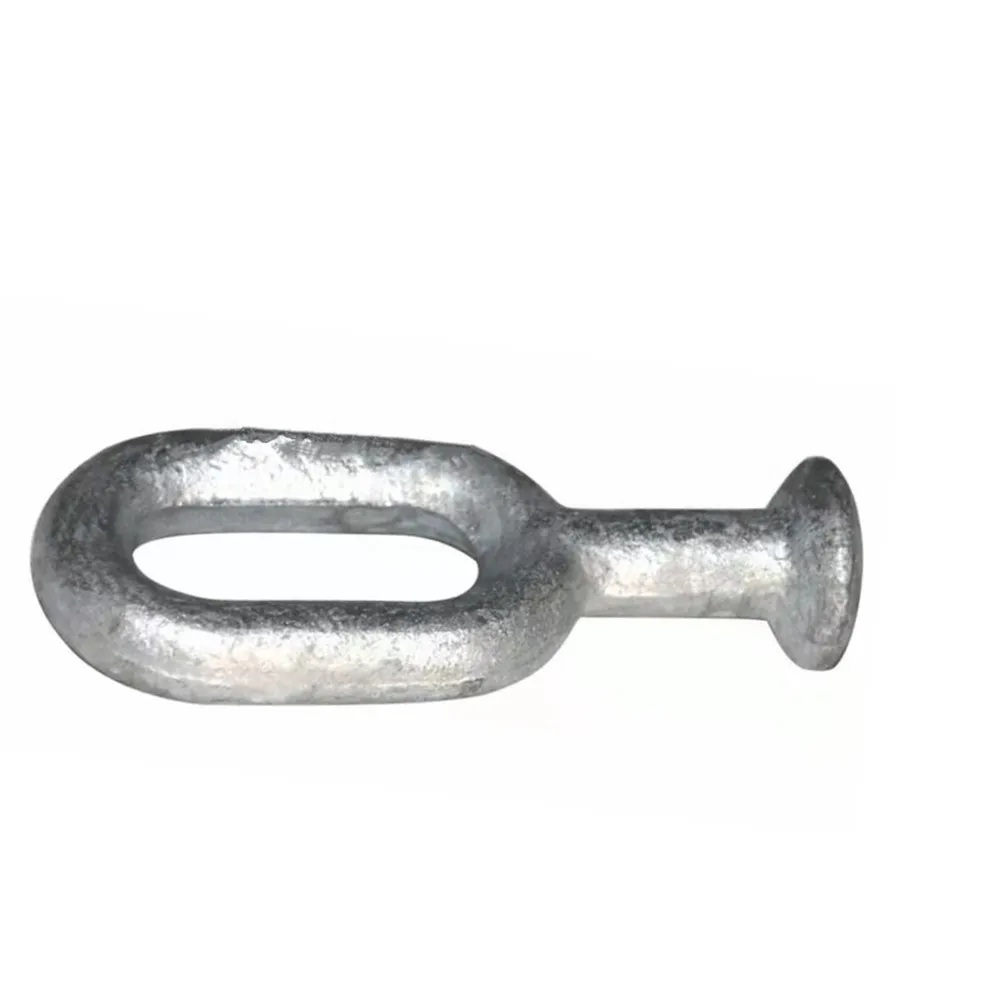

1.The photo of the Ball Eye For Link Fitting
2.The specification of the Ball Eye For Link Fitting
| Product name | Ball Eye For Link Fitting |
| Type | Q-7 |
| Size | M16 |
| Material | steel |
| Break strength | 70kn |
| Finishing | Hot-dip galvanized |
| Application range | Low voltage |
| Zinc thickness | more than 86micron |
| Standard | ISO 1461 |
| MOQ | 100PCS |
| Near Port | Xingang port |

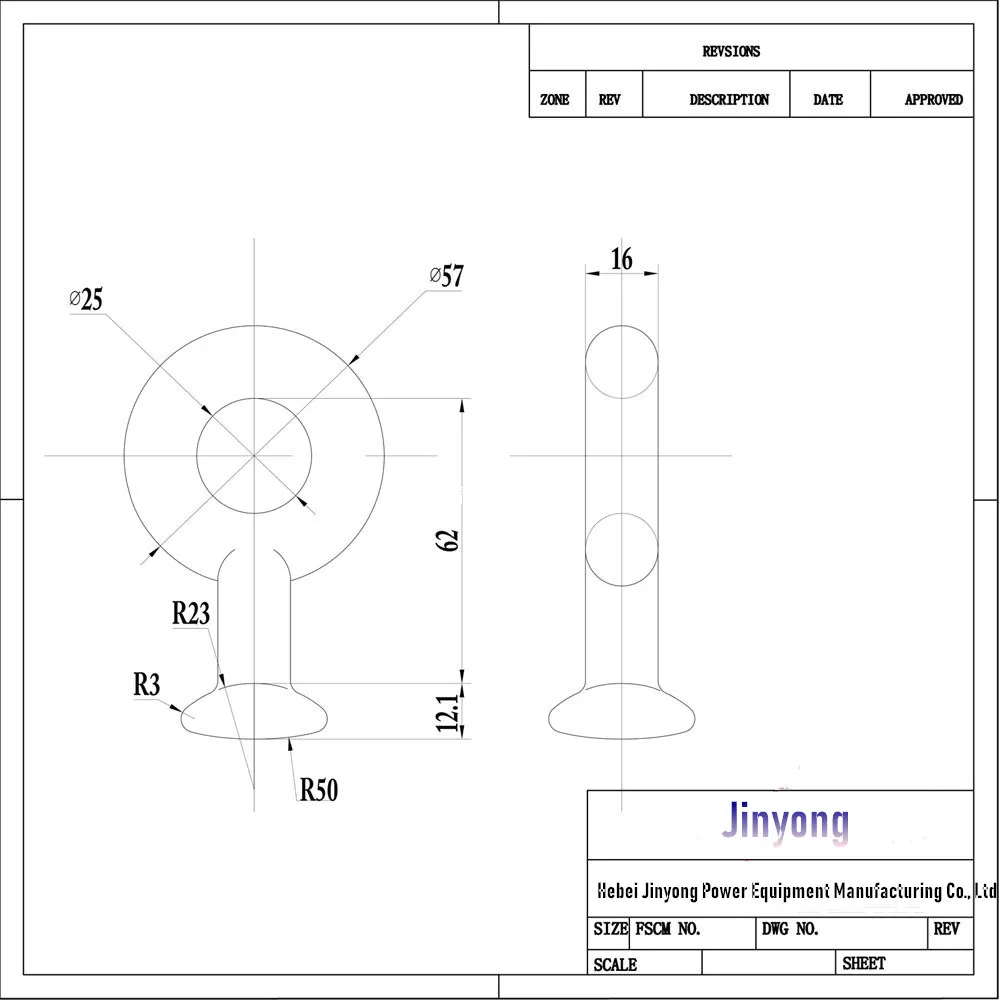

3.The Drawing of the Ball Eye For Link Fitting
5.The Different types of Ball Eye For Link Fitting
Type | Dimensions(mm) | Load(KN) | Weight | ||||
d | Φ | b | d1 | h | |||
Q-7 | 17 | 22 | 16 | 33.3 | 50 | 70 | 0.3 |
QP-7(0750) | 17 | 18 | 16 | 33.3 | 50 | 70 | 0.3 |
QP-10(1050) | 17 | 18 | 16 | 33.3 | 50 | 100 | 0.3 |
QP-12(1260) | 17 | 24 | 20 | 41.0 | 60 | 120 | 0.5 |
QP-12G | 17 | 24 | 17 | 33.3 | 60 | 120 | 0.4 |
QP-16 | 21 | 26 | 20 | 41.0 | 60 | 160 | 0.5 |
QP-16G | 21 | 26 | 18 | 41.0 | 60 | 160 | 0.5 |
QP-20 | 25 | 30 | 24 | 49.0 | 80 | 200 | 1.0 |
QP-21D | 21 | 30 | 24 | 41.0 | 70 | 210 | 0.9 |
QP-30 | 25 | 39 | 28 | 49.0 | 80 | 300 | 1.1 |
QP-2120G | 21 | 26 | 20 | 41.0 | 80 | 210 | 0.7 |
QP-3224G | 25 | 33 | 28 | 49.0 | 80 | 320 | 1.2 |
QP-4228G | 29 | 39 | 32 | 57.0 | 100 | 420 | 1.5 |

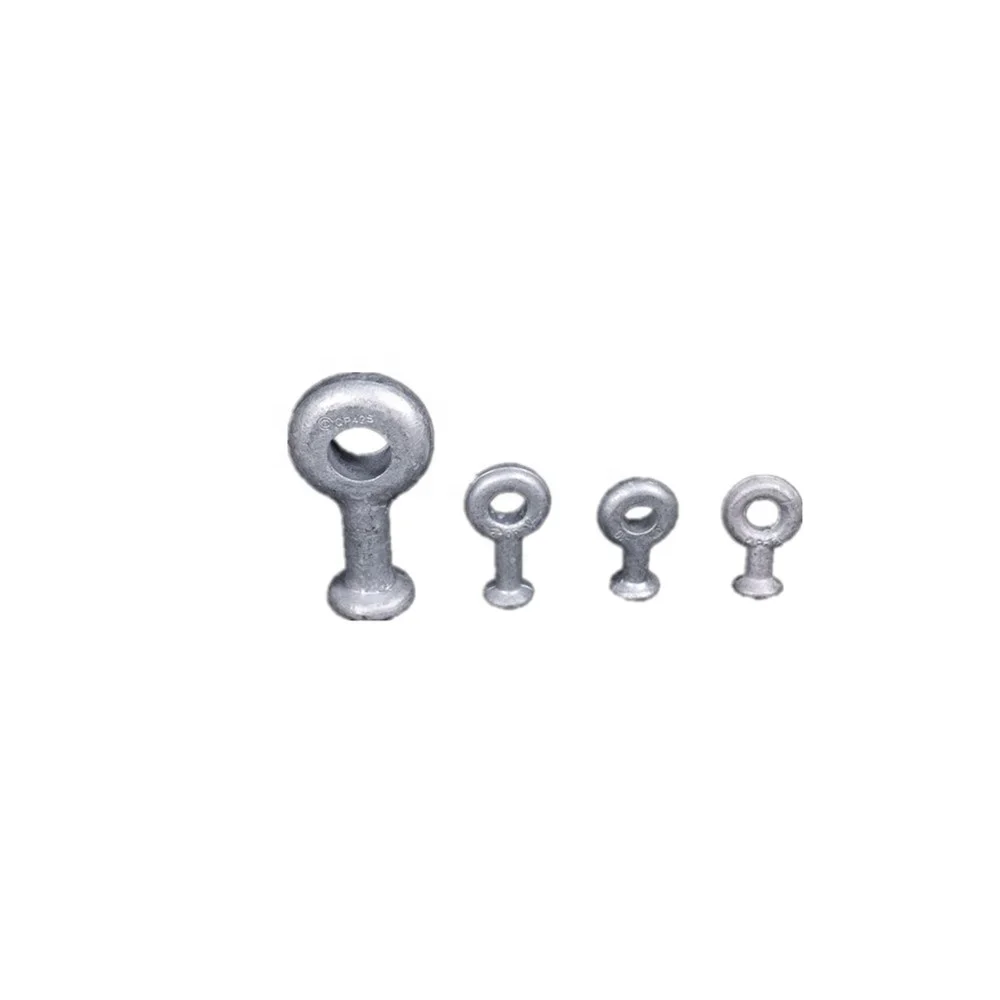

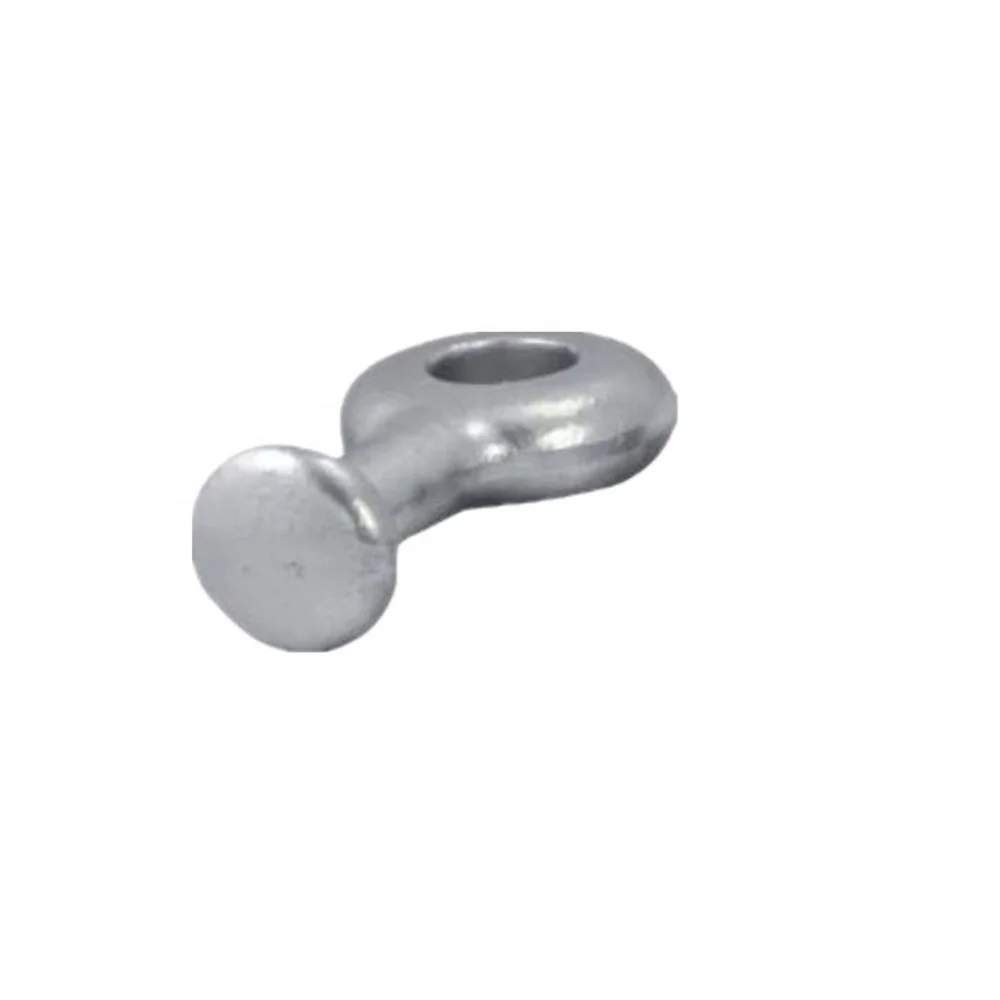

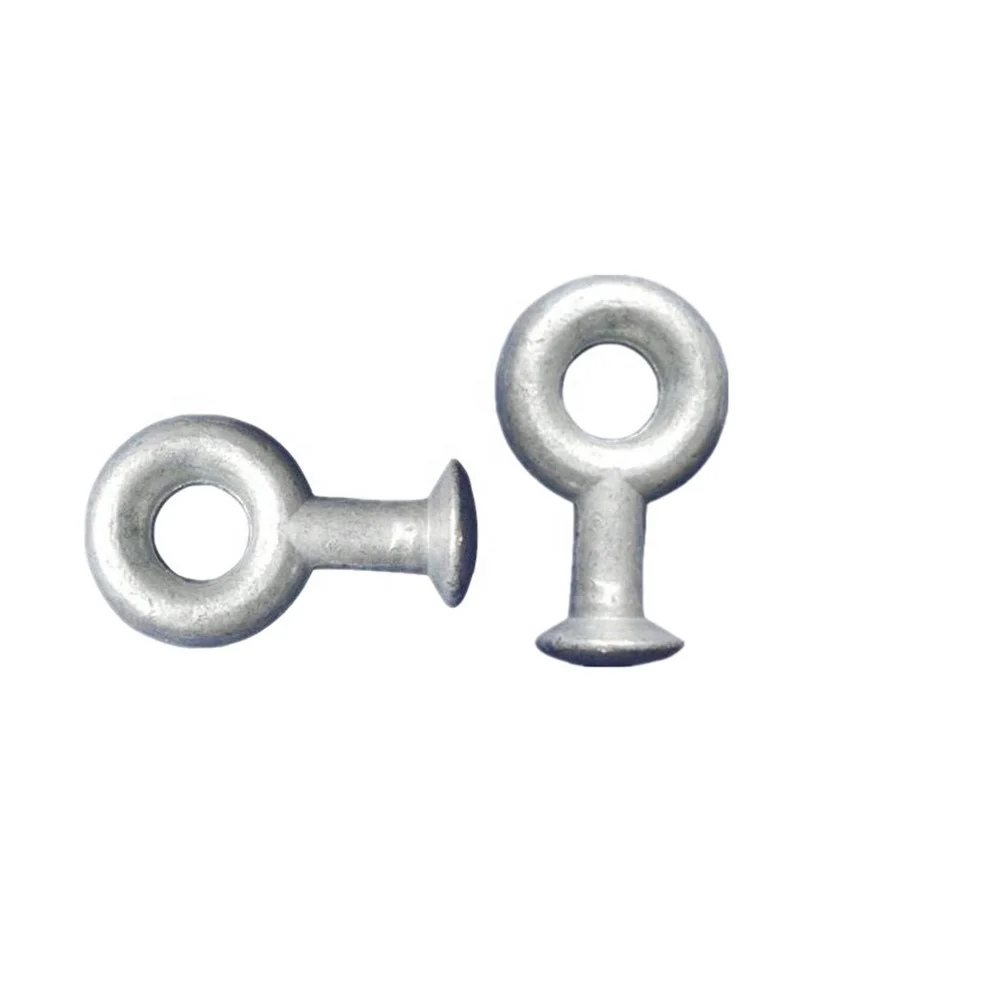

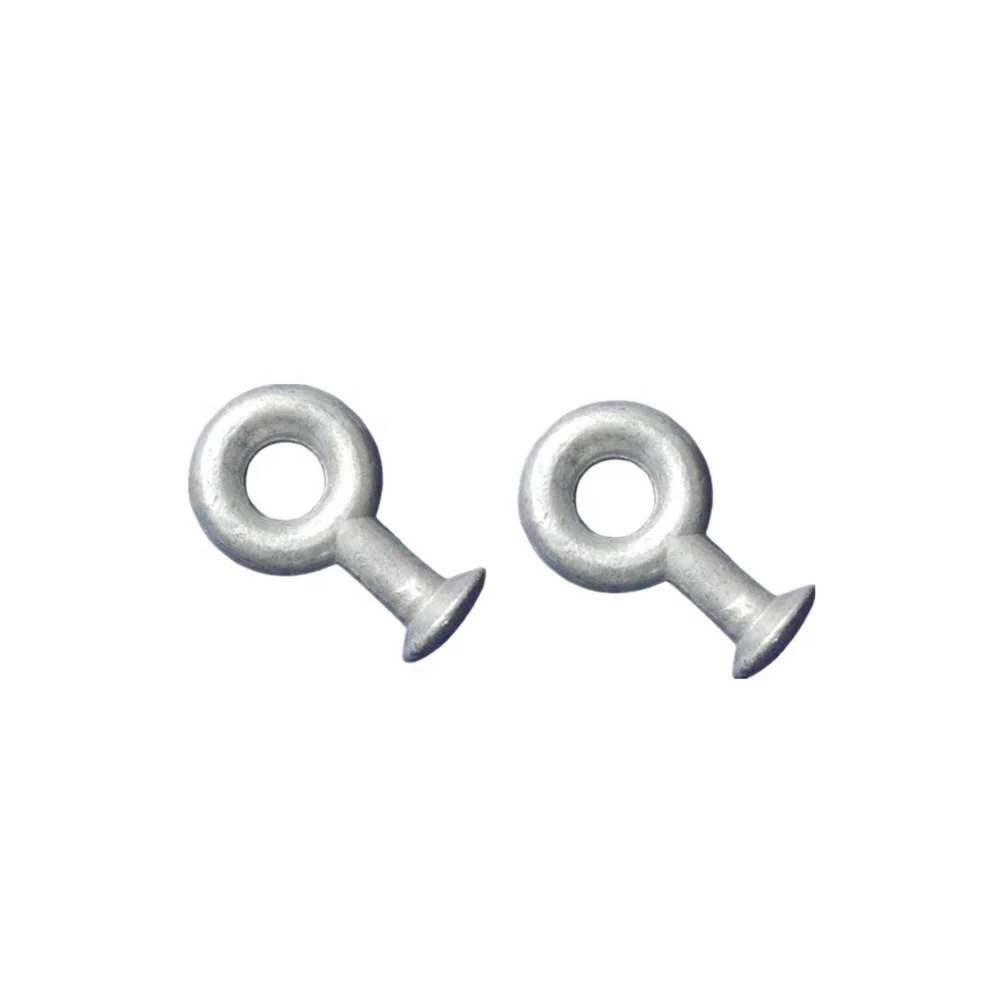

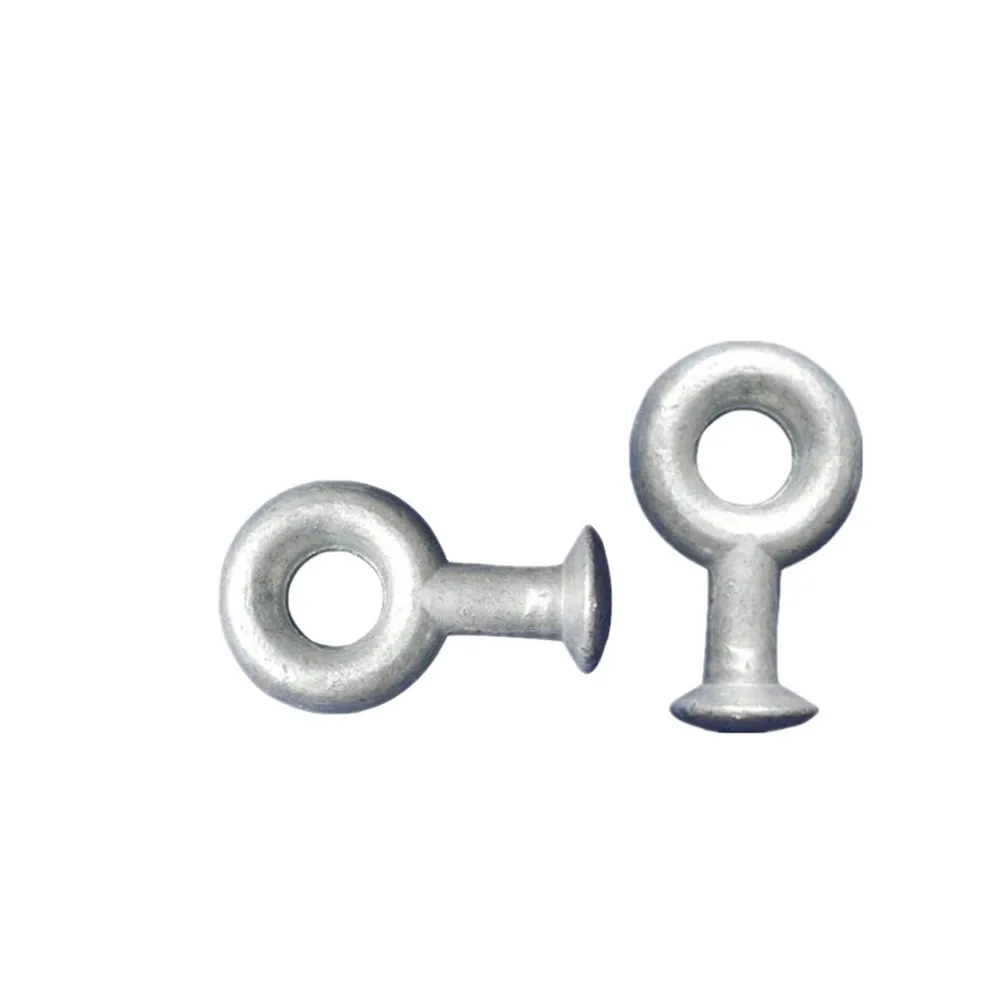

6.The other pictures of the Ball Eye For Link Fitting
7.Service conditions of Ball Eye For Link Fitting
Environmentally, the region where the work will take place is a coastal area subject to an
overall medium relative humidity, which can give rice to condensation. Onshore, winds
are frequently salt laden. On Occasions, the combination of salt and condensation may
create pollution condition for cross arm.Therefore, cross armwas designed and
protected for used in exposed,pollued,salty atmosphere.
