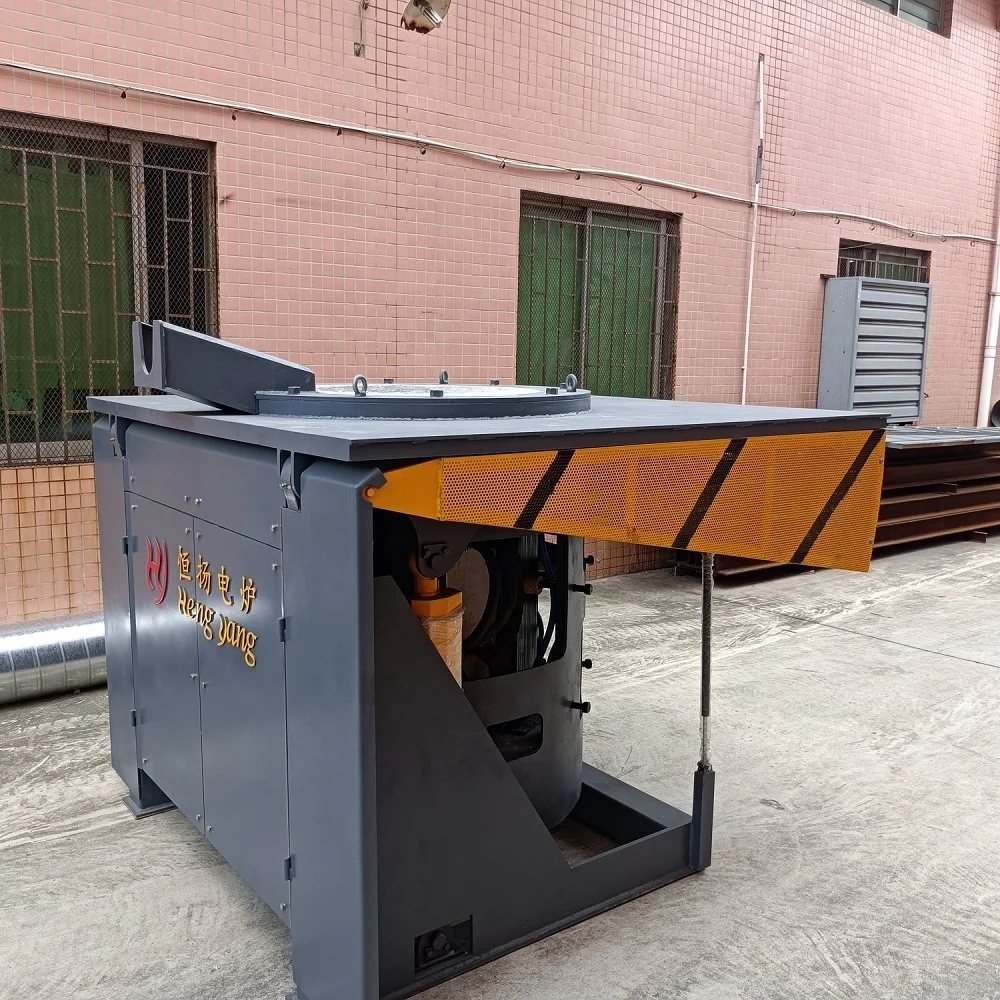

1500 degrees 1000kg cast iron melting induction furnace with crucible mold
1500 degrees 1000kg cast iron melting induction furnace with crucible mold
1500 degrees 1000kg cast iron melting induction furnace with crucible mold
1500 degrees 1000kg cast iron melting induction furnace with crucible mold
1500 degrees 1000kg cast iron melting induction furnace with crucible mold
1500 degrees 1000kg cast iron melting induction furnace with crucible mold
1500 degrees 1000kg cast iron melting induction furnace with crucible mold

1500 degrees 1000kg cast iron melting induction furnace with crucible mold

Share on (62404320208):


Price:$18,000.00 - $18,500.00

Quantity:


Product Overview

Description



Application


What we can provide?
Provide melting furnace of superior performance and outstanding durability for your melting workshop. Various models are available to meet special requirements about investment casters, specialty foundries and the precious metals industry. The heavy steel shell furnaces are designed to provide furnaces with maximum rigidity and strength for capacities up to 30MT.


Product Description








All models list


Model
(Furnace capacity)
Input power 50Hz
(Furnace capacity)
Rated Power
( KW )
Rated Voltage
( V )
Rated Current
( A )
Transformer capacity
( KVA )
GW-0.05T
50
380
80
65
GW-0.1T
100
380
160
120
GW-0.15T
160
380
256
250
GW-0.2T
160
380
256
250
GW-0.25T
200
380
320
250
GW-0.35T
250
380
400
315
GW-0.5T
350
380
560
400
GW-0.75T
500
380
800
630
GW-1T
750
380
1200
1000
GW-1.5T
1000
380
1600
1250
GW-2T
1400
750
1078
1600
GW-3T
2000
750
770*2
2500
GW-5T
3000
950
912*2
4000
GW-10T
5000
1000
1443*2
6300
GW-15T
8000
1000
1154*4
10000
GW-20T
10000
1000
1443*4
12600
GW-30T
15000
1000
2165*4
16000


Remark
1. Furnace capacity is designed based on the density of steel (7.8g/cm³)
2. Aluminum shell furnace capacity range: 0.05T-5T; steel shell furnace capacity range: 0.5T-30T.
3. The above data is about standard furnaces. Furnaces can be customized in different power and capacity according to customer's need.




DETAILS DISPLAY

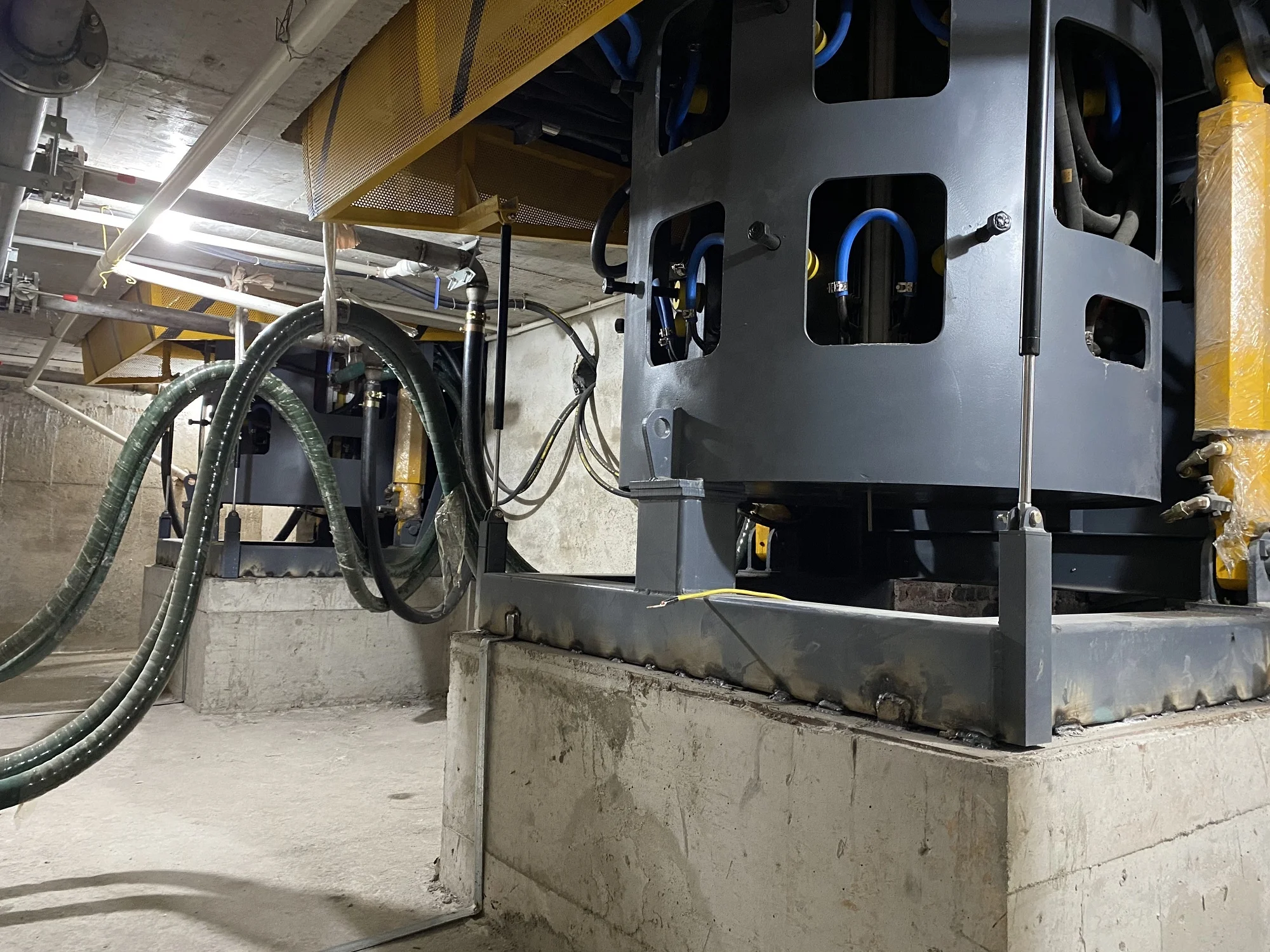

Furnace basicly includes: steel frame, induction coil, magnetic yoke
Configuration includes: anti-falling device, dust collector,furnace linning release device, weighing system,  leakage-alarm device, slag reclining system, etc.

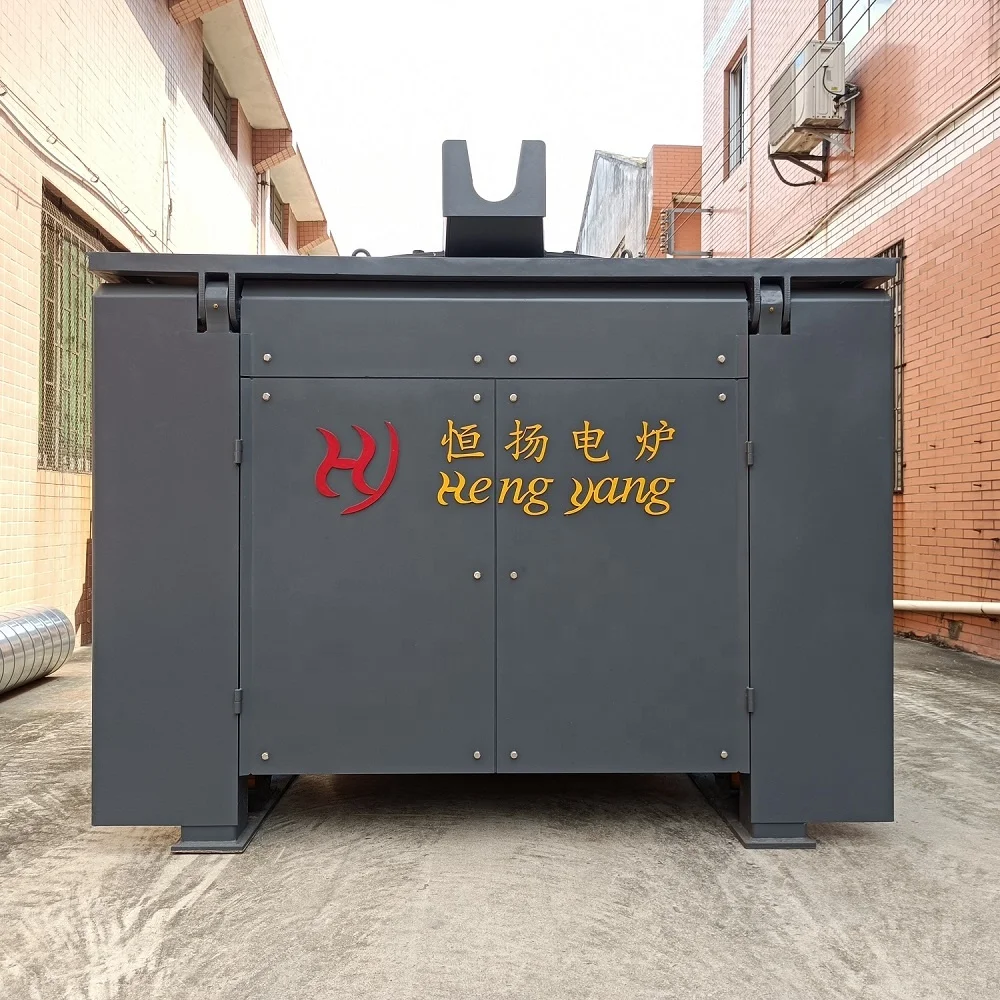

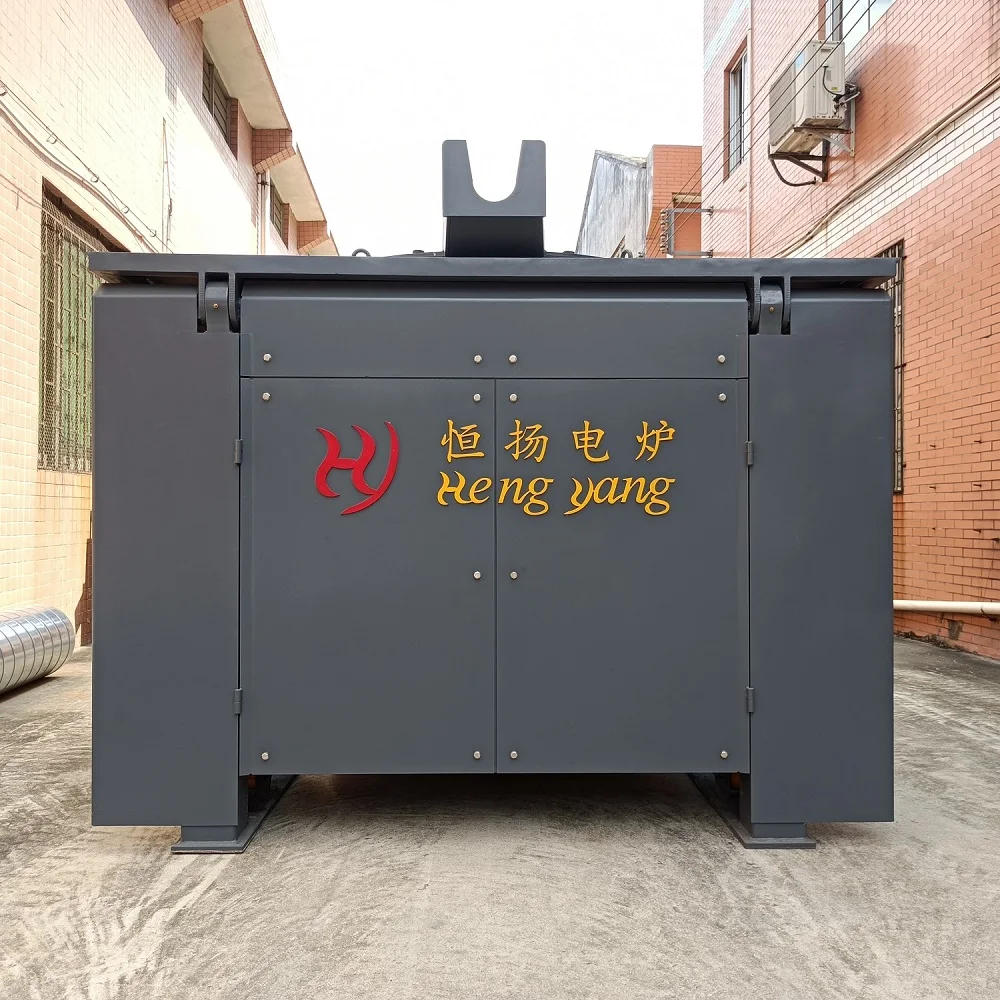

Steel frame
1. Stong enough to used for 15 years. Welded by two cylinder with thick seamless rectangular steel tube;
2. Its tilting maximum angle is over than 95 degrees,
3. with vacuum cover(heat preservation cover), the upper components can be disassembled to facilitate the repalcement of the coil.

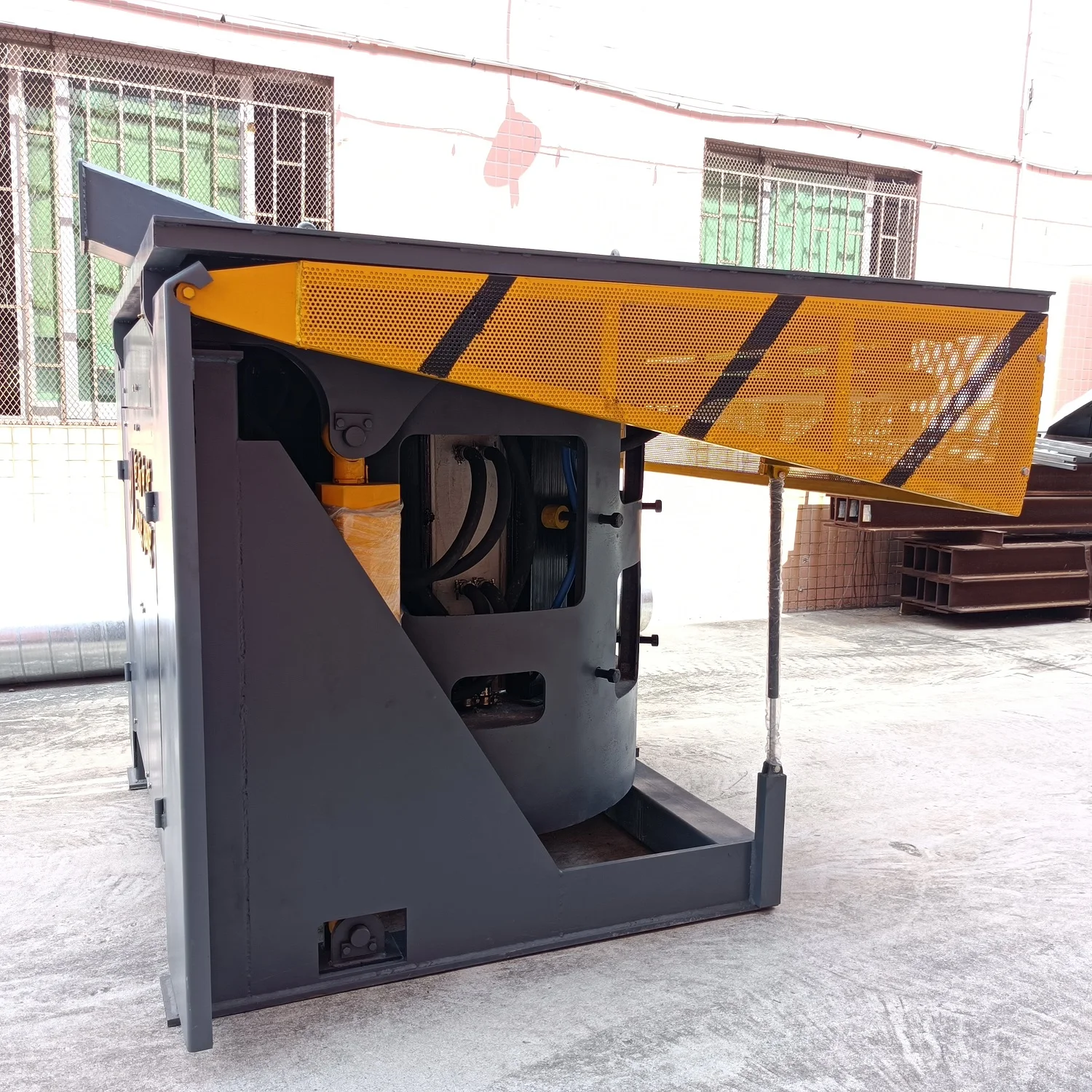

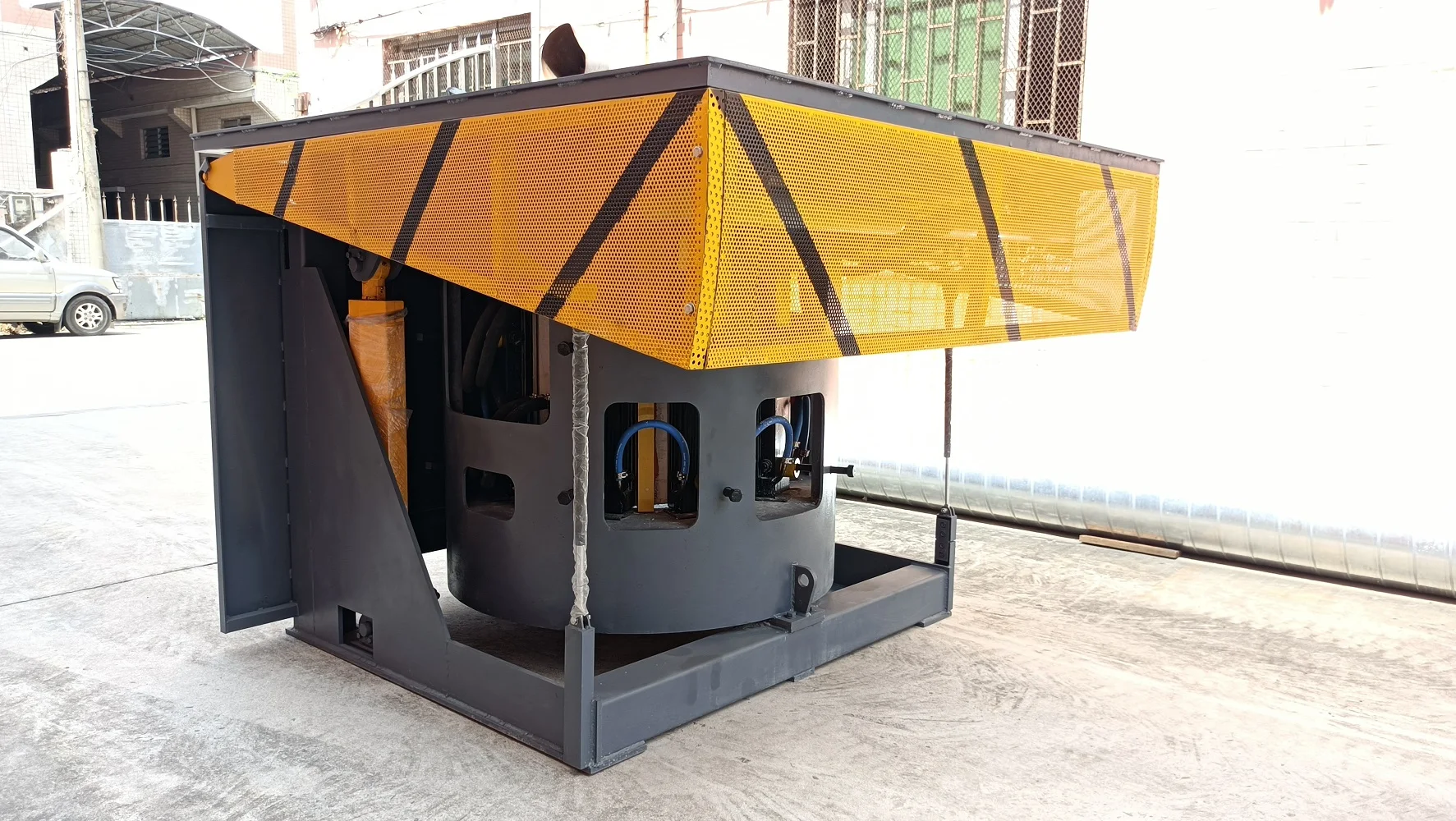

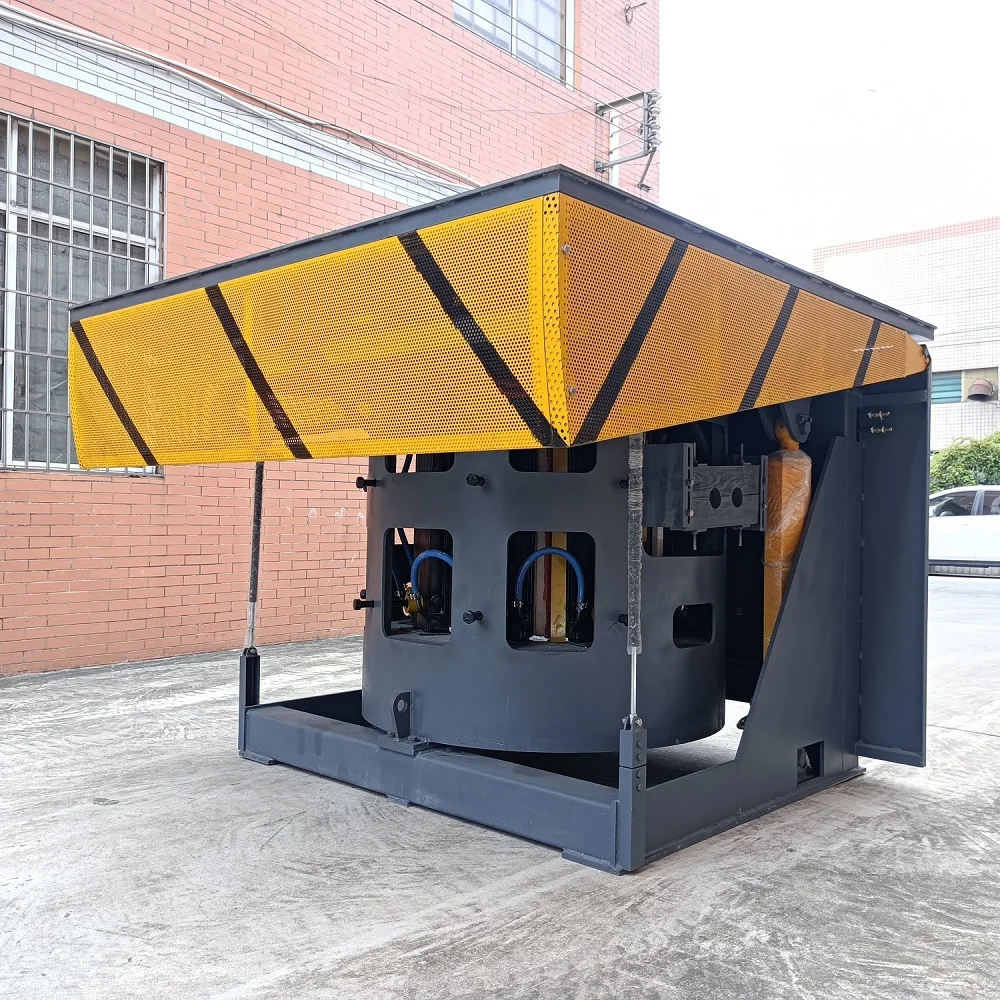

Furnace anti-fall protection device

During the process of tilting furnace, the anti-fall protection device will automatically raise to form a protective fence to prevent workers from falling and to engure their safety.


Magnetic yoke
1. The induction coil is surrounded by a solid oriented yoke. This design eliminated heating from outside.
2. The yoke greatly support the induction coil to engsure long working life of the lining;
3. There are flow display, temperature display and temperaure pretection for the water circle of the yoke;
4. The yoke covers over more than 70% area, case least magnetic flux leakage, can save about 5% electricity.

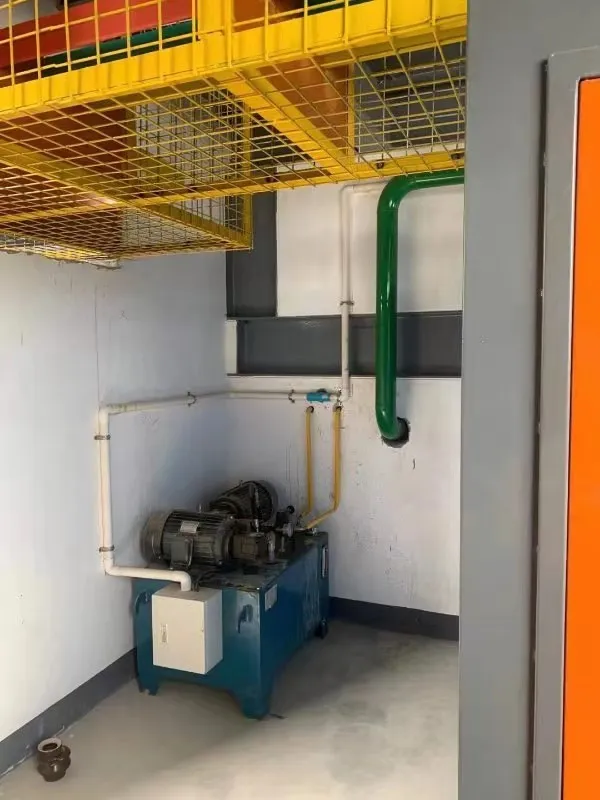

Hydraulic station


1. Technical control. Just need to control the buttons and the handle to achieve tilting, stop, and reset.
2.Furnace can be tilted in 95 degrees to pour out all the metal liquid;
 3. Furnace can be controled to stay in any position to pour；
4. Easily to control the tilting speed of the furnace


Cyclone dust hood
Cyclone dust hood has excellent vacuuming effect, takes
up less space, can be tilted forth and back and stay in any position, being applicable to the fully automated feeding
and discharging production line.
Dust right
Dust ring can not tilt forth and back, with more simple structure. It is suitable for semi-automatic or manual feeding and discharging production line in which dust
hood can not be used.

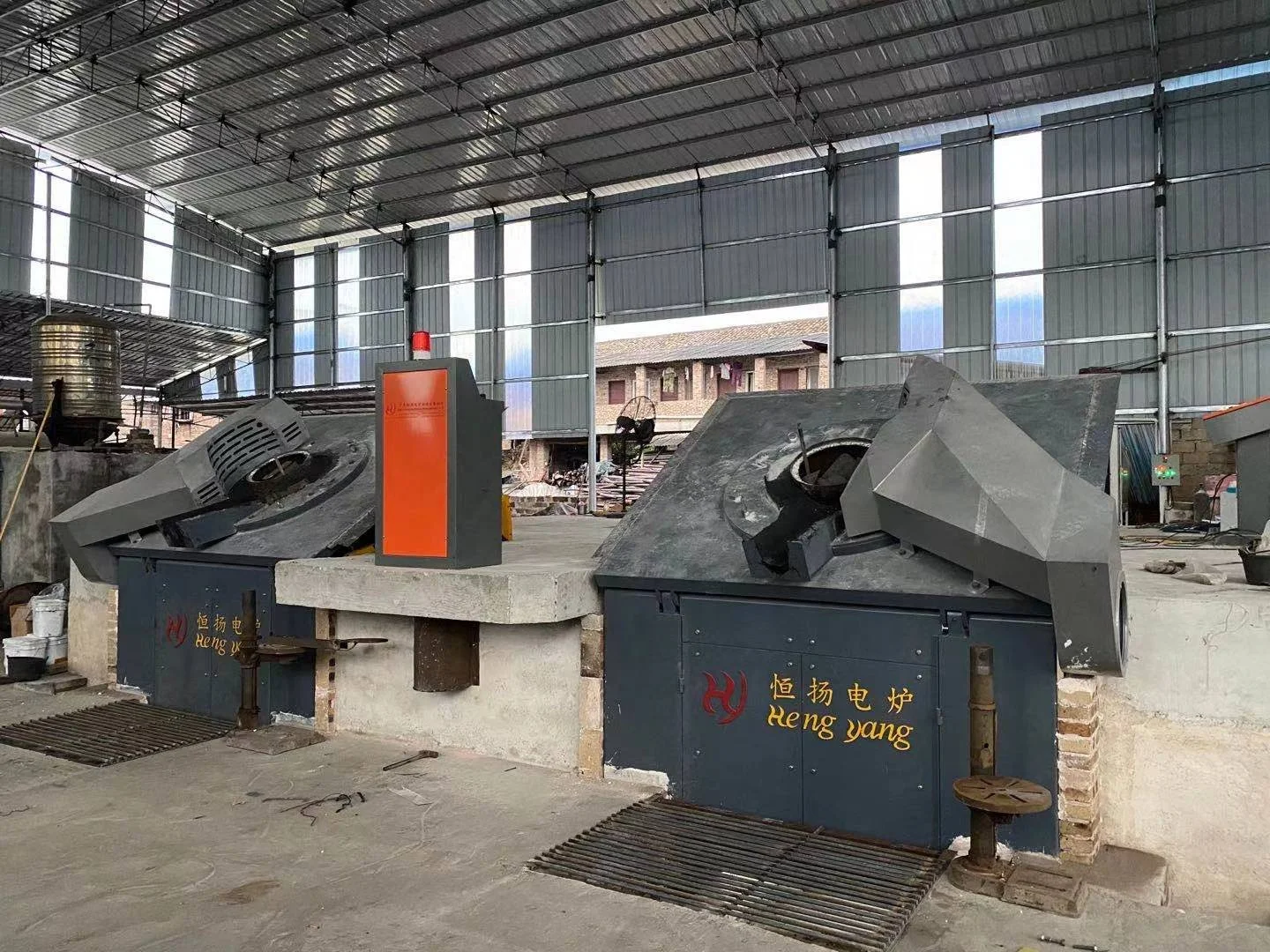

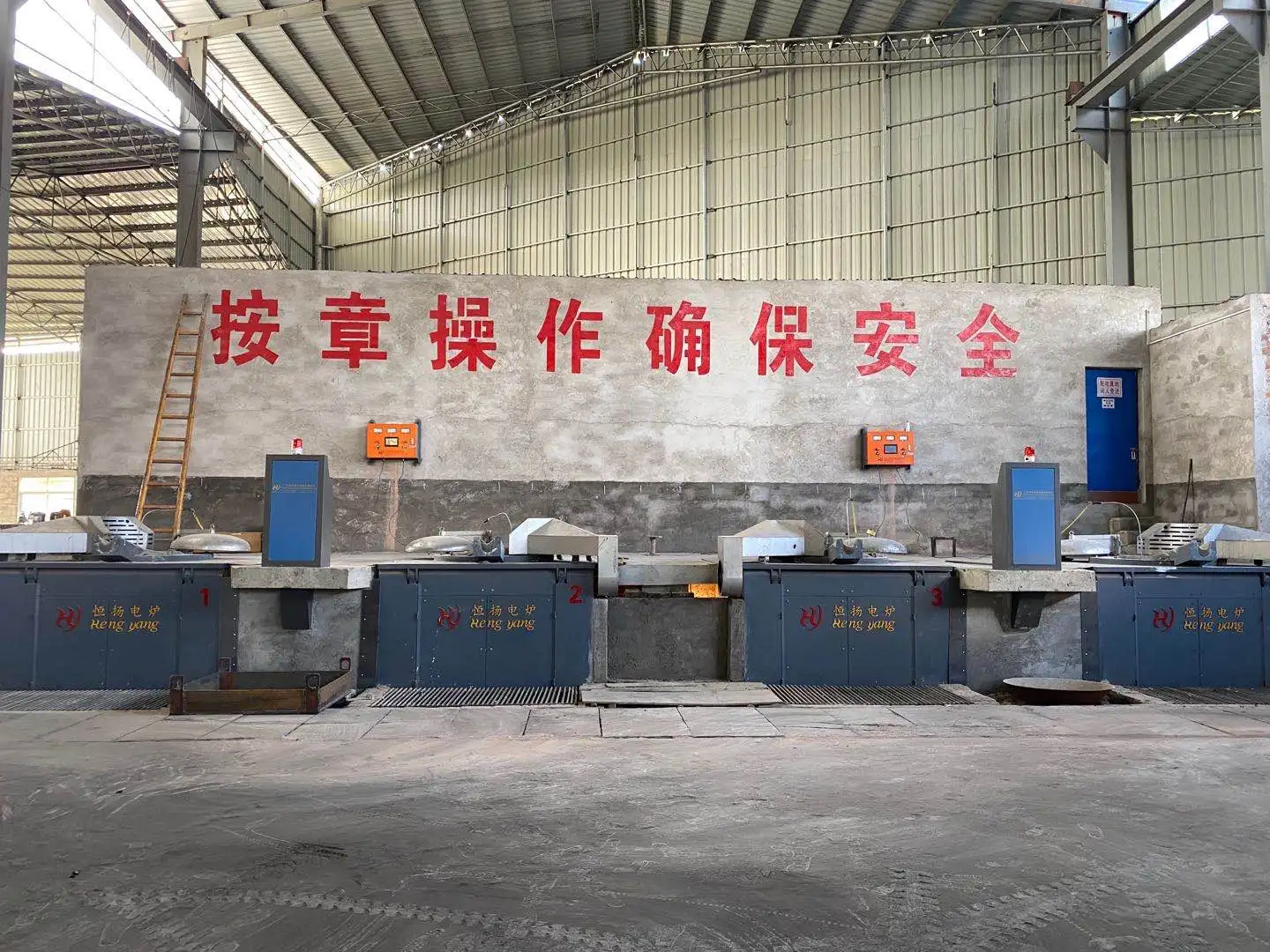

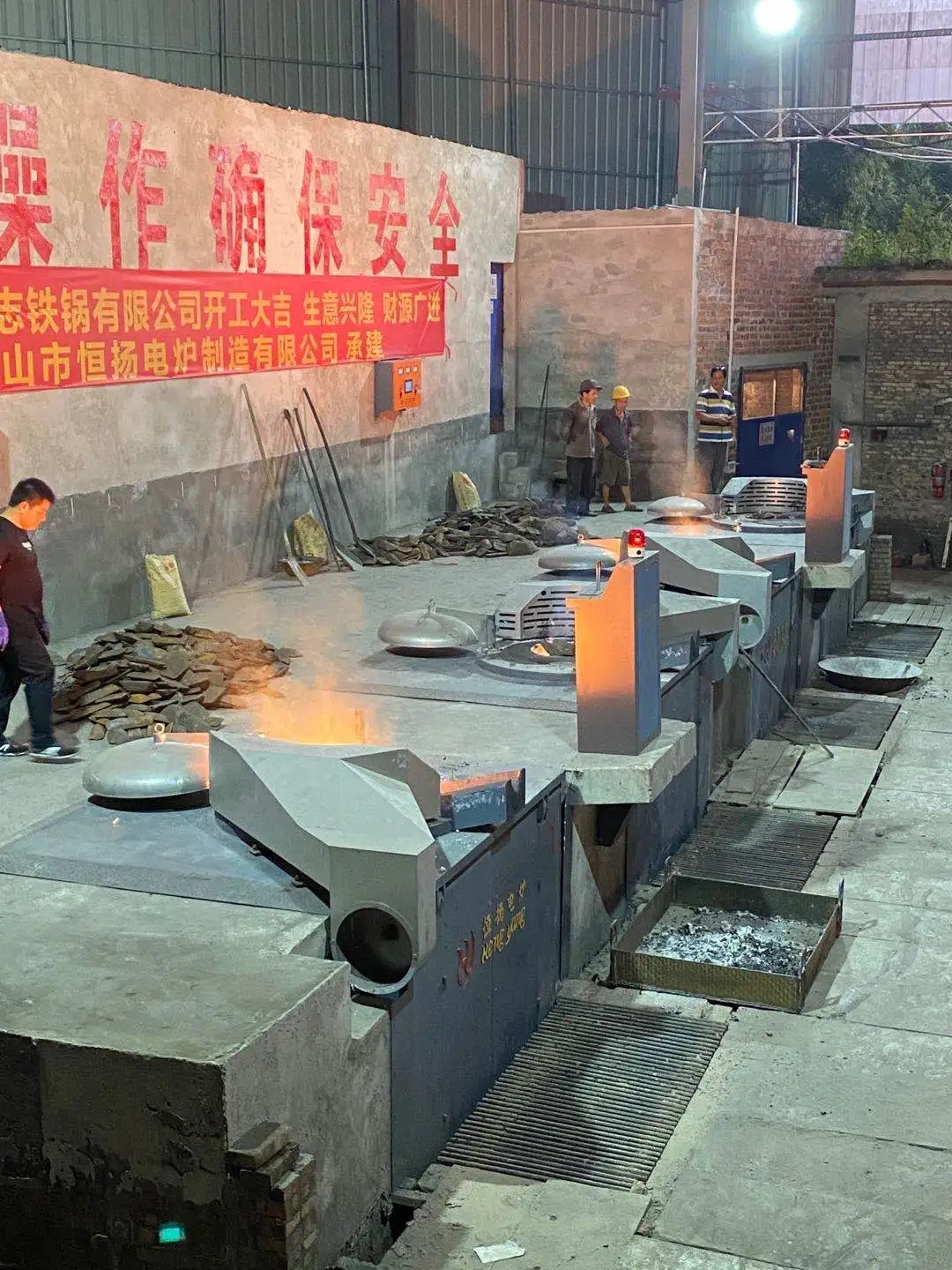

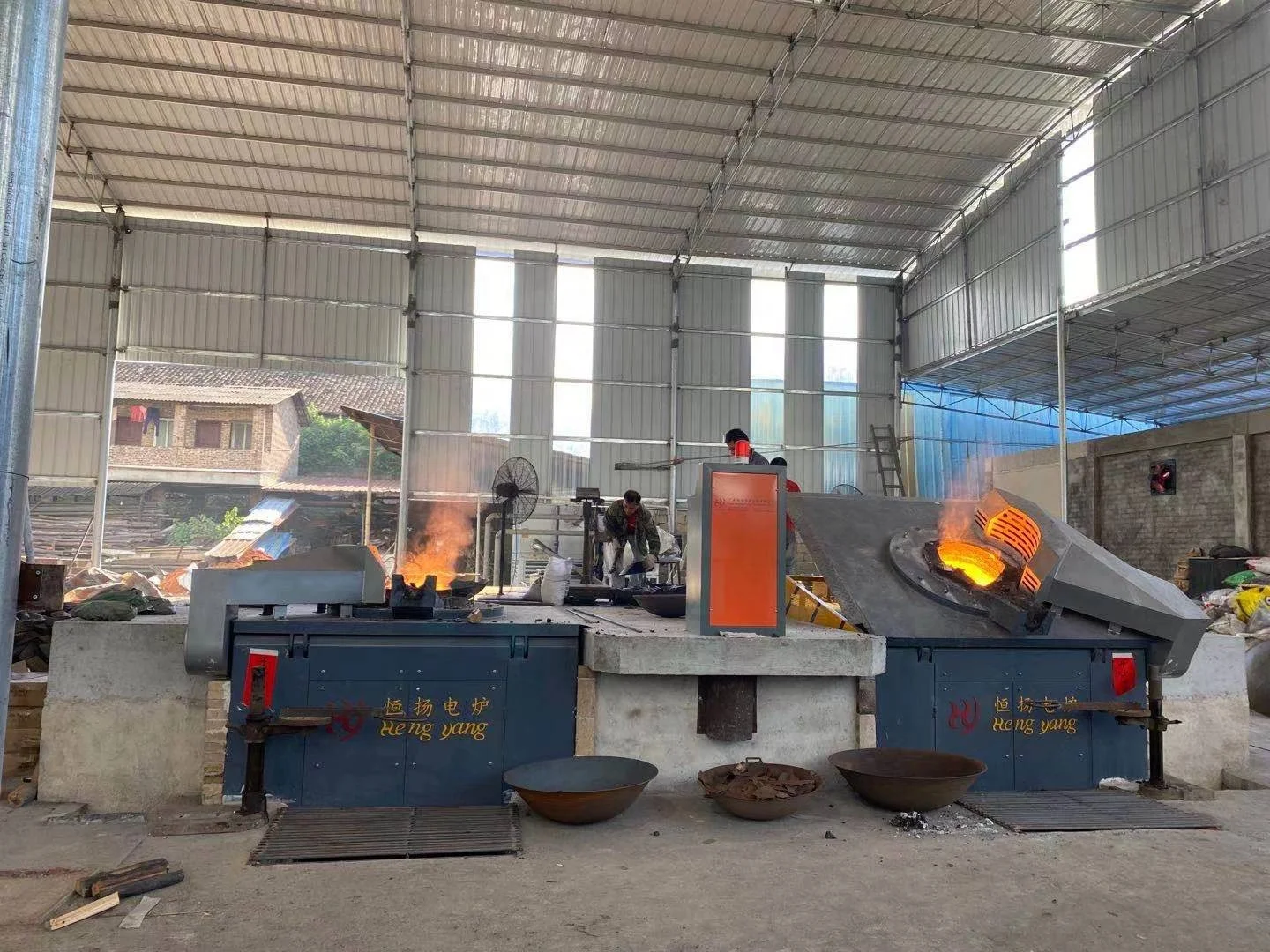

OPERATIONAL CASES






Parameters
Unite
Datas
rated capacity
t
1
max capacity
t
1.2
working temperature
ºC
0-1100
highest temperature
ºC
1800
transformer capacity
KVA
800
no-load voltage
V
540
grid-side voltage
V
10
Power factor
0.9(KGPS)
above 0.95(KGCL)
rated power
KW
750
rated input current
A
1200
rated input voltage
V
380
IF voltage
V
750
startup success rate
%
100
rated working frequency
KHZ
1-2.5
working noise
db
≤75
melting rate
T/h
1
power consumption
KW.h/T
480-500
water consumption
T/h
35
Power parameters can be customized according to your pratical need.

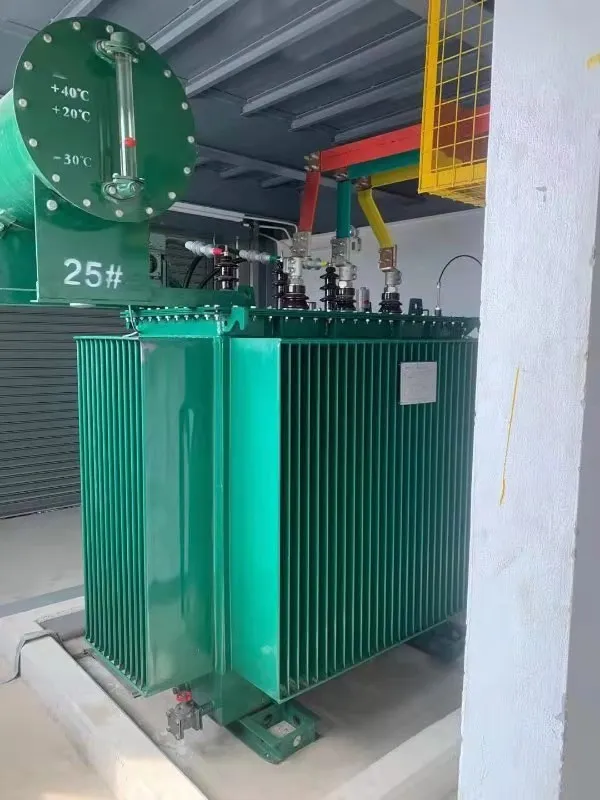

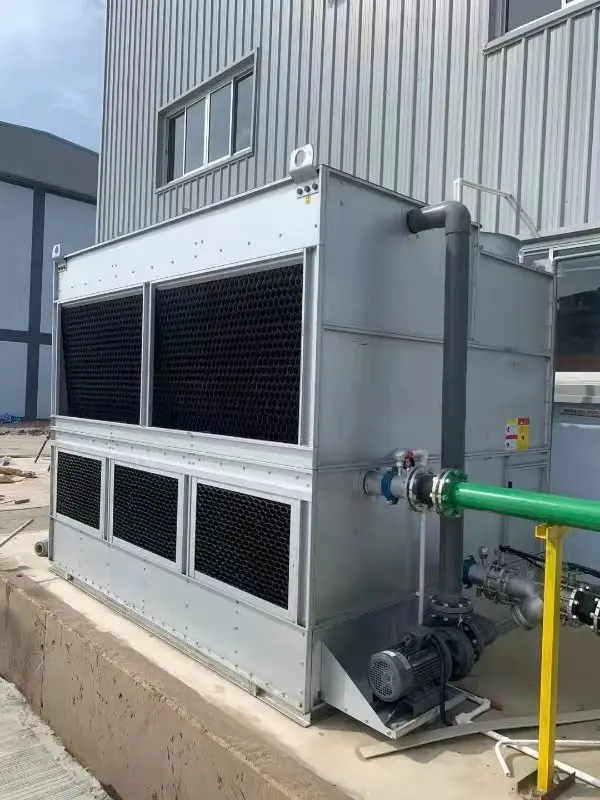

Auxiliary equipment
