Wet granulation machine mixer organic fertilizer granulator
- Category: >>>
- Supplier: Jiangyin Fangyuan Machinery Manufacturing Co. Ltd.
Share on (62404490946):
Product Overview
Description
Wet granulation machine mixer organic fertilizer granulator
Product Description
Main Application
This machine is suitable for the pharmaceutical, chemical industry, food and other industries. It can make wet powdery materials into granules and pulverize dry materials in blocks.
Working Principle
The drum is oscillated 360 degrees by mechanical transmission, and the material is extruded from the screen into pellets or pulverized.
Single Head Granulator Technical Parameters | ||||||
Model | YK-100 | YK-160 | YK-160B | |||
Production Capacity(kg/h) | 30-200 | 100-300 | 100 | |||
Power(kw) | 1.5 | 3 | 5.5 | |||
Roller Speed(rpm) | 65 | 55 | 55 | |||
Swing Angle(360°) | 360° | 360° | 360° | |||
Roller Diameter(mm) | 100 | 160 | 160 | |||
Dimensions(mm) | 700*400*1050 | 1000*800*1300 | 100*800*1300 | |||
Weight(kg) | 280 | 380 | 450 | |||
Double Head Granulator Technical Parameters | ||||||||
Model | YK-100 | YK-160 | YK-200 | YK-320 | ||||
Production Capacity(kg/h) | 150-400 | 300-600 | 350-1000 | 350-1300 | ||||
Power(kw) | 4 | 5.5 | 7.5 | 11 | ||||
Roller Speed(rpm) | 55 | 55 | 50 | 45 | ||||
Swing Angle(360°) | 360° | 360° | 360° | 360° | ||||
Roller Diameter(mm) | 100 | 160 | 200 | 320 | ||||
Dimensions(mm) | 1050*800*1300 | 1100*900*1350 | 1200*1050*1500 | 1858*1100*1200 | ||||
Weight(kg) | 420 | 650 | 850 | 1100 | ||||

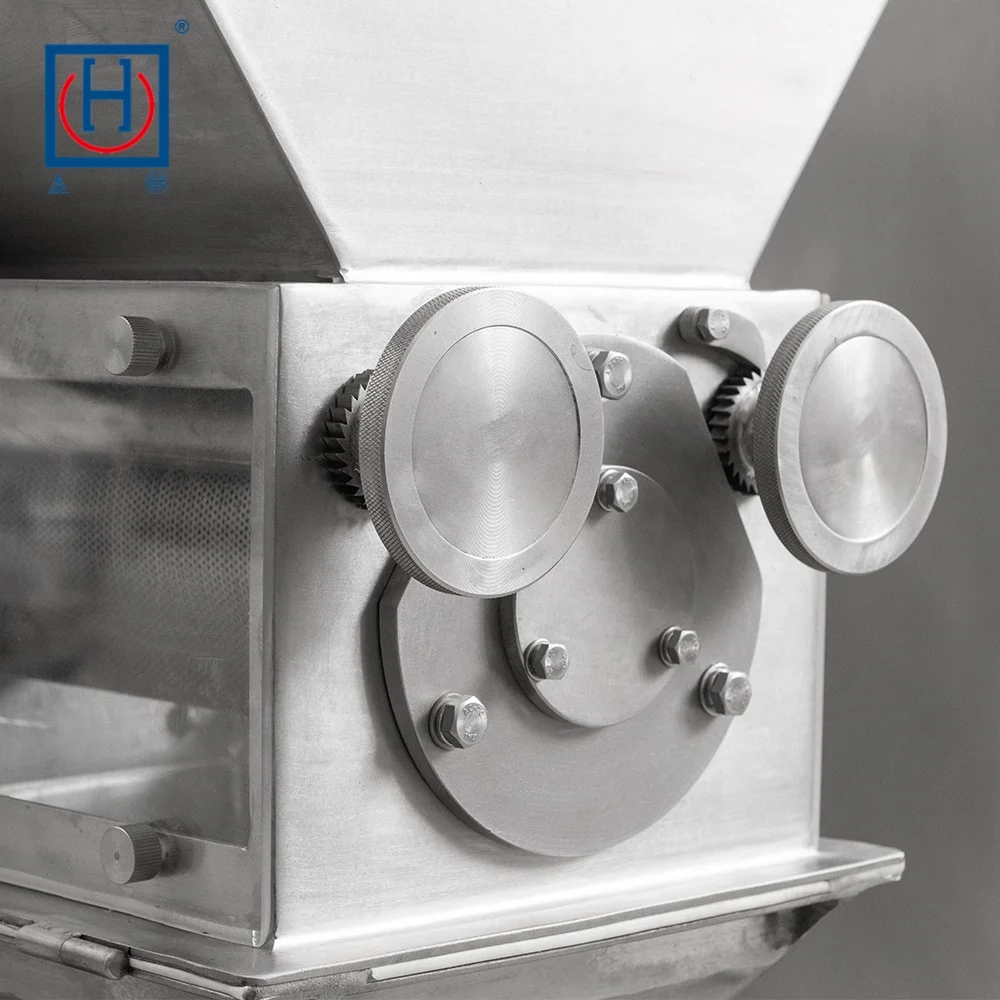

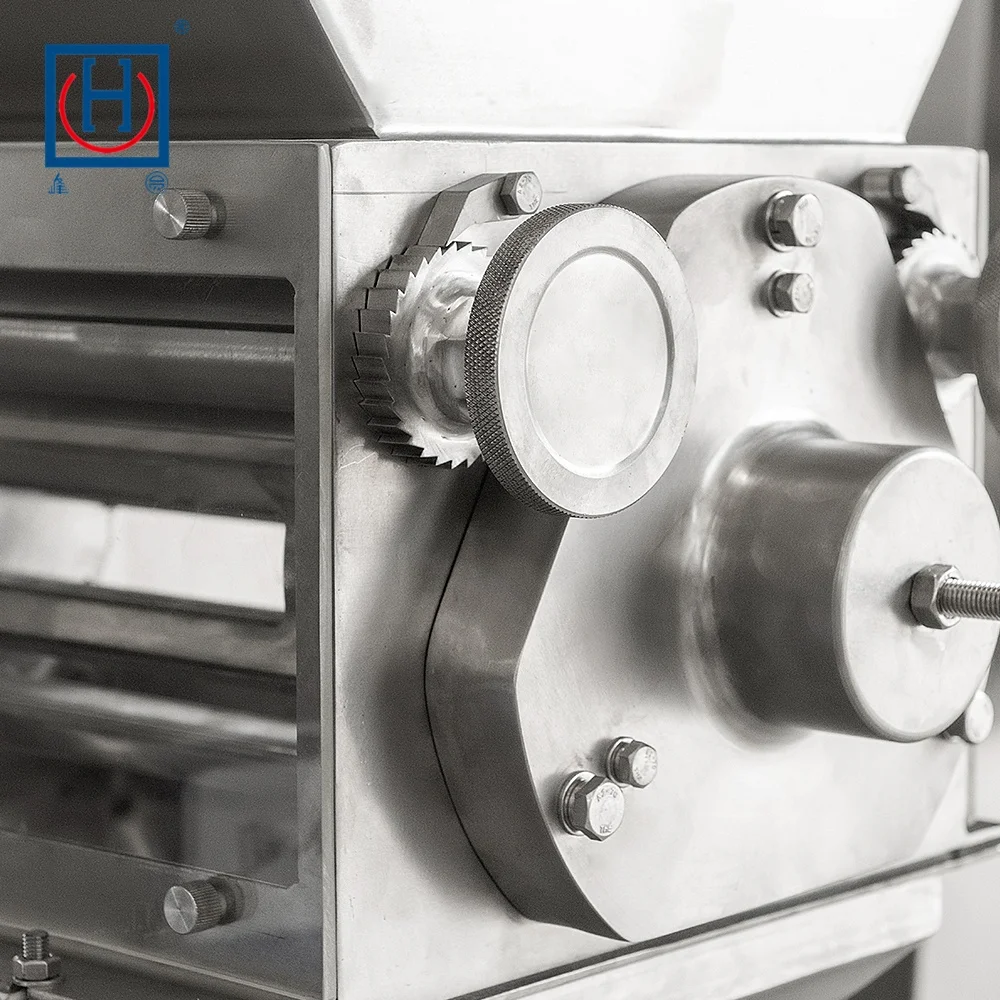

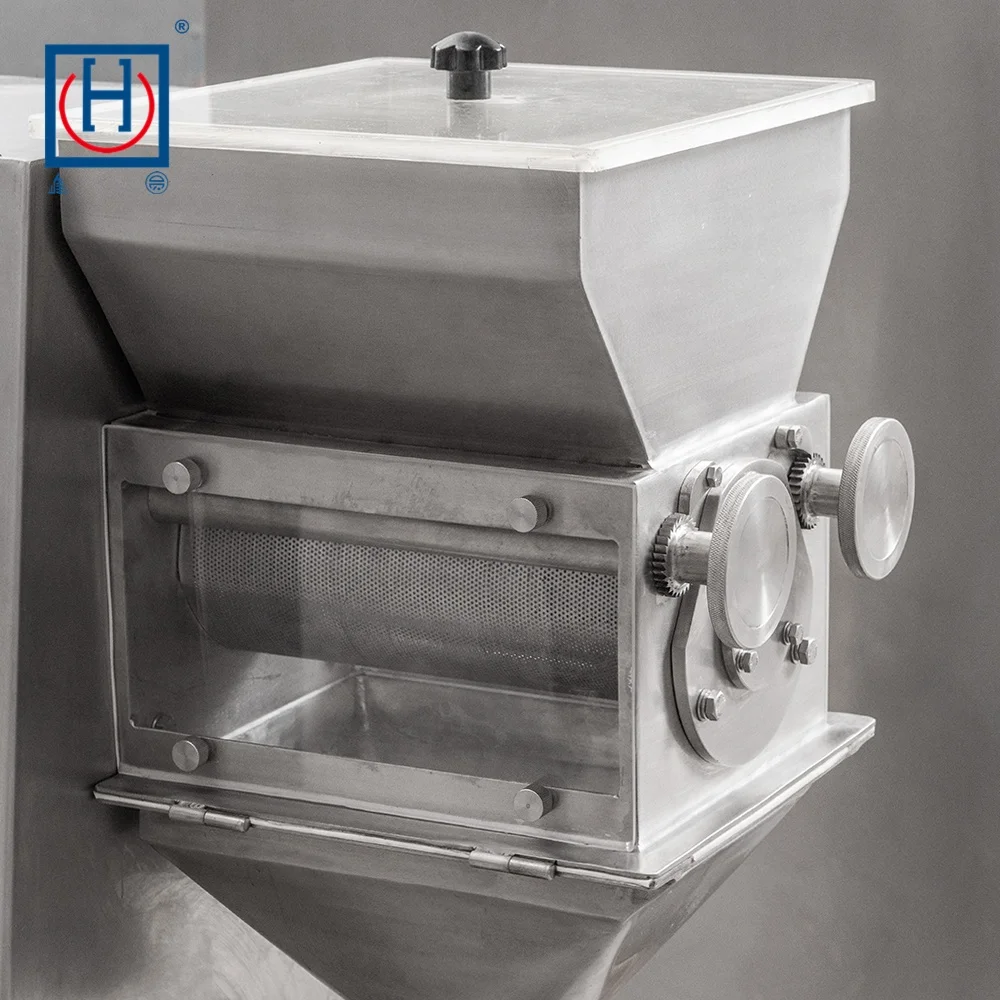

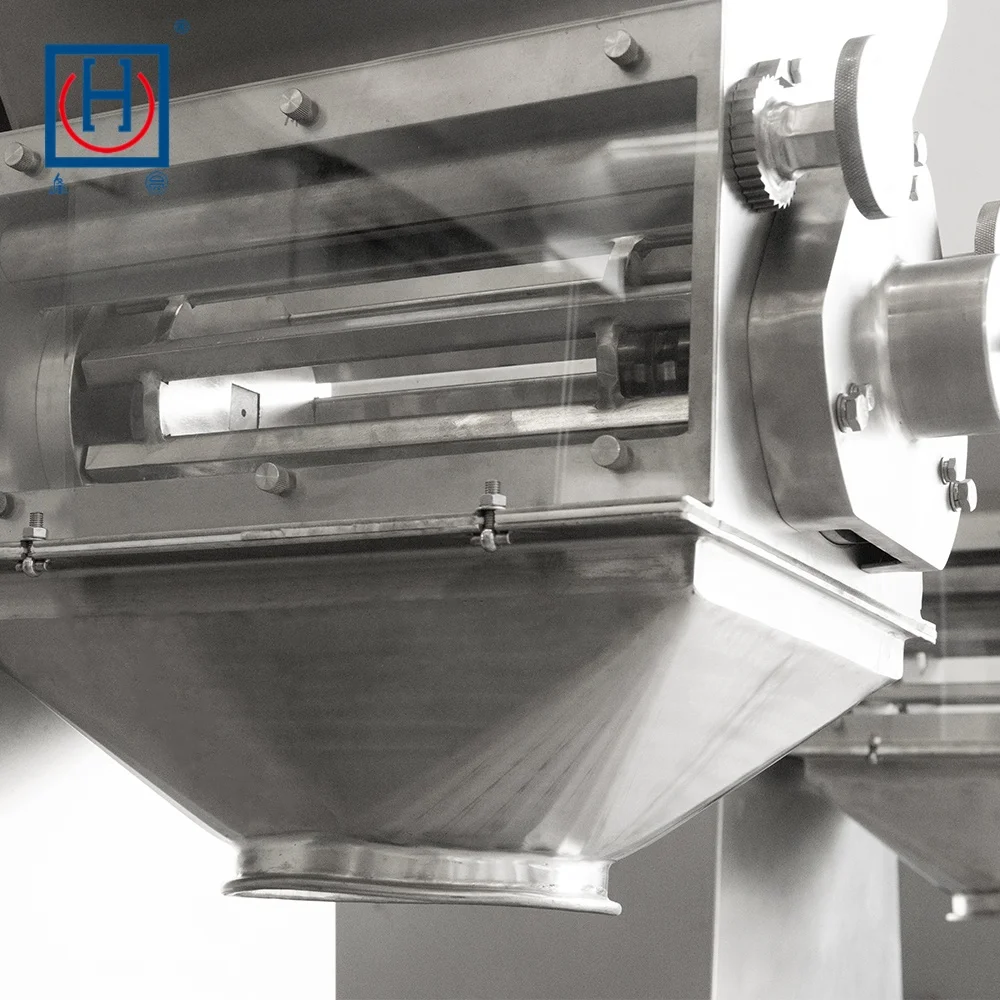

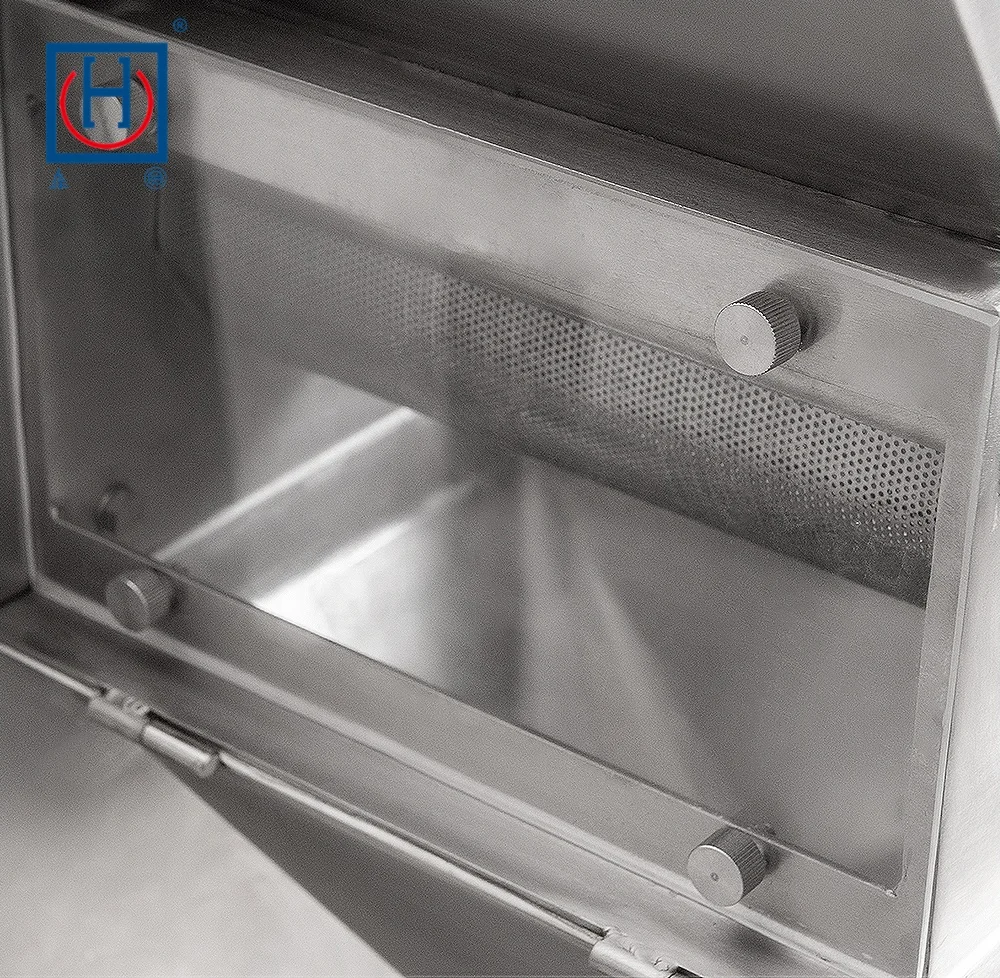

Detailed Images
Characteristics
1. The horizontal twin screw is sent to the press, which is convenient for adjusting the feeding amount, the rolling and cooling are even, and the powder is not easy to stick to the rolling.
2, the whole grain mechanism is made on the moving trolley, and the pellet is granulated by a specific angle of the knife, which can be easily granulated.
3, feeding, rolling, granules, easy to disassemble and clean, in line with GMP requirements.
4, vacuum degassing device, the efficiency can be increased by 2 to 4 times.
5. It is easy to replace the screen and less heat in the machine cavity.
6, the whole machine is fully enclosed, fully automatic operation, no dust.
2, the whole grain mechanism is made on the moving trolley, and the pellet is granulated by a specific angle of the knife, which can be easily granulated.
3, feeding, rolling, granules, easy to disassemble and clean, in line with GMP requirements.
4, vacuum degassing device, the efficiency can be increased by 2 to 4 times.
5. It is easy to replace the screen and less heat in the machine cavity.
6, the whole machine is fully enclosed, fully automatic operation, no dust.
Our Service
Pre-Sales Service
* Inquiry and consulting support within 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Product packaging
Packing Size:
It depends.
Packing Weight:
It depends.
Delivery Ways:
Support shipping/air/land
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Company Profile
Founded in 1989, Jiangyin Fangyuan Machinery Manufacturing Co., Ltd. is located in Zhutang Town, Jiangyin City, the first town of foreign trade in Jiangnan. It is adjacent to Jiangyin Yangtze River Bridge, Shanghai-Nanjing, Xicheng and Yanjiang Expressway. It has a unique geographical location, with Shanghai to the east, Suzhou and Wuxi to the south, Changzhou and Nanjing to the west, and the Yangtze River to the north. Waterway transportation is convenient. The company covers an area of more than 20,000 square meters and has a construction area of 12,000 square meters. It has more than 10 middle and senior technicians and more than 100 employees.
