Grain Color Sorter Machine rice polisher sorting machinery price in Nigeria
Product Description
1. Descriptions:
1) Dometically first initiated CCD true color sensor technology, applicable for different kinds of rice and grains.
2) Advance optical sorting room, specially made high speed vision control arithmetic and communication protocal secures high index.
3) Wide U flat channel for material input, configured with high speed digital processing technology,system assemblization and sorting is highly perfecyed.
4) Multiple self-modification and arithmetic system realizes high intelligentization for sorting system.
5. Touch screen operation manual, the operation interface is more conveniently.
6. Adoption of high sensitivity and special computerization system, defects of different material can be 100% viewed and removed, high sorting performance is secured.
2. Technical Paratmeters:
Model No. | SD1 | SD2 | SD3 | SD4 | SD5 | SD6 |
Channels No. | 63 | 126 | 189 | 252 | 315 | 378 |
Output Capacity(t/h) | 0.6~1 | 1~2 | 1.5~3.5 | 3~6 | 4~7 | 5~8 |
Sorting Accuracy | >=99.99% | >=99.99% | >=99.99% | >=99.99% | >=99.99% | >=99.99% |
Carryover | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 |
Rated Voltage(V) | AC200-240V 50/60Hz | AC200-240V 50/60Hz | AC200-240V 50/60Hz | AC200-240V 50/60Hz | AC200-240V 50/60Hz | AC200-240V 50/60Hz |
Rated Power (KW) | <1.5 | <1.8 | <2.4 | <2.6 | <3.0 | <3.6 |
Air Pressure (MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Air Consumption (m3/min) | <1.0 | <2.0 | <2.5 | <4.0 | <3.0 | <5.5 |
Dimension(mm) | 910x1610x1545 | 1224x1610x1620 | 1516×1570×1850 | 1870X1595X2040 | 2250×1570×1850 | 2528X1595X2040 |
Machine Weight(kg) | 450 | 700 | 900 | 1200 | 1350 | 1500 |

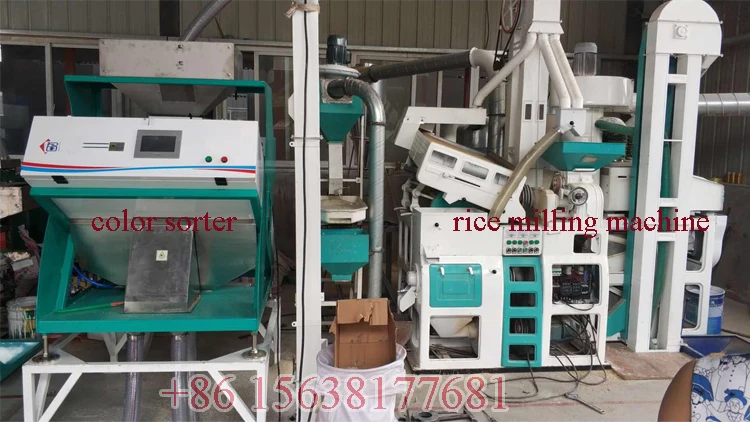

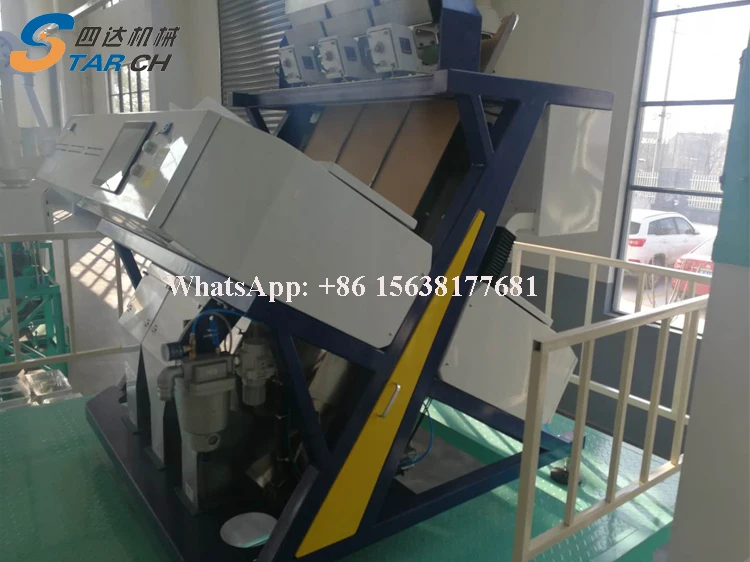

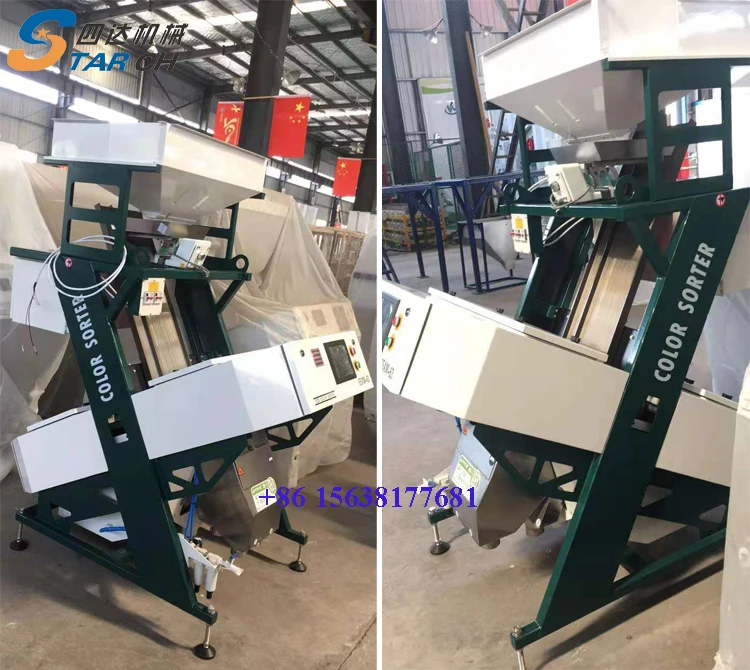

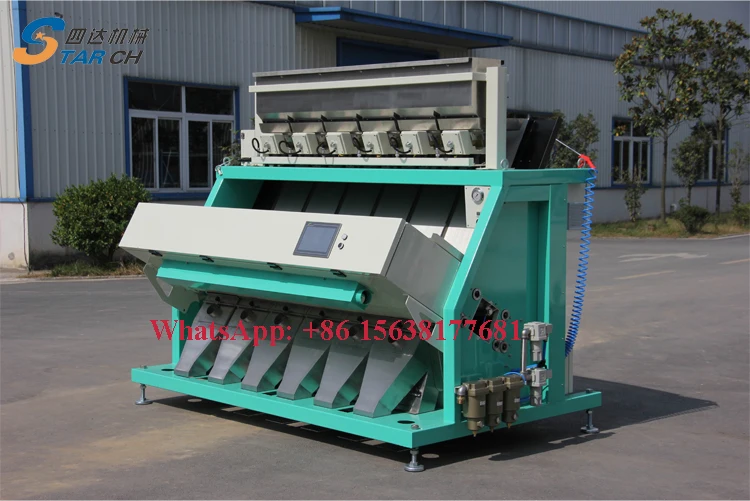

3. Pictures of rice color sorter:

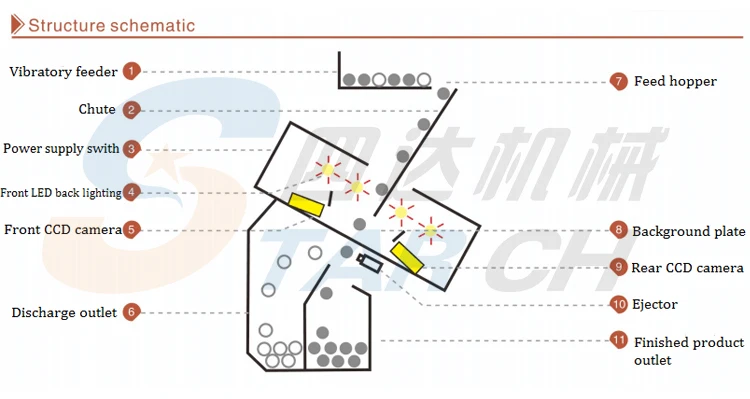

4. Structure:

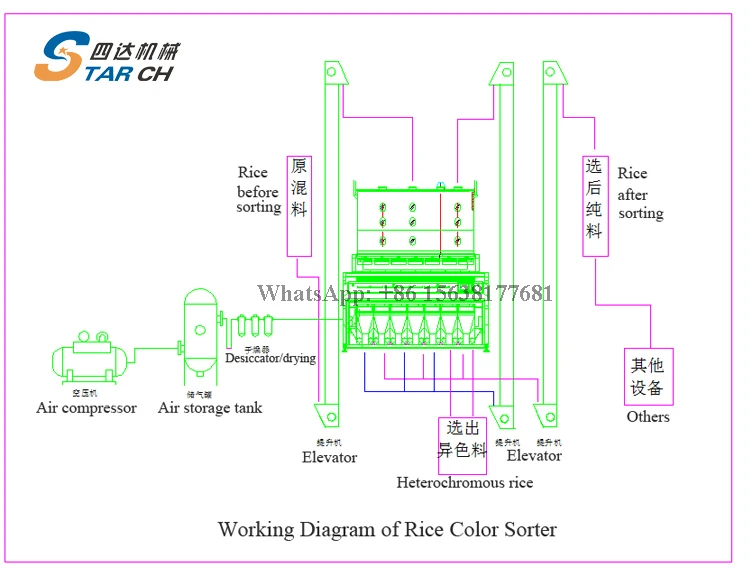

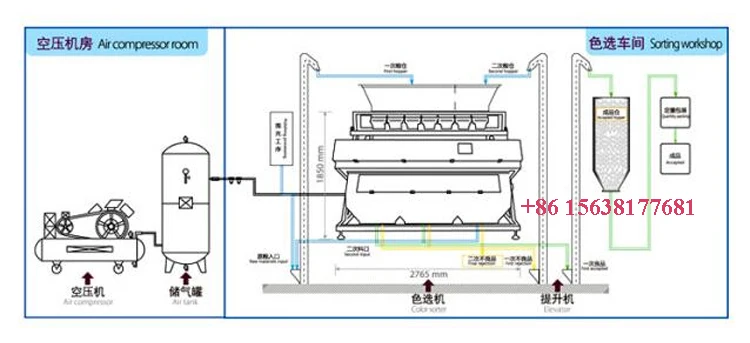

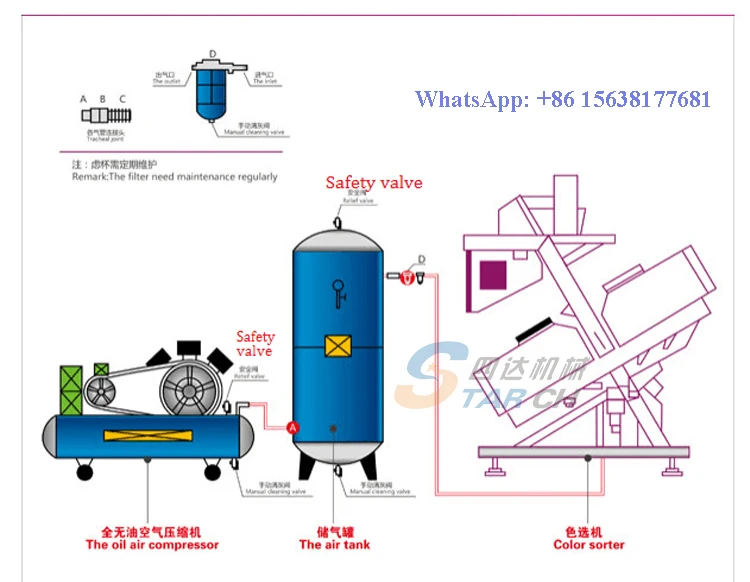

4. Technology:
Related Products
Trade Shows
Installation case
