Product Overview
Description

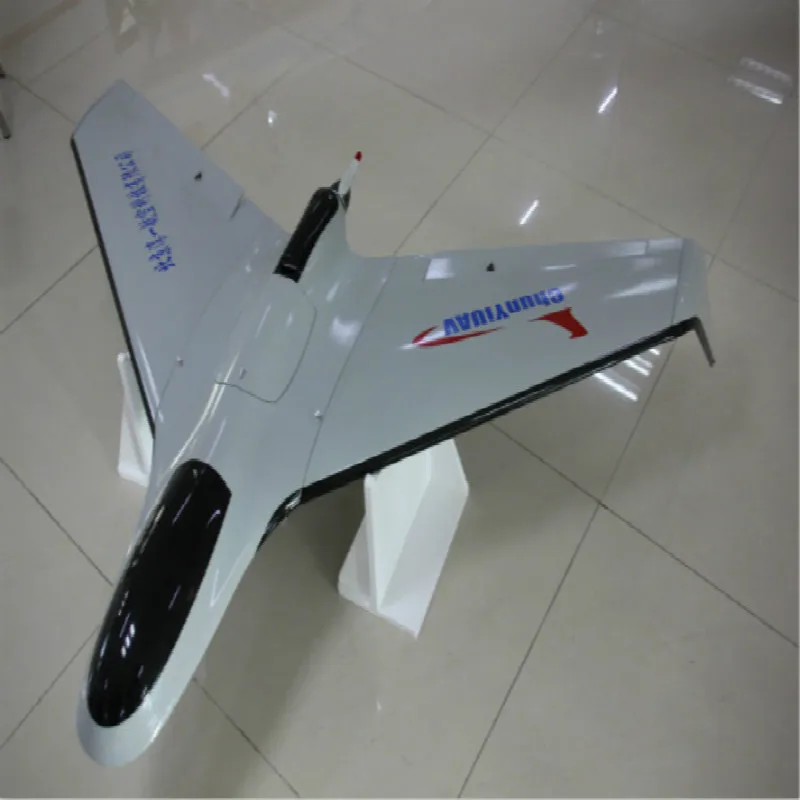

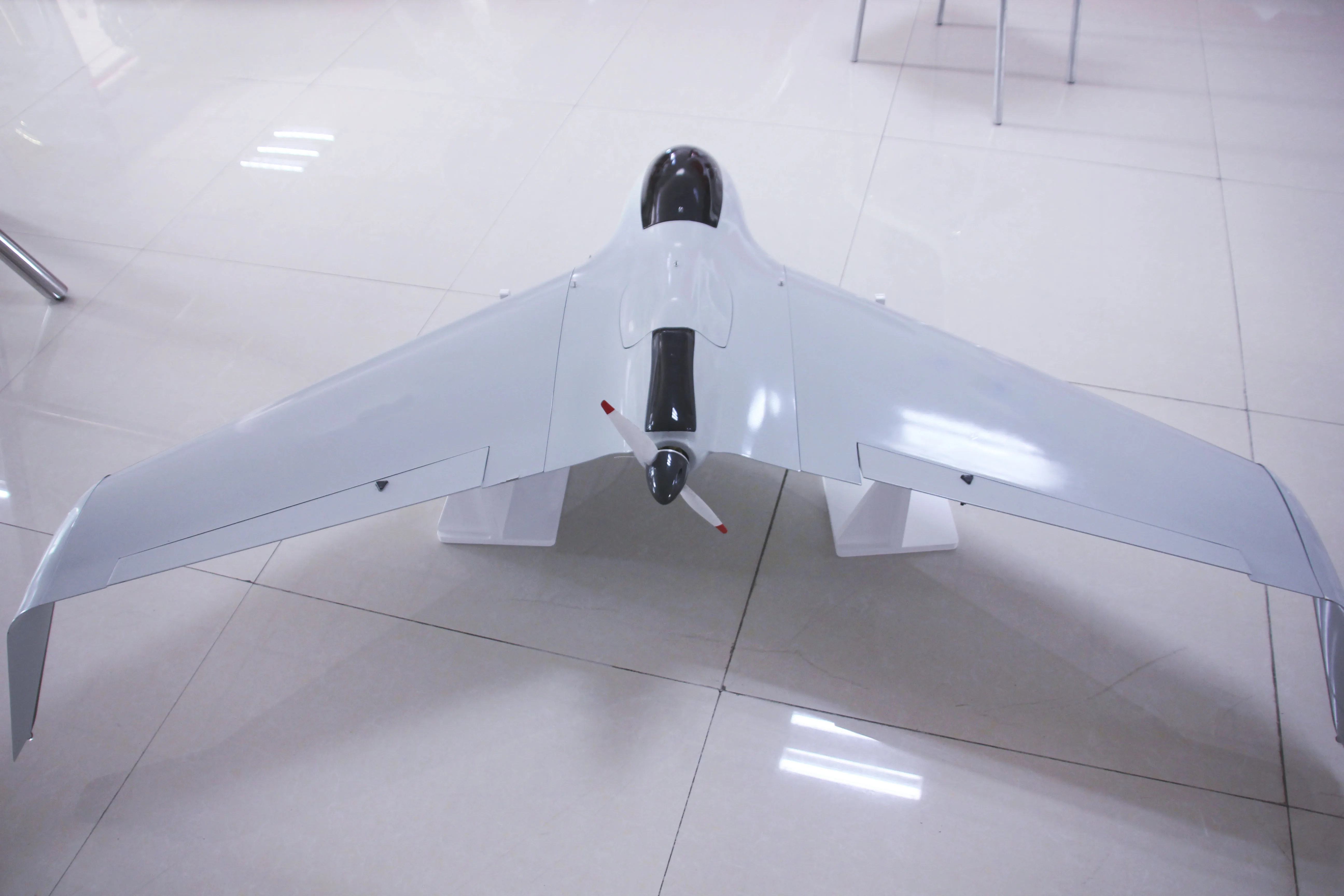

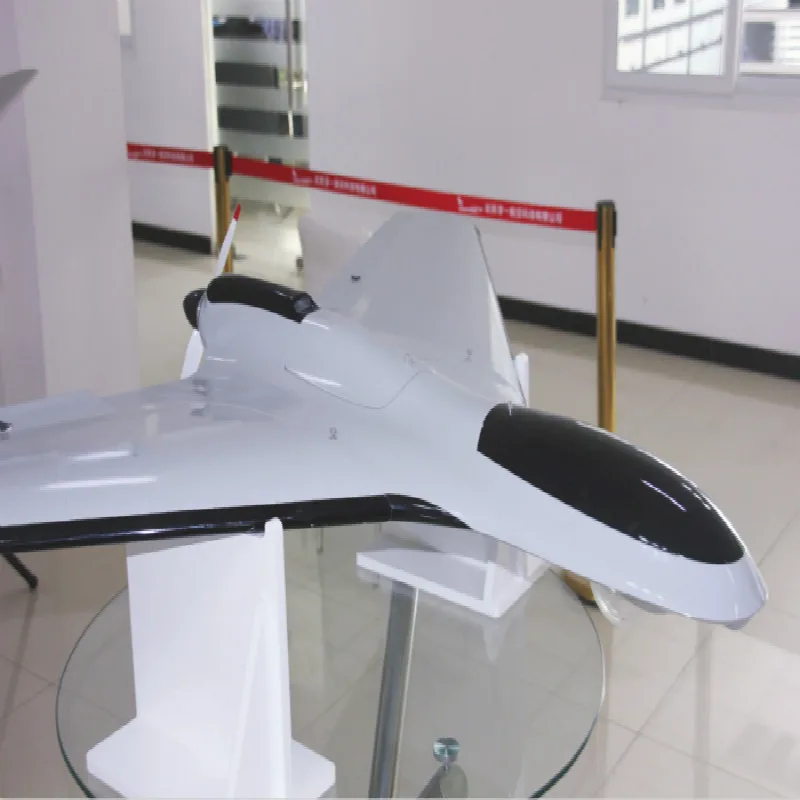

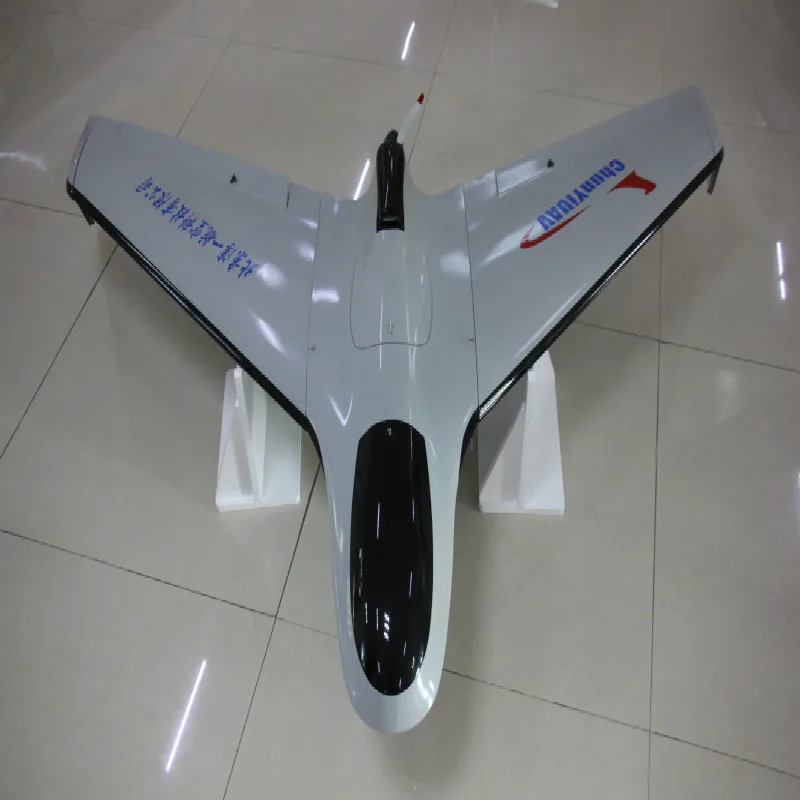

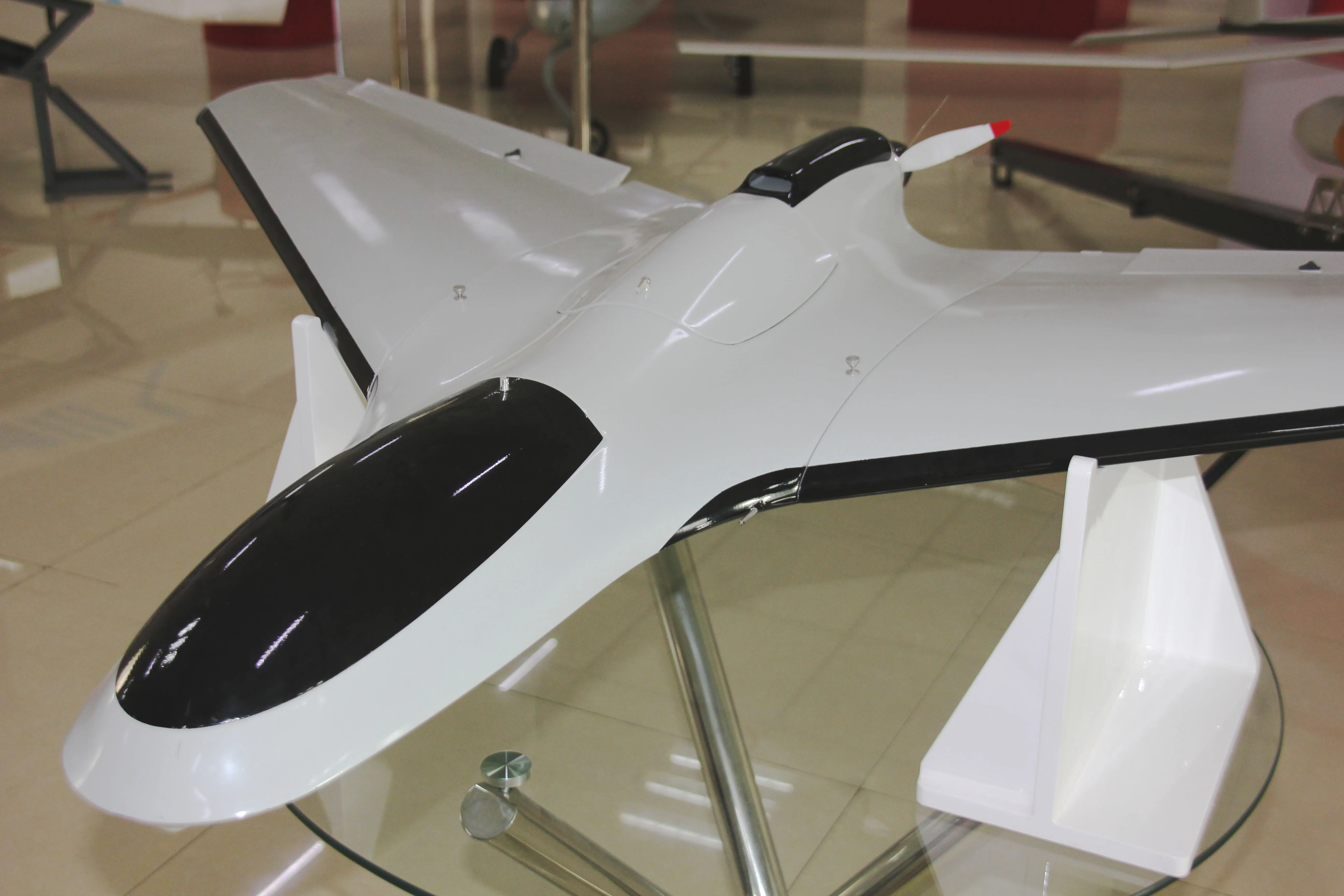

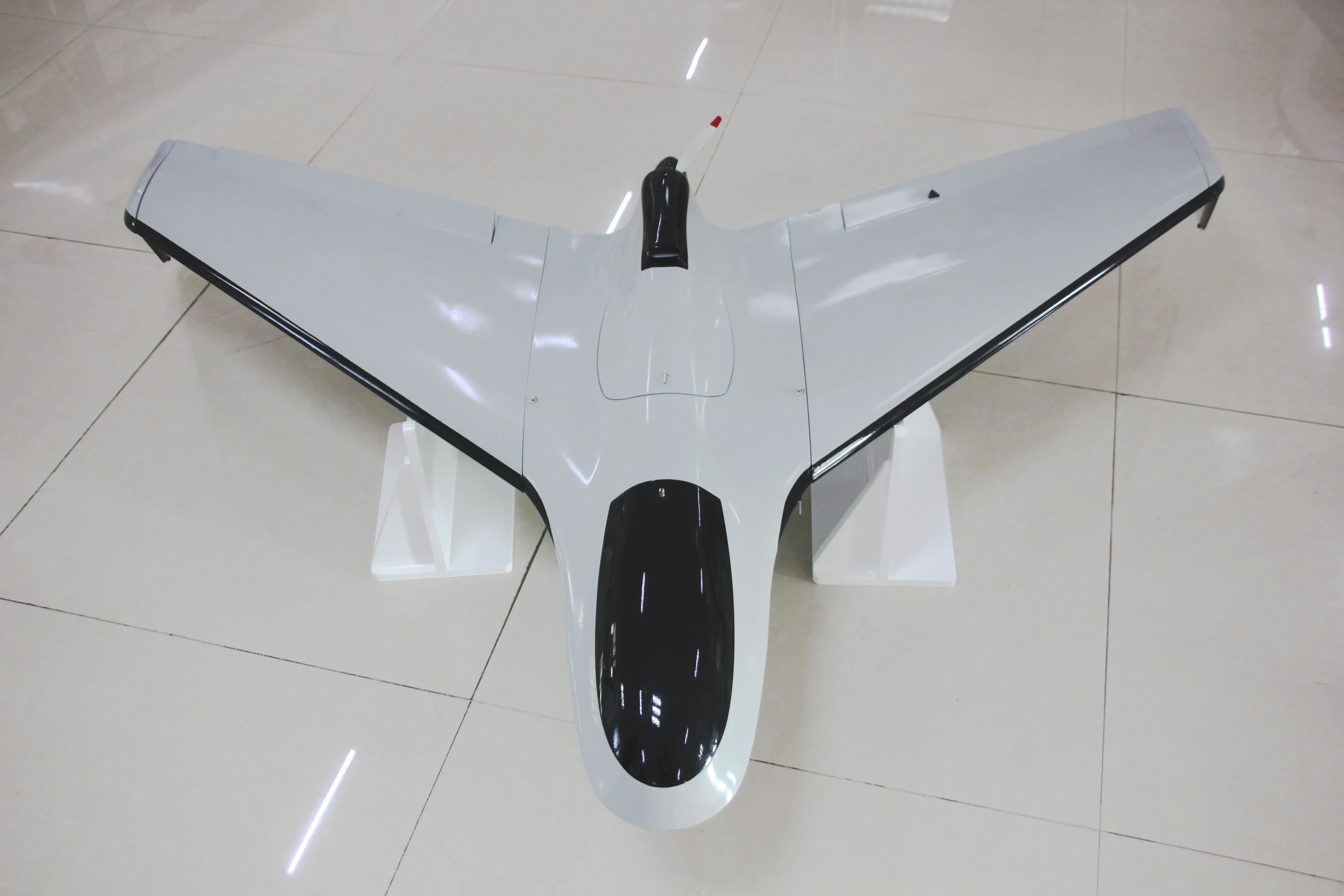

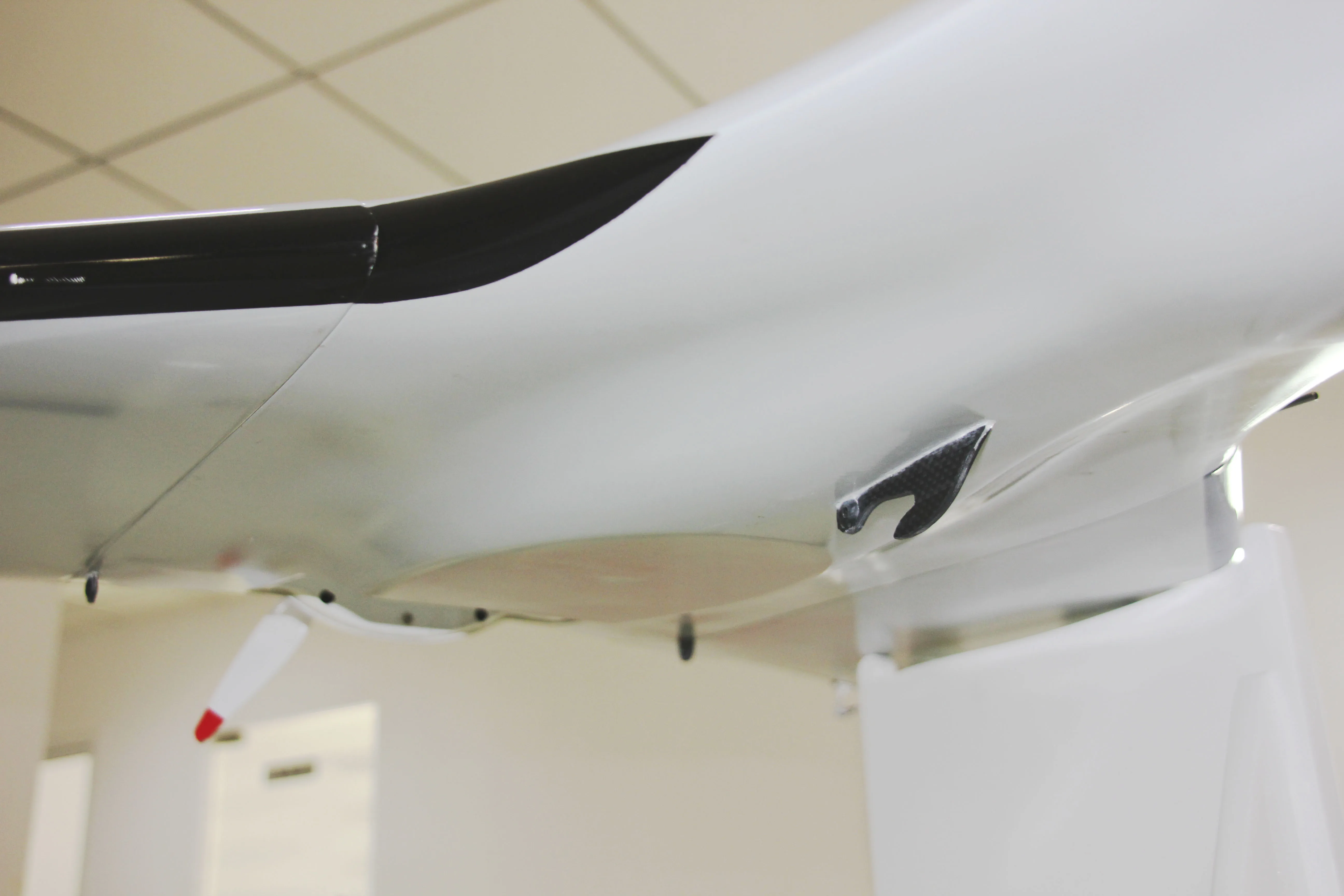

HC-110B fixed-wing UAV system is a small fixed-wing UAV product designed and developed by Honeycomb Aerospace Technologies (Beijing) Co., Ltd. Made with Kevlar composite materials. The whole structure is strong and it is flexible, easy to operate, light and portable, and has high flight efficiency. Equipped with relevant monitoring equipment which can be used for land mapping, single-man reconnaissance, border patrol, forest fire-prevention, agricultural plant protection, and pipeline inspection.
Avionics
Transmitter & Ground Station
Specifications
Category | Specification | Parameter | |
Body length | 1260mm | ||
Wingspan | 1870mm | ||
Manufacture material | Carbon fiber composite | ||
Empty weight | |||
Max take-off weight (sea level) | 6kg | ||
Standard payload | 800g | ||
Max payload | 1kg | ||
Cruising speed | 70-110km/h | ||
Max flight speed | |||
Standard propeller | |||
Max Altitude | 3000m (Above sea level) | ||
Endurance | 60min@1kg | ||
Powerplant | Electric power | ||
Electric motor | |||
Assembly way | Detachable | ||
Flight Control System | Aircraft layout | Fixed-Wing | |
Attitude angle navigation accuracy | Static 0.5˚ / Dynamic 1˚ | ||
Positioning accuracy | 2.5m | ||
Attitude control accuracy | ±1˚ | ||
Direction control accuracy | ±2˚ | ||
Position control accuracy | ±0.2m | ||
Altitude control accuracy | ±0.5m | ||
Positioning algorithm | GPS+RTK, Selective (GPS/ Glonass/ BeiDou) | ||
Operating temperature range | -40˚C ~ 60˚C | ||
Flight mode | Manual / Auto | ||
Emergency measure | Out-of-control return, fault alarm | ||
Link system | Control radius | ≥10km (no obstacles) | |
Video Output resolution | 1080P@60fps | ||
Operational environment | Wind resistance level | Level 5 | |
Operating temperature | -20˚C ~ 60˚C | ||
Rain resistance level | Light rainfall | ||
Take-off and landing mode | Hand-throwing take-off, catapult take-off, parachute drop or airbag recovery | ||
Aircraft Logistics | Preparation time | ≥10min | |
Remote Controller | Model | FUTABA T8FG | |
Work frequency | 2.4 GHz | ||
Max signal effective distance (no interference, no occlusion) | 2km | ||
Standard battery | Model | ||
Quantity | |||
Capacity | |||
Voltage | |||
Battery type | |||
Size | |||
Net weight | |||
Operating temperature | |||
Storage ambient temperature | |||
Charging ambient temperature | |||
Max Charge current | |||
Continuous discharge current | |||
Peak discharge current | |||
Payload | Different payloads can be used on aircraft. Click here for payload selection. | ||
Company Profile
Packaging & Delivery
We will offer the industrial level packaging for all the products.
Supply Ability
Supply Ability： 10 Set per Month
Supply Ability： 10 Set per Month
Technical Training
Training Objectives
In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.
Click here to get details.
Warranty&After-sales
Maintenance support
The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
Click here to get details.
FAQ
Q: How will you deliver the goods to me?
A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time. Q: What are your terms of payment?
A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T. Q: Can I get an invoice?
A: Alibaba will offer you a PI (Proforma Invoice).
Q. Do you test your aircrafts before delivery?
A: Yes, we have 100% test before delivery, and we will offer you a test report.
Q: What is your warranty and after-services?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.
Q: Can you provide OEM services?
A: We can negotiate for OEM services.
Q: What is the lead time? (How long will it take to prepare my order?)
A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.
Q: Do you accept the order which requires some modifications on your drones or customized design?
A: Yes, we do
Q: Can you offer some other payloads meeting my requirements?
A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.
