Piezoelectric Pressure Transducer
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (62404786294):
Product Overview
Description

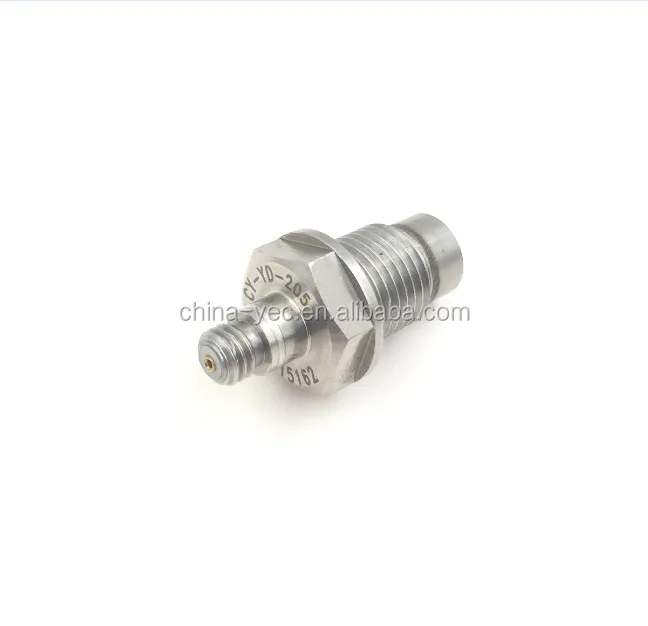

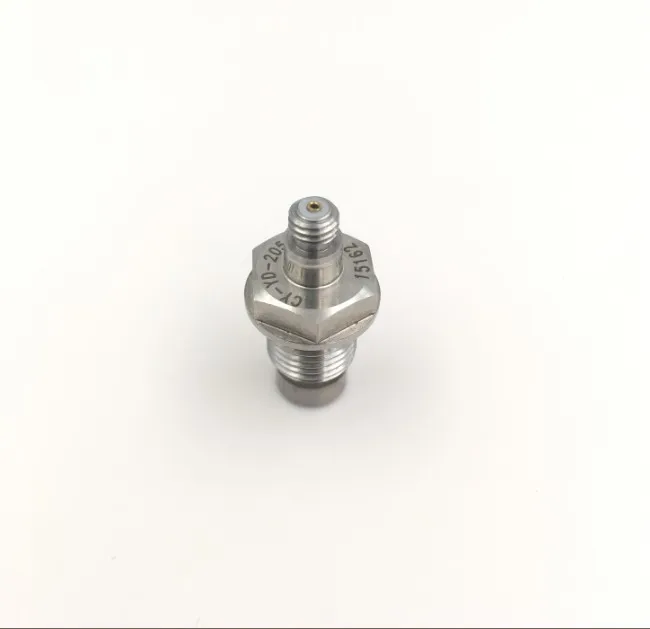

Piezoelectric Pressure Transducer |
Model: CY-YD-205 |
Features:
Small size, light weight
Measurement of pipeline pressure, burst pressure
Can be on Static Calibration
Wide frequency response, large stiffness
Convenient installation
Specifications
Pressure sensitivity(20±5℃) | ~100 pC/MPa |
Measurement Range | 0~30 MPa 0~60 MPa Optional |
Overload | 120% |
Non-linearity | <1% FS |
Hysteresis | <1% FS |
Repeatability | <1% FS |
Isolation Resistance | >1013 Ω |
Capacitance (1000Hz) | 7 pF |
Resonant Frequency | >100 kHz |
Operating Temperature | -40~+150 ℃ |
Case Material | High strength stainless steel |
Weight | 11 g |
Mounting | |
Sensing Element | Quartz |
Output | L5 |

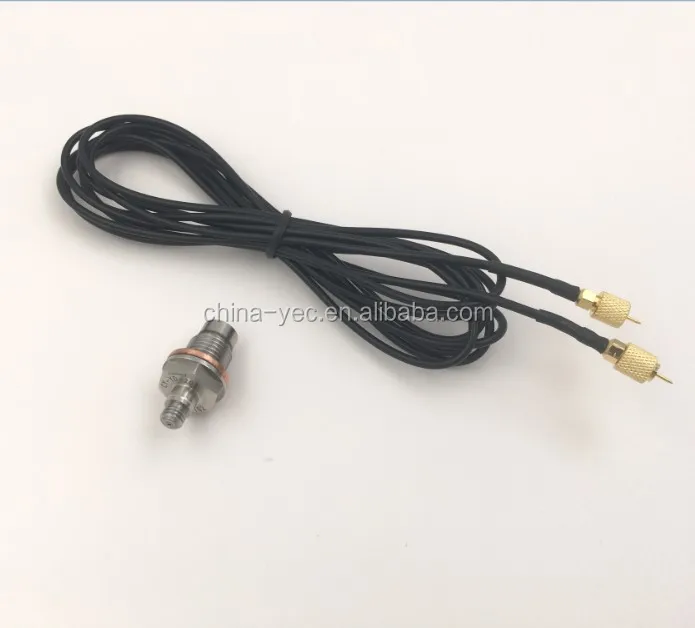

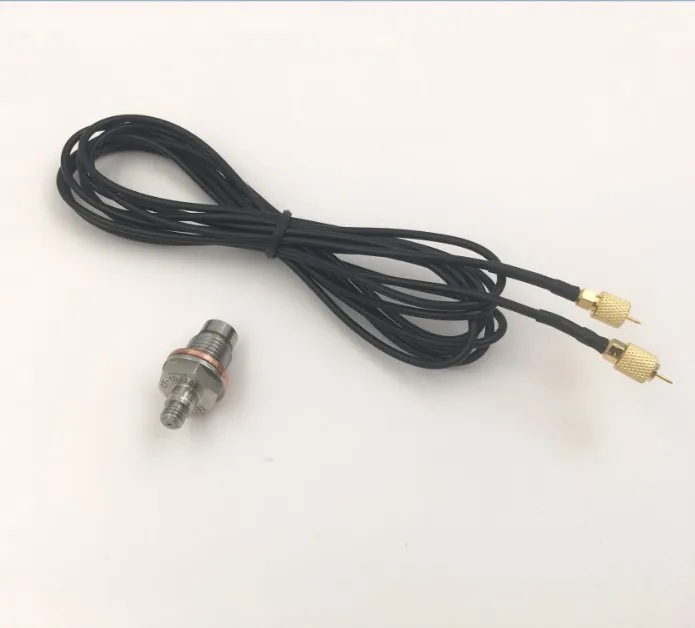

Accessories |
|
Certificate | Calibration parameters |
Protective cap | One |
Sealing gasket | one |
L5 /L5 STYV-1 Cable | one(2m) |
Detailed Images

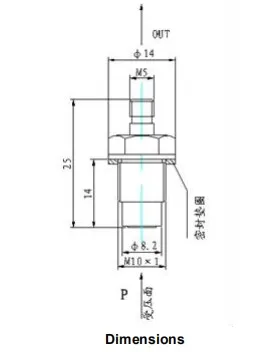

| Dimensions |  |

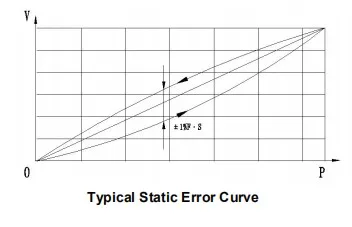

| Typical Static Error Curve |  |
