Technical Parameters
Model | LB- A W200 | LB- A W300 | LB- A W400 |
Laser wavelength | 1064nm | ||
Rated laser output power | 200W | 300W | 400W |
Spot adjustment range | 0.1-3.0mm | ||
Pulse Width | ≤20ms | ||
Pulse frequency | ≤50Hz | ||
Aimed at positioning | Red pointer.CCD | ||
Working table stroke | 300×200mm | ||
Positioning precision | 0.02mm | ||
Re-positioning precision | ±0.01mm | ||
Table load | 50KG | ||
Electricity demand |
| 380V/3 phase/50Hz/40A
| 380V/3 phase/50Hz/40A
|
Host power consumption | 9KW | 12KW | 14KW |
Cooling method | Water-cooled | ||
Dimension | 1600mm×800mm×1500mm | ||
Product Description:
*High output power, stable energy, good beam mode, and easy operation.
*The laser power feedback control system to ensure the stability of laser energy output.
*adopted UK imported ceramic condenser cavity, corrosion resistance, high-temperature resistance, long service life.
*LCD interface, current, pulse width, frequency display function, dial to adjust the work table, more convenient for operation.
*Device is equipped with high-definition CCD and red double-positioning systems, higher positioning accuracy.
*XY platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
*High-end produce with good quality,excellent in workmanship, best service.
*Material:metal, power supply, circuit control box
Application:

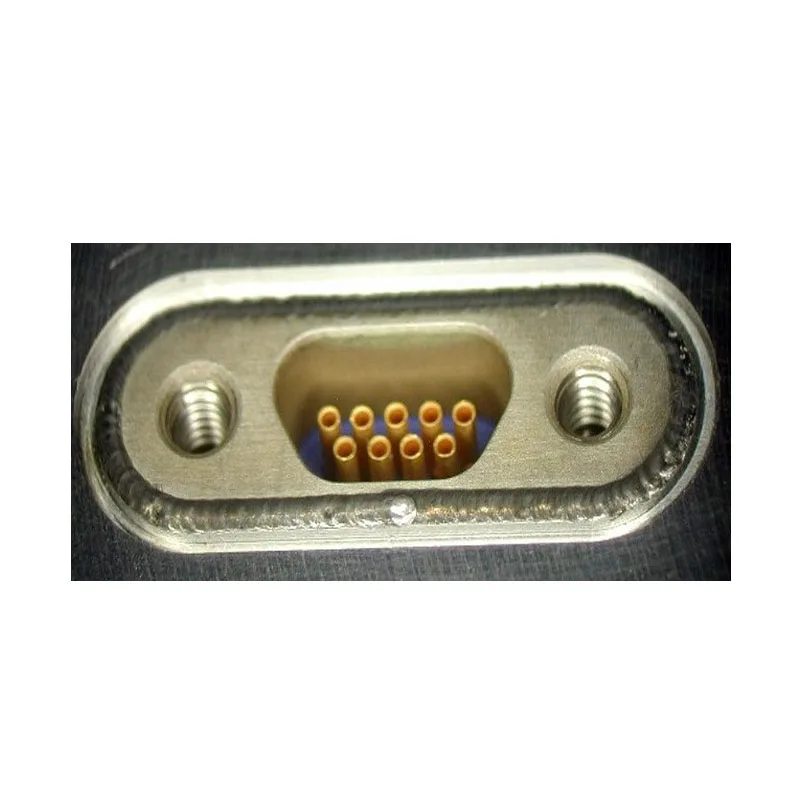

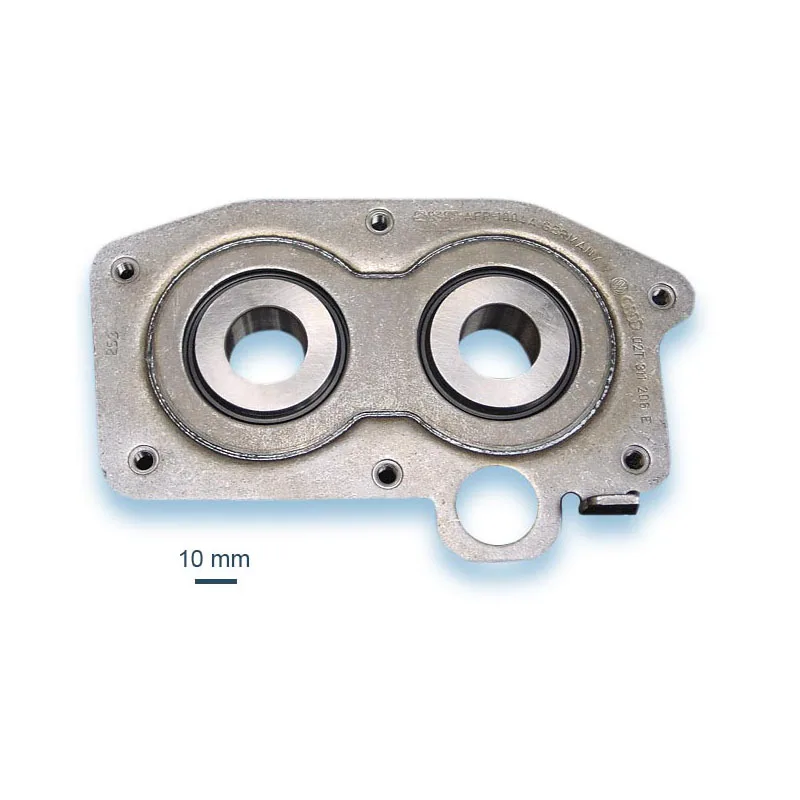

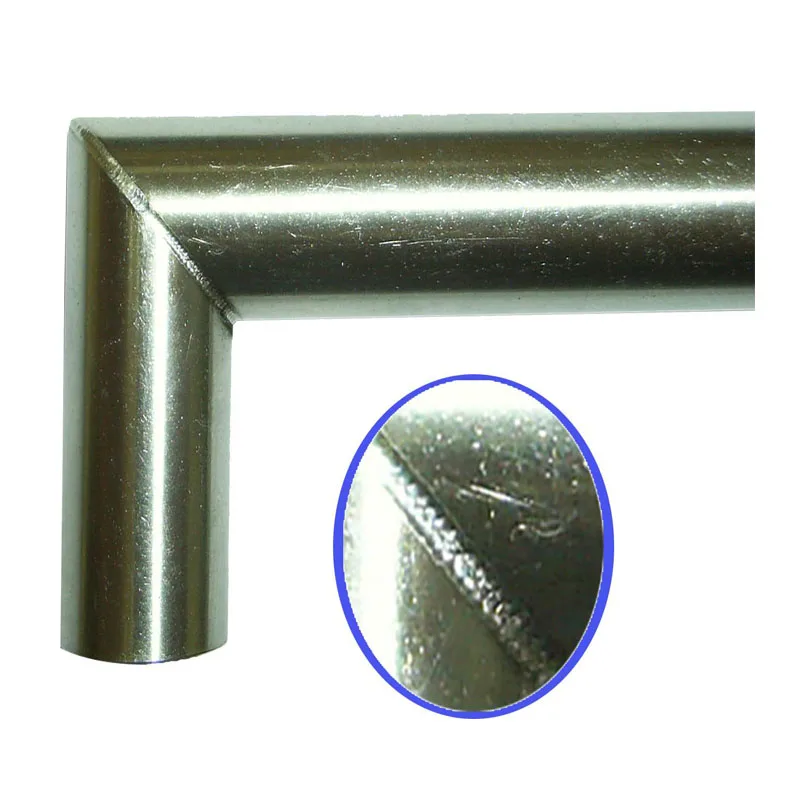

Can be used in titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and steel, kovar alloy, alloy welding between the same material.
