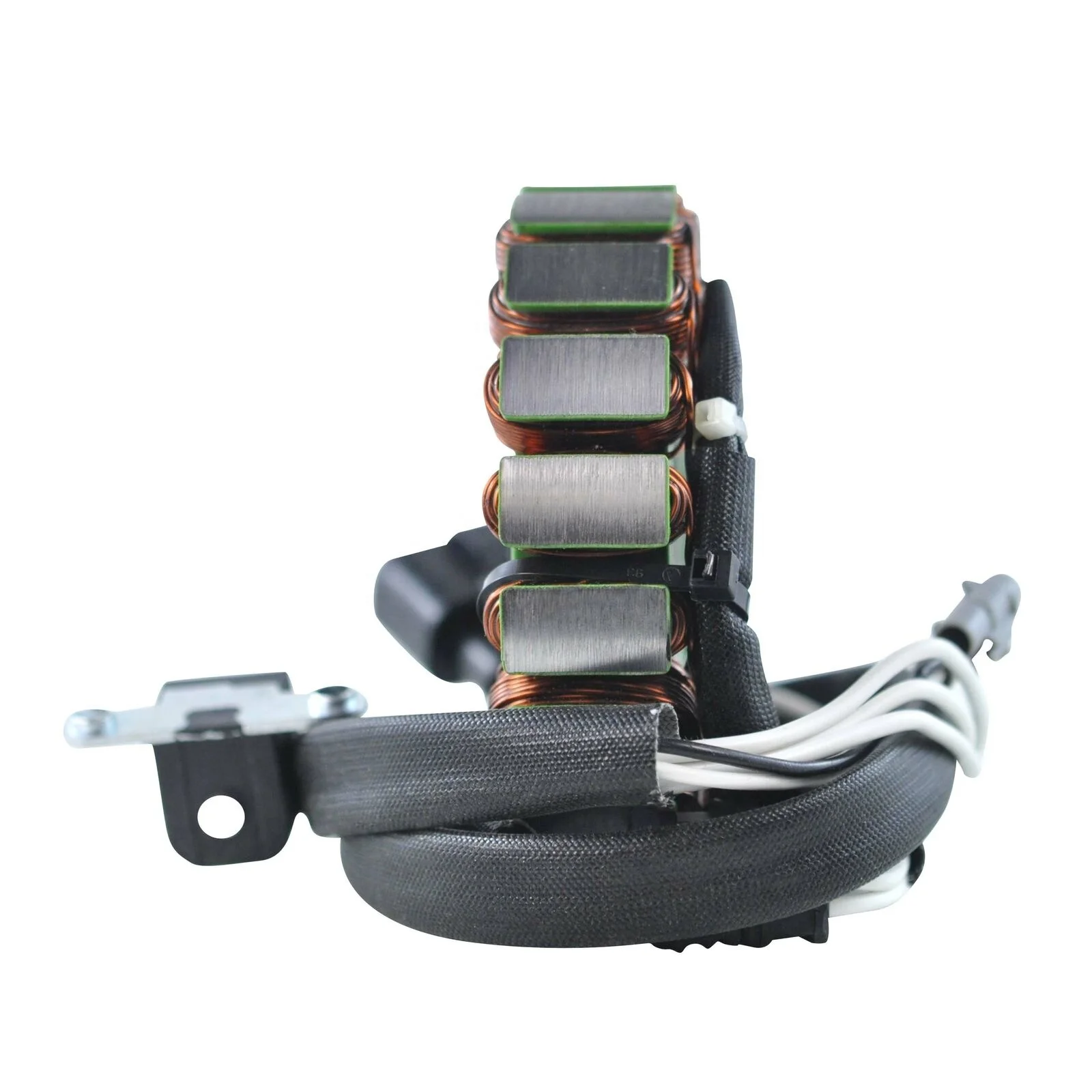

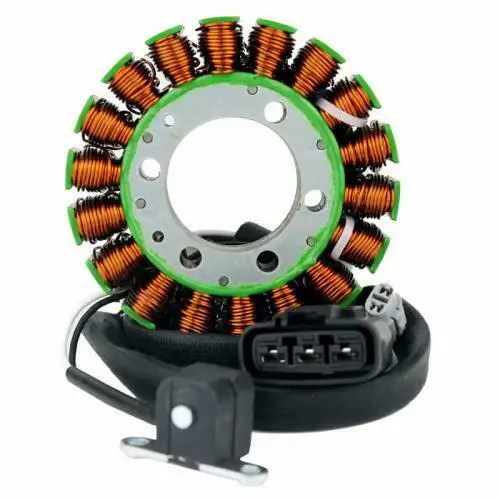

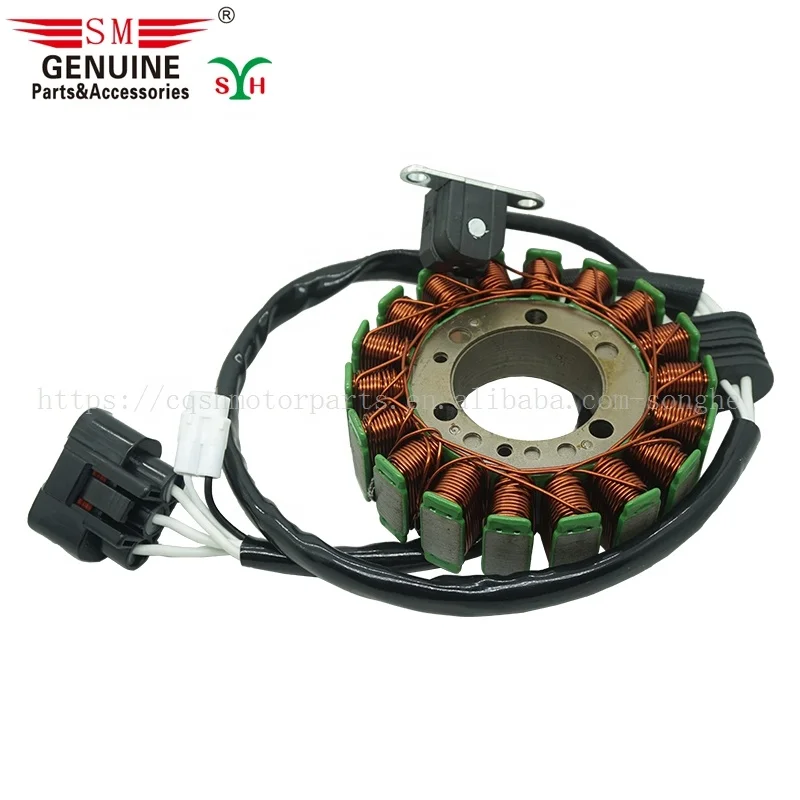

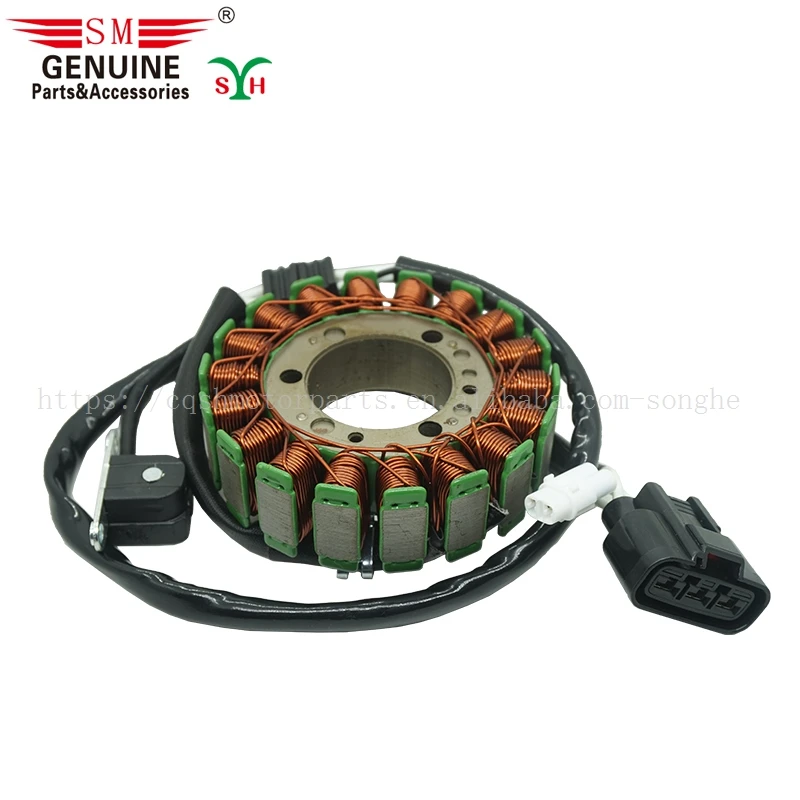

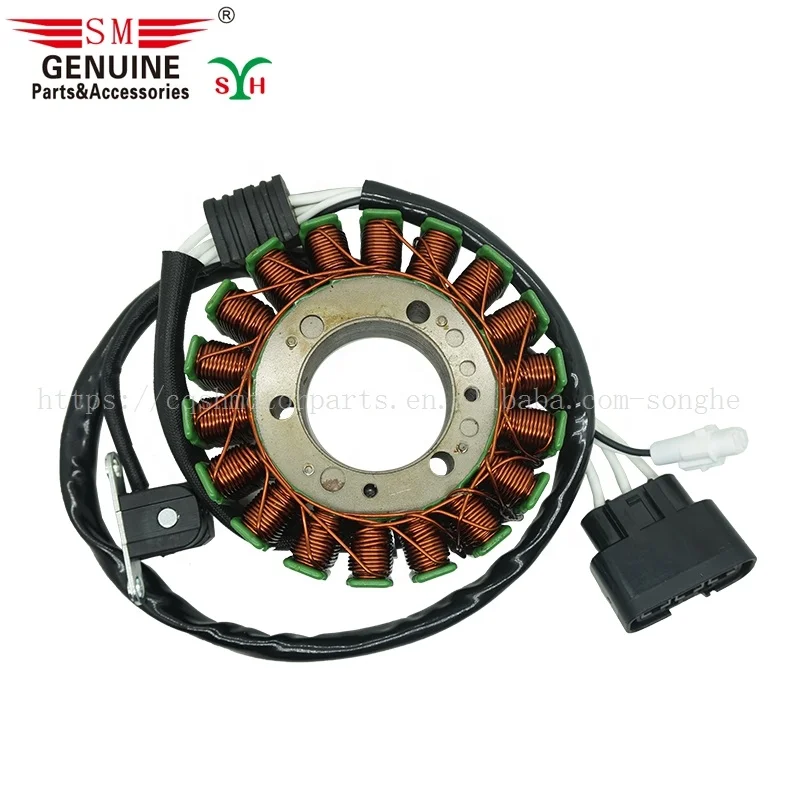

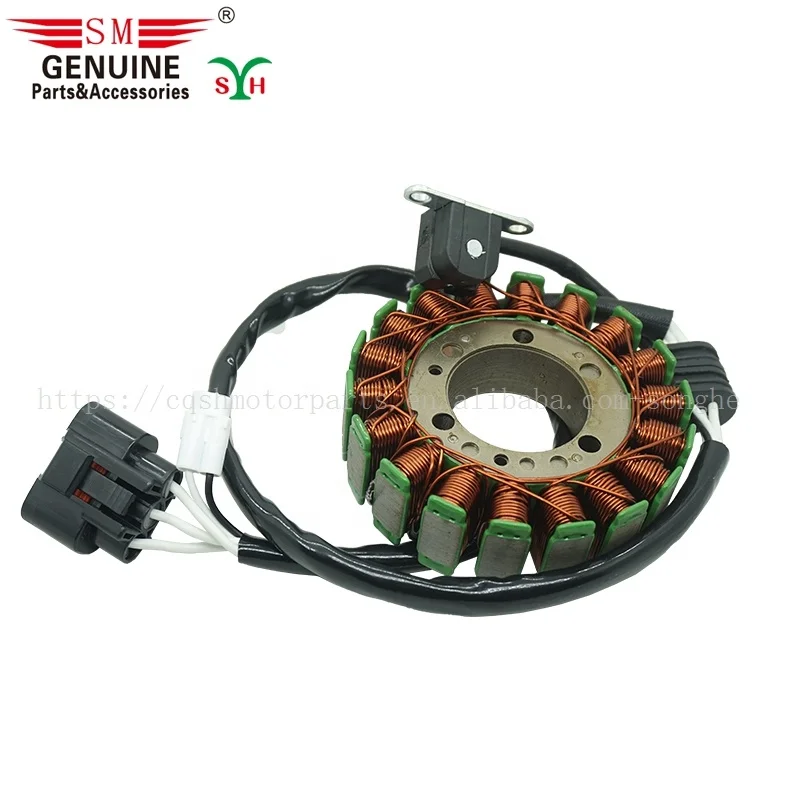

Motorcycle rotor magneto coil stator for YAMAHA Phazer PZ 50  PZ50 50CC GT500 11-13 motorcycle spare parts and accessories

Nytro 1000 -- 2006-2007
Nytro 1000 ER -- 2006-2007
Phazer 500 -- 2007-2017
RS Rage 1000 -- 2005-2007
RS Vector 1000 -- 2005-2009
RS Venture 1000 -- 2005-2017
RS Venture 1000 GT -- 2007-2009
RS Viking 1000 Professional -- 2008-2015
Venture Lite 500 -- 2007-2013
Venture MP 500 -- 2013-2017
Viking 1000 Professional -- 2006-2007

OEM:

8GC-81410-00-00
8GC-81410-10-00
8ES-81410-00-00
8ES-81410-01-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 23 mm
Length of wires stator to grommet : 220 mm
Length of wires grommet to plug 1 : 640 mm
Length of wires grommet to plug 2 : 765 mm
Length of pickup coil's wire to grommet : 77 mm

Performance parameter:

--Package surface should be smooth, free of cracks and other foreign matter;

--Output voltage : 120W/12V
--Specification: 18 coil
--Temperature range:0°~15°±1.5°
--Minimum continuous ignition speed: ≤ 400r/min

--Continuous ignition speed range: ≤ 400r/min ~ 11000r/min
--Copper material:QZY-2/180°

 --The standard reference People's Republic of China electric motorcycle industry standard QC/T501-1999;
