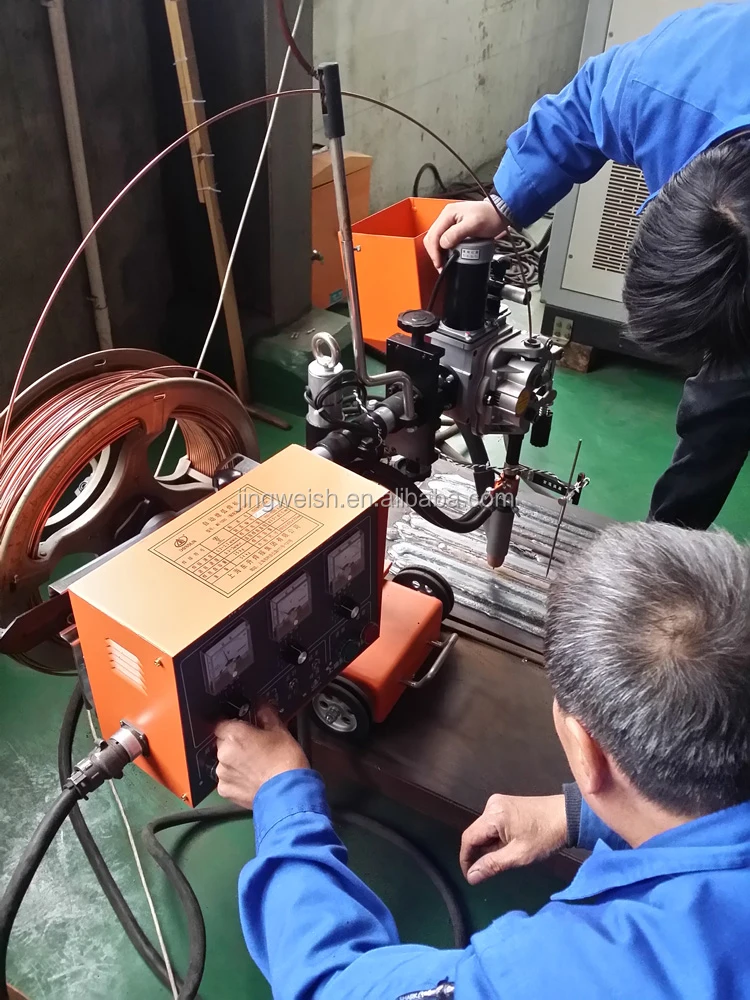

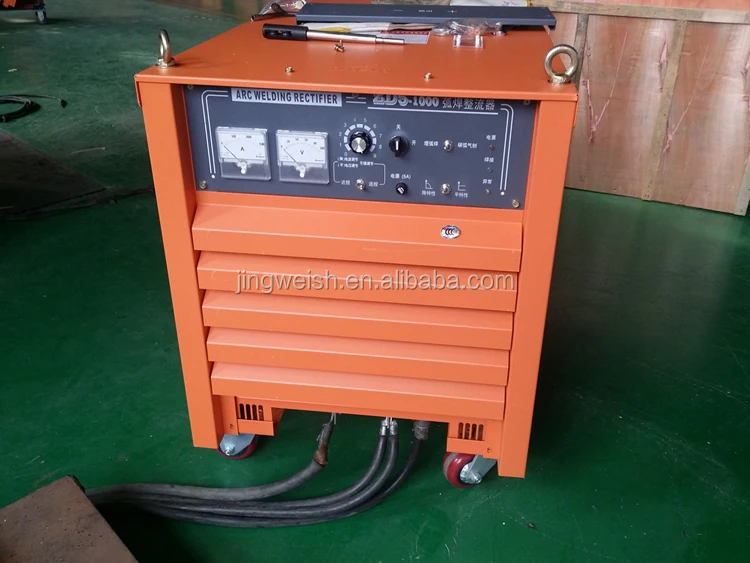

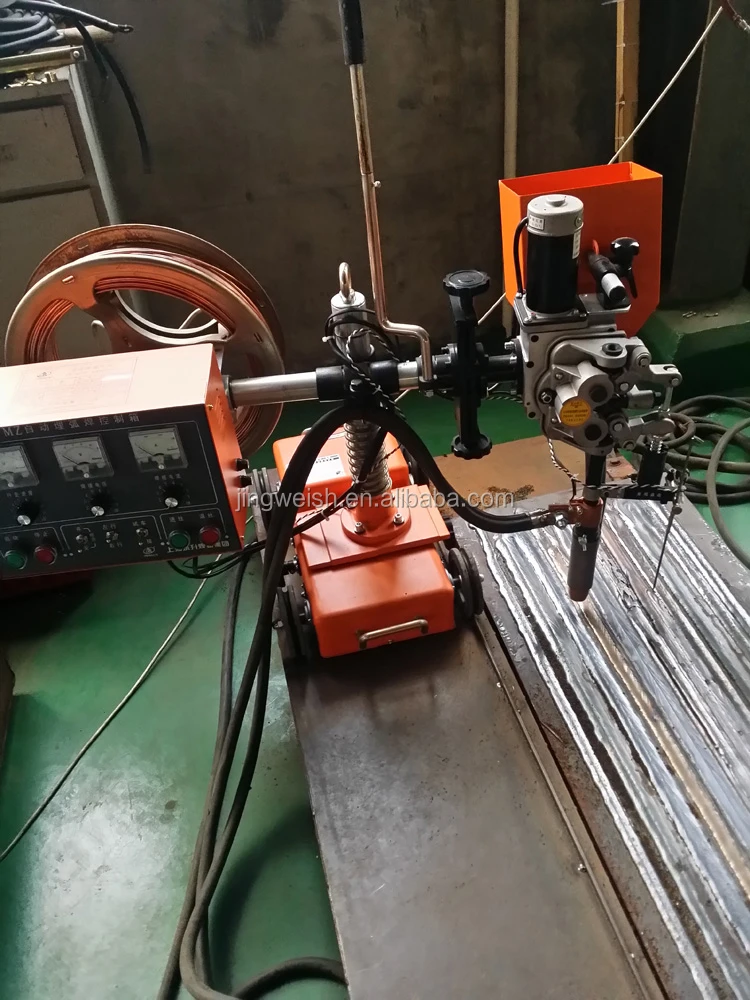

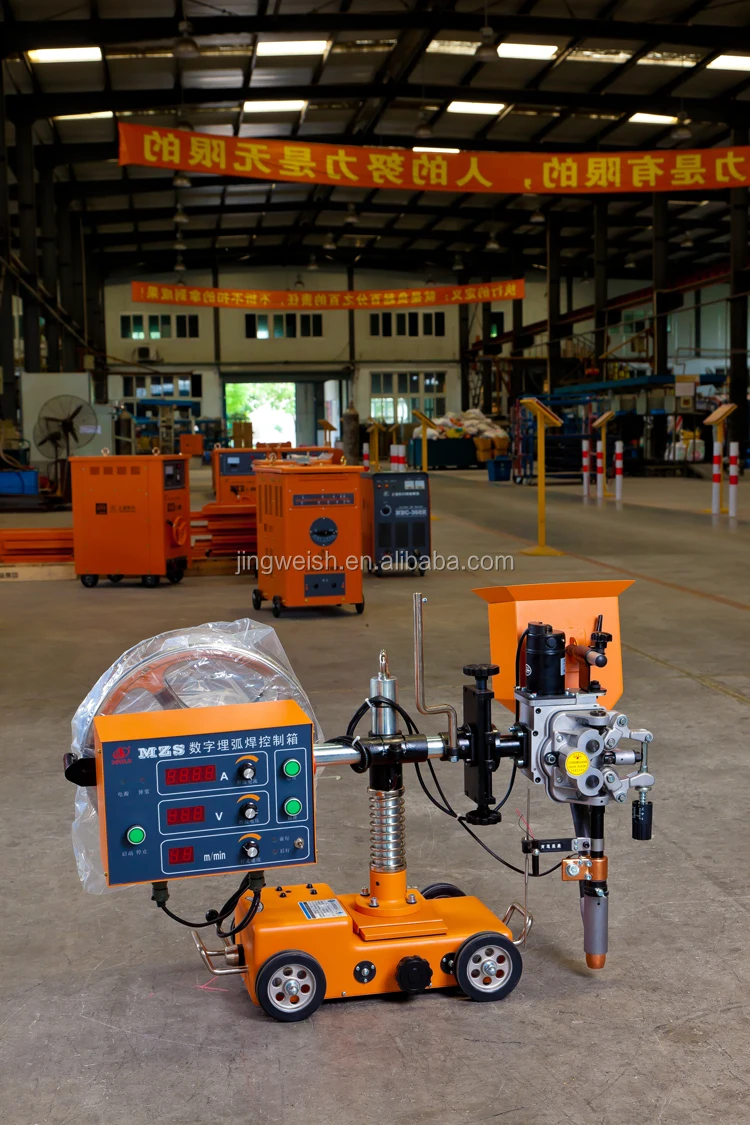

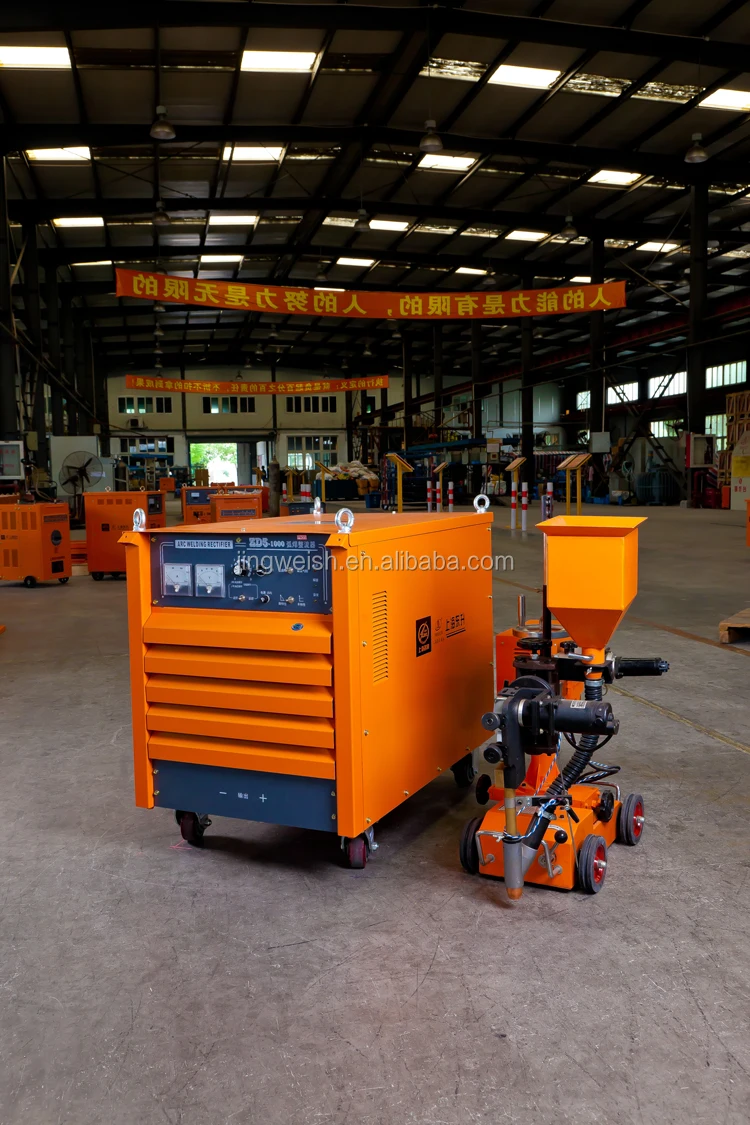

DONSUN MZ 1000 Thyristor Series Automatic Submerged ARC Welding Machine SAW 630 1000 1250

Product Overview

Description

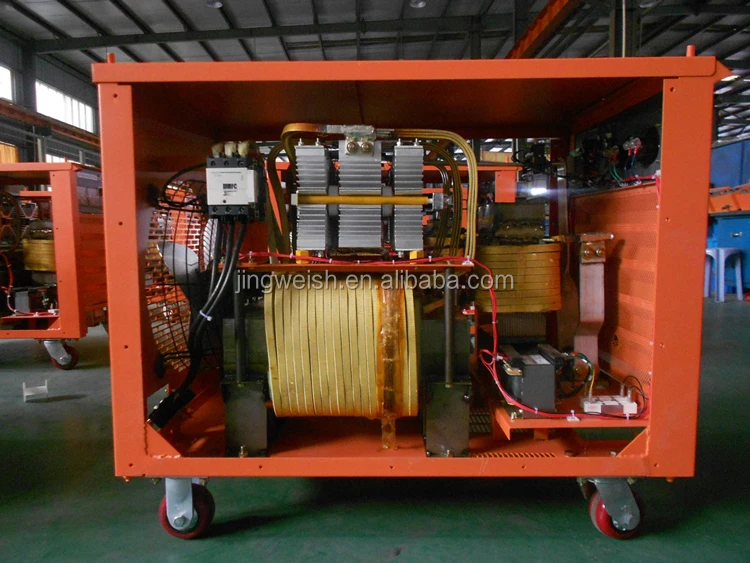

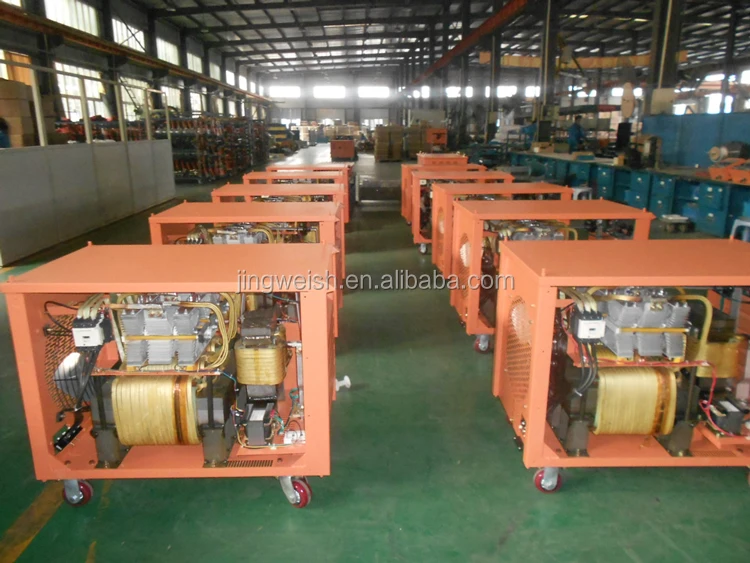

*Power resource adopts powerful thyristor,used for automatic submerged welding;
*For butt welding, filled welding with groove or without groove in horizontal or 10º angle slope;
*Wide adjustment range of welding current ,stable arc, low noise;
*Double wire drivers and powerful wire feeding function;
*Steeples adjustment of wire feed and welding speed
*Suitable for circumferential welding, filler welding , butt welding; lap welding and fillet welding in flat position.



Item/Model	MZ-630	MZ-1000	MZ-1250
Voltage	380V±15%	380V±15%	380V±15%
Frequency	50	50	50
Rated input capacity(kva)	53.6	86	99
No Load Voltage	78	76	78
Rated welding current(A)	120-630	150-1000	250-1250
Duty Cycle(%)	80	100	60
Wire diameter(mm)	2-4	3-5	3-6
Wire feed speed(cm/min)	30-120	30-120	30-120
Welding speed(m/h)	15-70	15-70	15-70
N.W.of tractor (kgs)	60	60	60
Head lateral bevel angle(°)	30	30	30
Vertical adjust range(mm)	85	85	85
Level adjust range(mm)	60	60	60
Vertical rotary angle(°)	±180	±180	±180
N.W.(KGS)	240	335	370
Dimension(MM)	888*490*807	1040*490*907	1140*646*920
Container load 20"	46	43	30
Product code	8023027	8023028	8023029
