5.7 Inch Touch Screen Graphic LCD For programmable vending machine

Share on (62404908712):


Price:RUB 3,825.51 - RUB 4,590.62

Quantity:


Product Overview

Description

5.7 Inch Touch Screen Graphic LCD For programmable vending machine



Specifications
Item
5.7 inch tft lcd module display
Size
5.7 inch
Resolution
320RGB*240 dots
Part number
TST057QVTM01-41
Interface
RGB 18-bit
Display colors
262k
Technology type
a-Si TFT
Outline dimension(mm)
144.00*104.60*12.3
Active area(mm)
115.2*86.4
Viewing direction
12 O'clock
Pixel Pitch(mm)
0.360*0.360
Surface Treatment(Up Polarizer)
Anti-Glare, Hardness 3H
Pixel arrangement
R.G.B. Vertical Stripe
With/without TSP
Without TSP
LED Numbers
15 LEDs
Weight(g)
TBD






.jpg





 .jpg

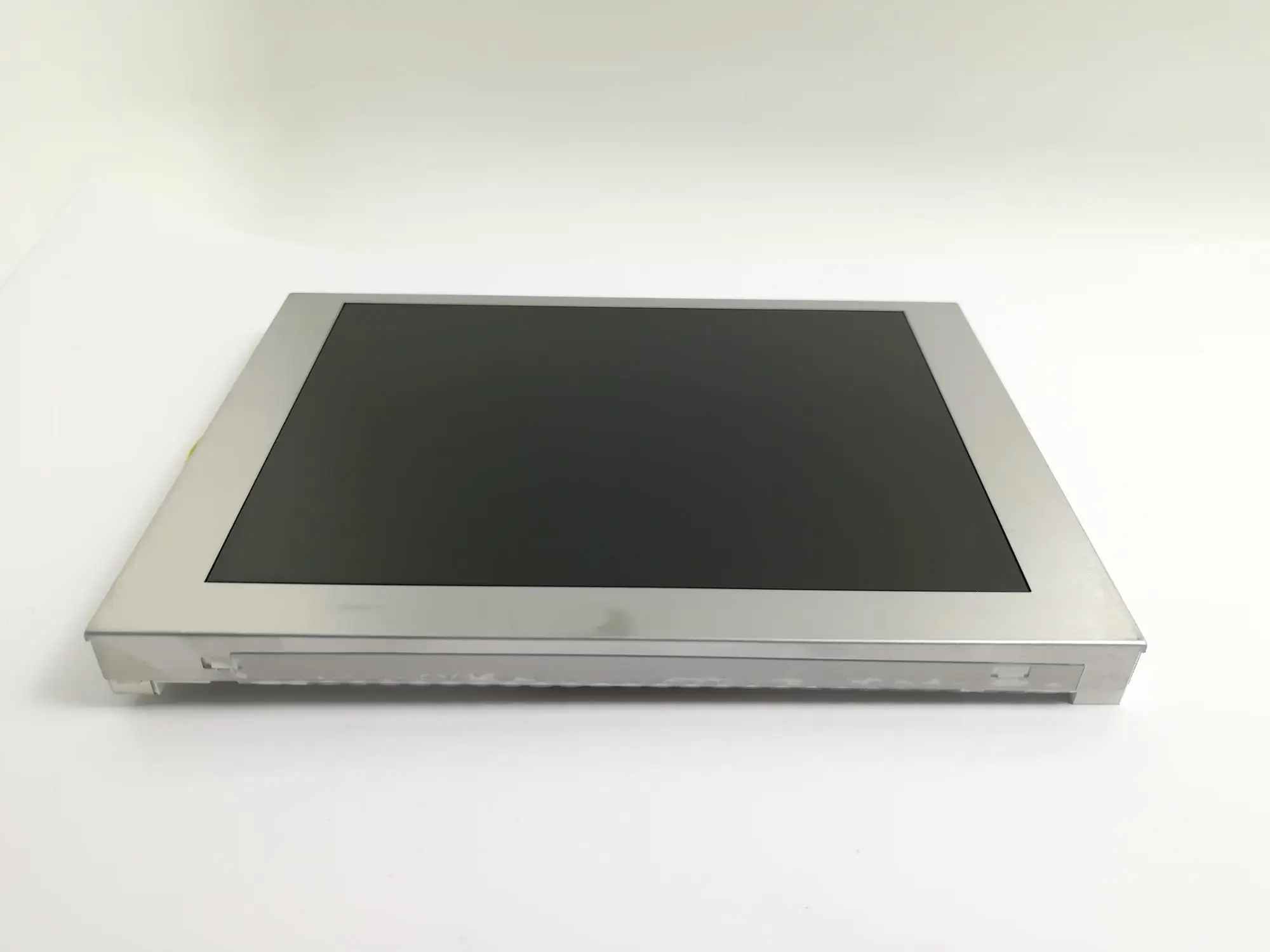

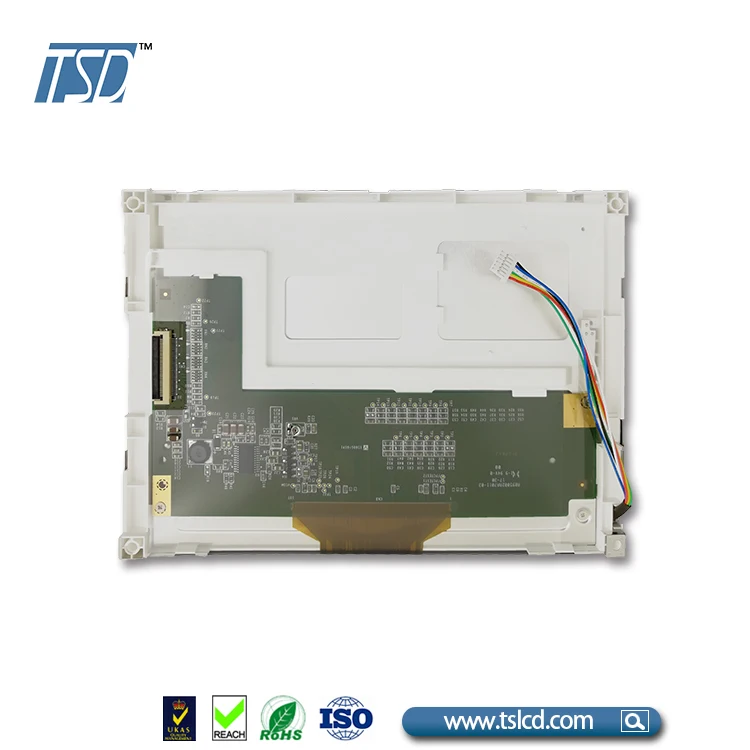

 _20180424142710.jpg 2.jpg

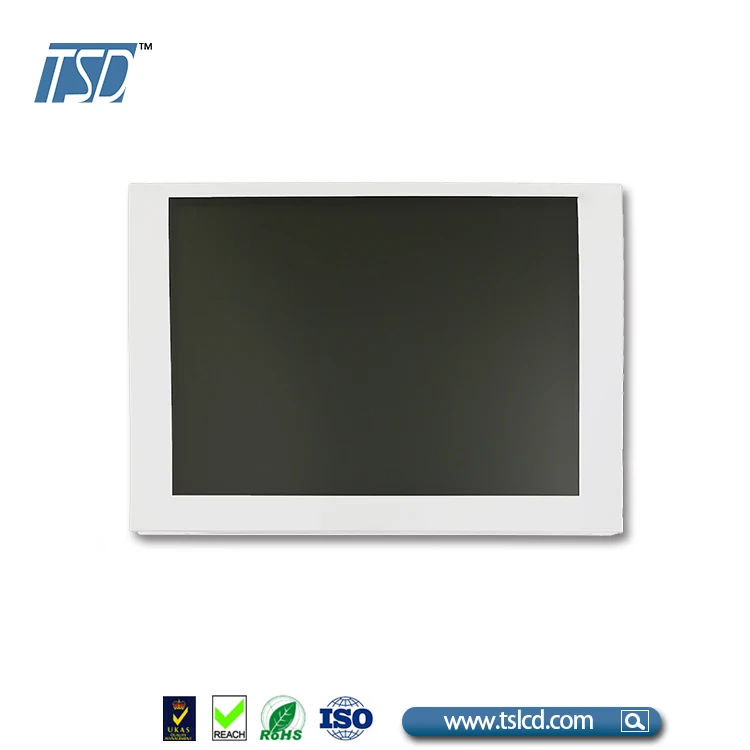

320x240 tft lcd display 5.7 inch lcd touch screen with RGB interface

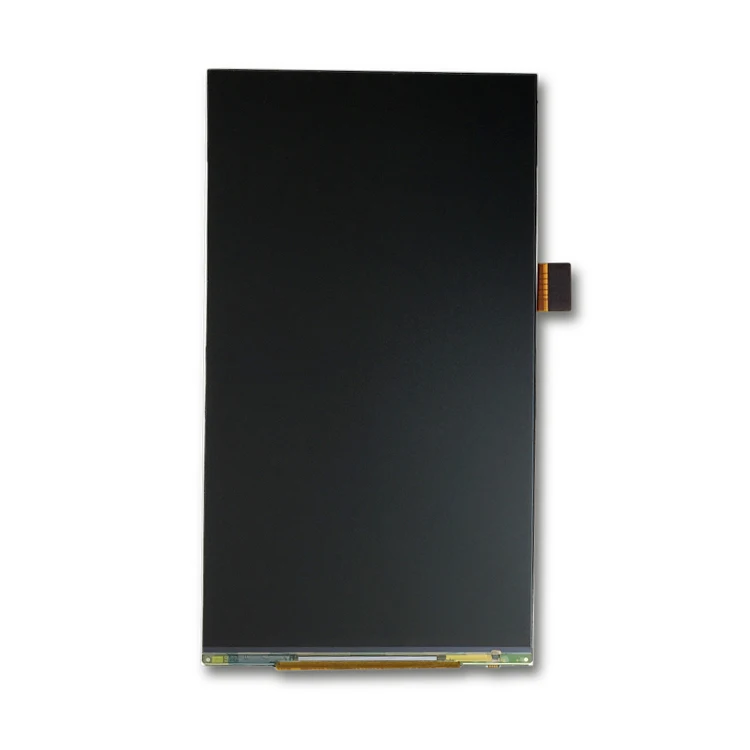

5.5 inch 720x1280 TFT LCD panel for pos machine



.jpg
