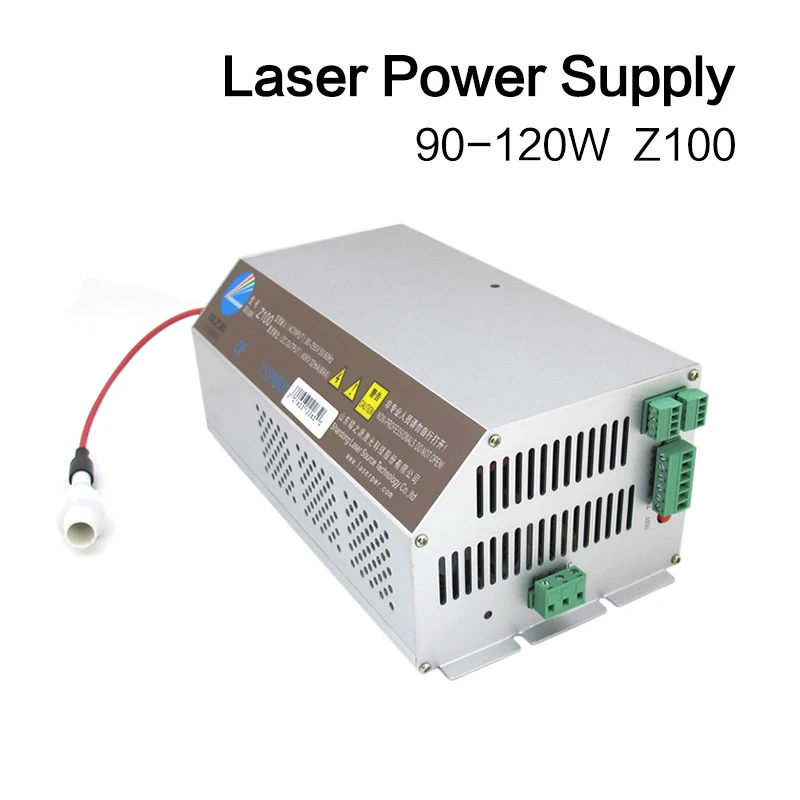

HY Z100 co2 laser power supply for 110v 220v laser source for co2 laser craving cutting machine
- Category: >>>
- Supplier: LZY Technology Co. Ltd
Share on (62405316623):
Product Overview
Description

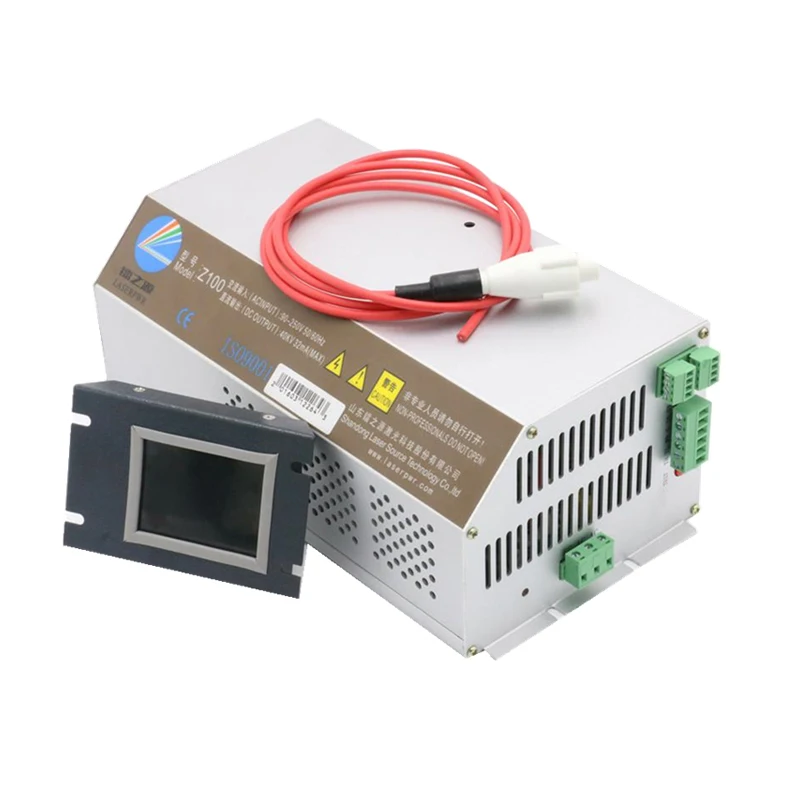

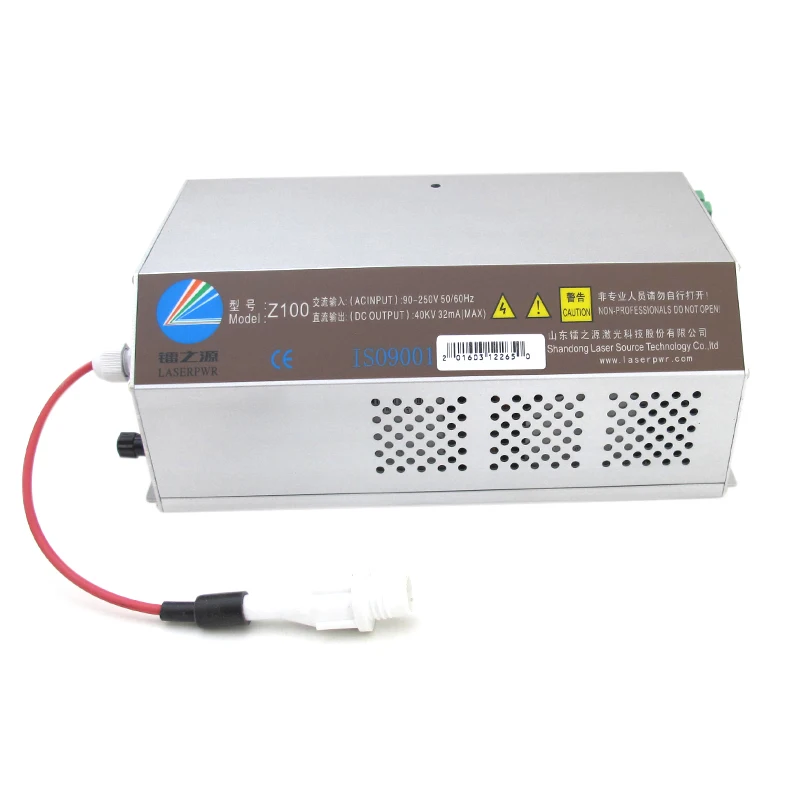

Factory outlet HY-Z100 co2 laser power supply for 110v 220v laser source for co2 laser craving cutting machine
Model: HY-Z100

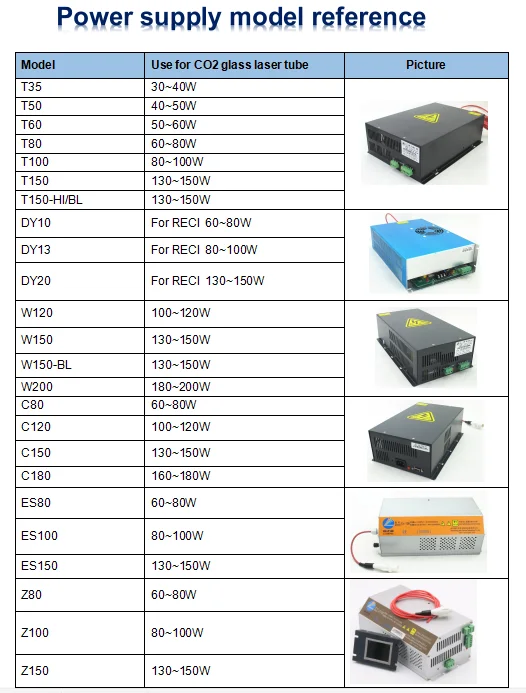

Match to RECI, Yongli, EFR 100-120W CO2 Laser Power Supply and CMA Laser Cutting Machine
Match to RECI, Yongli, EFR 100-120W CO2 Laser Power Supply and CMA Laser Cutting Machine
Product Description
1.Unique design with several patents
2.High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.
3.Make the maintenance much easier: User can judge the problem by himself.
4.Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.
5.Universal: with PFC function, AC90-250V input voltage range, globally universal.
6.Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start
automatic protection, to prevent high voltage arc effectively.
7.More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.
8.Excellent cover with patent design: Good appearance, better heat dissipation.
9.Improved current control mode, more stable laser, better compatibility.

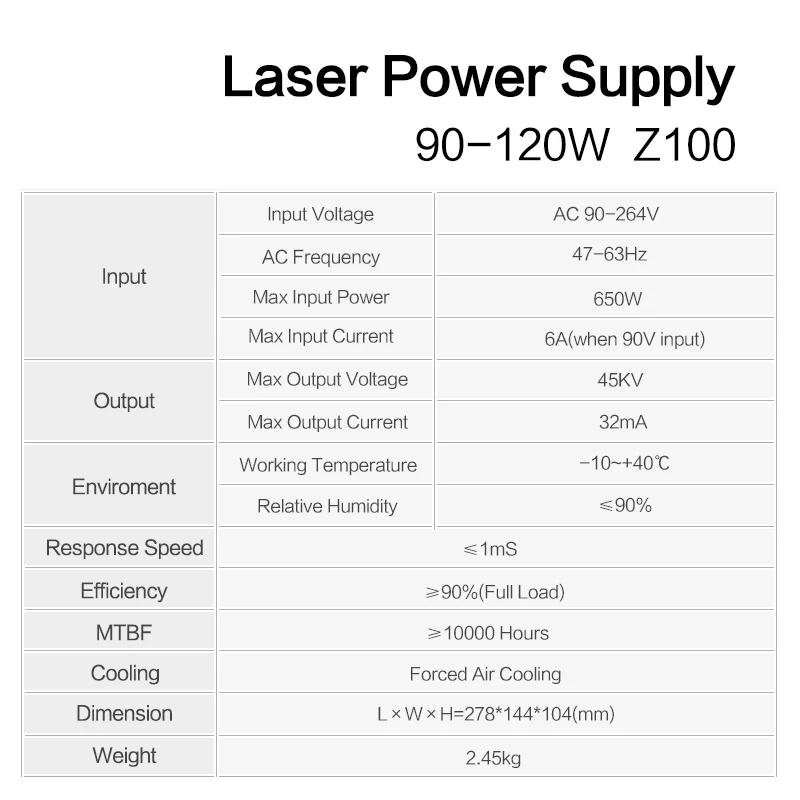

Specification
Item | Z80 | Z100 | Z150 | ||
Input voltage | AC90-264V | ||||
AC frequency | 47---63Hz | ||||
Max Input power | 600W | 650W | 900W | ||
Max Input current (when 90V input） | 5.5A | 6A | 8A | ||
Max output power | 40KV | 45KV | 55KV | ||
Max output current | 28mA | 32mA | 38mA | ||
efficiency | ≥90%（when full load） | ||||
MTBF | ≥10000 hours | ||||
Respond speed | ≤1mS（the time from the signal is given to output current ） | ||||
Switch control mode | TTL | ||||
Power control mode | PWM>20KHz or 0-5V or 0-3.3V analogue | ||||
Communication | Special serial port | ||||
Withstand voltage | Input - output ,input-shell:AC1500V 10mA 60s； | ||||
Working environment | Temperature（-10~40）℃ ，relative humidity：≤90% | ||||

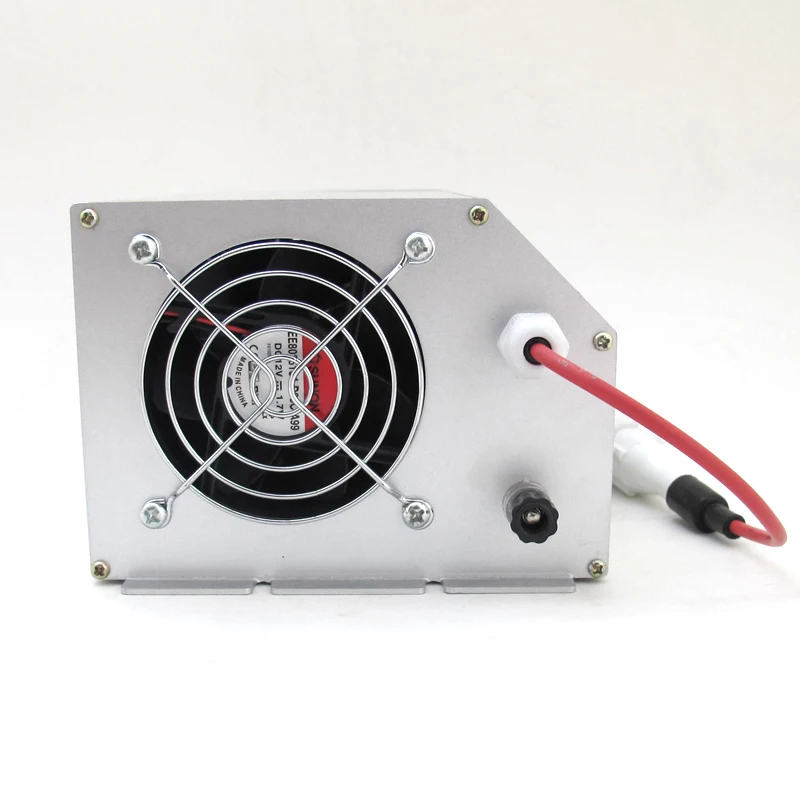

cooling | Force air cooling | ||||
Supporting laser tube power | 50-80W | 90-120W | 120-180W | ||

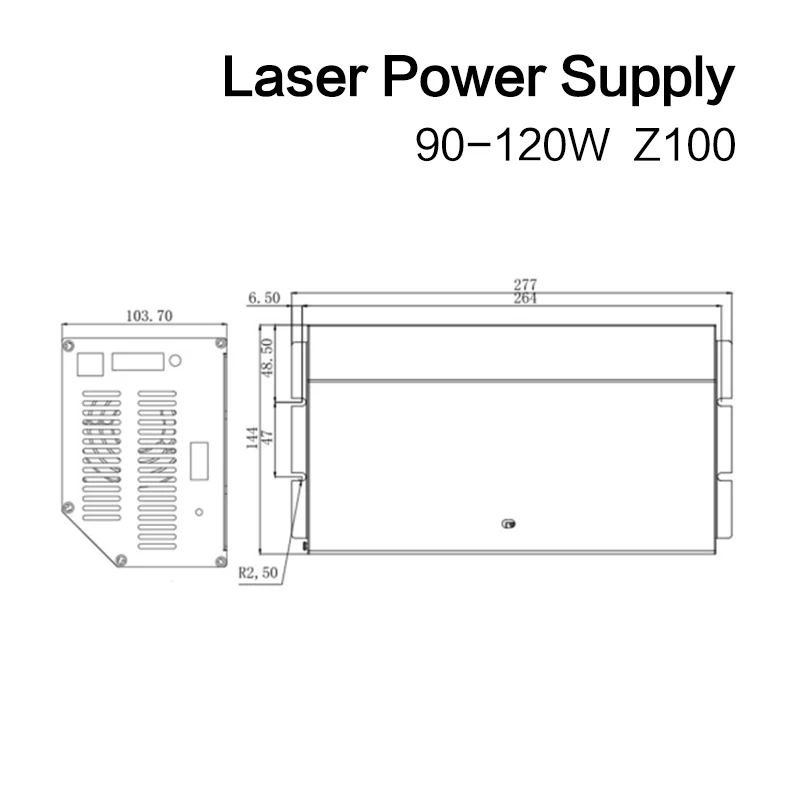

Dimension L*W*H(mm) | 235*144*104 | 278*144*104 | 330*144*104 | ||
Weight （KG） | 2.15kg | 2.45kg | 3.2kg | ||
Color | Silver | ||||
Product details
Packing & Delivery

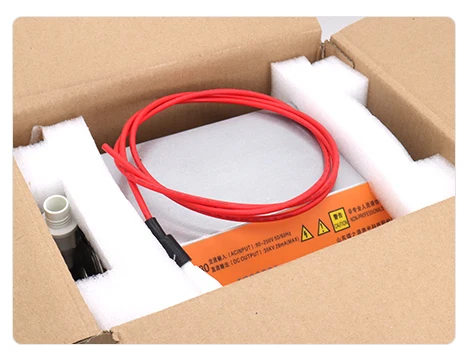

Carton box with EPE protection
Certifications

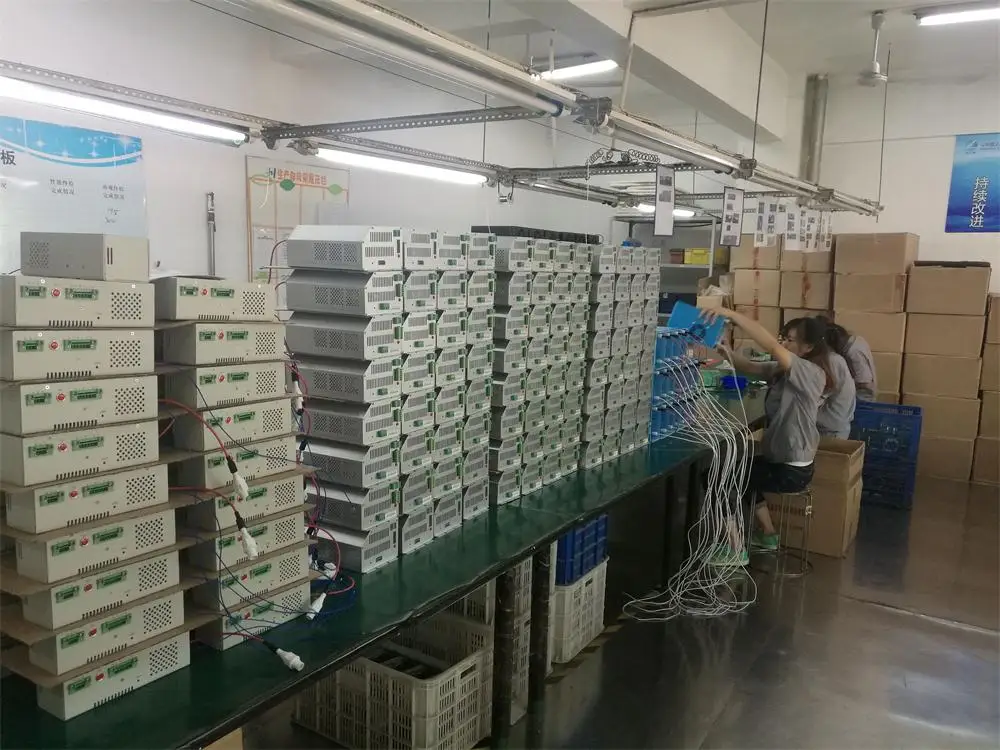

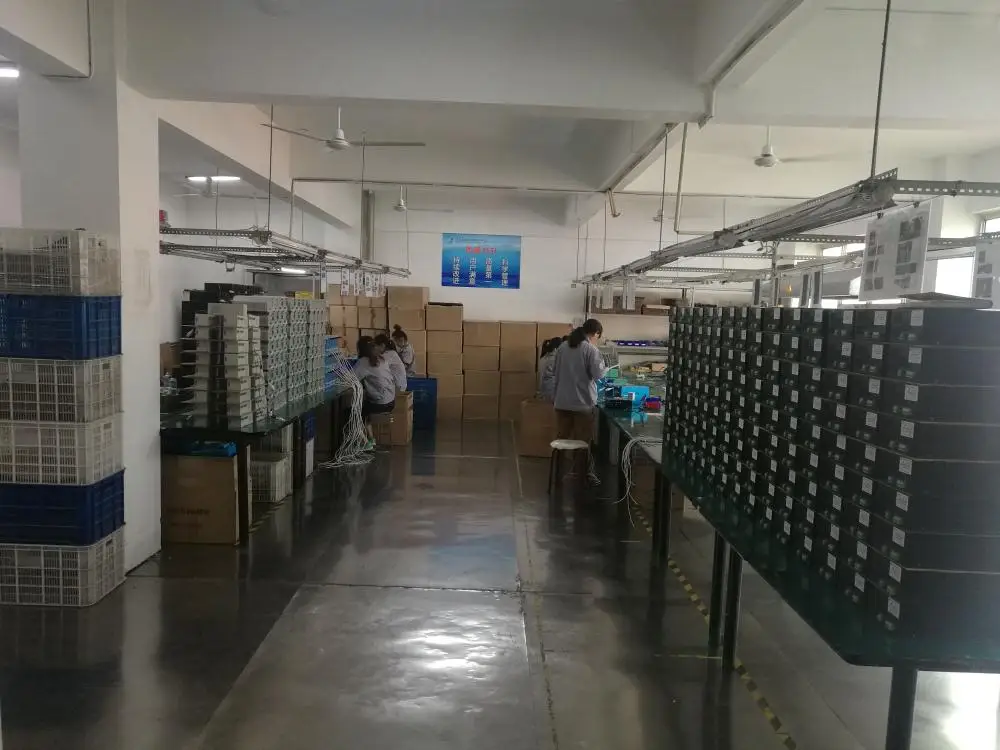

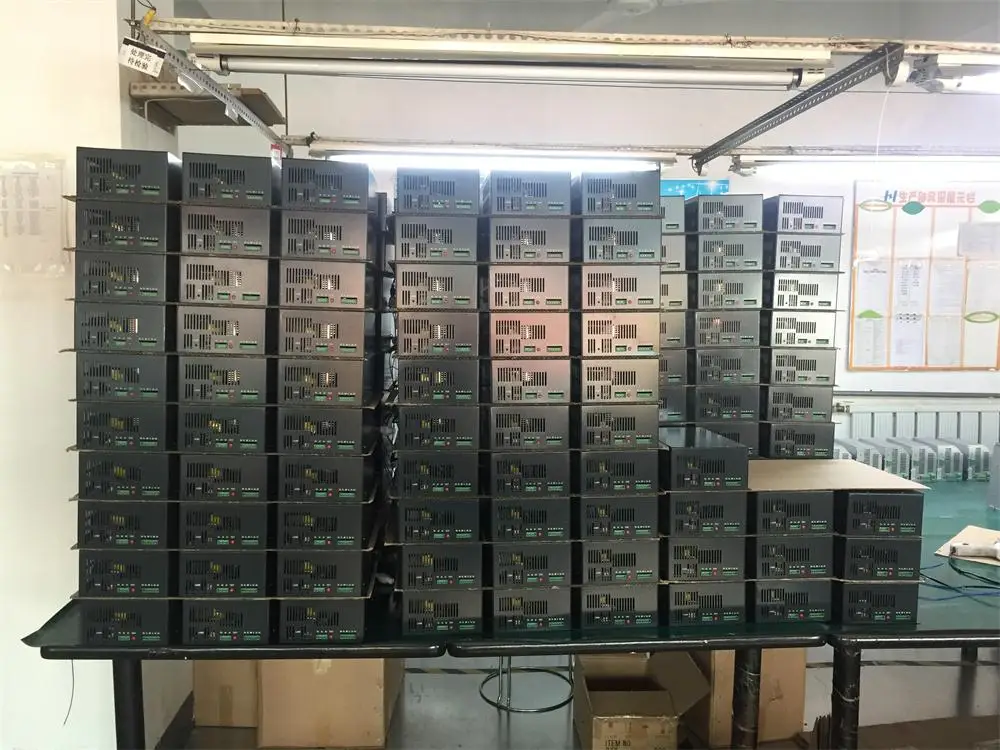

Company Profile
Shandong Laser Source Technology Co., Ltd, formerly Jinan Hongyuan Electric Co., Ltd founded on July of 2001,is a High-Tech Enterprise that specialized in desiging,manufacturing,marking electrical products.It is located in advanced business center-developed zone in Tianqiao Area Jinan City.There are 45 manpowers included in Electrical Power field for mearly 20years,who accumulated rich designing,manufacting and managerment experiences.In addtion,our company has long-term cooperation with unversity,scientific research institutes,organisations.Our comapny has independent 2000 square meters.
Our company have engaged in the designing and production of laser power supply since 2001 so that accumulated a large number of laser power talents and reaserch&production experience.We have good cooeperation with laser tube facotry.The products related to dozens of variaties such as co2 laser power supplies,co2 laser tubes,co2 laser cutting machine full machine.YAG laser power supply,UPOE power supply ect.The co2 laser power supply accumulative total production sales mearly 100,000 peices.Some products have been stable operation nearly eight years.Jinan Hongyuan Electric is the first selection of complete production partner for laser machine.
The company strictly according to ISO9001:2000 international quality management system elements of conduct production activities.We attach importance to design production,process inspection,incoming inspection,various links quality.Pay attention to produce aftersales quality feedback and continuous improvement principle,ensure products performance and stable quality.80% of laser power supplies have passed the CE certification.Adhering to the business philosophy of technology-based specialization.Our company is in accordance with the business philosophy of technology-based specialization,In such as laser power supply,laser tubes,UPOE,xenon lamp power supply.Jinan Hongyuan Electric CO.,LTD also is met with more excellent products and more satisfied with the cost performance of more satisfactory service to acknowleage old and new customer for supports love.
Our company have engaged in the designing and production of laser power supply since 2001 so that accumulated a large number of laser power talents and reaserch&production experience.We have good cooeperation with laser tube facotry.The products related to dozens of variaties such as co2 laser power supplies,co2 laser tubes,co2 laser cutting machine full machine.YAG laser power supply,UPOE power supply ect.The co2 laser power supply accumulative total production sales mearly 100,000 peices.Some products have been stable operation nearly eight years.Jinan Hongyuan Electric is the first selection of complete production partner for laser machine.
The company strictly according to ISO9001:2000 international quality management system elements of conduct production activities.We attach importance to design production,process inspection,incoming inspection,various links quality.Pay attention to produce aftersales quality feedback and continuous improvement principle,ensure products performance and stable quality.80% of laser power supplies have passed the CE certification.Adhering to the business philosophy of technology-based specialization.Our company is in accordance with the business philosophy of technology-based specialization,In such as laser power supply,laser tubes,UPOE,xenon lamp power supply.Jinan Hongyuan Electric CO.,LTD also is met with more excellent products and more satisfied with the cost performance of more satisfactory service to acknowleage old and new customer for supports love.
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(78.00%),Southeast Asia(7.00%),Mid East(5.00%),Eastern Europe(4.00%),South Asia(1.00%),Eastern Asia(0.70%),Central America(0.70%),Northern Europe(0.70%),Oceania(0.60%),Southern Europe(0.60%),South America(0.50%),North America(0.50%),Africa(0.40%),Western Europe(0.30%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser Power Supply,Laser Tube Power Supply,Laser Machine Power Supply,Laser Tube,Laser Machine Share Parts
4. why should you buy from us not from other suppliers?
35 years manufacturer of :
1. Co2 Laser Power Supply
2. Co2 Laser Tube
3. Medical and Beauty machine power supply and control system.
4. face mask machine ultrasonic generator
5. Electret Electrostatic Generator
4. Strong R&D technique team
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,CPT,DDU；
Accepted Payment Currency:USD,EUR,CAD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shandong, China, start from 2009,sell to Domestic Market(78.00%),Southeast Asia(7.00%),Mid East(5.00%),Eastern Europe(4.00%),South Asia(1.00%),Eastern Asia(0.70%),Central America(0.70%),Northern Europe(0.70%),Oceania(0.60%),Southern Europe(0.60%),South America(0.50%),North America(0.50%),Africa(0.40%),Western Europe(0.30%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser Power Supply,Laser Tube Power Supply,Laser Machine Power Supply,Laser Tube,Laser Machine Share Parts
4. why should you buy from us not from other suppliers?
35 years manufacturer of :
1. Co2 Laser Power Supply
2. Co2 Laser Tube
3. Medical and Beauty machine power supply and control system.
4. face mask machine ultrasonic generator
5. Electret Electrostatic Generator
4. Strong R&D technique team
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,CPT,DDU；
Accepted Payment Currency:USD,EUR,CAD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
