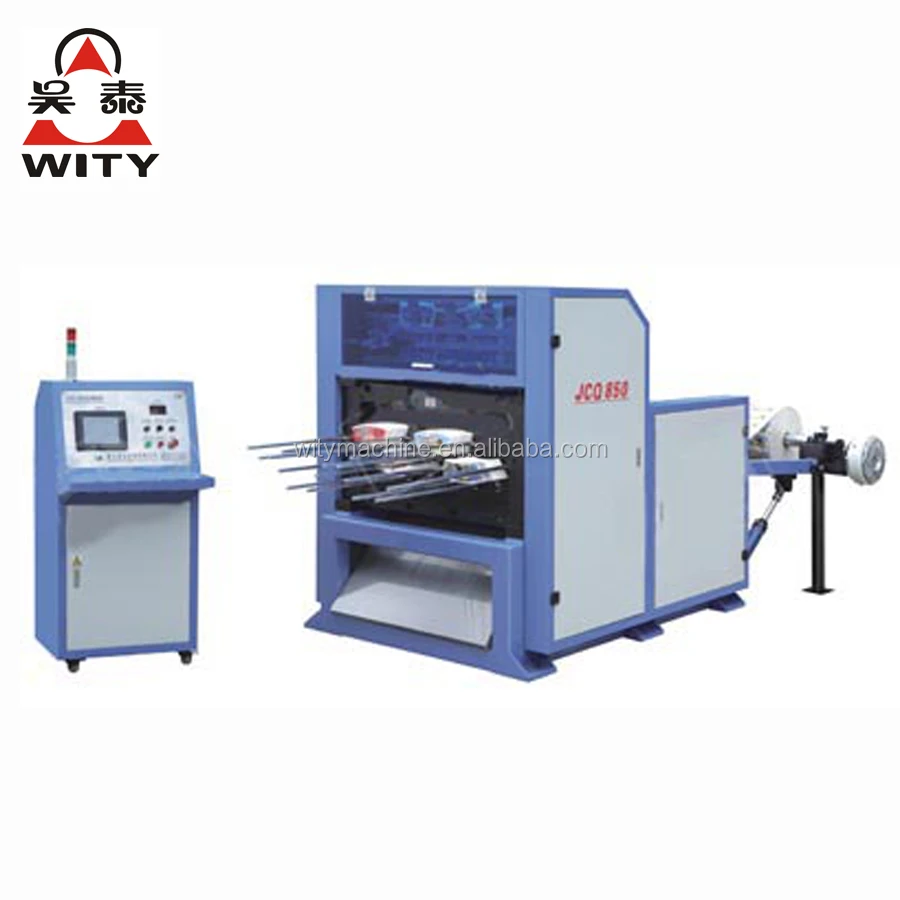

Automatic High Speed Roll Paper Cup Punching Die Cutting Machine
- Category: >>>
- Supplier: Ruian Wity Machinery Co. Ltd.
Share on (62405412587):
Product Overview
Description
Product Description
High Speed Punching Machine
High Speed Punching Machine is used to punch and waste edge stripping the jumbo roll cup paper into cup shape.
Specification
Cutting style | Punching style (for roll paper) |
Cutting speed | 150~200times/min |
Paper material | 125~350gsm roll paper width range: 360~850mm |
Diameter of paper roll | ≤1.5m |
Speed of feeding paper | 35m/min (intermittent work) |
Compressed air | 0.2 m3/min 0.5Mpa |
Length of guide roll surface | 950mm |
Main power | 4kw |
Total power | 8.5kw |
Weight | 3000kg |
Main size | 2900X1400X1700 and 700X700X1350mm |
Samples

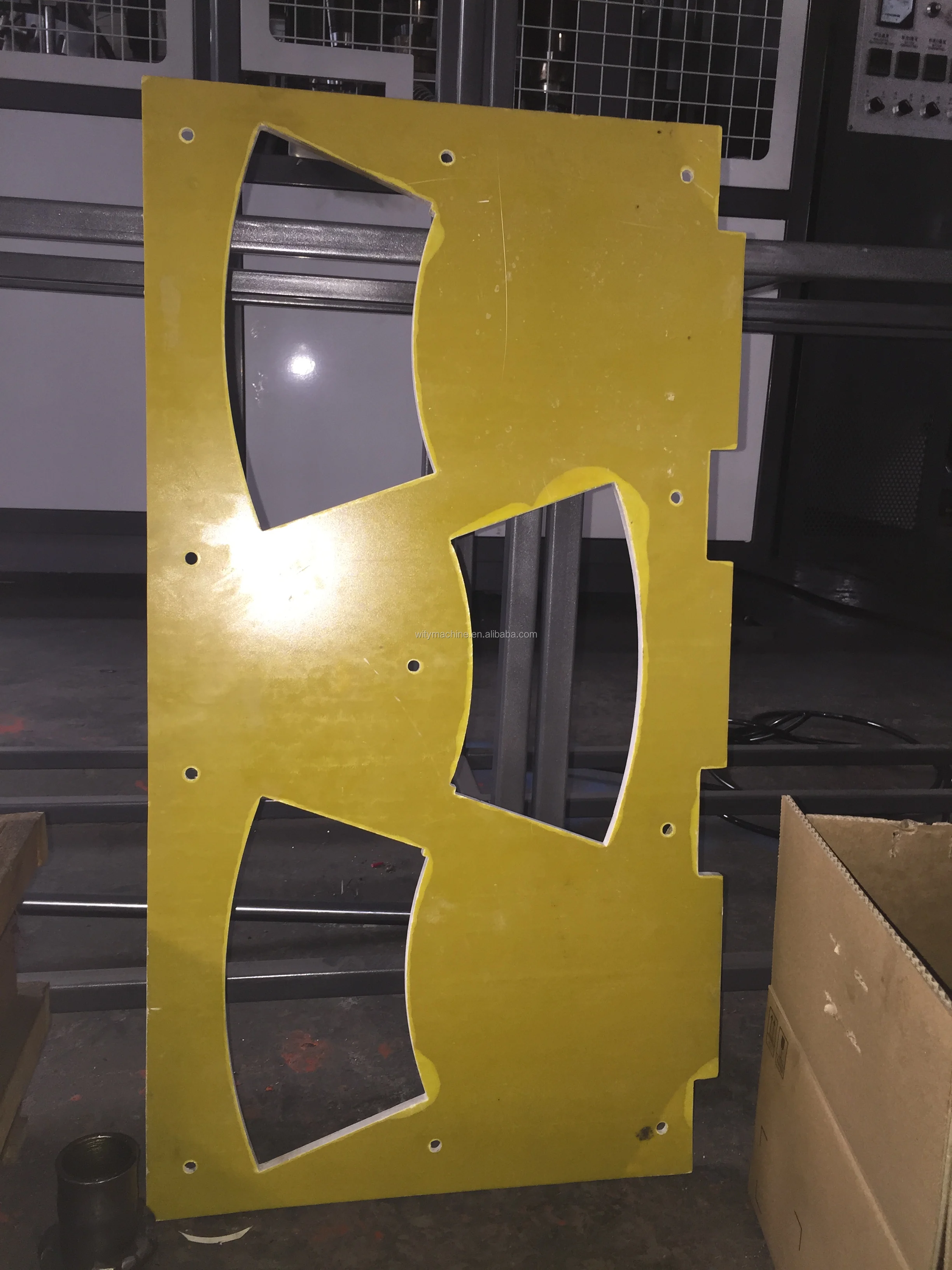

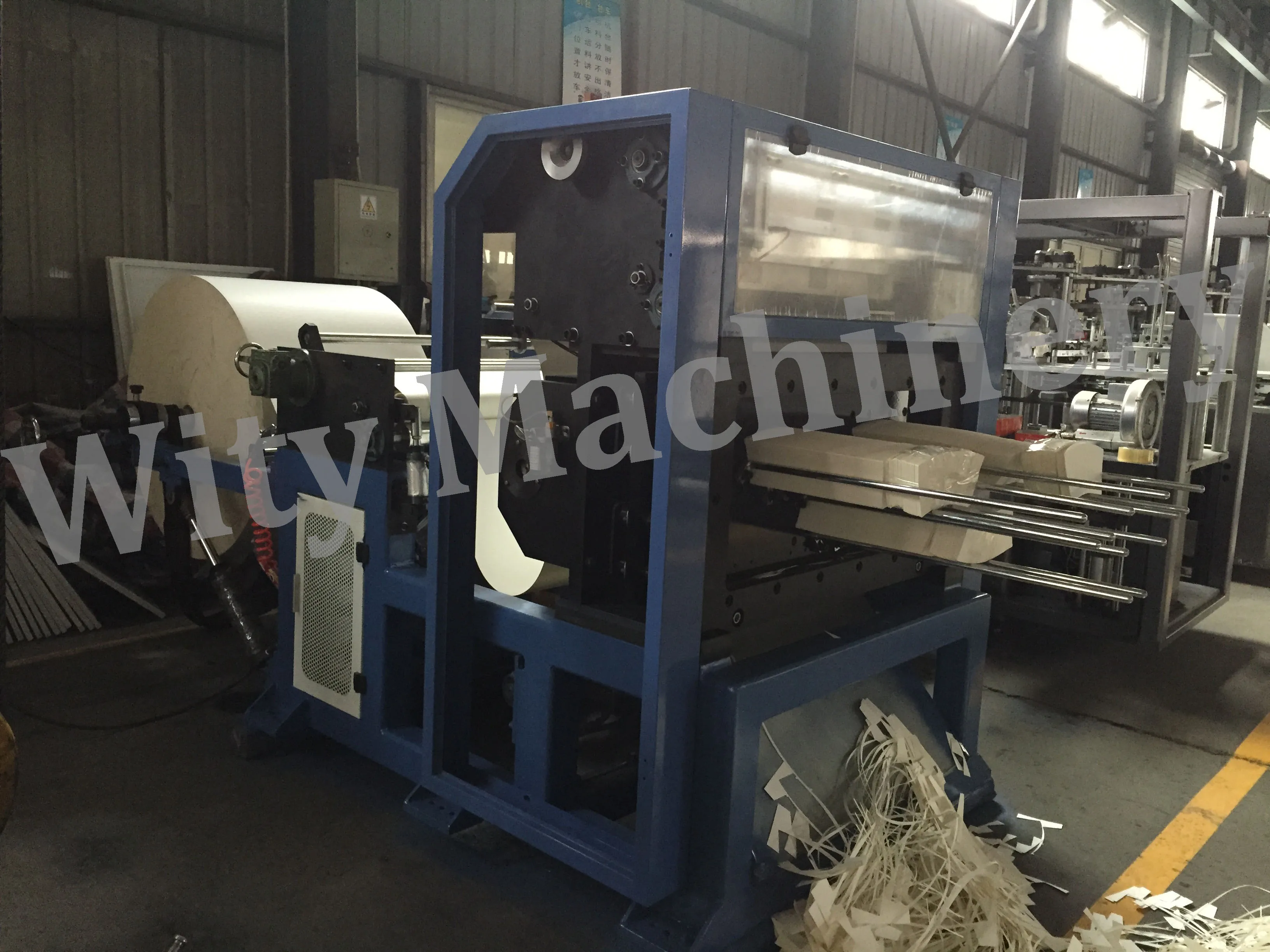

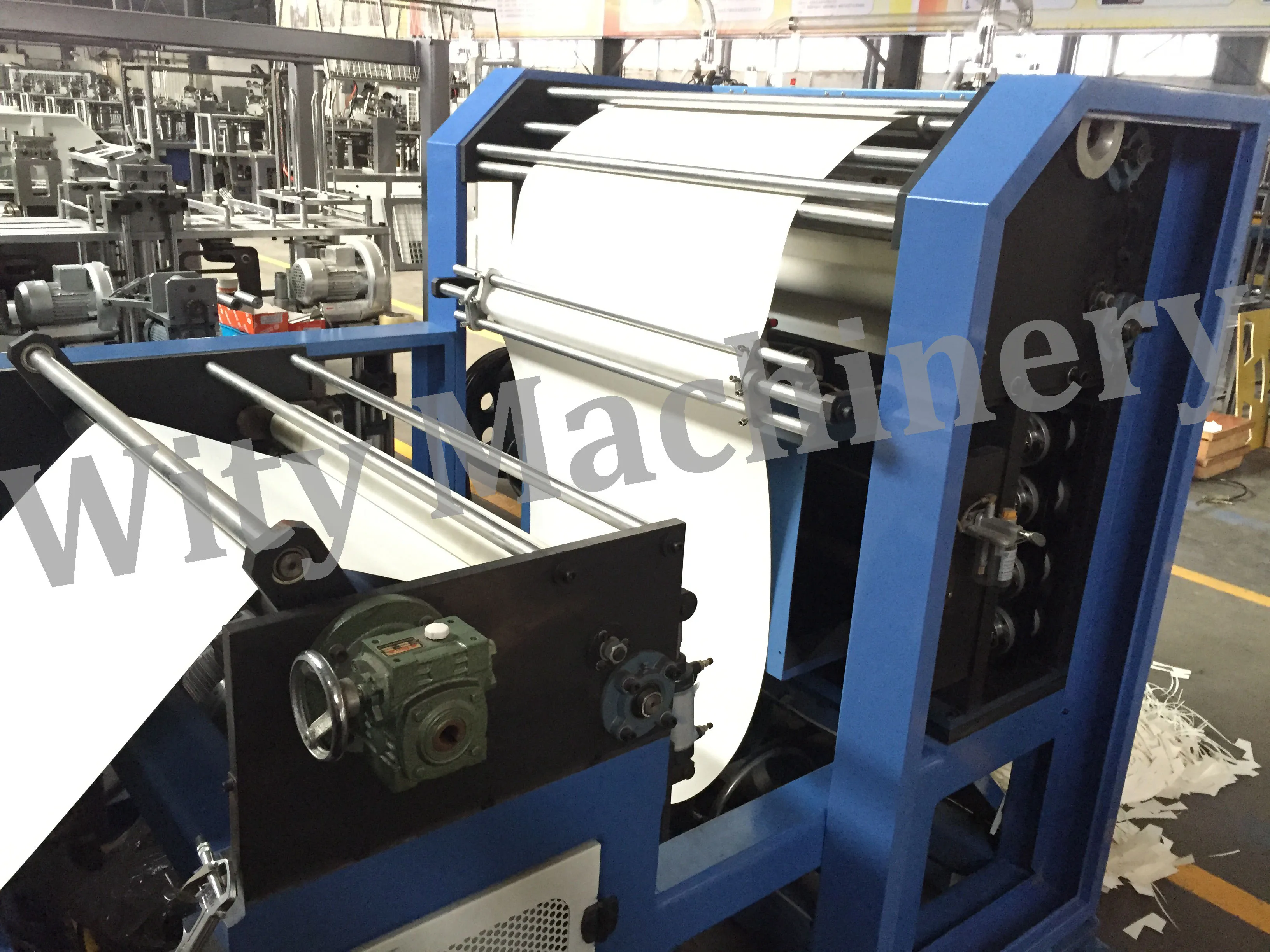

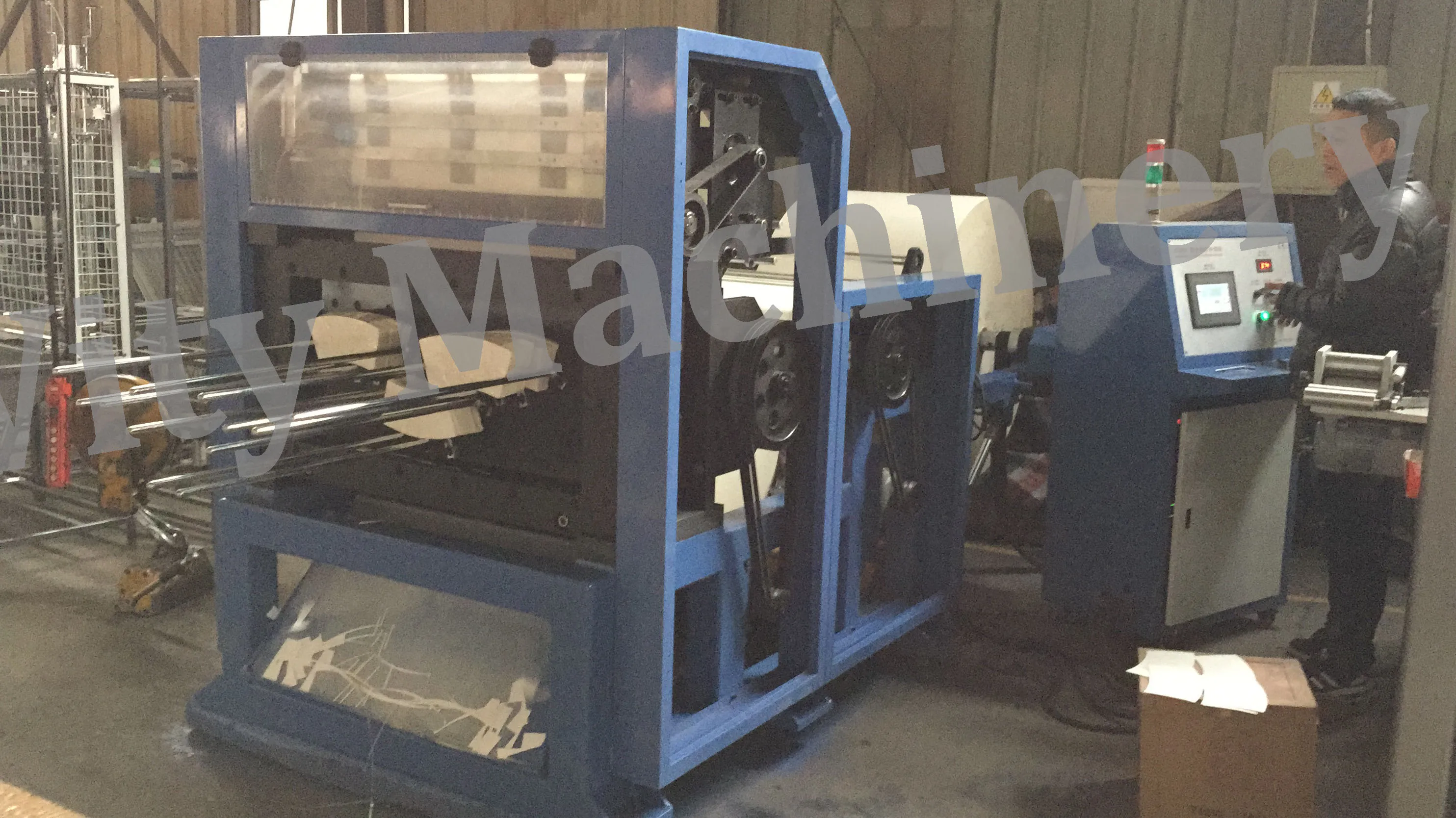

Details Images
