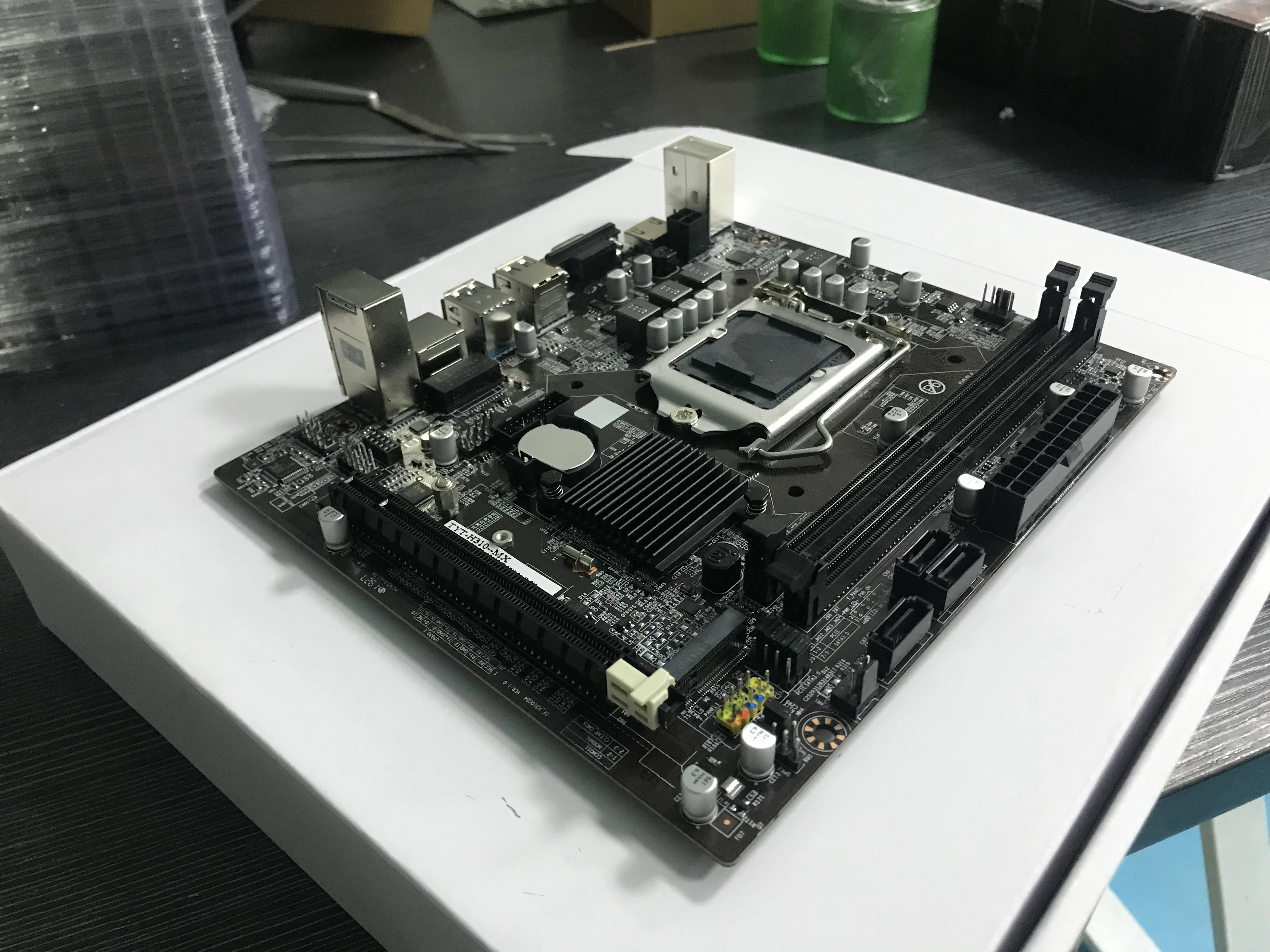

Desktop LGA 1151 Socket DDR4 H310 Mainboard

Processor Support

  Inte0® Socket 1151 for 8th/9th Generat1on Core™i7/

  Core™  i5/Core™ i3/Pent1um®/Celero1n® Processors
  Supports Inte0® 14 nm CPU
  Supports Inte0® Turbo Boost Technology 2.0

  Chipset

  Inte0® H310 Chipset

 Memory Support

  2 * DDR4 2133/2400MHz DIMM

 LAN

  Supports Realtek®8105E 100 Mbps

 Audio

  Realtek®662 6-channel audio

 SATA

  3 * SATA 3.0 port(s),

 Back panel

 1 * VGA port, 1 * HD port, 2 * USB 3.0 Ports

 2 * USB 2.0 Ports, 1 * LAN jack, 3 * flexible audio jacks

  On-Board

  Pinheaders /

  Connectors

 1 * USB 3.0 pinheader,  1 * USB 2.0 pinheader

 1 * F_Audio pinheader, 1 * F_Panel pinheader, 1 * DEBUG pinheader

 Slots

 1 *PCI Express x16 3.0  slot   1* M.2 Port

 Form Factor

 Micro-ATX (19.4cm X 16.8 cm)
