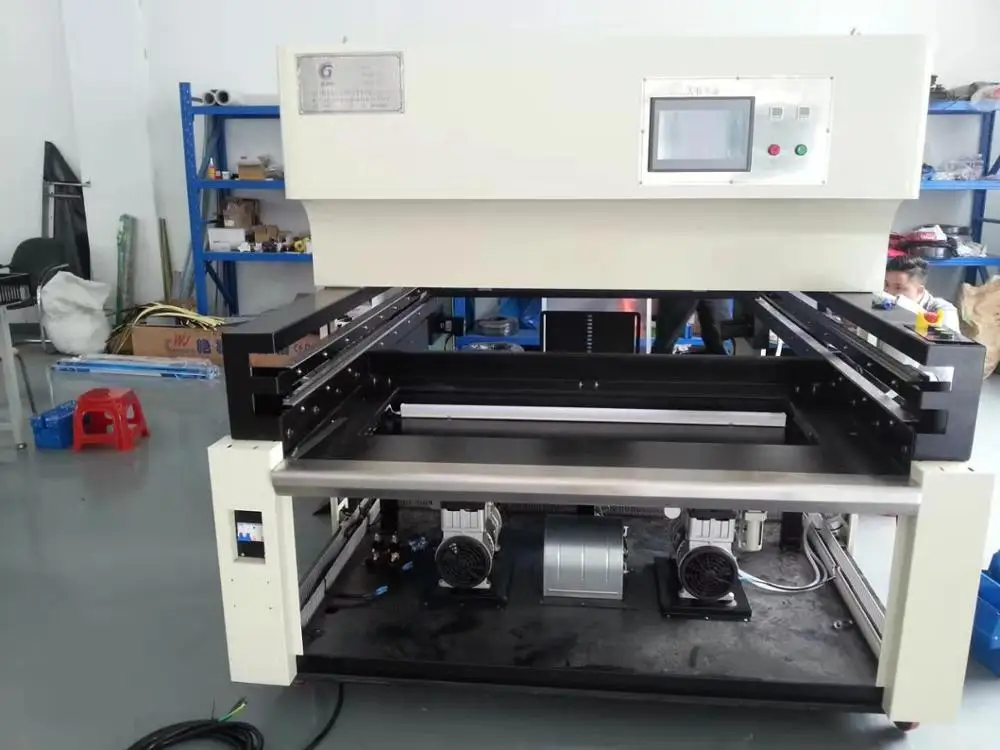

High quality PCB uv machine double sided uv exposure unit machinery
- Category: >>>
- Supplier: Shenzhen Leader UV Technology Co. Ltd.
Share on (62405933322):
Product Overview
Description
Machine details
Professional PCB exposure machine manufacturer.Provide excellent quality uv led curing machine.
UV led chip packing and uv led curing module factory. Customized uv led module availabe.
| Technical parameter | LD-900H | LD-1200H | LD-1500H |
| light source | UV LED | ||
| Exposure size | 930x680mm | 1240x680mm | 1520x680mm |
| Dimension | 2450x1420x1700mm | 2750x1770x1700mm | 2750x2030x1700mm |
| Weight | 900kg | 1000kg | 1100kg |
| Substrate thickness | 0.075-10mm | ||
| Way of Exposure | Double side exposure | ||
| Line resolution | 75um/75um | ||
| Energy uniformity | ≥90%, higher can be customized | ||
| Exposure time | 5-20s | ||
| Max. Power | ≤4kw | ≤4.5kw | ≤5kw |
| Can exposure | Solder resist | ||
| Energy control | 0-100% Adjustable/exposure time adjustable | ||
| Cooling system | Constant temperature water cooling+high effeciency fresh air circulation system | ||
| Working table | Mylar film+glass | ||
| Vacuum degree | ≤-90Kpa (Adjustable) | ||
| Interface | Core 10''A8 Touch screen | ||
| Mesa Temp. | Room temperature+5℃ | ||
| Protection | 1.Temperature Alarm; 2.Short circuit overload protection; 3.Light source failure detection | ||
| Using environment | Dust free workshop:class001 temperature 2℃±5℃; Humidity: 55%±5% | ||
| Cooling water | No requirment | ||
| Input | 25A/220V/50Hz | 25A/220V/50Hz | 30A/220V/50Hz |
| Power consumption | 1-2.5kwh/day (measured with 80A power meter) | ||

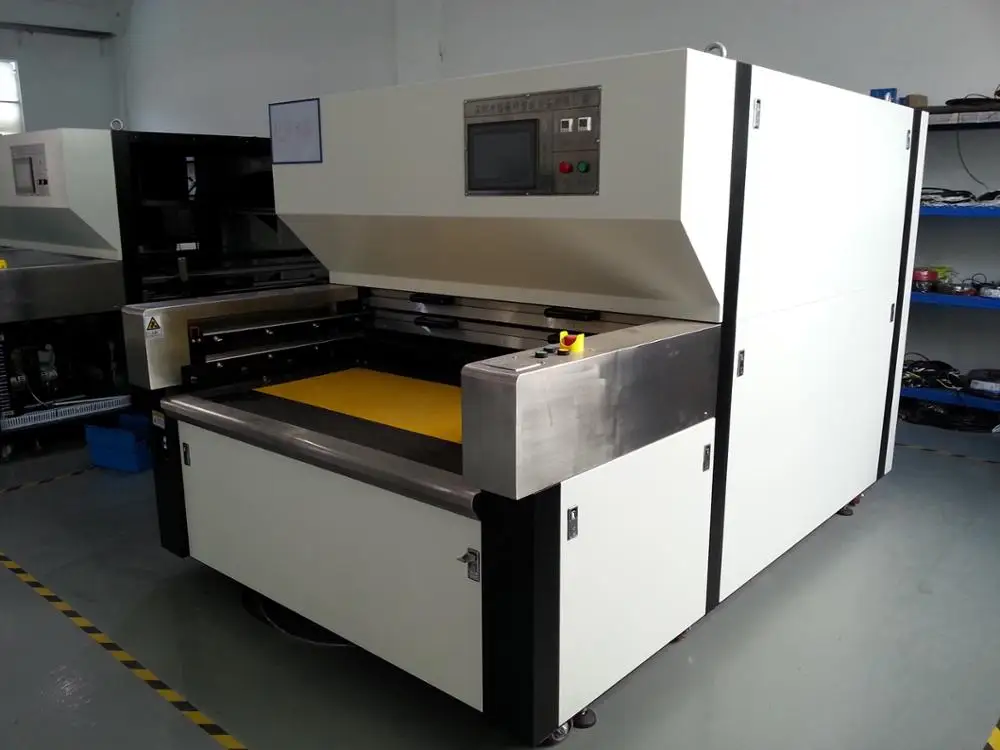

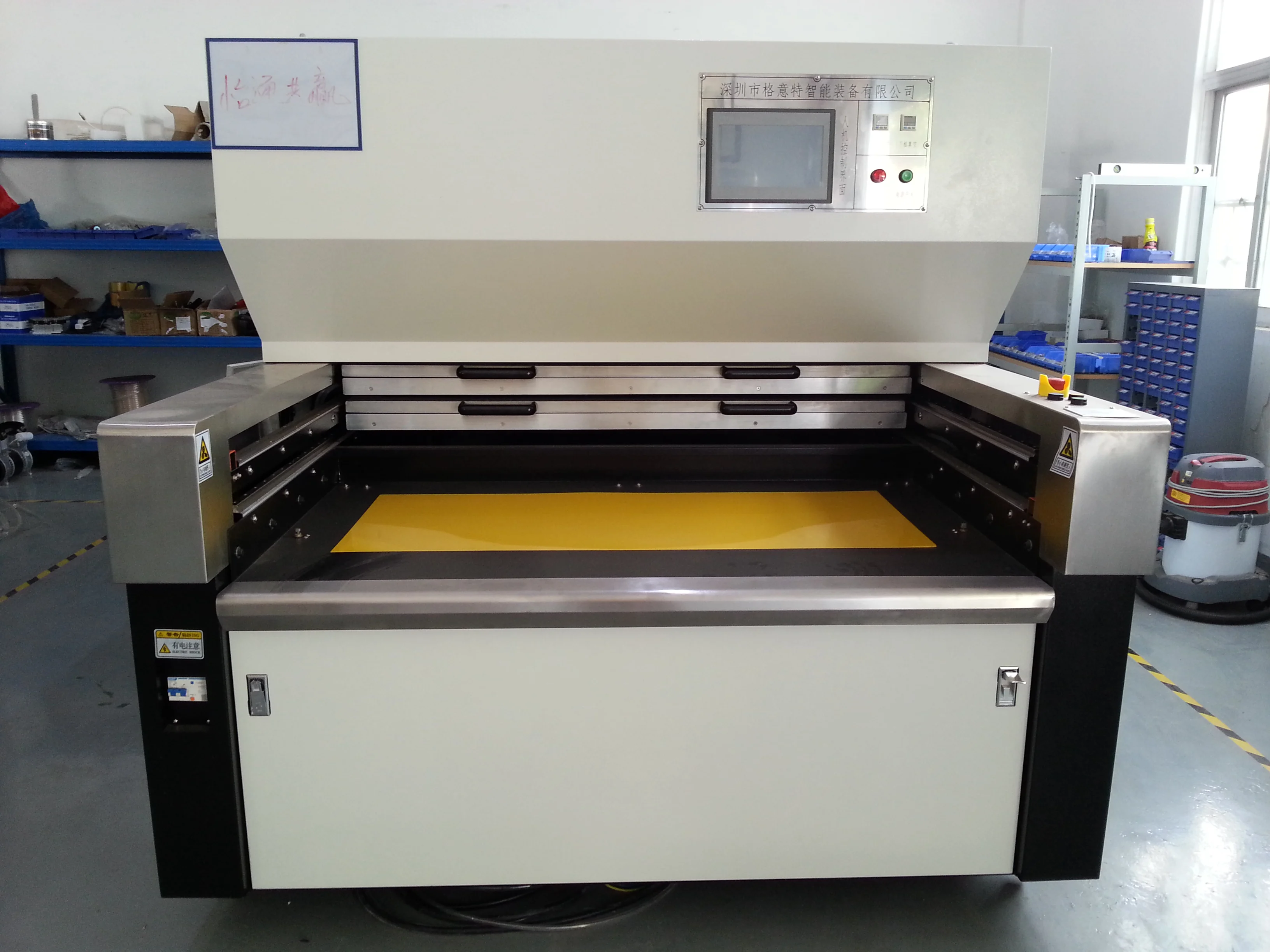

Front view
Size view

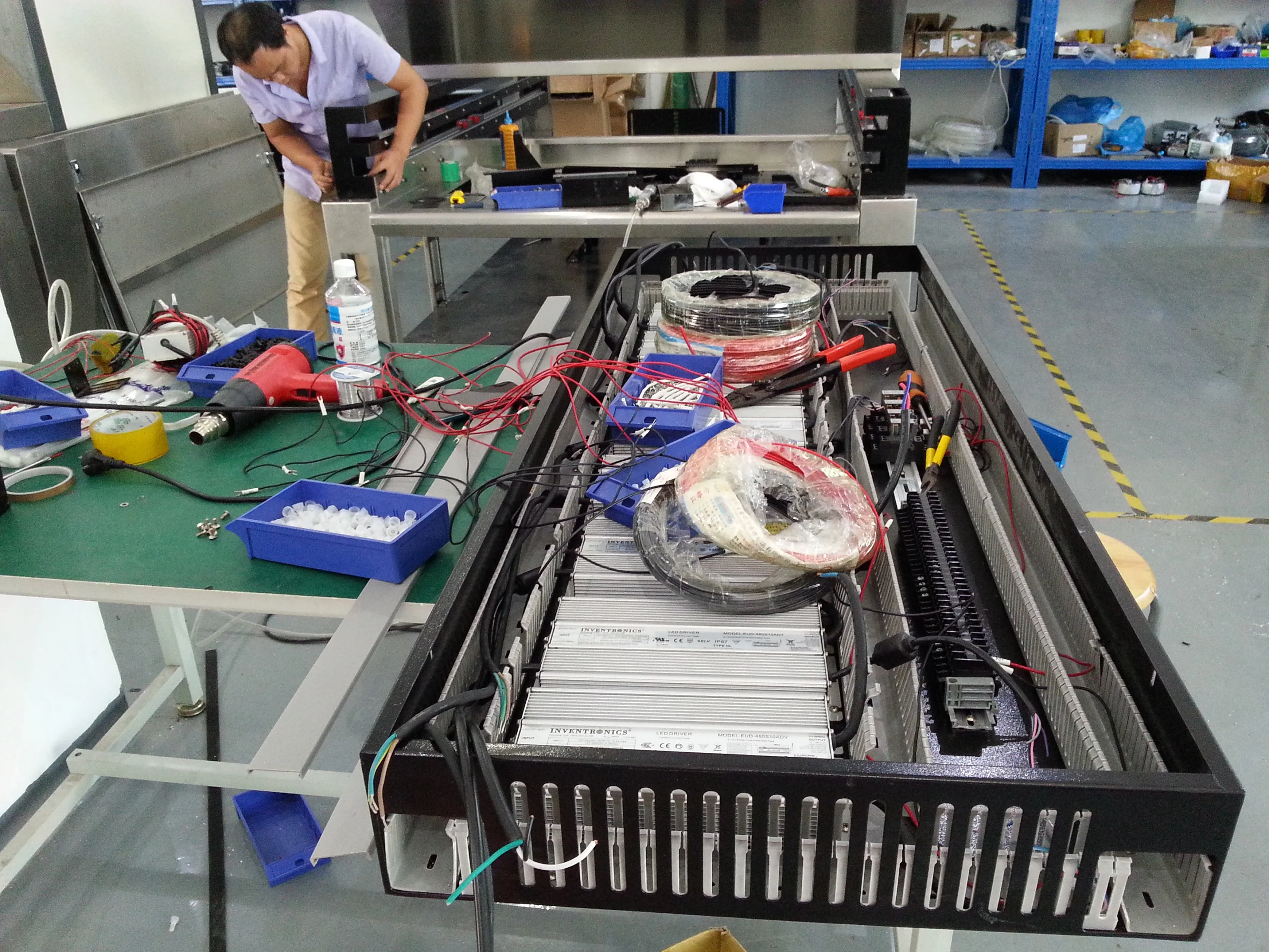

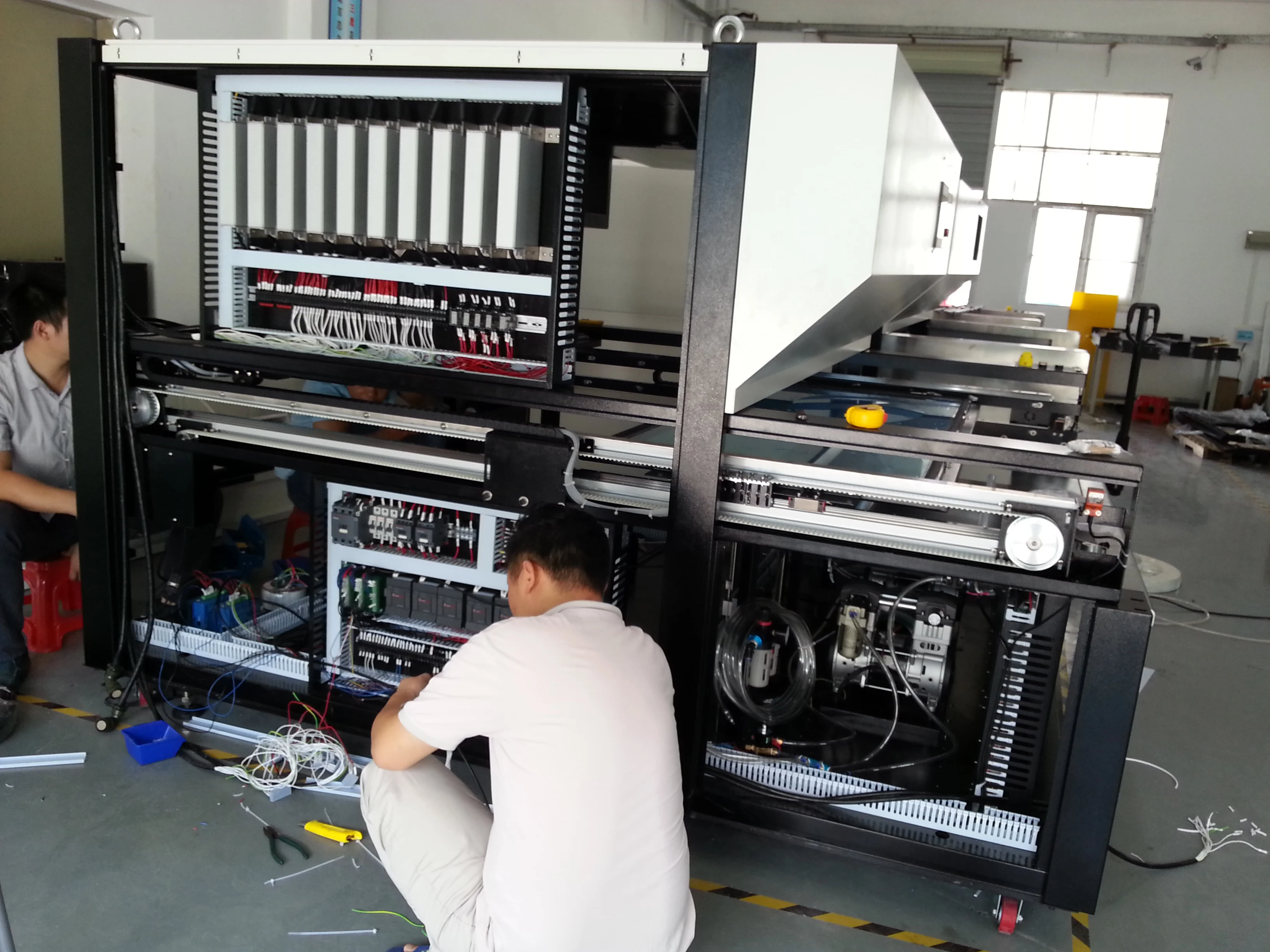

Assembly process

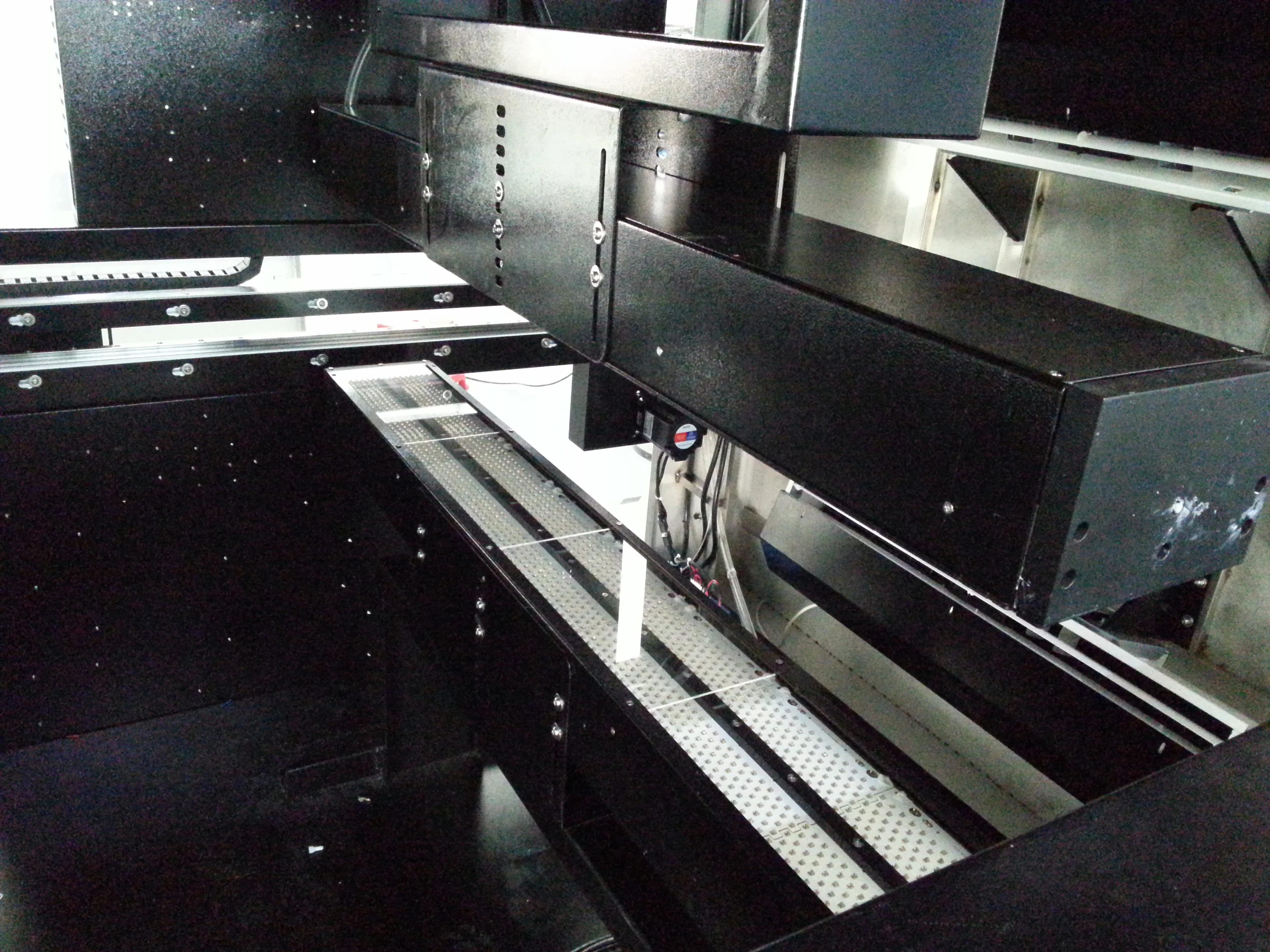

High energy uv led curing light

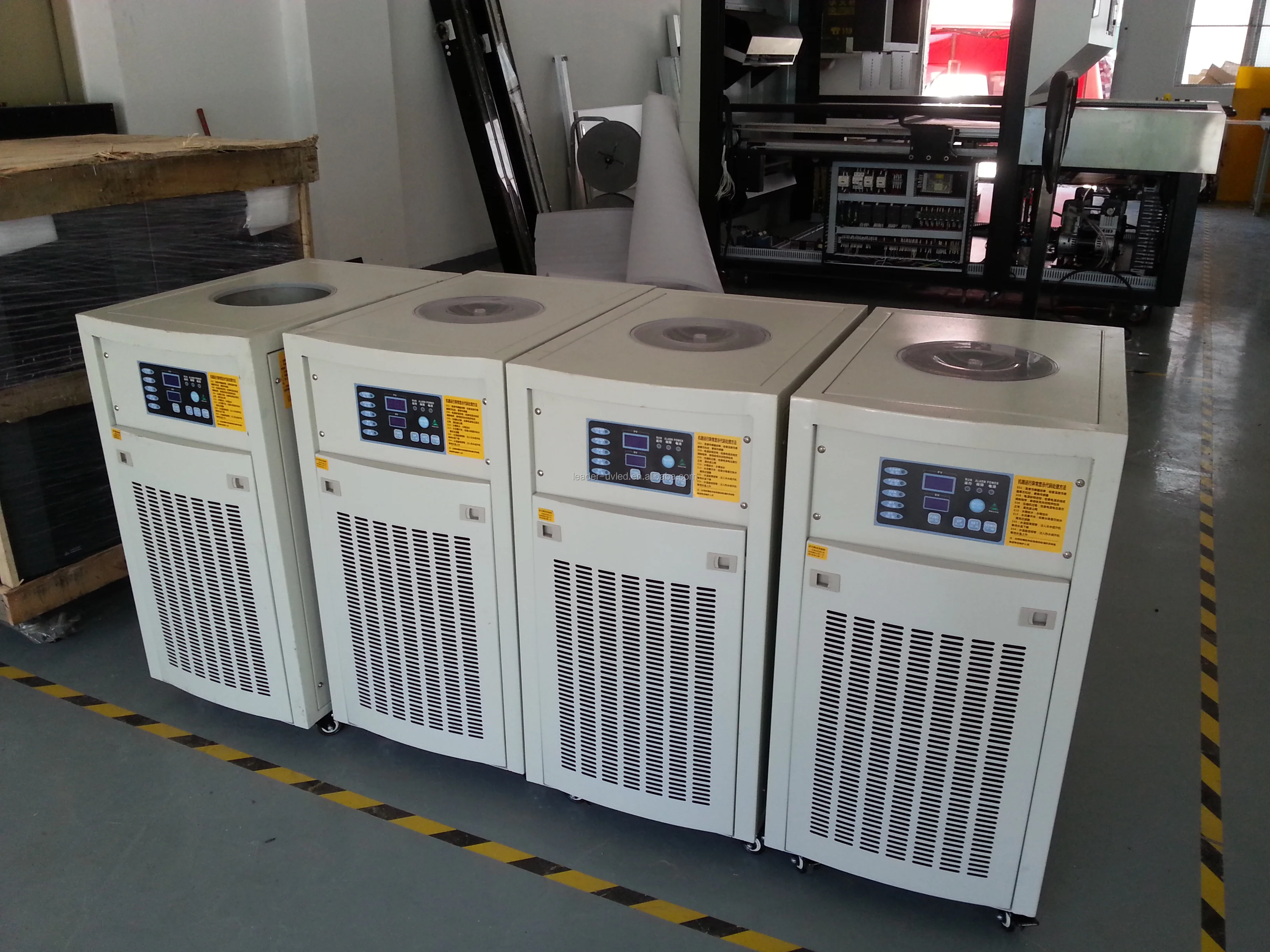

High quality Water cooling machine

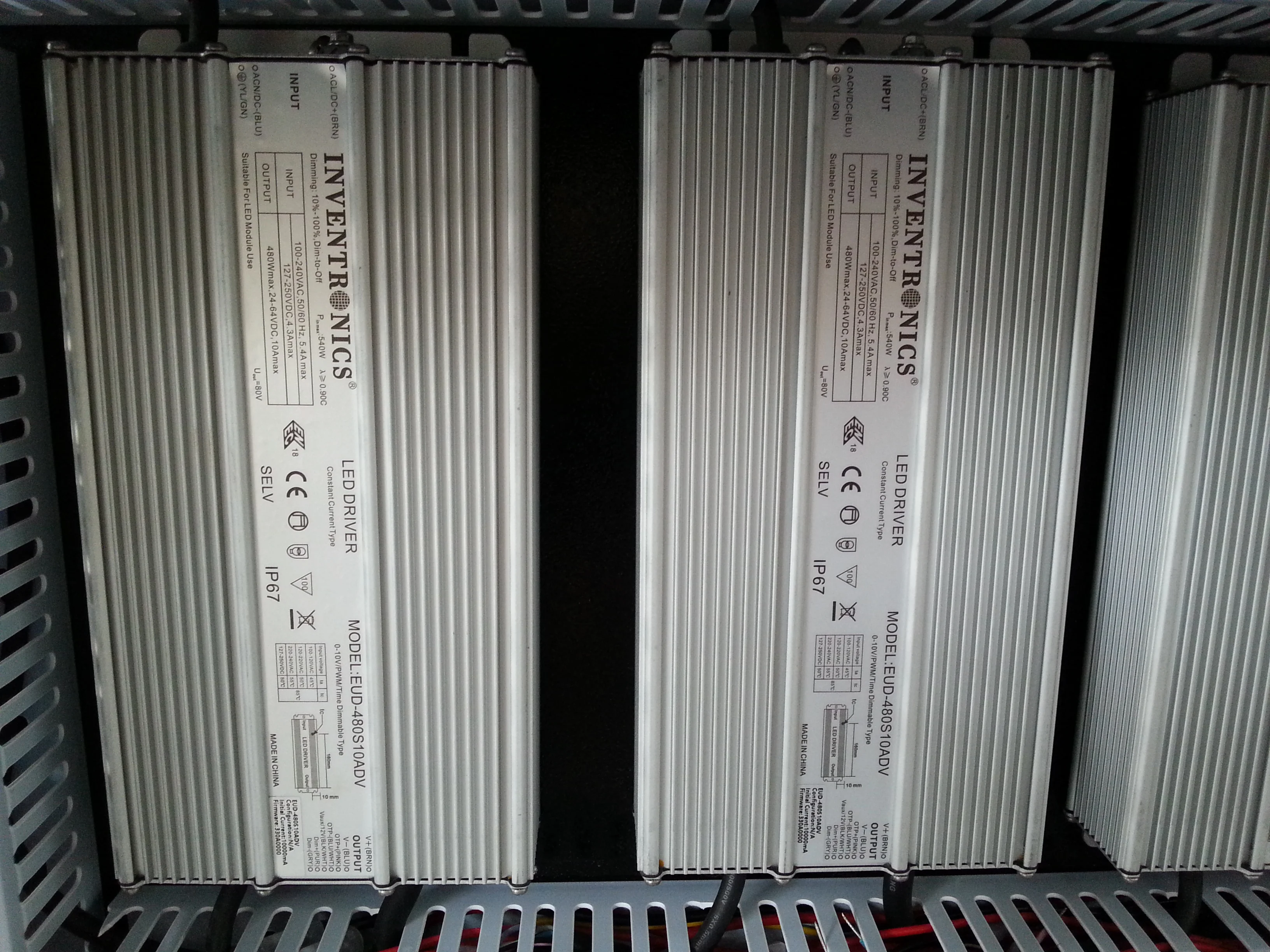

Branded led driver for the uv led curing light
Testing
Shipment
Company Information
Shenzhen Leader UV Technology company is a company professional in LED chip packing & uv led & led PCB &
uv exposure machine manufacture with 15 years. We can offer all kind of LEDS & PCB & UV LED products.
Production line
Certifiates
