XSD Series Bucket and Screw Type River Sand Washer
- Category: Sand Washer >>>
- Supplier: Henan,Shibo,Mechanical,Engineering,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Sand washer/sand washing machine (sand washing and sieving machine) is the commonly used equipment in artificial sand making production line. It is widely used to process silica sand, river sand, yellow sand, sea sand, etc. It is used to remove the dirt and impurities in sand for sand washing, classifying and grading to meet the standard.

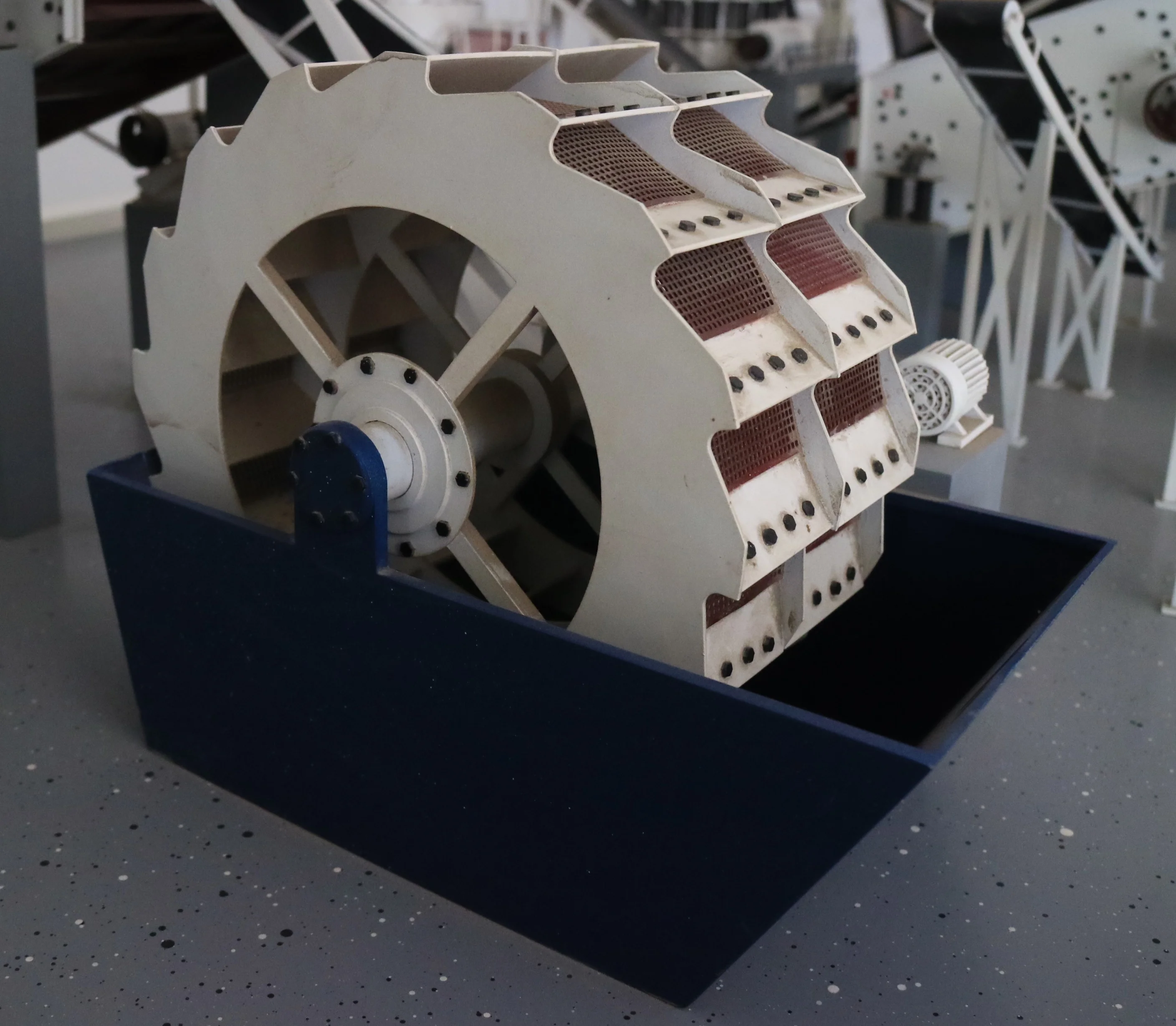

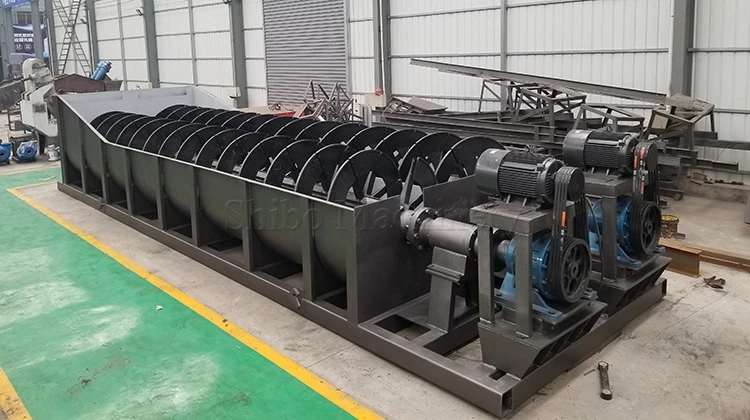

In addition to Wheel bucket sand washer, we also have screw type river sand washer.
When sand washer works, the power plant drives the impeller to slowly rotate after slowing down through the V-shaped belt, reducer, and gear, and sand and stone materials go into the washing chute from the material cabin, and roll driven by the impeller and grind with each other to remove the impurities covering the surface of the sand and stone materials, and at the same time break the moisture layer coated on the sand particles for the purpose of dehydration. In the meantime, add water in it to form a strong water flow to timely wash away the impurities and foreign matters with small proportion and discharge them from the overflow port to complete the washing process.
Product Paramenters
Model | Impeller(mm) | Feeding Size(mm) | Capacity(t/h) | Power(kw) |
XSD2610 | Ф2600 | ≤10 | 30-60 | 7.5 |
XSD2900 | Ф2900 | ≤10 | 50-90 | 15 |
XSD3016 | Ф3000 | ≤10 | 80-120 | 18.5 |
XSD3220 | Ф3000 | ≤10 | 120-200 | 22 |
XSD3620 | Ф3600 | ≤10 | 150-280 | 30 |

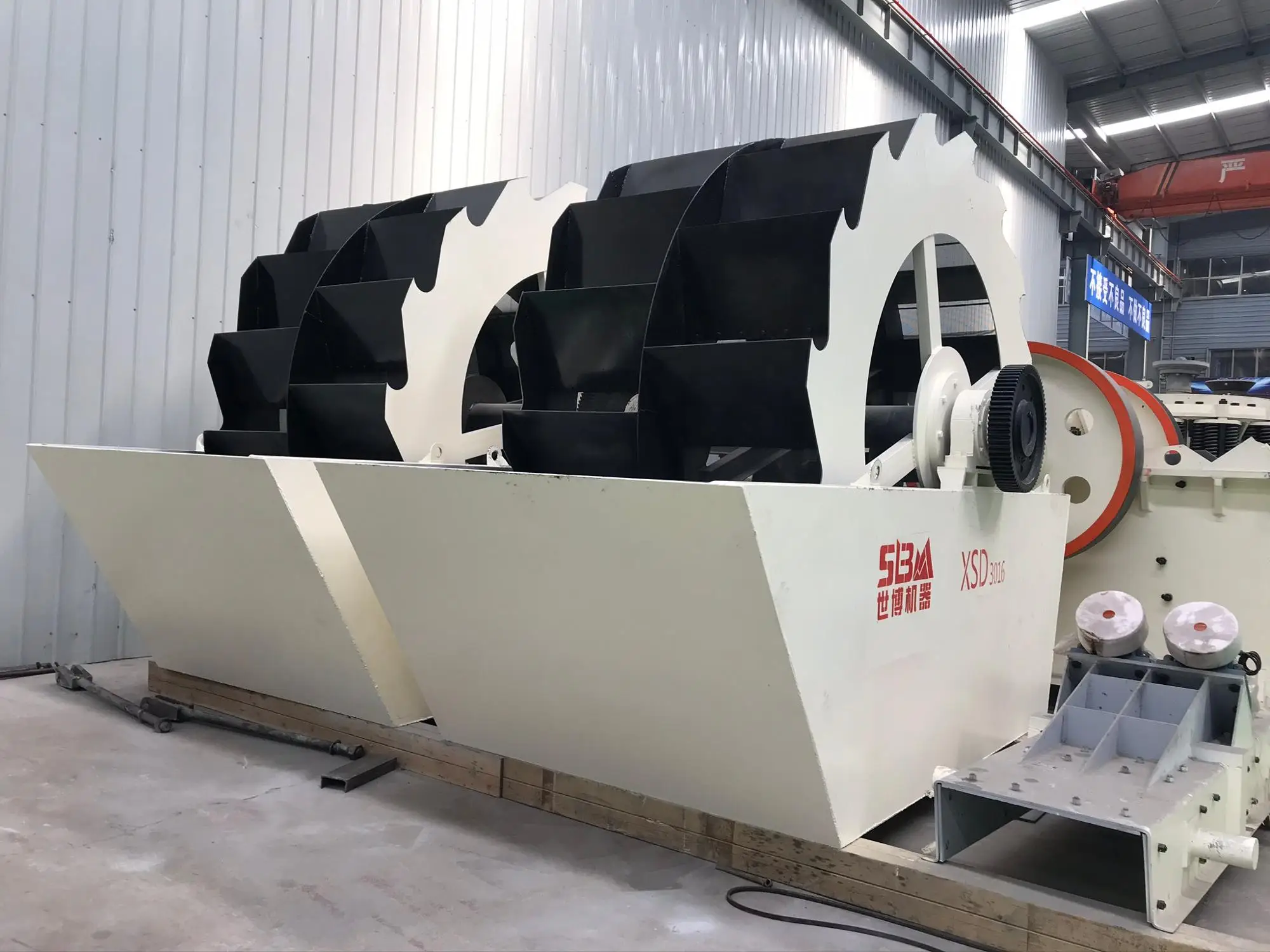

Details Images
The screen size is changeable between 0-10mm according to customer needs , normally 0-5mm, for artificial-sand .

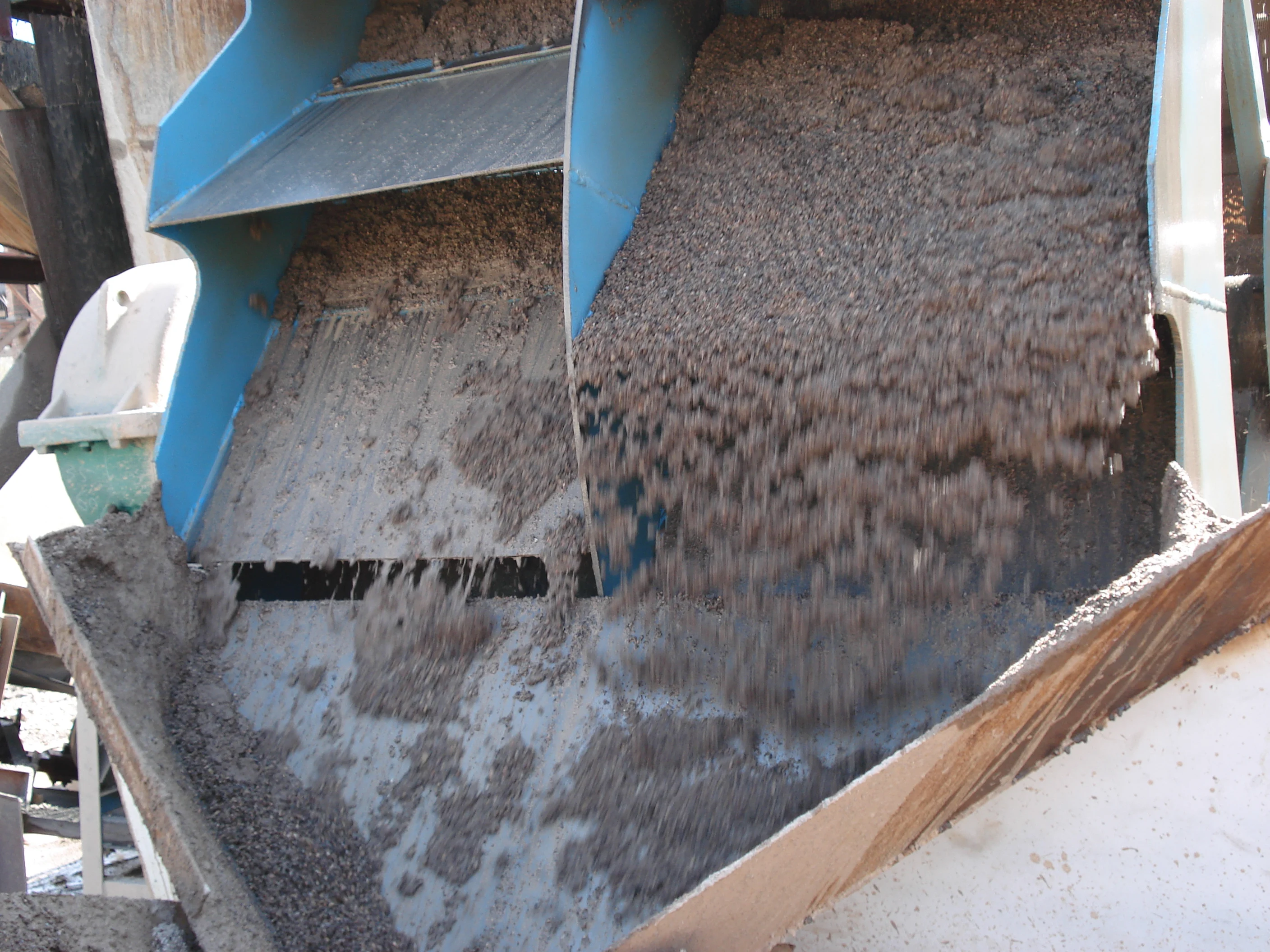

This is sand washing machine and fine sand recovery machine

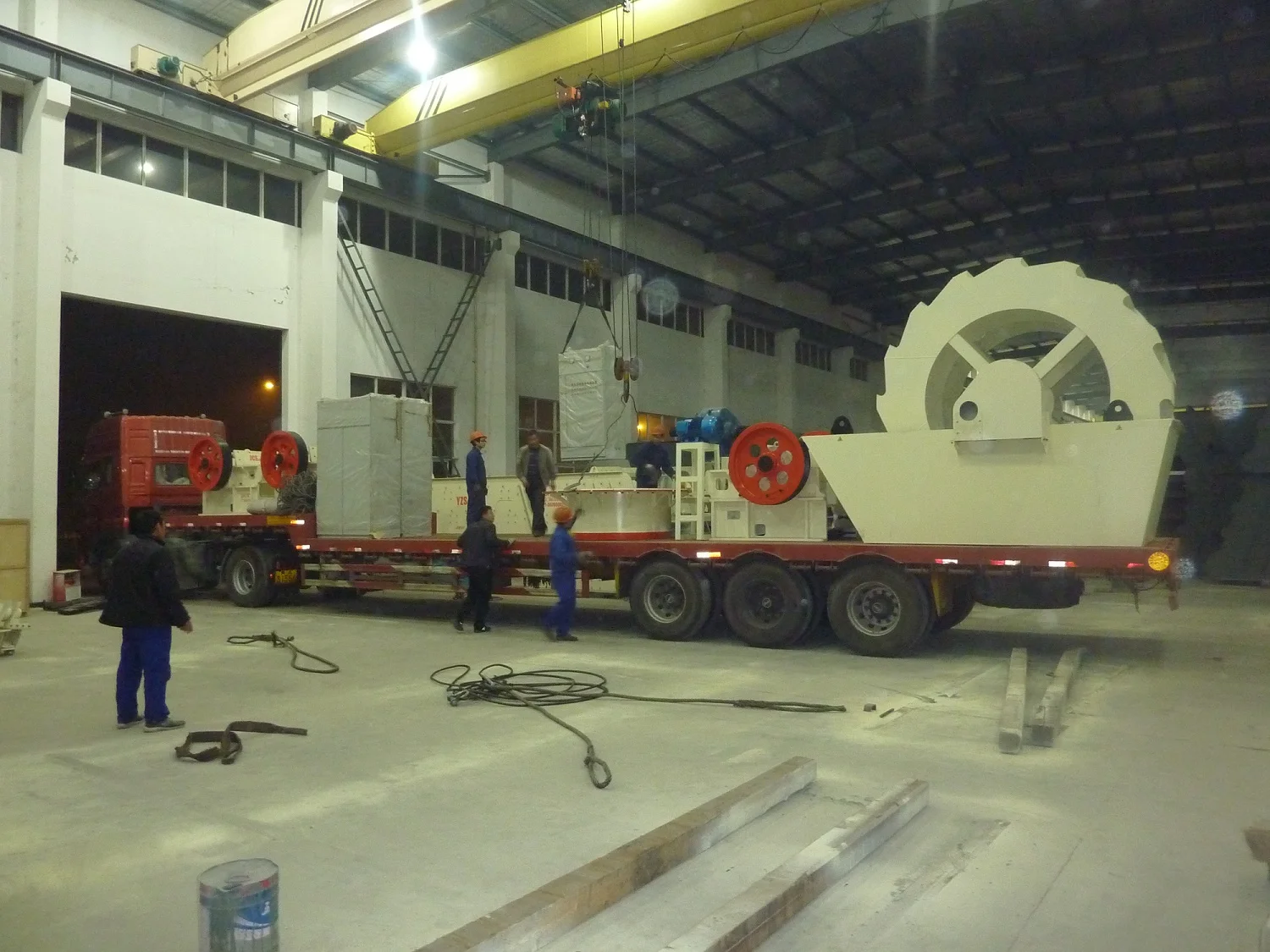

Packing and delivery
The machine is nude packing , motor packing in wooden box , XSD2610 load into high cube container , bigger model load into open top container

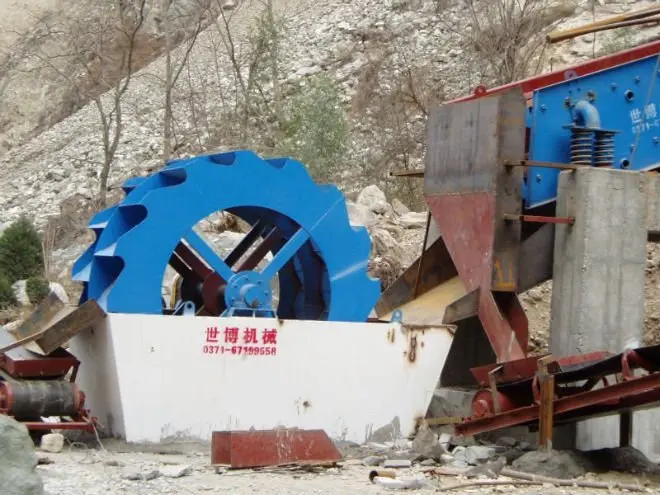

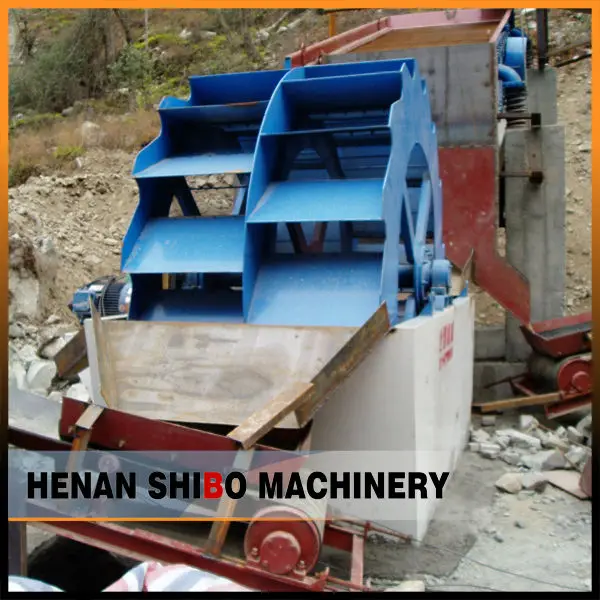

Working site
Wheel type sand washer a professional cleaning devices for less than 8mm sand grain. Simple structure, impeller drive bearing unit with water and by water isolation material, to avoid bearing due to flooding, sand and pollutants cause to the damage phenomenon. In the job, fine sand and stone powder wastage is minimal. In addition, the screen has almost no wearing parts, long life, long-term without maintenance.
Related products
Company Profile
Customer Photos
After more than 30 years development , now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
FAQ
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the sand washer?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of sand do you want to crush ?
2. what's the size of your sand ? how many mm ?
3. what's your requirements of production capacity ? how many ton per hour ?
Q: How to contact the sales?
A: Click Send \\uD83D\\uDC47 or contact :
Alex Liu
WhatsApp/Wechat/Imo/Telegram: +86-15518897683
Email: [email protected]
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the sand washer?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of sand do you want to crush ?
2. what's the size of your sand ? how many mm ?
3. what's your requirements of production capacity ? how many ton per hour ?
Q: How to contact the sales?
A: Click Send \\uD83D\\uDC47 or contact :
Alex Liu
WhatsApp/Wechat/Imo/Telegram: +86-15518897683
Email: [email protected]
