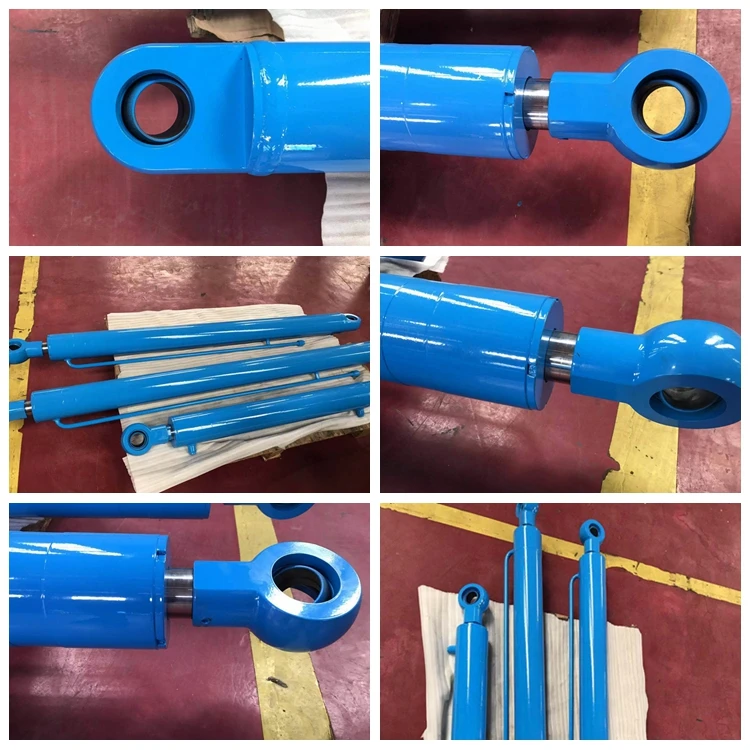

Specialized Hydraulic cylinder system for tipper trailerS

Product Overview

Description

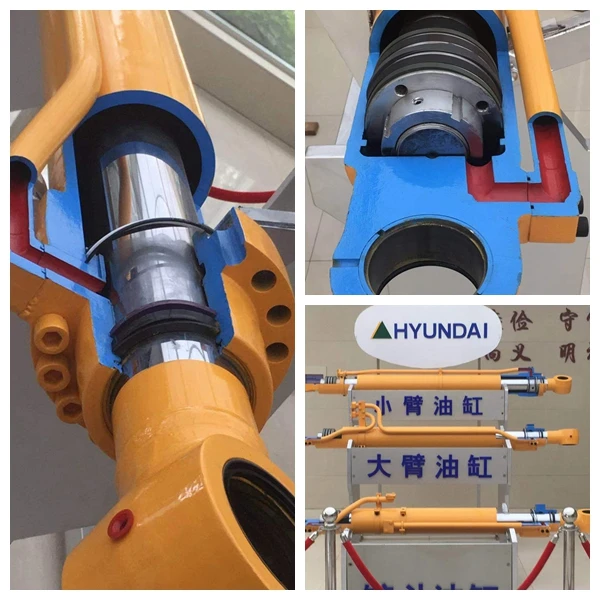

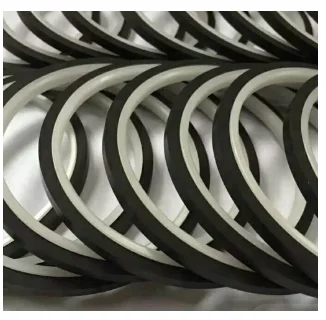

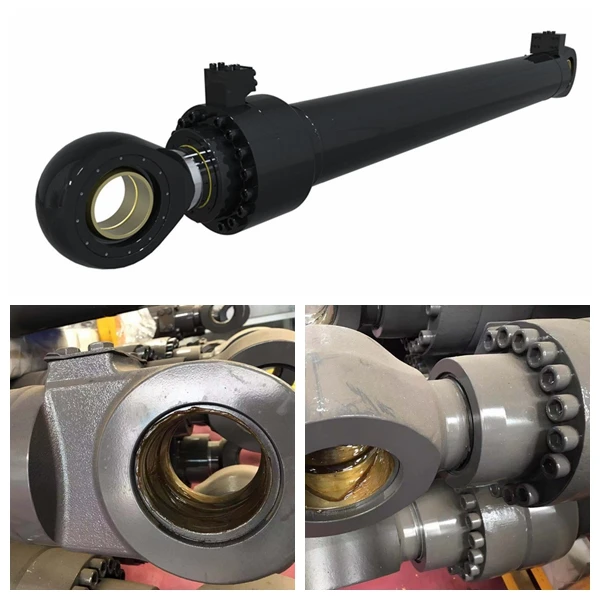

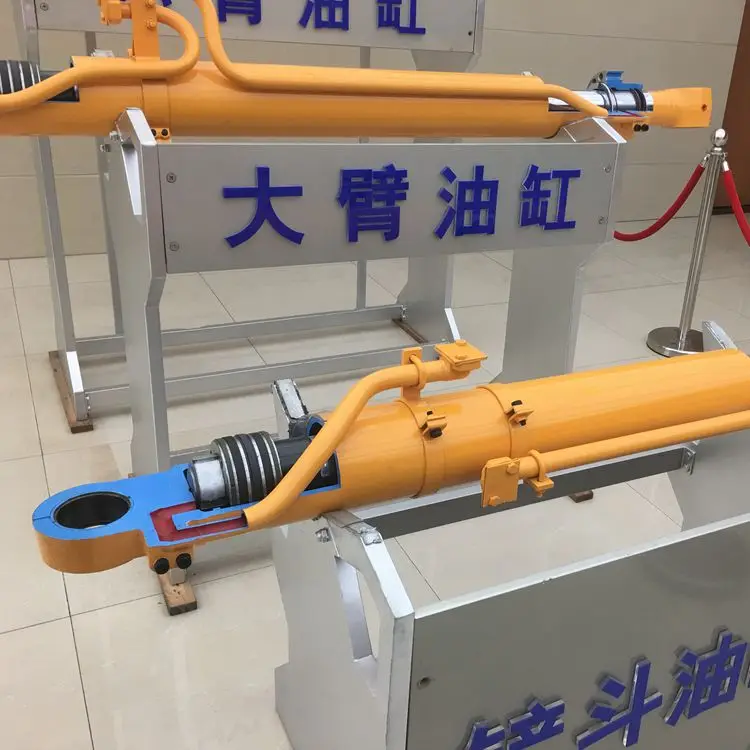

Hydraulic Cylinder Technical Parameter   1.Double-Acting/ Single-acting 2.Superior Quality Chrome Plated & Polished Rod 3.Honed & Finished Steel Tube 4.Top SAE Ports Standard 5.Top Quality Seals 6.1 Year Warranty 7.Standard Color is BLACK. 8.Color: According to your requirements   Designed For Single-acting,double-acting Stage 3~5stage cylinder Max inner tube  170mm,180mm,195mm,200mm,210mm,etc Mounting distance 325mm/345mm/425mm or as cutstomers’requirements Working Pressure 12Mpa-35Mpa Stroke 100mm-2000mm Tipping Weight 1-68Ton Seal Type Parker,NOK, BUSAK SHAMBAN or as customer's requirement Piston Rod Chrome or nickel plated,ground & polished piston rod Tube High tensile cold drawn tube, precision honed for extended seal life   hydraulic cylinder Chrome Plated Shaft   Size 100mm Length 2000mm Tolerance ISO f7 Chrome Thickness 20~30micron Hardness of The Chrome Layer 45~50HRC Roughness Ra0.4micron     We can supply High quality hydraulic cylinders for HYUNDAI as blow: If your model is not on this list, please tell us, we can also manufacture according to your specification HYUNDAI MODEL HYDRAULIC CYLINDER PART NO R150VS ARM 31Q4-50132GG   BOOM_LH 31Q4-50111GG   BOOM_RH 31Q4-50121GG   BUCKET 31Q4-60114GG R150WVS ARM 31Q4-50132CGG   BOOM_LH 31Q4-50111CGG   BOOM_RH 31Q4-50121CGG   BUCKET 31Q4-60114CGG R215VS ARM 31E1-50232GG   BOOM_LH 31E1-50214GG   BOOM_RH 31E1-50224GG   BUCKET 31E1-50243GG R225LVS ARM 31Q6-50132GG   BOOM_LH 31Q6-50110GG   BOOM_RH 31Q6-50120GG   BUCKET 31Q6-60111GG R140W REAR BLADE 3BQ4-70110     3BQ4-70120 R555W-9 BLADE 3BM9-70810 R55VS ARM 3BM7-56130   BOOM_LH 3BM7-56110   BUCKET 3BM7-56120 R55VS BUCKET 3BM7-56120   DOZER 3BM7-46110 R60WVS ARM 31M9-50122CGG   BOOM 31M9-50115CGG   BUCKET 31M9-50133CGG       R60VS ARM 31M8-51120CGG   BOOM_LH 31M8-50112CGG   BOOM_RH 31M8-40033CGG   DOZER 31M8-51132CGG R75VS ARM 3BQ1-50120   BOOM_LH 3BQ1-50110   BOOM_RH 3BQ1-50130   BUCKET 3BQ1-41110 CNHW60 DOZER 3BM9-41120 QNL70 ARM Q0153170000000   BOOM Q0153160000000   BKT Q0153250000000   DOZER Q0152220000000   OSCILLATING Q0152001000000 QNL150 ARM Q009318000000   BOOM_LH Q009316000000   BOOM_RH Q009317000000   BUCKET Q009327000000 QNL220 ARM Q0163180000000   BOOM_LH Q0163160000000   BOOM_RH Q0163170000000   BUCKET Q0163250000000   DOZER-L Q0162260000000   DOZER-R Q0162270000000   OUT RIGGEL Q0162800000000   OUT RIGGER Q0162900000000 R210CF ARM 31Q6-50132CGG   BOOM_LH 31Q6-50110CGG   BOOM_RH 31Q6-50120CGG   BUCKET 31Q6-60111CGG HX60 ARM 31M9-50122CGG   BOOM_LH 31M9-50115CGG   BUCKET 31MN-50131C R140CF ARM 31K4-50150C   BOOM_LH 31Q4-50111CGG   BOOM_RH 31Q4-50121CGG   BUCKET 31K4-560111C R210CF ARM 31Q6-50132CGG   BOOM_LH 31Q6-50110CGG   BOOM_RH 31Q6-50120CGG   BUCKET 31Q6-60111CGG .



Q: How long will it take to produce an order?
A: It is within 30days for the purchasing and production time with container

order and some days for the sample.

Q: What is your minimum order?
A: Usually 1 ton for each size, please contact us when you are trying to

purchase less than container load.

Q: What form of quotation do you offer?
A: FOB Shanghai/(China), CIF and CNF Your destination.



Q: What is your payment term?
A: Payment is 30% deposit, 70% before shipment or 70% L/C at sight for the

container order 100% T/T in advance for LCL order or the sample order.

We accept US dollar,Euro,GBP.etc.



Q: Does the sample for free or not?
A: The samples are free if they are common sizes, You need to pay the freight

charge.



Q: How do you guarantee the quality of the products?
A: All of our procedures are strictly operated under the ISO 9001, and there

are as many as 6 times of test during the production of each product to

ensure the quality.We have our own test centers, every tubes will be tested

under our testing equipment before package.



Q: How do you to package the product?
A: Internal wrapped with plastic foil, external wrapped with polywoven bags,

we use steel belt to pack the outside, polywooden cases or wooden boxes

for thin wall thickness can be offered if required.



Q: How about the Third Party Inspection ?
A: We have been working with DNV,TUV,SGS,BV,CO,etc.
