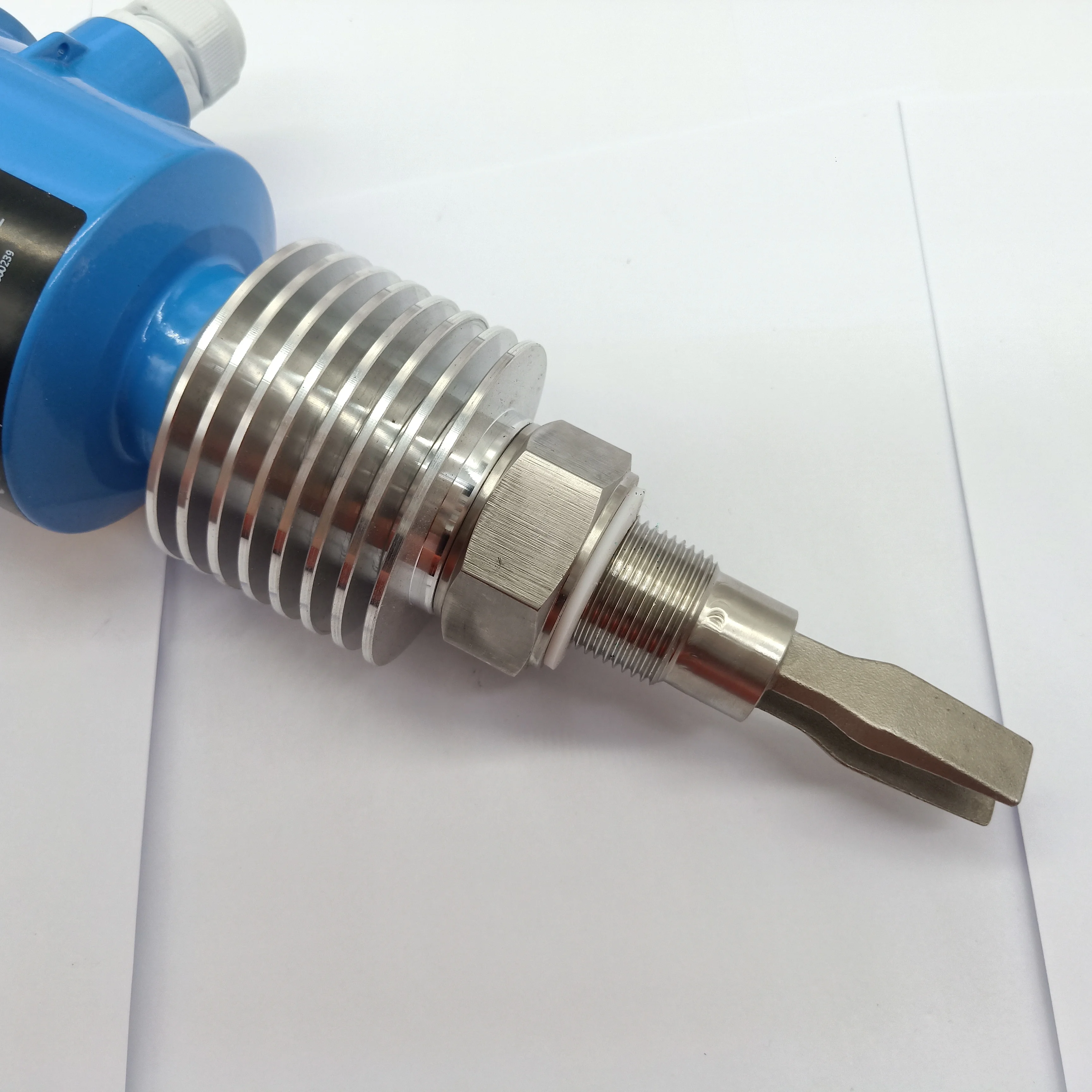

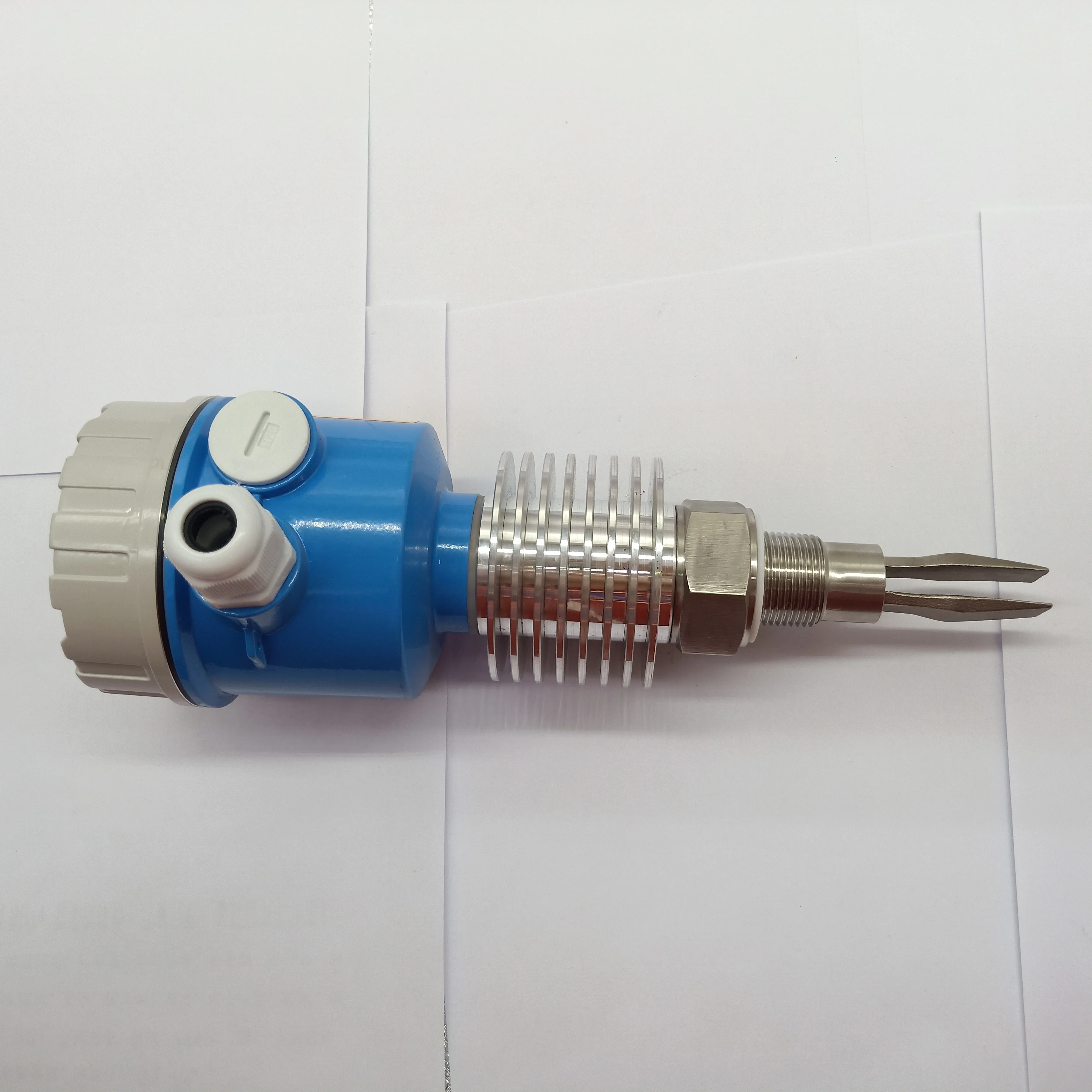

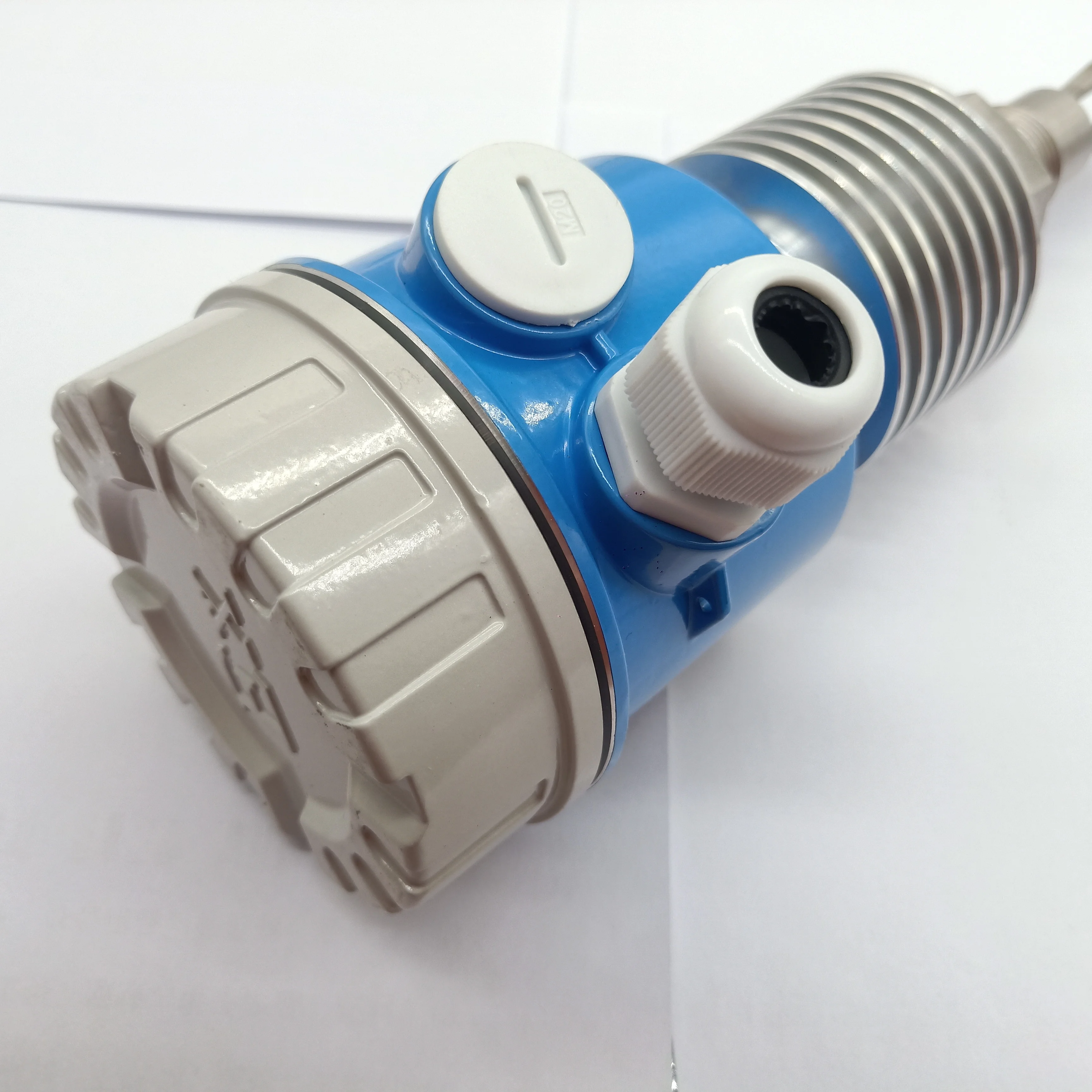

Tuning fork level switch for solid vibrating rod level switch

Share on (62406033726):


Price:$120.00

Quantity:


Product Overview

Description


Parameters



Supply voltage

24V DC/ 220V AC

Switching time

1-3S

Environment temperature

-40 - 70

Medium temperature

-40 - 150

Operating pressure

-1 - 40bar



Material tested



Powder and particles =10mm, density >0.1g/cm³

Liquid, viscosity =10000mm2/s, density >0.7g/cm³

Shell material

ABS, Aluminum alloy

Fork material

Stainless steel S304/ stainless steel S316

Power dissipation

The maximum consumption is 3W for dc power supply and 15W for ac power supply

Type

Thread/flange/chuck (customizable)

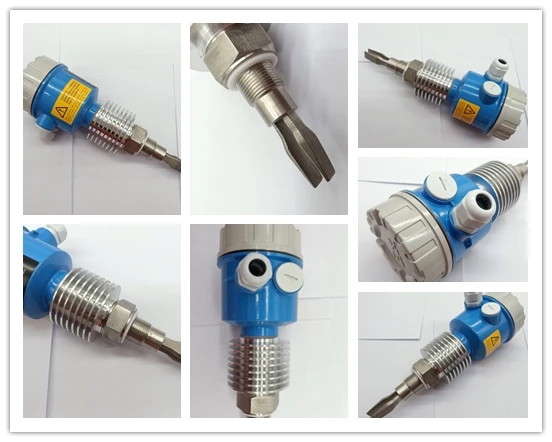

1 (1)_.jpg

Details

.jpg

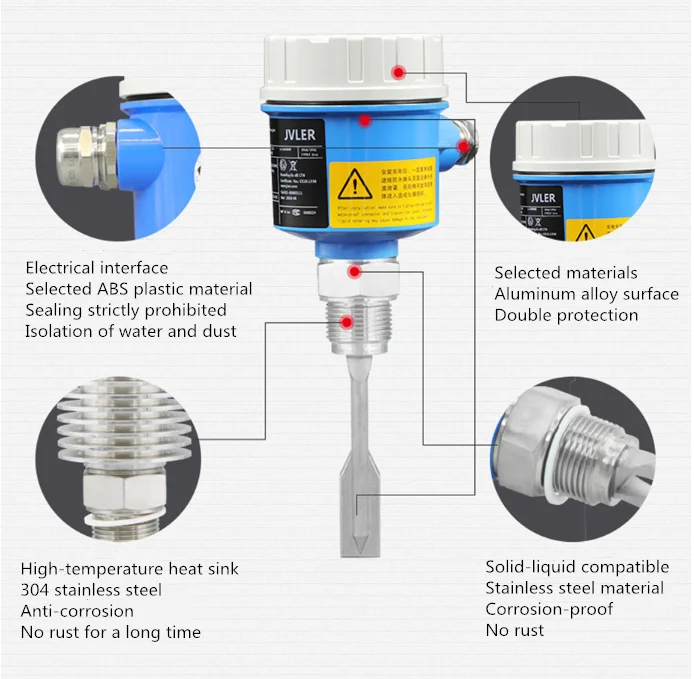

3 (2).png



DESCRIPTION

YH tuning fork level switch is caused by the resonance of piezoelectric crystal to cause vibration.

When subjected to material damping, the amplitude is drastically reduced and the frequency and phase change significantly. These changes are detected by the internal electronic circuit and processed. , converted into a switch signal output.

The YH tuning fork level switch can monitor, control and alarm the high and low positions of the tank, and is suitable for various liquid, powder and granular solids. It is practical, simple, reliable, and adaptable. It is basically maintenance-free, and the tuning fork and output are working.

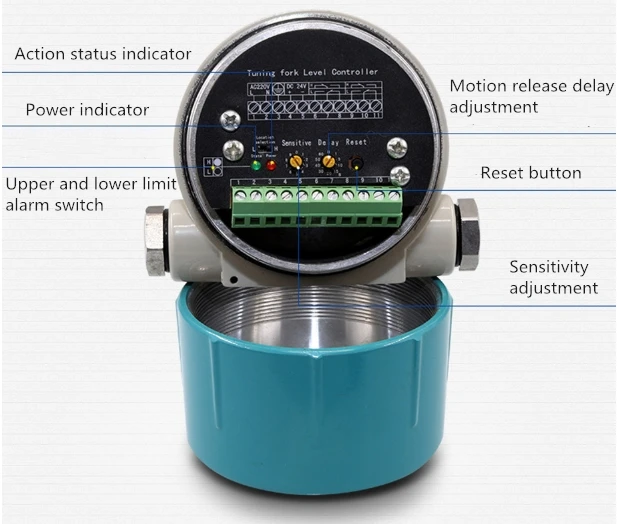

All types have high or low fault alarm modes and selectable meter switch sensitivity.



Introduction

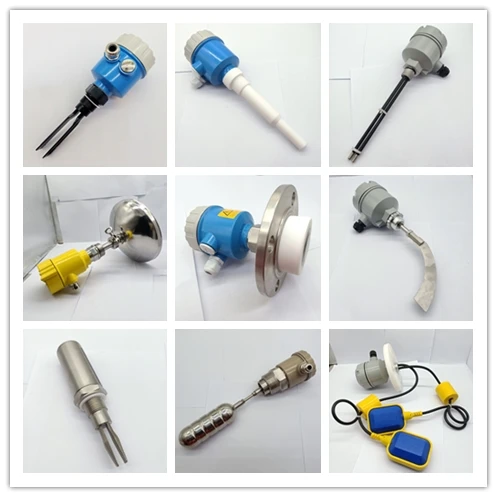

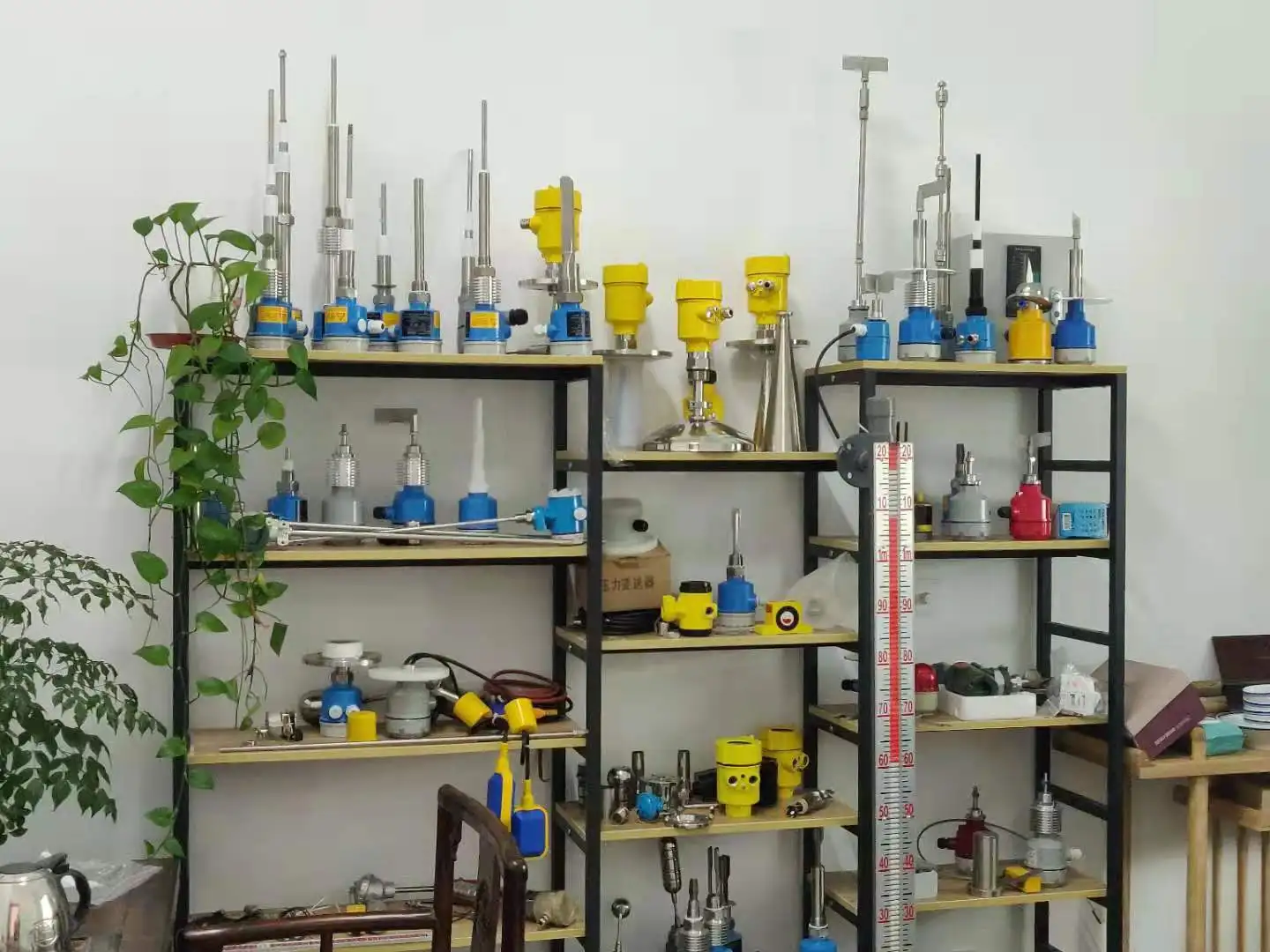

The main products are: radar level gauge, ultrasonic level gauge, RF admittance level gauge, RF admittance level switch, level switch, float level switch, pneumatic vibrator, air hammer, piston vibrator, Help the gas disc and so on.

Suitable for electronics, power generation, steel, mining, petrochemical, pharmaceutical, food, machinery, water treatment, and other industries.

In order to meet the needs of different environments, various products are available in a variety of specifications, a variety of materials are available, and custom non-standard products are accepted.



Our company has a perfect after-sales service system, which not only provides timely and reliable after-sales service, but also provides professional consulting services for users. Customized development of products can be provided according to the specific requirements of customers.

1 (4)_.jpg

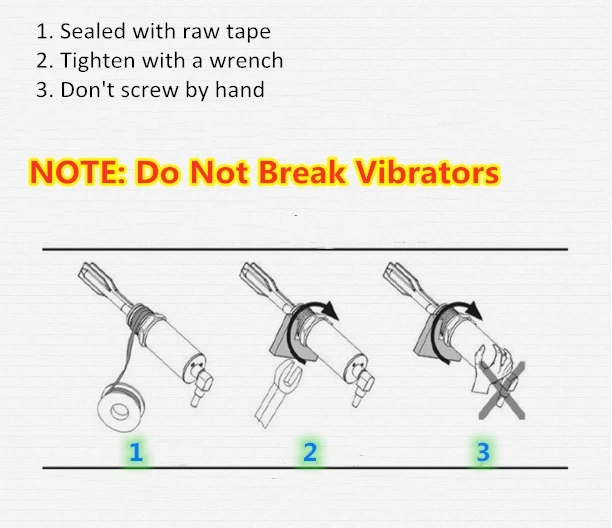

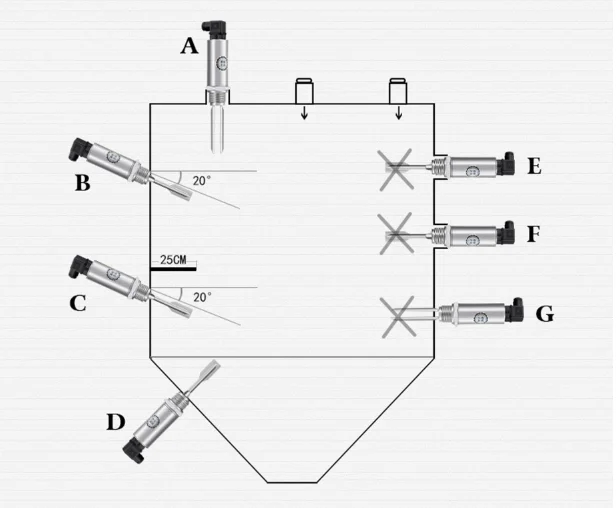

Installation

6 (3).png
