commscope rj45 lan cable cat6 stp cat 6 cable 305m box roll price
Product Description
DESCRIPTION
CAT6 UTP Unshielded Ethernet installation cable, is ideal for high performance data communications for voice, data, video and security networking capabilities. This cable enables 1000 Base-T data transmission and allows for faster bandwidth up to 250MHz Composed of four unshielded twisted pairs of 23 Gauge solid bare copper conductors, with a high-Density polyethylene (HDPE) insulation, the CAT6A bulk Ethernet cable has an overall LSZH jacket or a CMR-UL PVC jacket, and sequential foot or meter markings on the jacket so you always know how much length it left.
FEATURES
99.99% Bare Copper Core
Close pairs twisted and cross seperator to achieve low loss
Durable PVC/ LSZH/PE jacket for maximum curve protection and long life cycle
New flexible enviroment PVC/LSZH jacket
Close pairs twisted and cross seperator to achieve low loss
Durable PVC/ LSZH/PE jacket for maximum curve protection and long life cycle
New flexible enviroment PVC/LSZH jacket
Standard Compliance： IEC/ISO 11801 2nd Class D;ANSI/TIA568C.2 Catergory 6; ISO/IEC 61156-5 Catergory 6
APPLICATION
Voice, T1, ISDN
10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3),
100 VG - anyLAN(IEEE802.12), 155/622 Mbps ATM
550 MHz Broadband Vedio
1000BASE-T Gigabit Ethernet
10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3),
100 VG - anyLAN(IEEE802.12), 155/622 Mbps ATM
550 MHz Broadband Vedio
1000BASE-T Gigabit Ethernet
DATASHEET

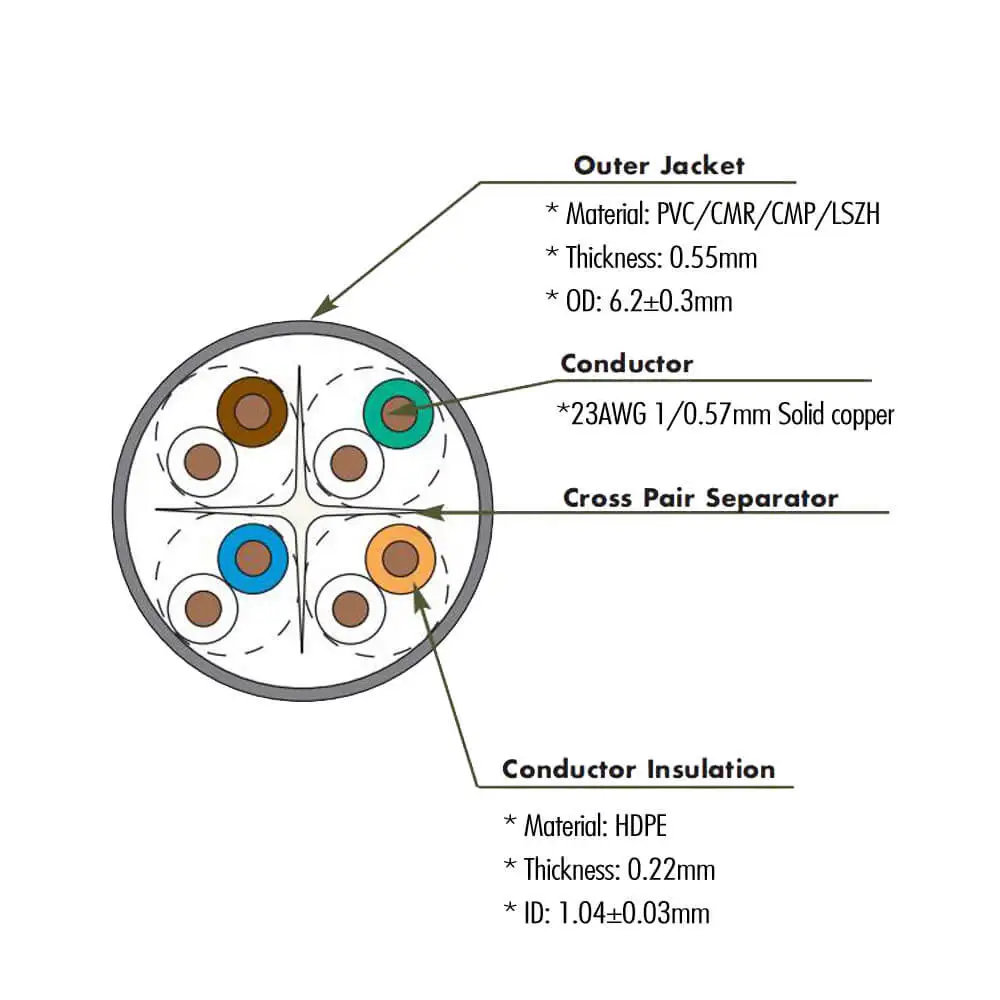

ITEM | UTP CAT6 ETHERNET CABLE | ||||||
Conductor Material | OFC, BC, CCA, CCAG(HCCA) Customized | ||||||

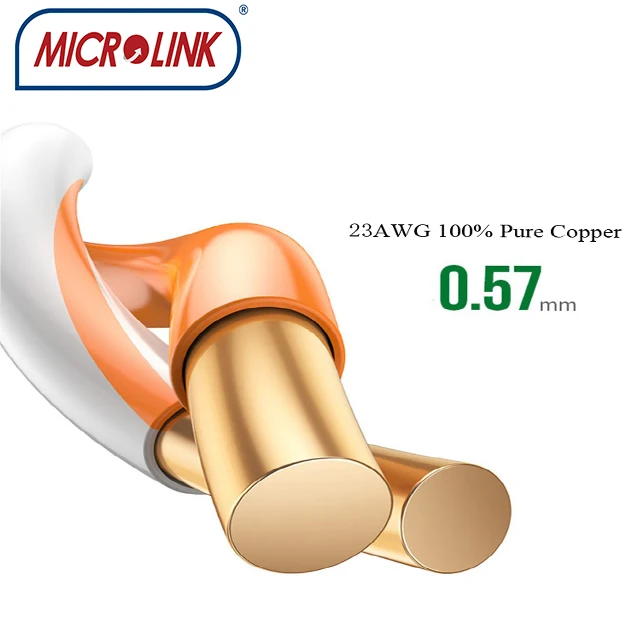

Conductor Size | Solid: 23AWG (1/0.56MM, 1/0.574MM, 1/0.58MM); 24AWG( 1/0.5MM, 1/0.52MM) customized | ||||||
Insulation Material | HDPE | ||||||
Insulation Thickness | Average: 0.22 mm; Min. at any point: 0.2mm | ||||||
Insulation OD | 1.04±0.03 mm | ||||||
Jacket Option | PVC, LSZH, CM Rated, CMR(Riser), CMP(Plenum), PE (Outdoor) | ||||||
Jacket Thickness | Average 0.55mm; Min Point 0.48mm | ||||||
Jacket OD | 6.2±0.3mm | ||||||
Rip Cord | YES | ||||||
Core Color | Blue-white/Blue | Orange-white/Orange | Green-white/Green | Brown-white/Brown | |||
Insulation Resistance | Min. 150 MΩ/Km | ||||||
Capacitance Unbalance | Max. 330 pF/100m | ||||||
Resistance Unbalance | Max. 2% | ||||||
Mutual Capacitance | Max. 5600 pF/100m | ||||||
Before Tensile Strength | Min. 1.407 Kg/mm² | ||||||
Aging Condition | 100℃*240Hrs | ||||||
After tensile strength | ≥85% of unaged | ||||||
Aging Elongation(%) | ≥70% of unaged | ||||||
Cold bend(-20±2℃*4hrs) | No crock | ||||||

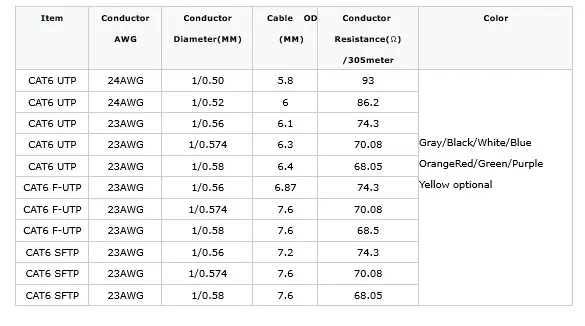

Order Options
ITEM | Construction | Conductor Diameter | No.Pairs | Packing | Jacket |
ML-CAT6-UTP-4PE | Solid | 23AWG (0.57mm) | 4 | 305m/ctn | PE Outdoor |
ML-CAT6-UTP-4PM | Solid | 23AWG (0.56mm) | 4 | 305m/ctn | CM Rated |
ML-CAT6-UTP-4PR | Solid | 23AWG (0.56mm) | 4 | 305m/ctn | CMR Riser |
ML-CAT6-UTP-4PP | Solid | 23AWG (0.57mm) | 4 | 305m/ctn | CMP Plenum |
ML-CAT6-UTP-4PV | Solid | 23AWG(0.57mm) | 4 | 305m/ctn | PVC |
ML-CAT6-UTP-4PL | Solid | 23AWG(0.58mm) | 4 | 305m/ctn | LSZH |

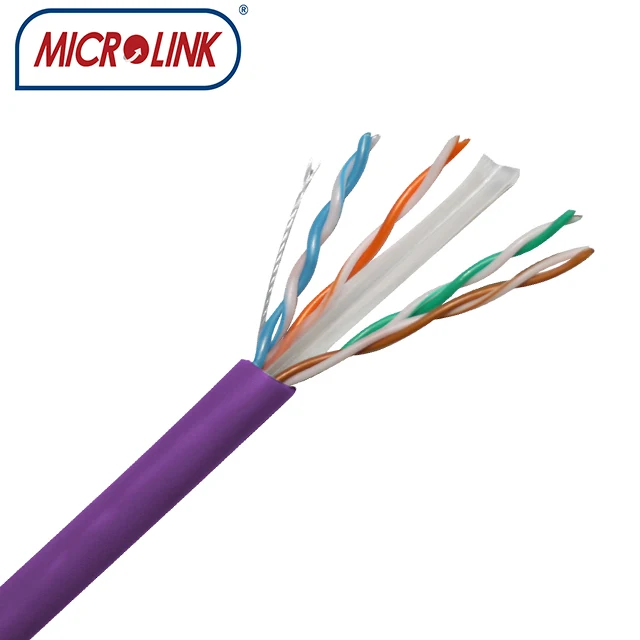

Detailed Images

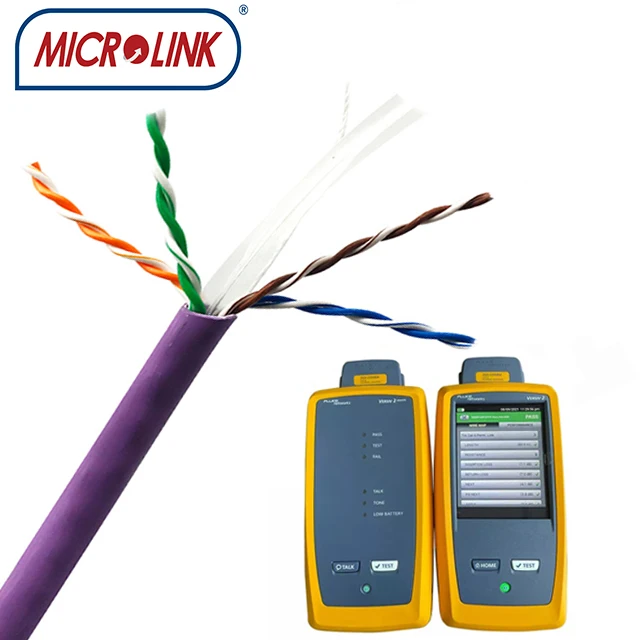

Test Reports
SFTP CAT5E FlUKE TEST
UTP CAT6 FLUKE TEST
SSTP CAT7 FLUKE TEST
UTP CAT6A FLUKE TEST
CAT8 FLUKE TEST
FLUKE DTX-1800
Packing & Delivery

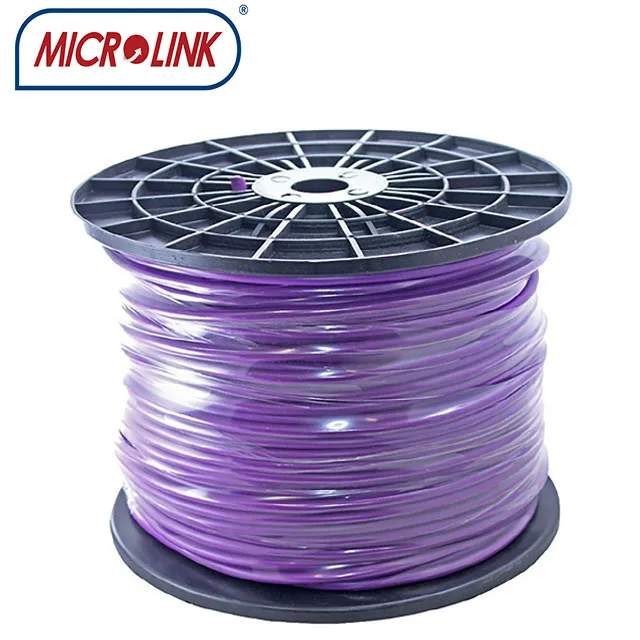

NO.1 plastic reel pack

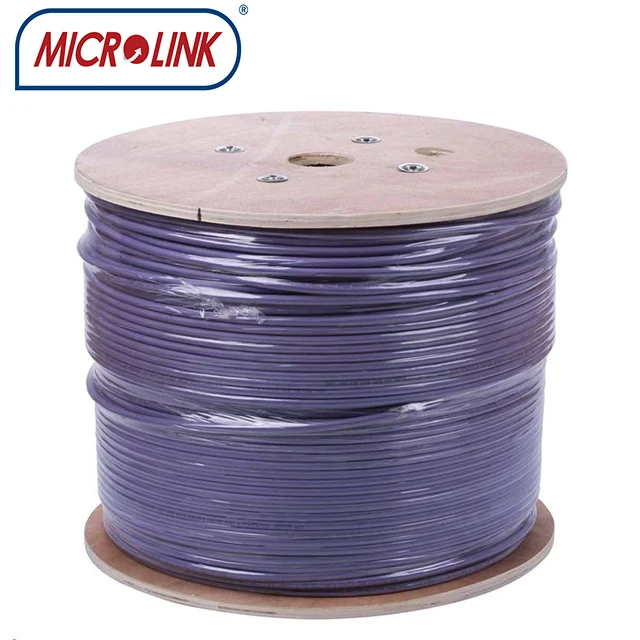

NO.2 wooden reel pack

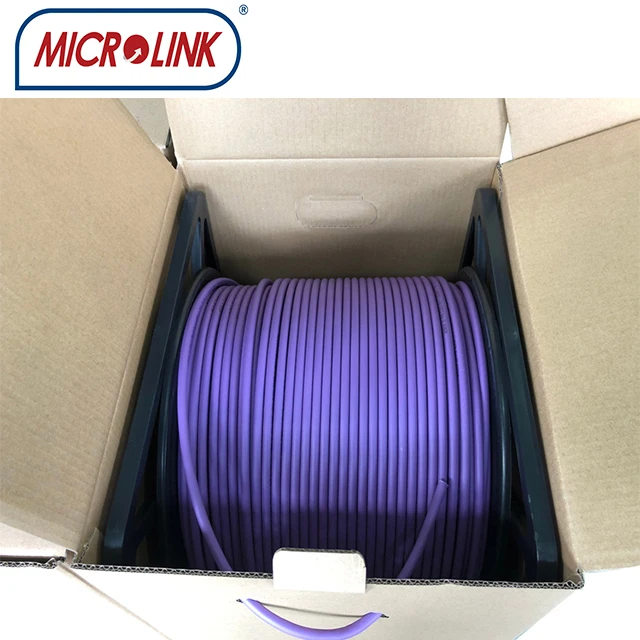

NO.3 pull box pack
Related Products
HYA
HYACT
HYV
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 1000USD, 100% in advance. Paymen more than 1000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
