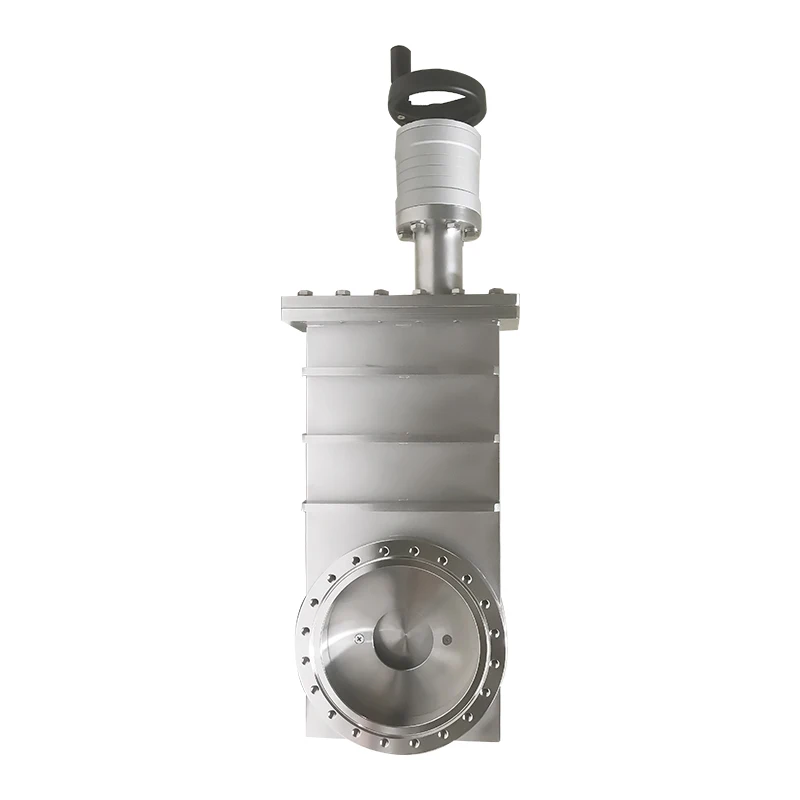

Power Operated Knife Gate Stainless Steel Manual Flapper Valve
- Category: >>>
- Supplier: Beijing Super Q Technology Co. Ltd.
Share on (62406069916):
Product Overview
Description
Products Description

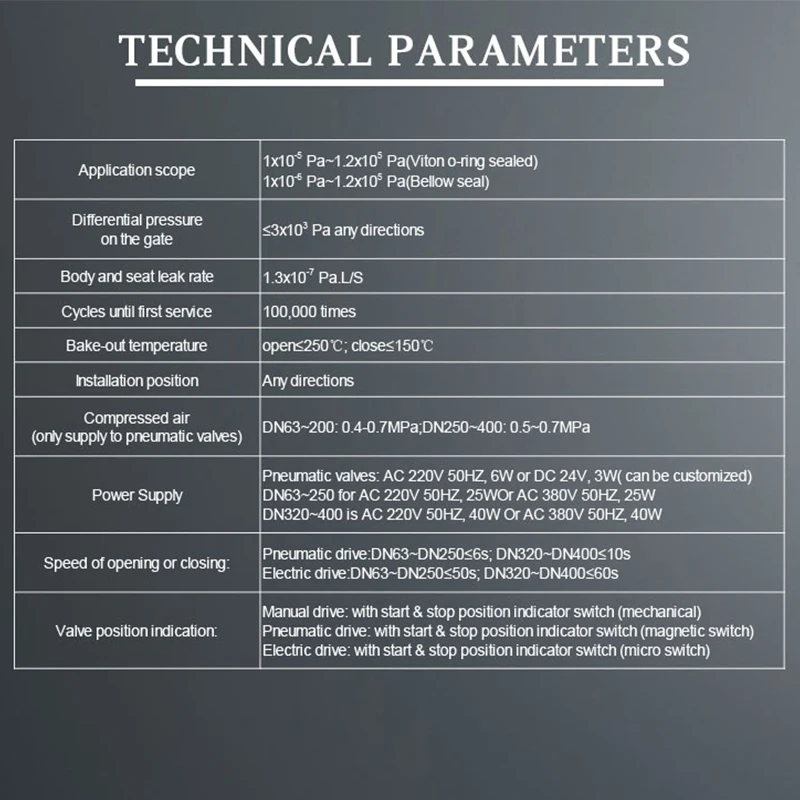

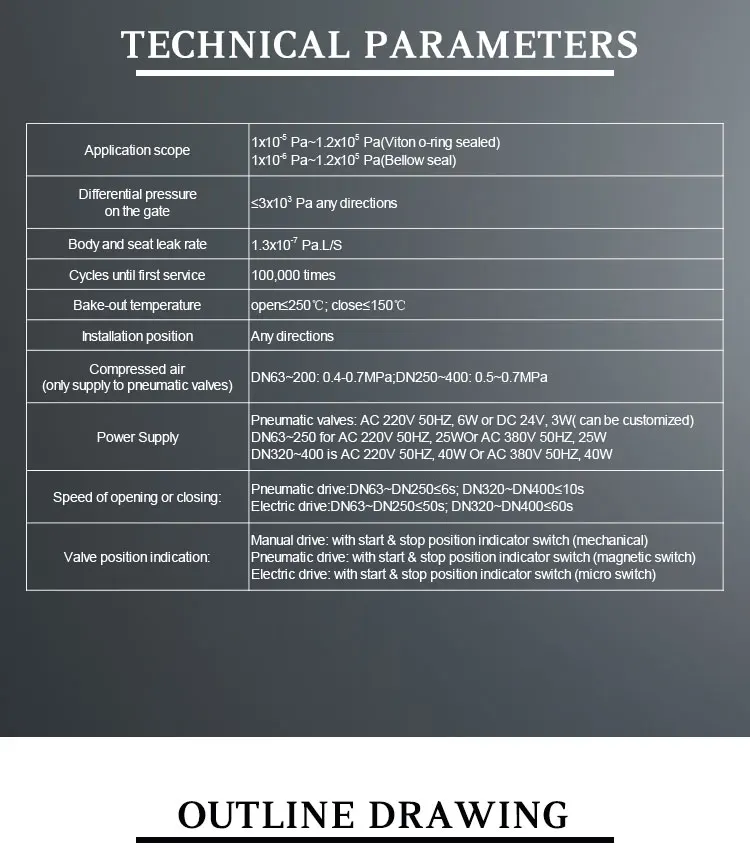

Working pressure | Atmospheric temperature to 1 x 10-6 Pa |
Leak rate | ≤1.3x10-7 Pa・L/s |
service life until first maintenance | Pneumatic 200000 repetitions |
Heating temperature(Valve body) | Open ≤200℃; Close ≤150℃ |
Supply voltage | AC220V 50Hz,6W or DC24V,3W (Other specifications can be customized) |
Opening / closing time | ≤1s |
Compressed air | 0.4~0.7MPa |
Position indicator of the valve | Magnetic switch(component choosed) |

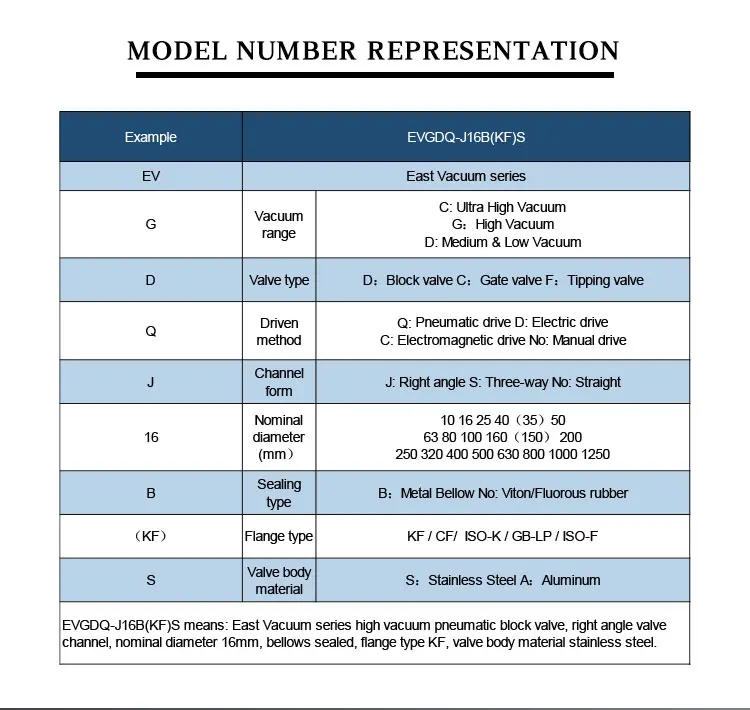

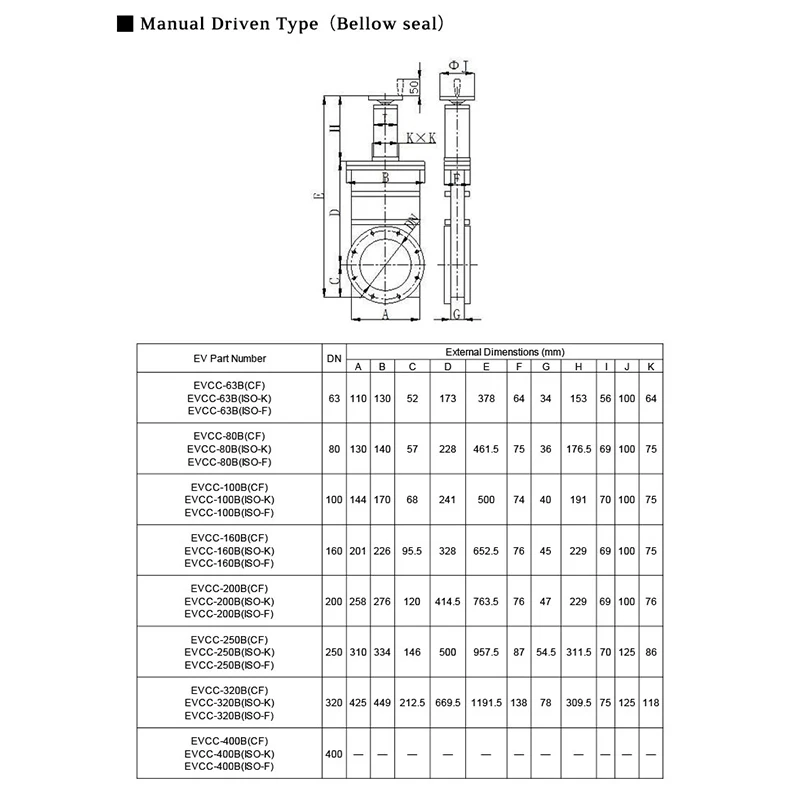

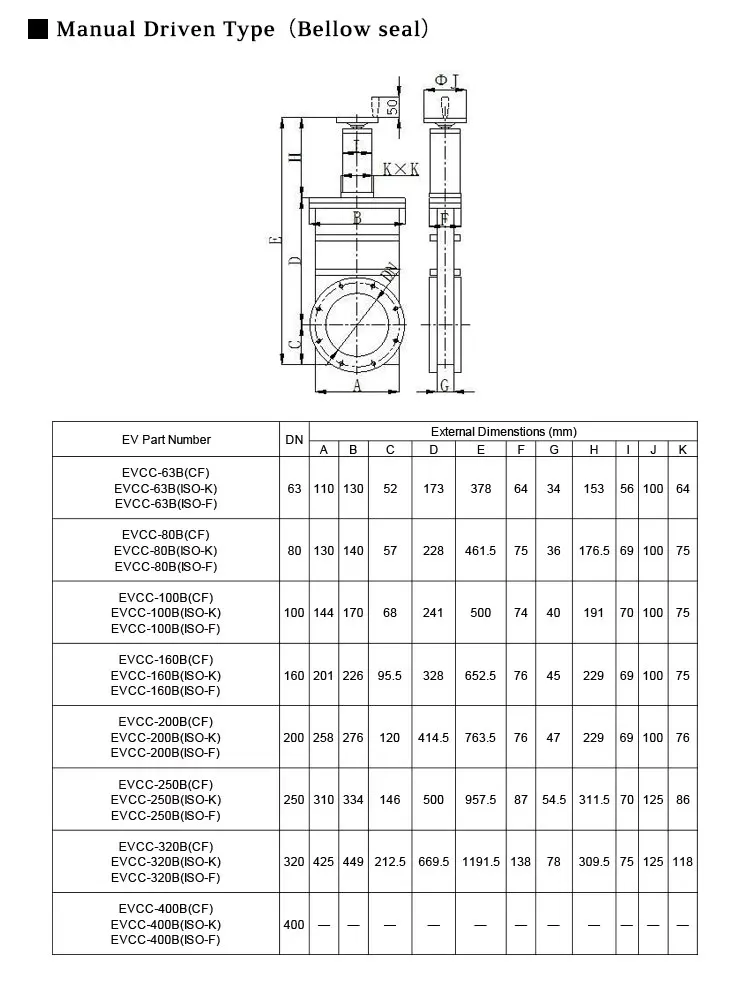

Product | Model No. | Material | Weight | Super Q order no. |

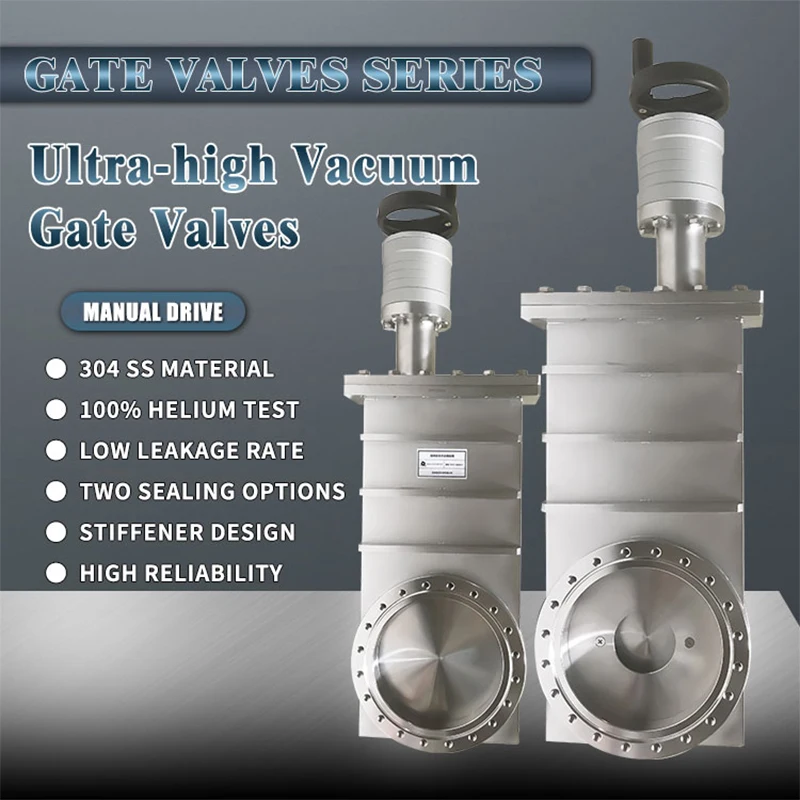

Ultra-High Vacuum Manual Driven Gate Valves | EVCC-25B(KF) | 304 | V322 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-25B(CF) | 304 | V323 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-40B(KF) | 304 | V324 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-40B(CF) | 304 | V325 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-50B(KF) | 304 | V326 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-50B(CF) | 304 | V327 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(CF) | 304 | 6.3 | V328 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(ISO-K) | 304 | 5 | V329 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(GB-LP) | 304 | 6.5 | V330 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(ISO-F) | 304 | 6.5 | V331 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(CF) | 304 | 8.2 | V332 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(ISO-K) | 304 | 8.4 | V333 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(GB-LP) | 304 | 8.6 | V334 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(ISO-F) | 304 | 8.6 | V335 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(CF) | 304 | 9.7 | V336 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(ISO-K) | 304 | 9 | V337 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(GB-LP) | 304 | 9.8 | V338 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(ISO-F) | 304 | 9.8 | V339 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(CF) | 304 | 16.5 | V340 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(ISO-K) | 304 | 14.3 | V341 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(GB-LP) | 304 | 16.5 | V342 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(ISO-F) | 304 | 16.5 | V343 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(CF) | 304 | 24.1 | V344 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(ISO-K) | 304 | 22.5 | V345 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(GB-LP) | 304 | 23.5 | V346 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(ISO-F) | 304 | 23.5 | V347 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(CF) | 304 | 36.8 | V348 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(ISO-K) | 304 | 35.5 | V349 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(GB-LP) | 304 | 31 | V350 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(ISO-F) | 304 | 31 | V351 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-320B(ISO-K) | 304 | 40.5 | V352 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-320B(GB-LP) | 304 | 42 | V353 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-320B(ISO-F) | 304 | 42 | V354 |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-400B(ISO-K) | 304 | V355 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-400B(GB-LP) | 304 | V356 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-400B(ISO-F) | 304 | V357 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-500B(ISO-K) | 304 | V358 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-500B(GB-LP) | 304 | V359 | |
Ultra-High Vacuum Manual Driven Gate Valves | EVCC-500B(ISO-F) | 304 | V360 |
