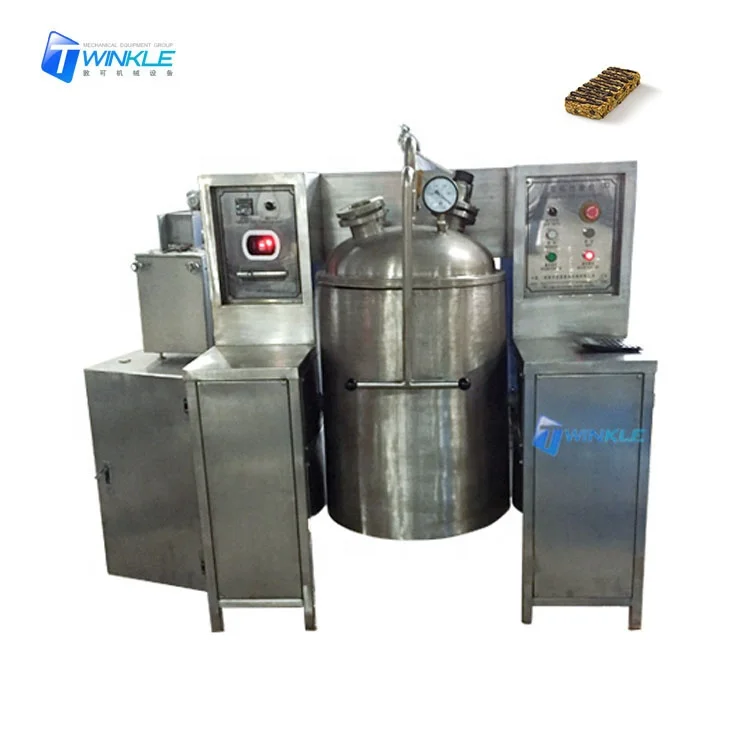

forming machine cereal bars/ chocolate cereal bar making machine/ oat cereal bar processing machine
- Category: >>>
- Supplier: Nantong Twinkle Machinery Equipment Co. Ltd.
Share on (62406072149):
Product Overview
Description
Finished Porudcts
Product Description

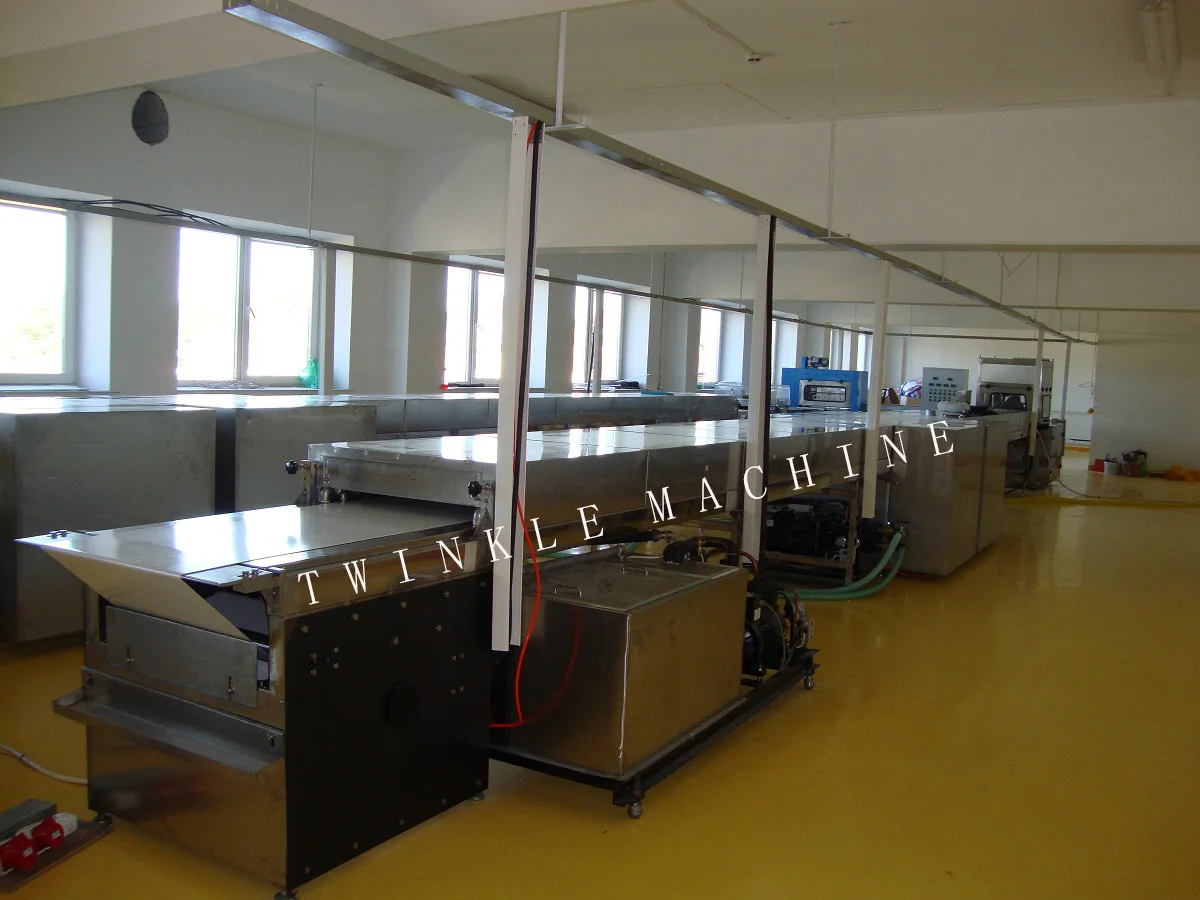

TK-BAF-400 MUESLI, CEREAL & CONFECTIONERY CHOCOLATE BARS PRODUCTION LINE can make all kinds of sugar line. It has all automatic continue produce technology, high production advanced technology. Coordinate with spray machine, it can produce all kinds of chocolate compound products.
It will be a percentage of grains in the mixing cylinder components must be mixed, mix syrup with syrup of grain and grain mixing
machine mixing, join in the hopper, after cooling and cooling roller and press roller surface turning, at the same time by the
spiral elevator to adjust the gap between the two rollers, through the rotational shear extrusion pulp roll after forming roller,
pressing roller, formed in the shape of a certain thickness of sugar, scraper to make pulp during divorced from the roll, after
further after heating, cooling tunnel through after slitting machine to cut into a certain width size strip ribs, then through cut
machine cut into long strips
CAPACITY:
300KG/H – 1000KG/H ( can as customers’ request)
ADVANTAGES:
* Reliability, easy cleaning and maintenance
* Accurate cutting and simple changeover. Fast conversion to the other cutting length by PLC
* Servo-controlled accurate movement
* Automatic belt tensioning
* Lifting and lowering of the circular knives-easy and quick
TECHNICAL PARAMETERS:

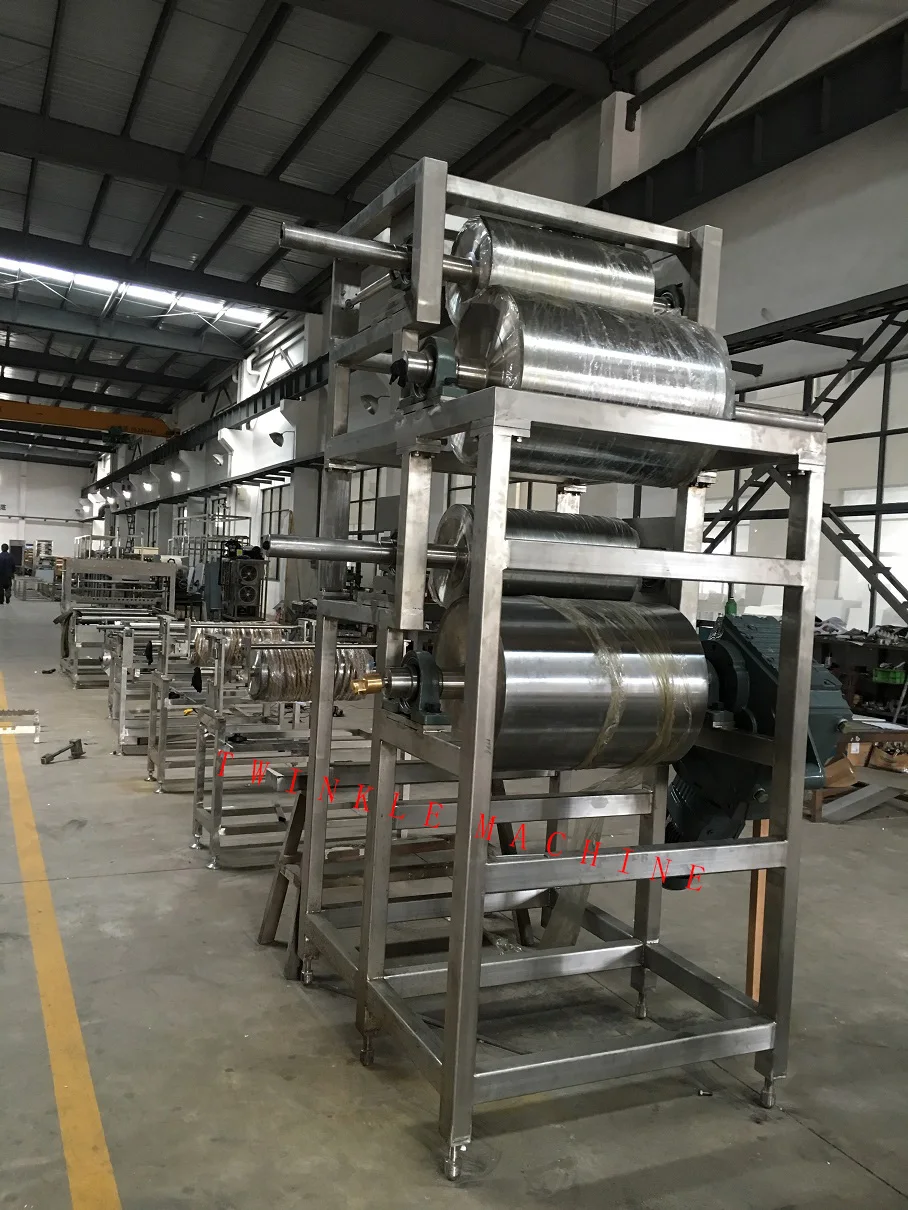

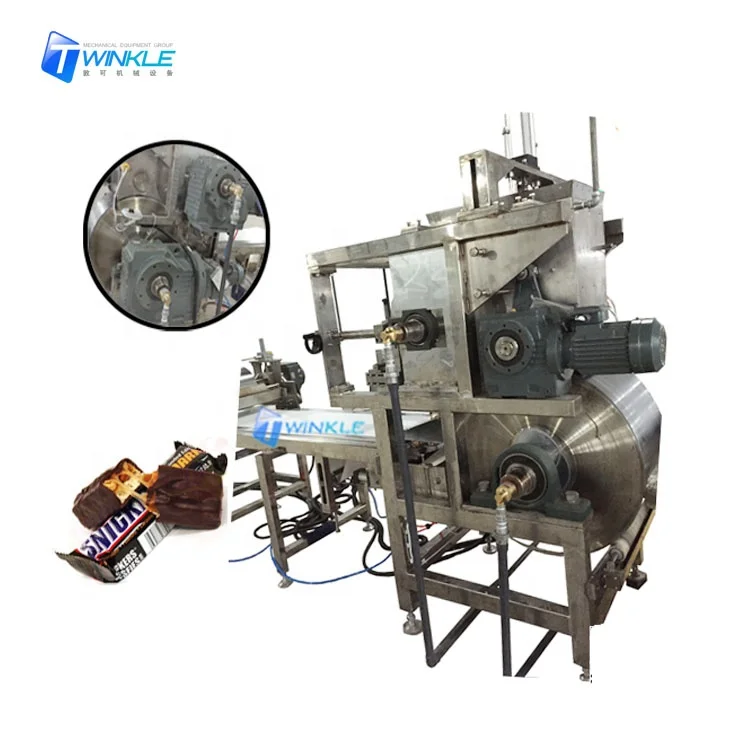

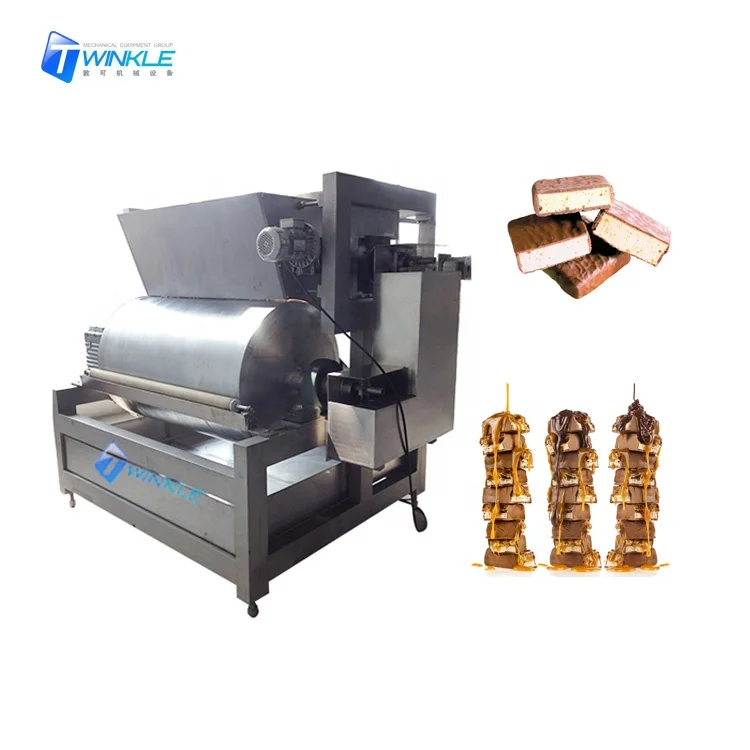

Rolling Machine:
Roller size: ¢300 * 280 mm
Speed of flattening roller: 1 ~ 6m/min frequency conversion speed regulation
The motor: 0.75kw
Overall dimension: 470 * 1285 * 1495mm
The weight:450kg

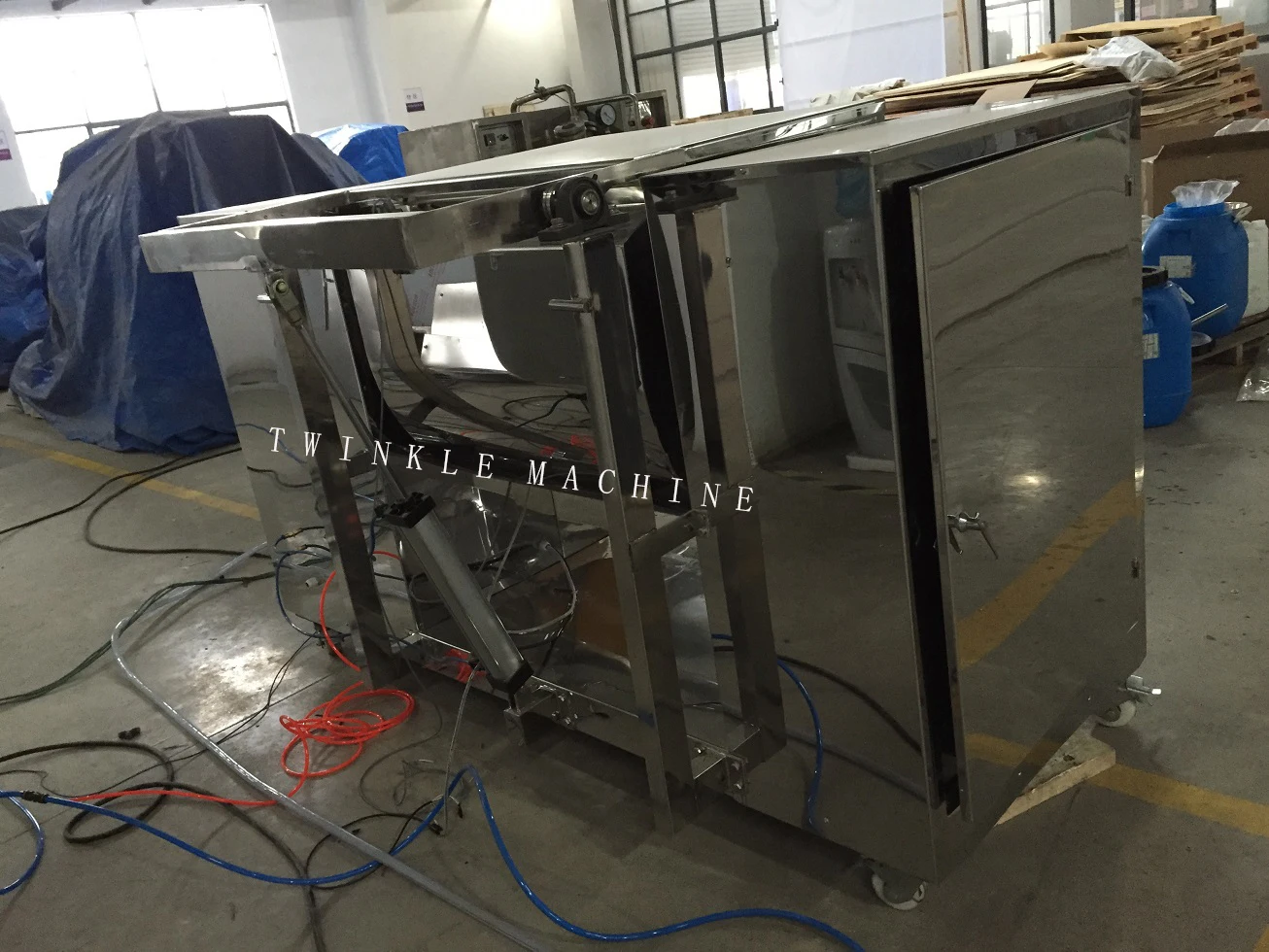

Slitting machine:
Conveyor speed: 1 ~ 7m/min frequency conversion speed regulation
Conveyor width: 21mm
Cutting speed: 1 ~ 7m/min frequency conversion speed regulation
Form a complete set of power: N = 1.29kw
The cutter motor: 0.37kw
Main drive motor: 0.55kw
Blanking conveying motor: 0.37kw
Overall dimension: 2520 * 1390 * 1206mm
The weight: 500kg

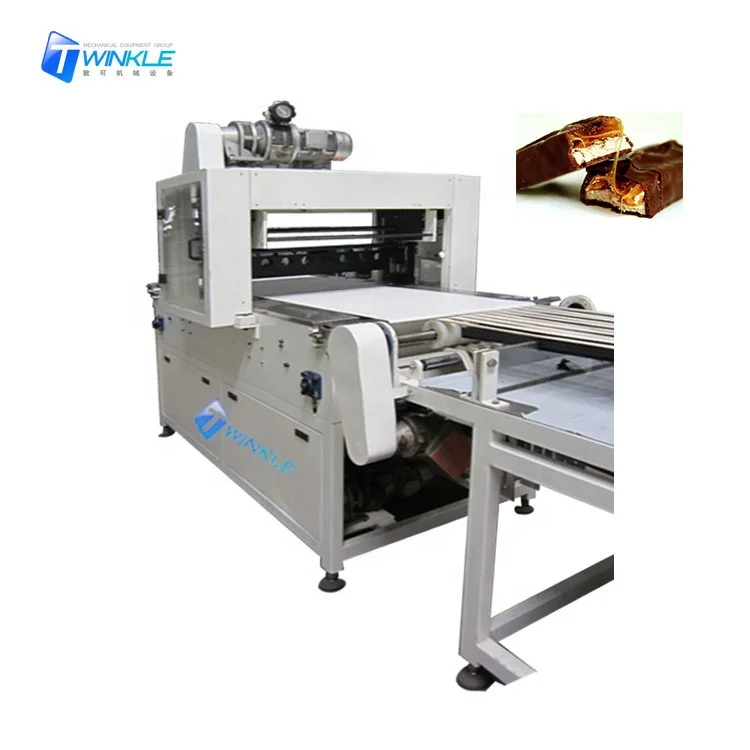

Transverse cutting machine
Conveyor belt speed: 1~7 m/min
Conveyor belt width: 650 mm
Receiving roller speed: 1~7 meter/min
Cutter frequency: 20 ~ 50 per minute
Front conveyor motor: 0.18kw
Rear conveyor belt motor: 0.18kw
Cutter motor: 0.75kw
Receiving roller motor: 0.18kw
The overall dimension: 2000×962×1900 mm
The whole machine weighs: 500 kg
It will be a percentage of grains in the mixing cylinder components must be mixed, mix syrup with syrup of grain and grain mixing
machine mixing, join in the hopper, after cooling and cooling roller and press roller surface turning, at the same time by the
spiral elevator to adjust the gap between the two rollers, through the rotational shear extrusion pulp roll after forming roller,
pressing roller, formed in the shape of a certain thickness of sugar, scraper to make pulp during divorced from the roll, after
further after heating, cooling tunnel through after slitting machine to cut into a certain width size strip ribs, then through cut
machine cut into long strips
CAPACITY:
300KG/H – 1000KG/H ( can as customers’ request)
ADVANTAGES:
* Reliability, easy cleaning and maintenance
* Accurate cutting and simple changeover. Fast conversion to the other cutting length by PLC
* Servo-controlled accurate movement
* Automatic belt tensioning
* Lifting and lowering of the circular knives-easy and quick
TECHNICAL PARAMETERS:
Rolling Machine:
Roller size: ¢300 * 280 mm
Speed of flattening roller: 1 ~ 6m/min frequency conversion speed regulation
The motor: 0.75kw
Overall dimension: 470 * 1285 * 1495mm
The weight:450kg
Slitting machine:
Conveyor speed: 1 ~ 7m/min frequency conversion speed regulation
Conveyor width: 21mm
Cutting speed: 1 ~ 7m/min frequency conversion speed regulation
Form a complete set of power: N = 1.29kw
The cutter motor: 0.37kw
Main drive motor: 0.55kw
Blanking conveying motor: 0.37kw
Overall dimension: 2520 * 1390 * 1206mm
The weight: 500kg
Transverse cutting machine
Conveyor belt speed: 1~7 m/min
Conveyor belt width: 650 mm
Receiving roller speed: 1~7 meter/min
Cutter frequency: 20 ~ 50 per minute
Front conveyor motor: 0.18kw
Rear conveyor belt motor: 0.18kw
Cutter motor: 0.75kw
Receiving roller motor: 0.18kw
The overall dimension: 2000×962×1900 mm
The whole machine weighs: 500 kg
