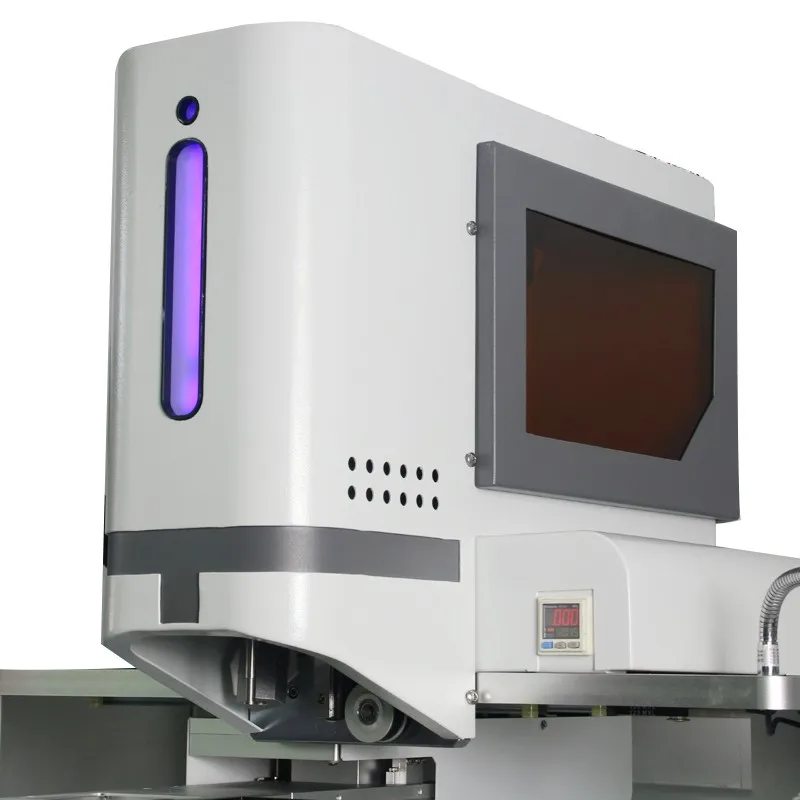

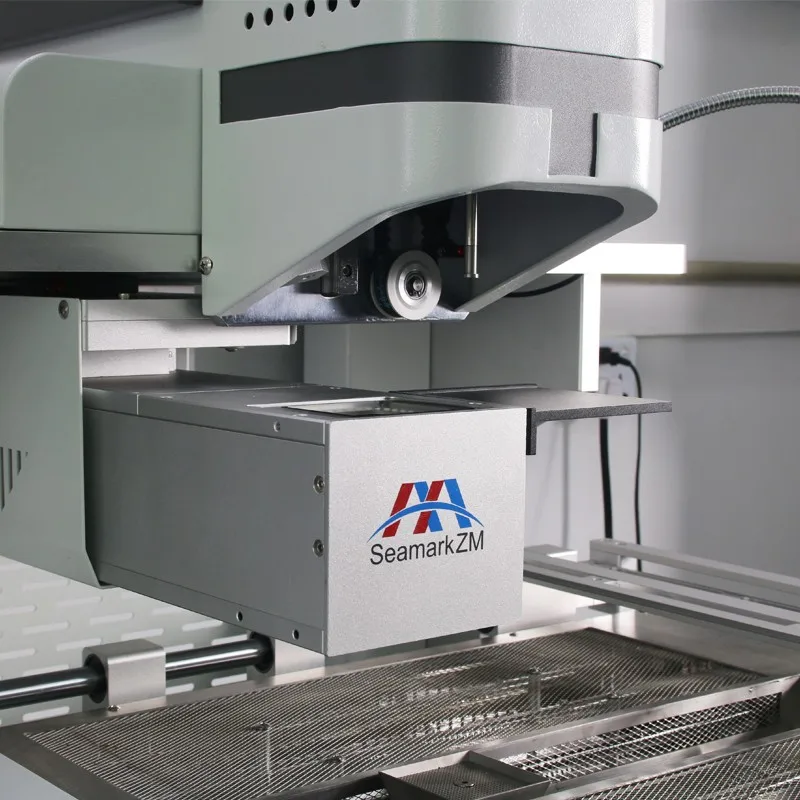

Hot Air Low Price BGA Rework Station zm r730a for repair larger pcb board

Zhuomao BGA Rework Station has widely applied to repair different ranges of electronics products. From low level chipsets repair to high level chipsets repair.

The main user is repairing shops and factory to provide the after-sales service and PCBA PCB’S rework.

What kinds of components of the PCBA motherboard can be repaired by the ZM-R730 BGA rework station?

BGA, QGN, CSP, POP, QFN, Micro SMD etc.

Application of ZM-R730 bga rework station

→ Laptop / Notebook/ Computer motherboard repair.

→ Playstation / XBOX 360 and other game console repair.
→ Mobile phone motherboard repair, such as Samsung or Iphone 4/ 4s / 5 / 5s 6/ 6s 7/ 7s/ 8/ x motherboard repair.
→ TV / Video / ipad mainboard repai.
→ SMD/ QFP / IC BGA rework etc.

We have different ranges of bga rework station for your selection.

We can customize the BGA LED SMD rework stationaccording to your requirements.

Specification of the ZM-R730 BGA rework station:

1. Power:    AC 220V±10%                     50/60 Hz

2. Total Power:   Max 7500W

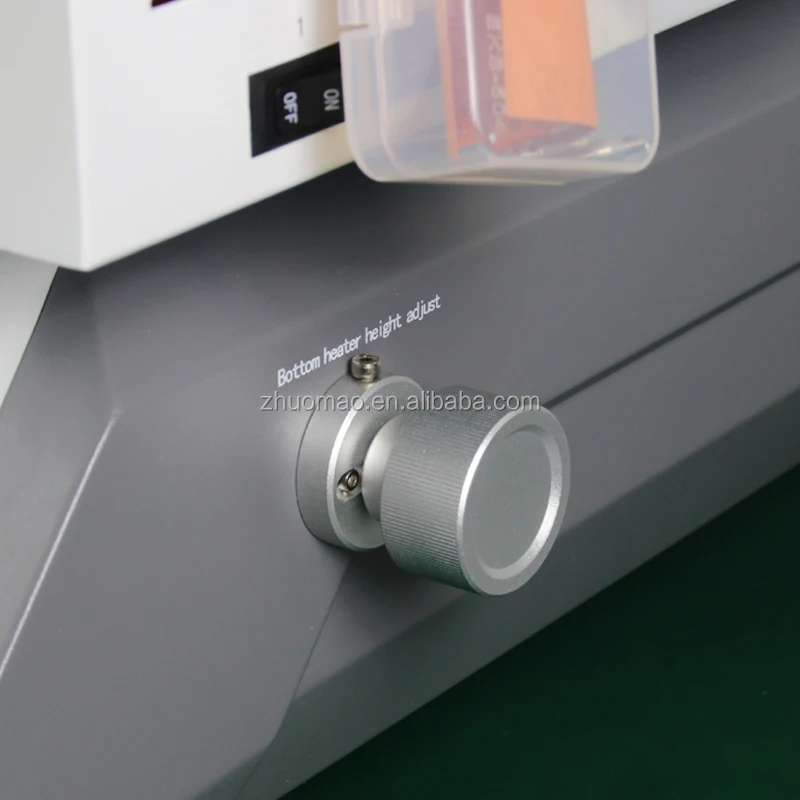

3. Heater power: Top heater 1200 W    Bottom heater 1200 W    IR heater 4800 W

4. Electrical materials:Intelligence Programmable controller, support connect computer

5. Temperature control: K-type thermocouple (Closed Loop), independence temperature control, accuracy within±1℃

6. Positioning: V-groove, PCB support

7. PCB size: Max 645×520 mm  Min 6×6 mm

8. BGA chip: Max 80×80mm   Min 3×3 mm

How to rework the  BGA chip from motherboard?
Repair steps:
1. Remove the BGA chip from mother board –we call it desoldering
2. Clean Pad
3. Reballing  or replace a new BGA chip directly

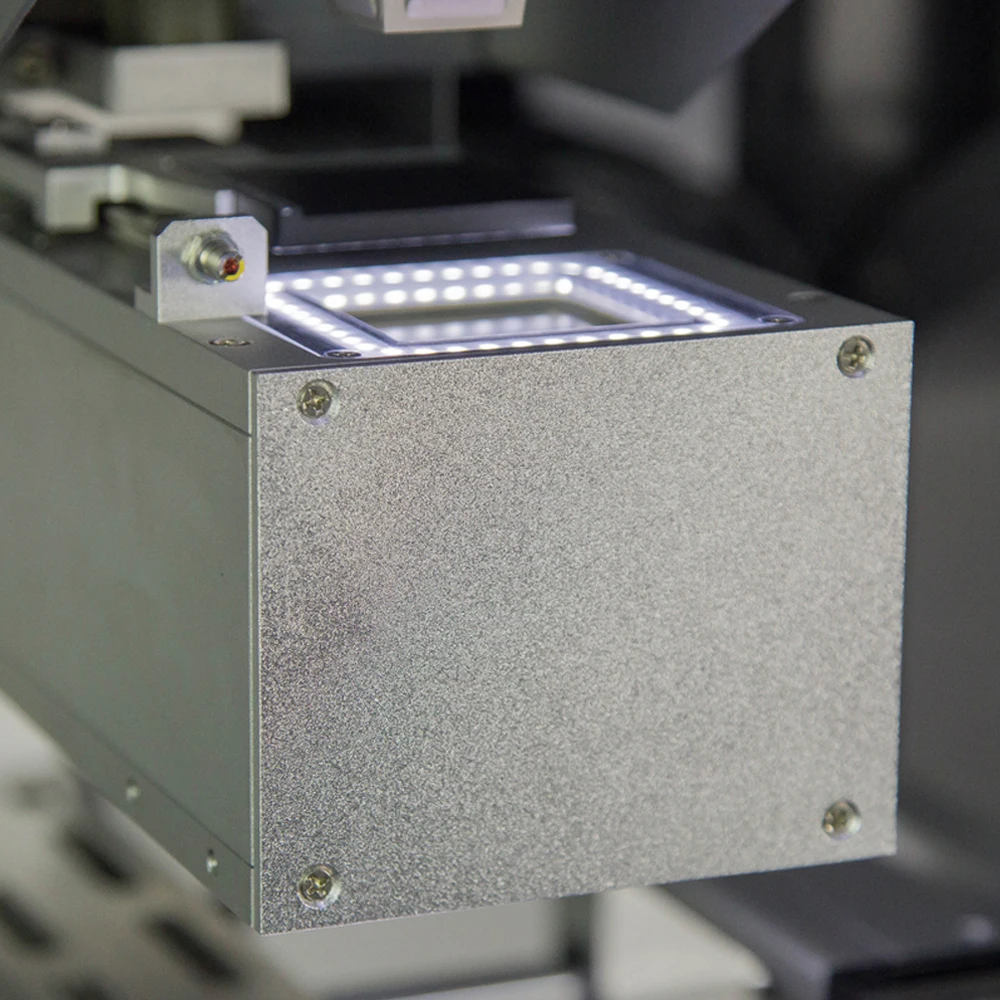

4. Alignment/Positioning – use CCD optical camera
5. Mount the BGA chip, then automatically soldering - we called soldering

Shenzhen Zhuomao Technology CO., Ltd, a 14-year professional manufacturer and exporter of LED BGA rework station, Glue dispensing robot, X-ray inspection machine. We are a high-tech enterprise including R&D, production, Sales and After sales service.

Currently, our machine have been sold around Europe, Asia, Australia, Oceania and Southeast Asia, Middle East and other countries and regions. We are the vendor of FOXCONN, HUAWEI, FLEX, NVIDIA, LENOVO, PANASONIC, HISENSE, SANMINA-SCI, GIGABYTE, SAMSUNG, and so on.

High quality assurance is our task and also what we are doing now.

Company photo:

Certificate photo:

Exhibition photo:

Major customers photo:

Packing & Shipping of ZM-R730A BGA Rework Station
1. Standard export wooden package for bga rework station: 112*92*119cm, 204KG.
2. Delivery within 2 business days after payment confirm;
3. Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea.
4. Loading Port: Shenzhen or Hongkong.

1. About the Package, is it safe during the shipping ?

All BGA rework station are packed in Solid wooden box with foam, sticks and band to fix inside. It is safe enough when shipping.

 2. About the Transportation,  Which way and how many days will the machine arrives?

Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.  (different country different time)

3. About the Warranty, how long and how to do the after-sales service ?

1 year warranty free for spare parts, and whole life technical support.

We have professional technical team, for any question, assistant videos are also provided.

 4. About the Operation, if I have no experience, can I also operate it well ?

Our BGA rework station is designed  to use easily, normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will be much faster to learn. We will provide the English user manual for free , and the operation video is available.

 5. About the Training, will you provide the free training ?

Yes, we will arrange technician to offer you the professional training in our factory. Demo video for your learning is available.

 6. About the Payment, which way is better ?

We accept the payment terms: T/T, Bank transfer, Western Union, Money gram, PayPal, L/C etc. Others payment ways is negotiable.

For more details of the BGA SMD IC rework machine ZM-R730, please feel free to inquire us. We’re 24-hour online for you.

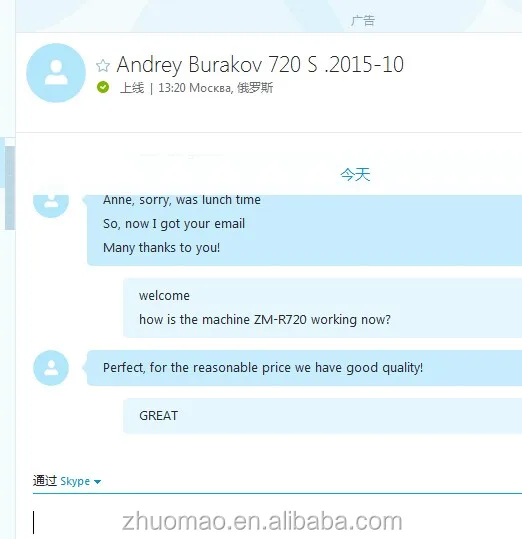

Customers are satisfied with our BGA rework station.

After use the BGA rework station, their working efficiency improve a lot, and the rework success rate is much higher than before.

Are you still hesitate to get the machine? Contact us to know more about it. : ) Time is valuable.
