MKSII hybrid solar inverter 48v battery with parallel operation mppt with or solar inverter without battery

Product Overview

Description

MKSII 5kw 48v off grid with parallel operation  mppt solar inverter with or without battery inverter

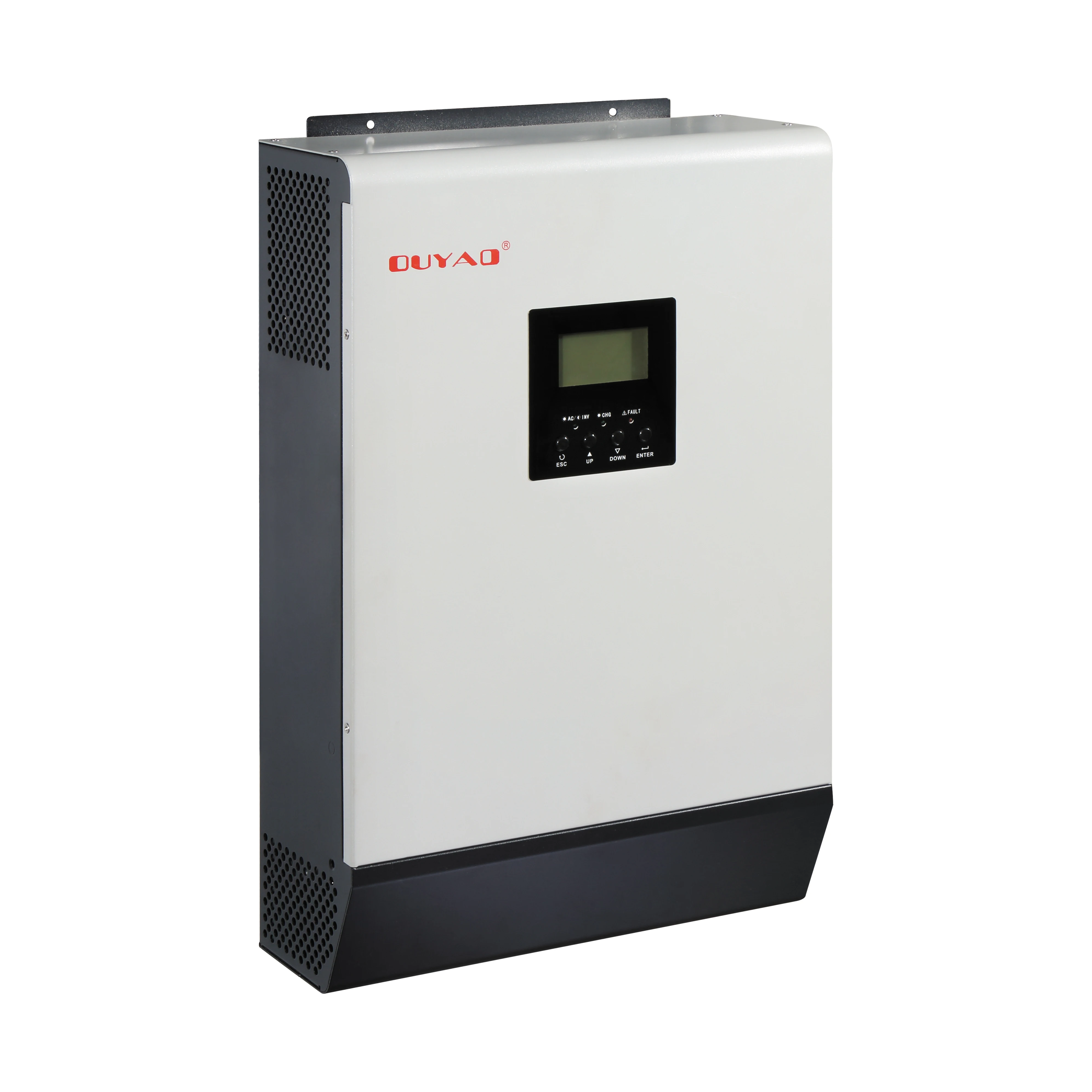

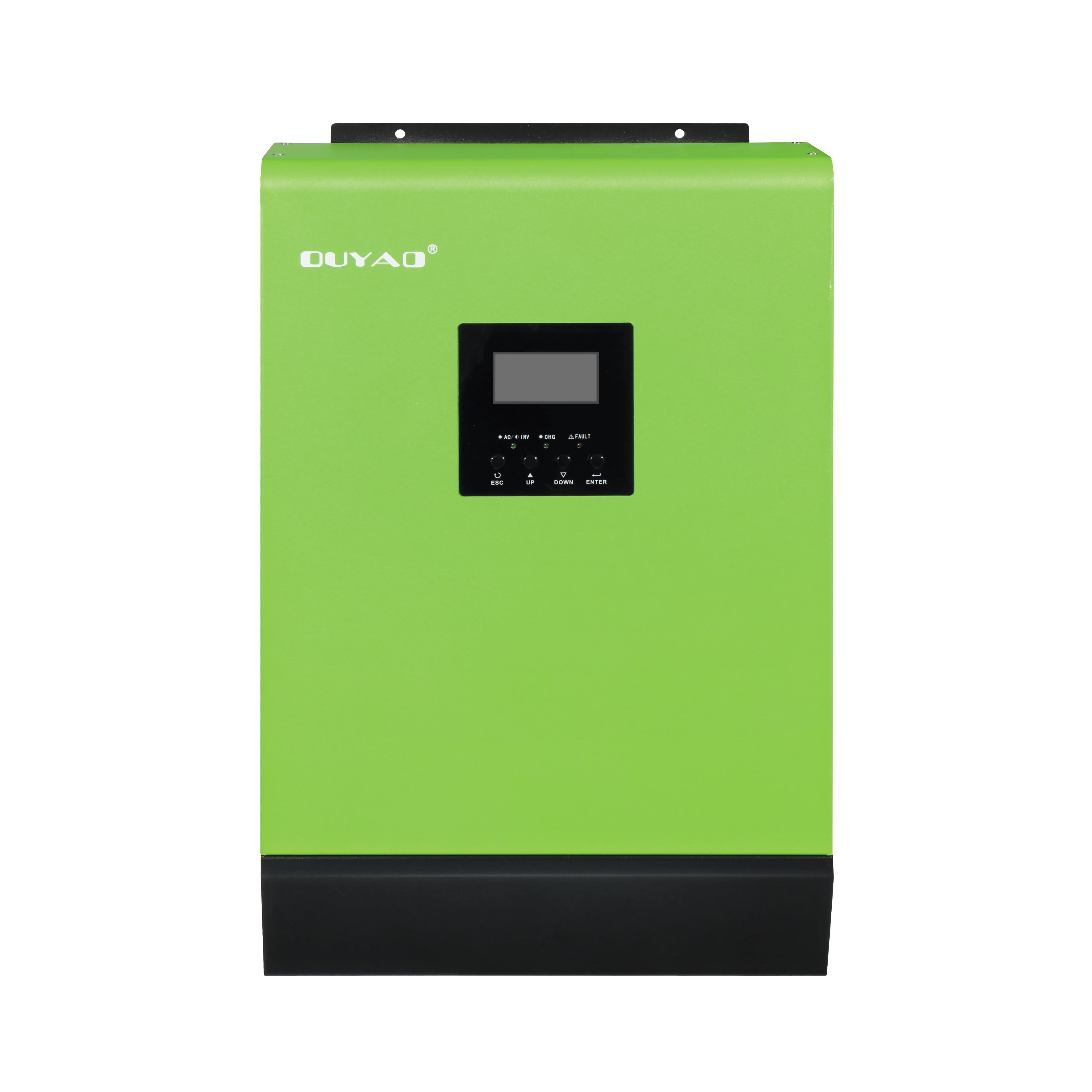

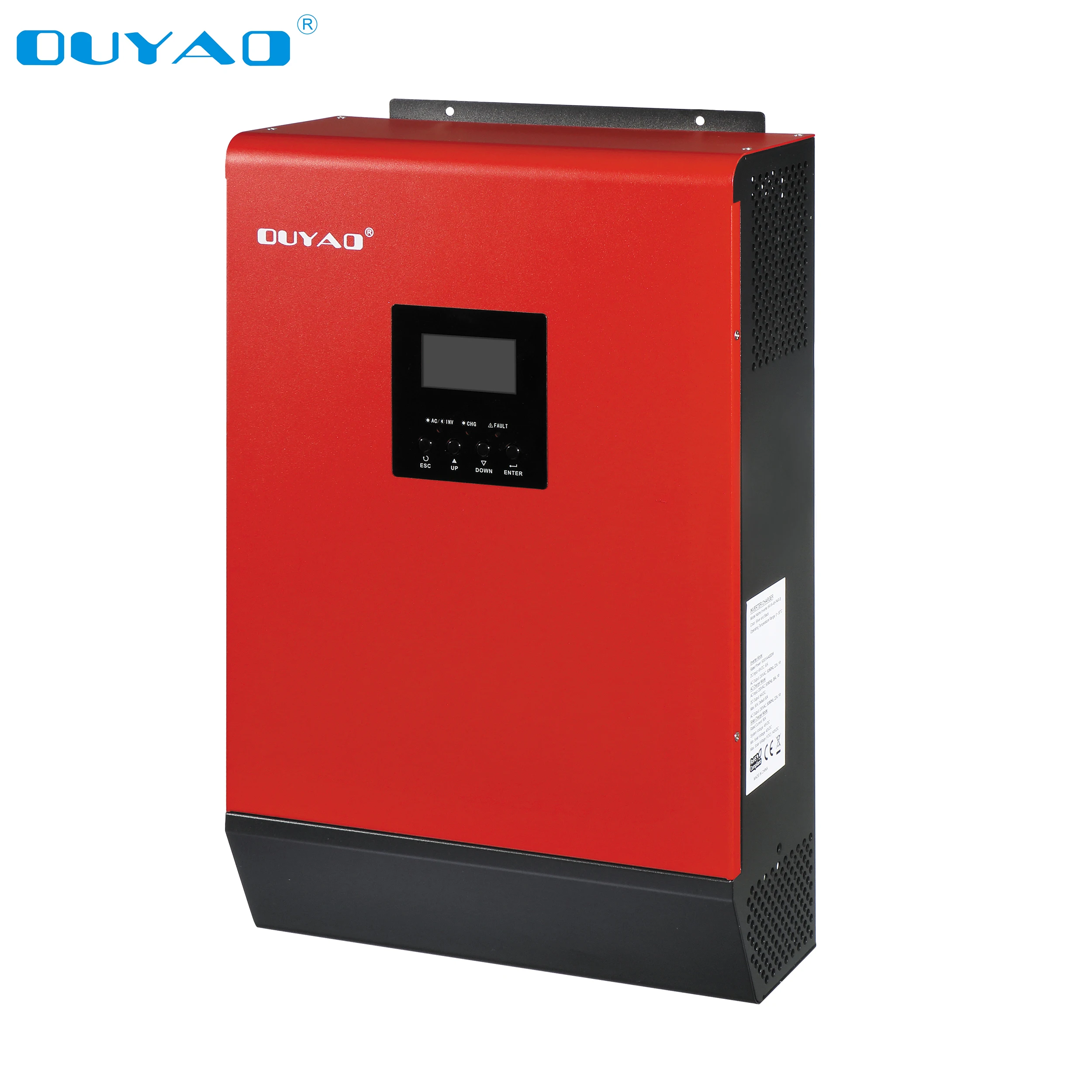

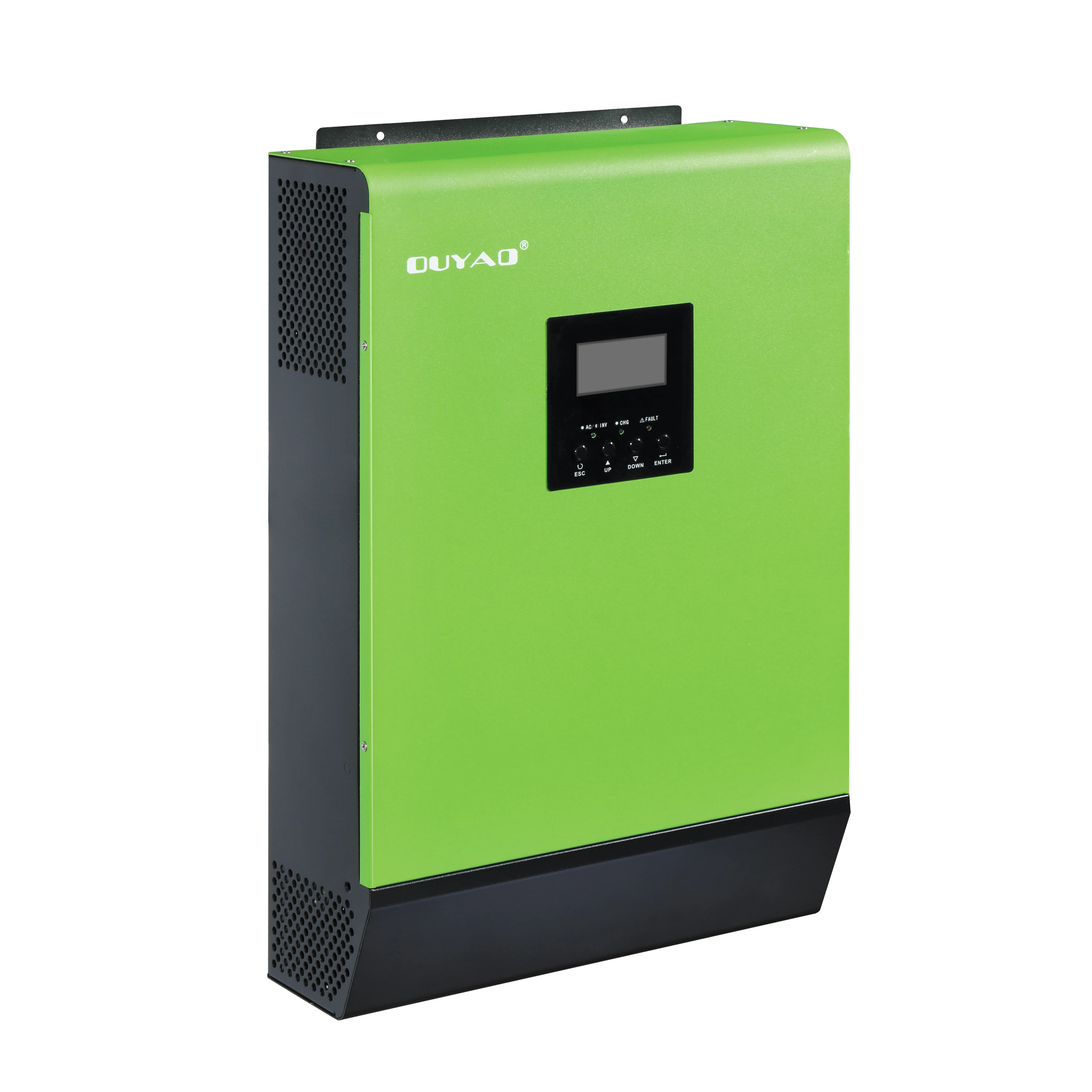

Picture :





  Features:

1. High efficiency pure sine wave inverter(PF=1);Wide PV input range(120Vdc - 450Vdc) 80A MPPT SCC;Intelligent 3 stage 80A AC battery charger.

2. Surges to 2X continuous power for 5 seconds for motor loads.

3. Intelligent functionality enables utility and solar input prioritization.

4. Wide ulility input range ( 90V ac ~280Vac ) for unreliable grid even inthe most challenging environments.

5. Field serviceable with replacement boards and spare parts.

6. Monitor, troubleshoot, or communication with USB/RS 232.

7. System configures quickly into compact, wall-mounted system.

8. This series inverters can work without batteries when there is the sun.

9. Parallel operation with up to 9 units.



Specification:

Model No.		MKSII-5K
Rated power		5000VA /5000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power (5 seconds)	10000VA
	efficiency (peak)	90%
	transfer time	10ms(for personal computers);   20ms (for home appliances)
	waveform	pure sine wave
Battery&              AC charger	battery voltage	48VDC
	floating charge voltage	54VDC
	overcharge protection	66VDC
	maximum charge current	80A
	MAX PV array power	4500W
	MPPT range@ operating voltage	120VDC-430VDC
	maximum PV voltage	450VDC
	Solar MPPT charging current	80A
	maximum efficiency	98%
Physical	Dimension, D*W*H(mm)	120*295*468
	Net weight (kgs)	11KG
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃



Drawing:

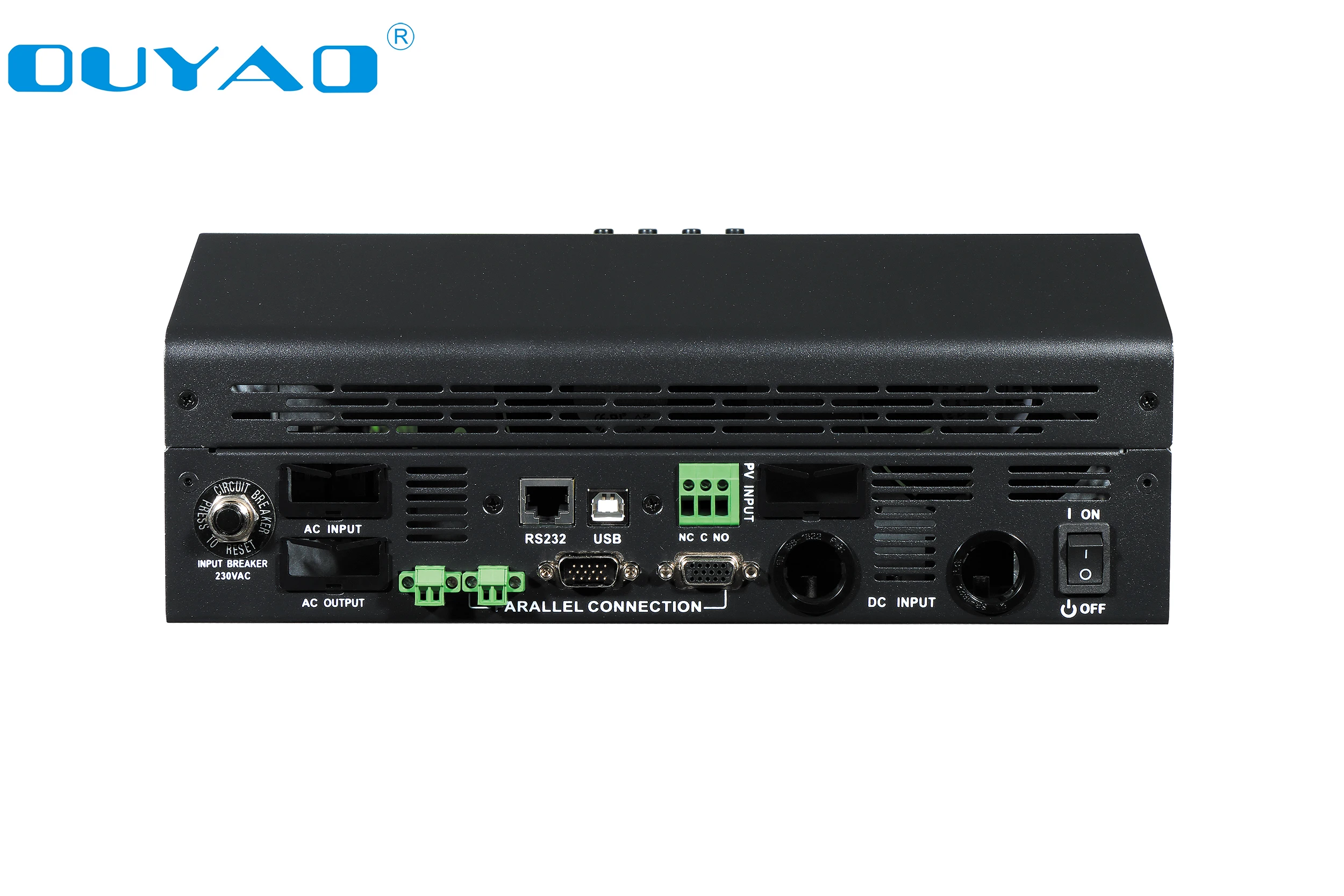

Products Detail:



Package:

Project Case:



Production line:



Factory power &Certifications:





FAQ:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.



Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q3: How about the delivery time?

A3:  3 days for sample; 25 days for bulk order.



Q4: What is the warranty of inverter?

A4: One year warranty



Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
