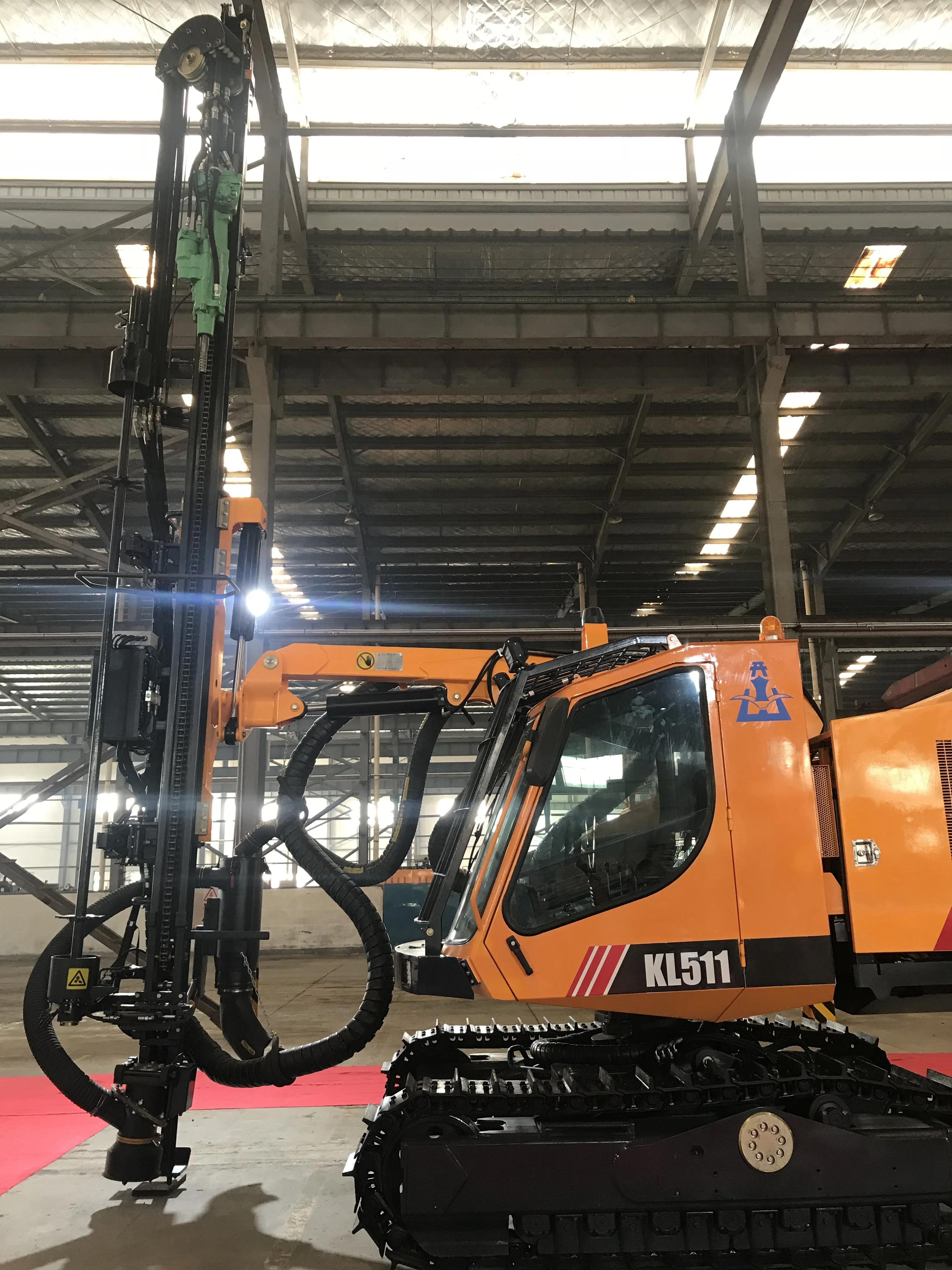

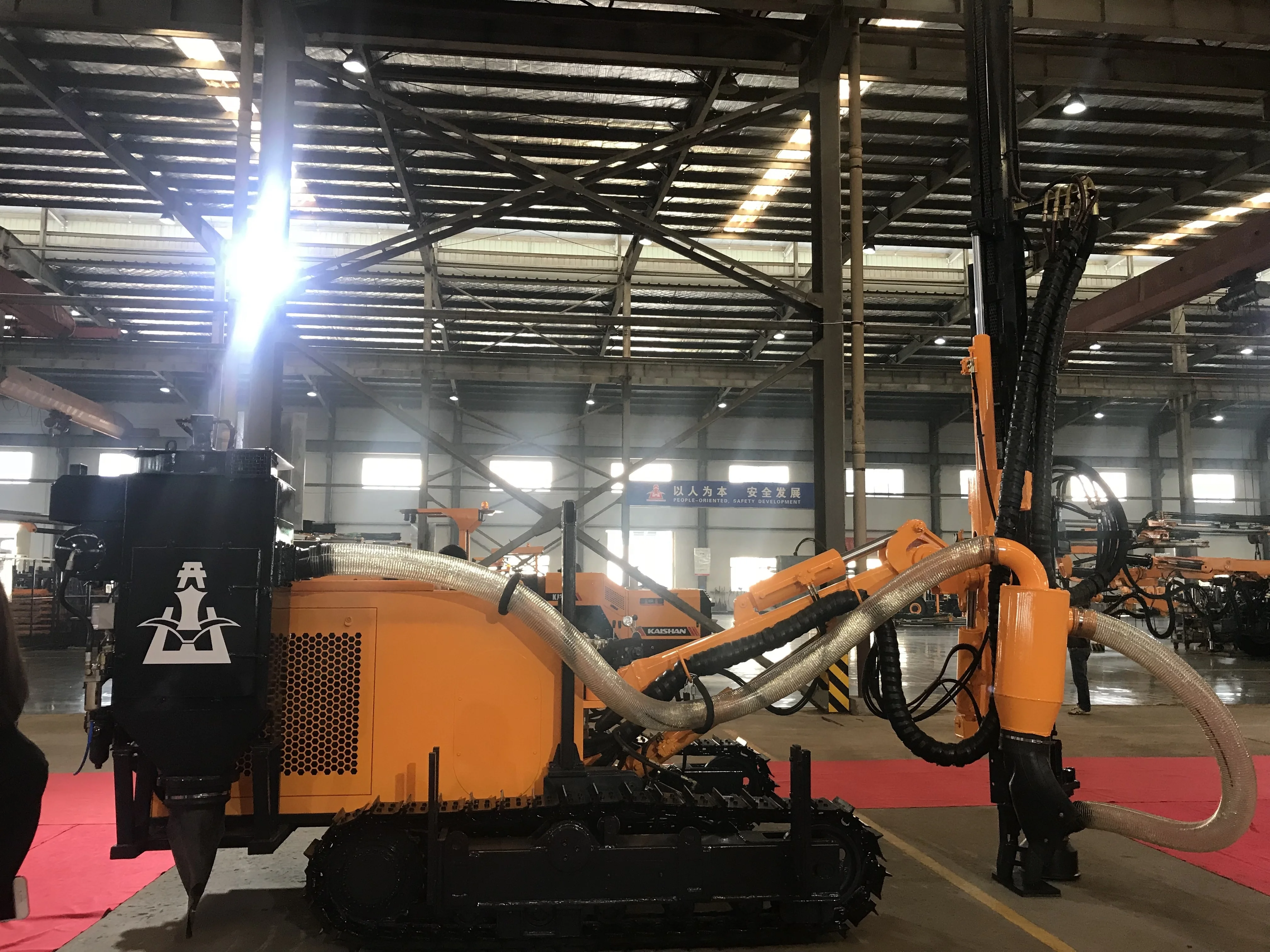

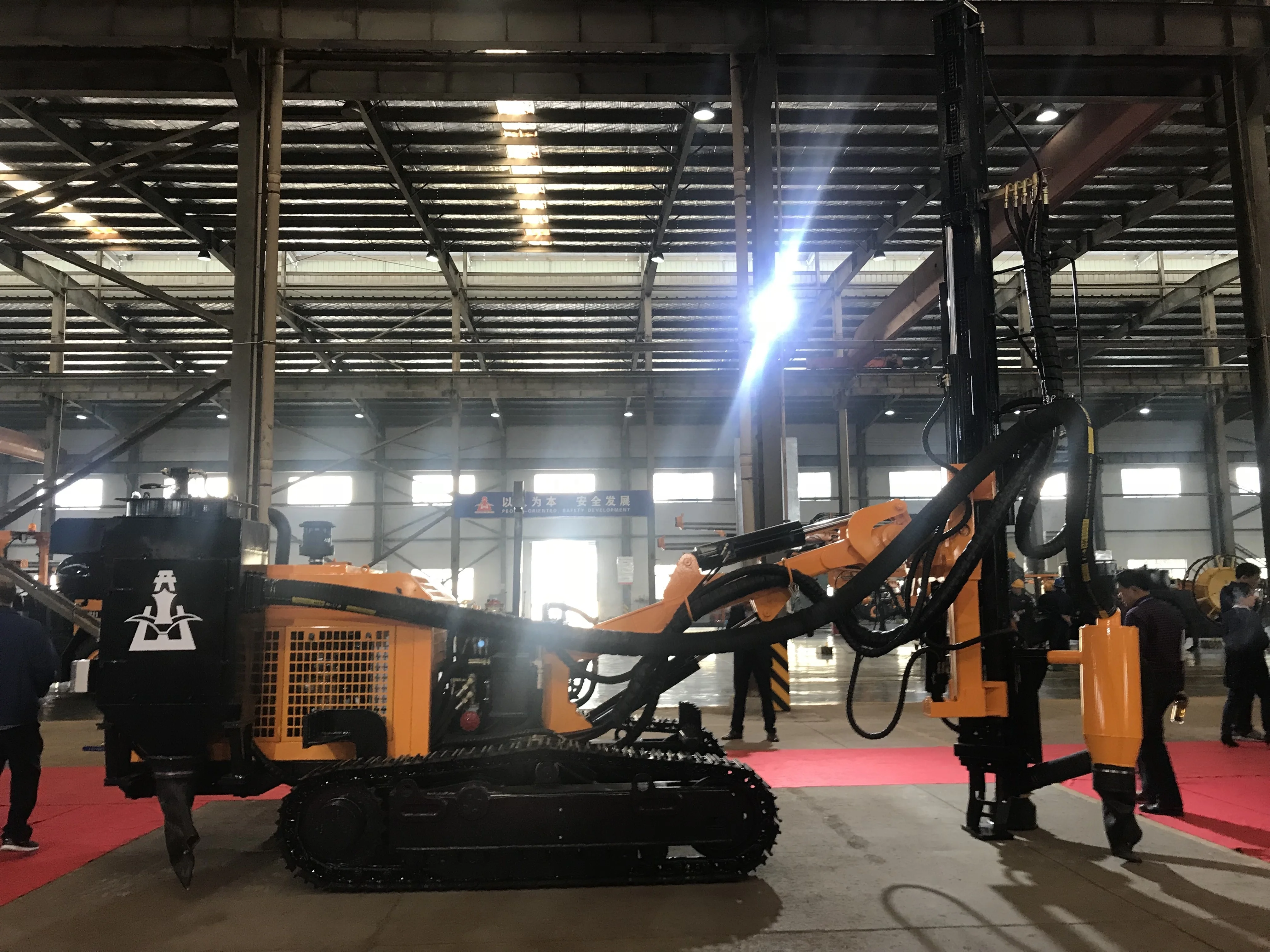

35m Depth KT15 Integrated Down The Hole bored pile drilling rig High Pressure Open Air Crawler From China
- Category: >>>
- Supplier: Quzhou Kaipu Machinery Equipment Co. Ltd.
Share on (62406192773):
Product Overview
Description
Product Description

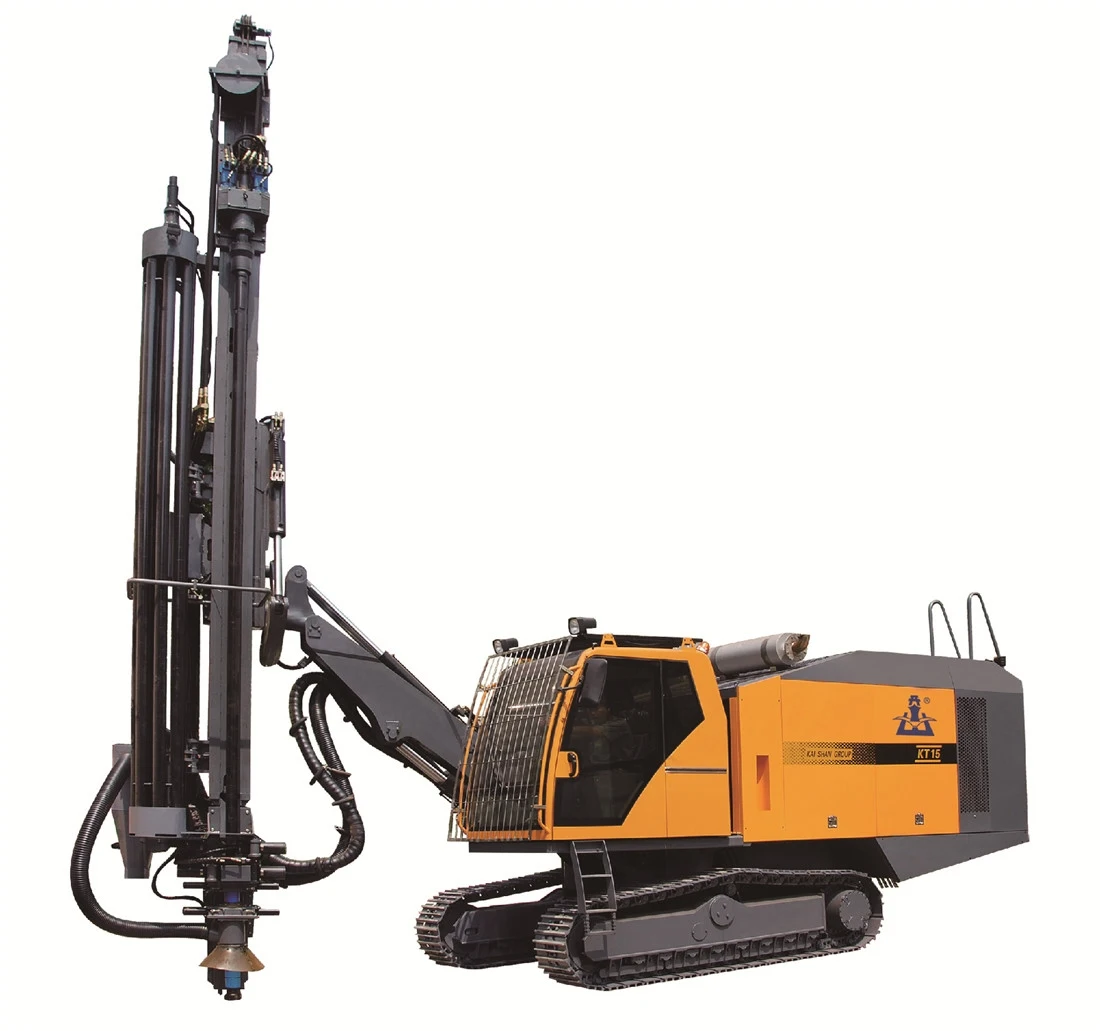

KT15 Integrated Down the hole Drill Rig for Open Use
The KT15 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine
emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive are adopted; add track leveling cylinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed; and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive are adopted; add track leveling cylinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed; and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Advantages of KT15 Machine
2. A disc type automatic rod connecting and discharging system is available in our high pressure integrated drilling rig. The drilling depth could reach 35m.

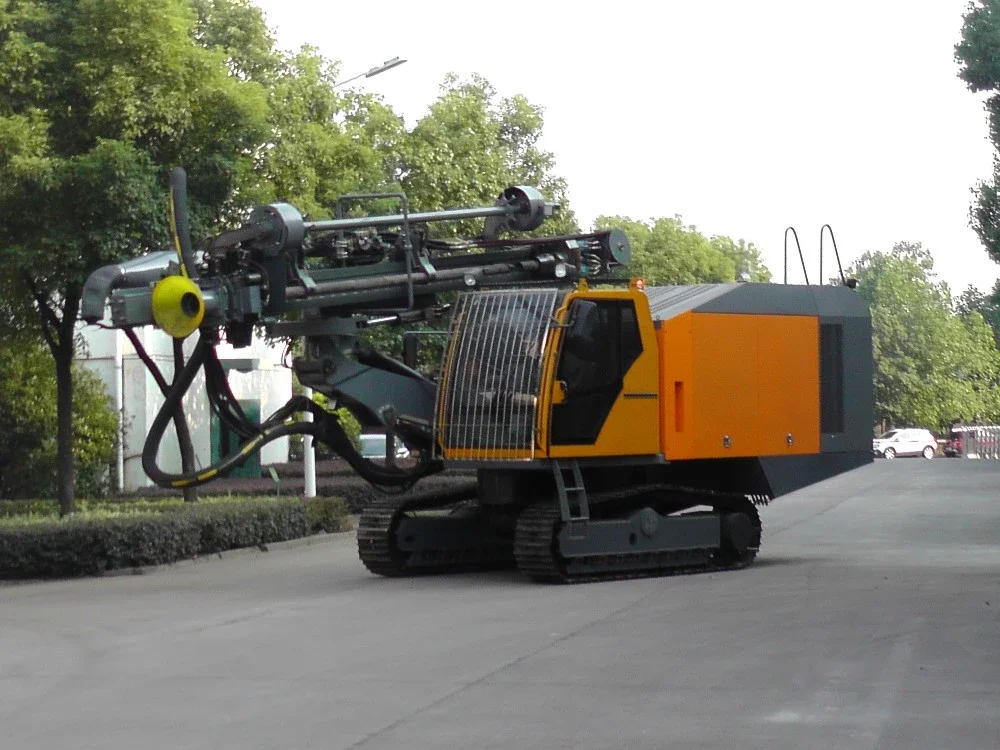

3. A luffing mechanism is used for the carriage swing angle adjustment. The total swing angle is 130° (97° to the right and 33° to the left). There is no need to change the pivot for the switching between horizontal hole and vertical hole. The lowest horizontal hole will be at 550mm, while the highest position will be at 4500mm.
4. A Cummins electronic fuel injection engine is adopted. Its power and performance are both excellent.
5. The single engine outputs its power at both ends. The structure is compact and the maintenance is convenient.
6. The high air pressure and large displacement (22m3/min, 20bar air) compressing system can ensure the fast drilling speed.
7. The automatic leveling function of the walking mechanism makes the high pressure integrated drilling rig more suitable for bumpy roads.
8. A special rod positioning mechanism is adopted to guide the drilling tools during the entire drilling process, avoiding any hole deviation. It guides the drill hammer at the beginning and

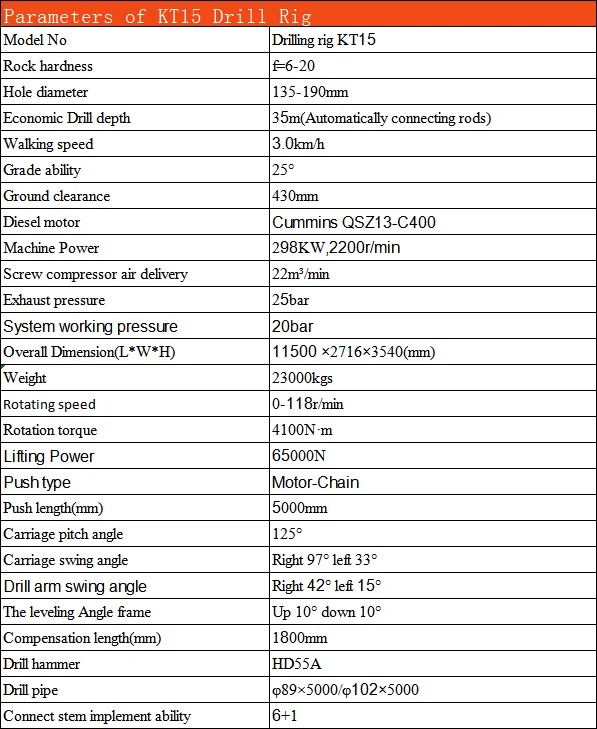

Specific performance is as follows:
1. The push length is 5meter once,and saving the time of loading and uploading, improve work efficiency
2. A disc type automatic rod connecting and discharging system is available in our high pressure integrated drilling rig. The drilling depth could reach 35m.
3. A luffing mechanism is used for the carriage swing angle adjustment. The total swing angle is 130° (97° to the right and 33° to the left). There is no need to change the pivot for the switching between horizontal hole and vertical hole. The lowest horizontal hole will be at 550mm, while the highest position will be at 4500mm.
4. A Cummins electronic fuel injection engine is adopted. Its power and performance are both excellent.
5. The single engine outputs its power at both ends. The structure is compact and the maintenance is convenient.
6. The high air pressure and large displacement (22m3/min, 20bar air) compressing system can ensure the fast drilling speed.
7. The automatic leveling function of the walking mechanism makes the high pressure integrated drilling rig more suitable for bumpy roads.
8. A special rod positioning mechanism is adopted to guide the drilling tools during the entire drilling process, avoiding any hole deviation. It guides the drill hammer at the beginning and
Actual picture of cabinet loading

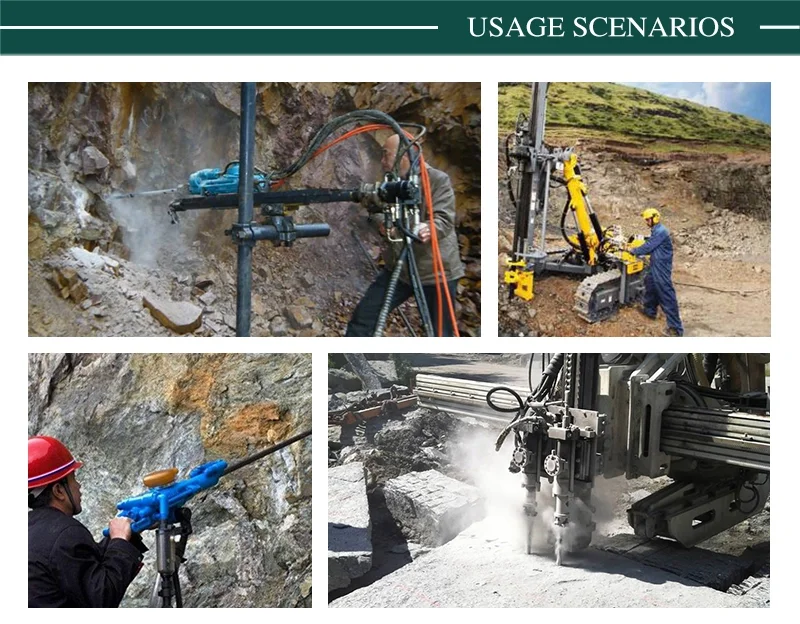

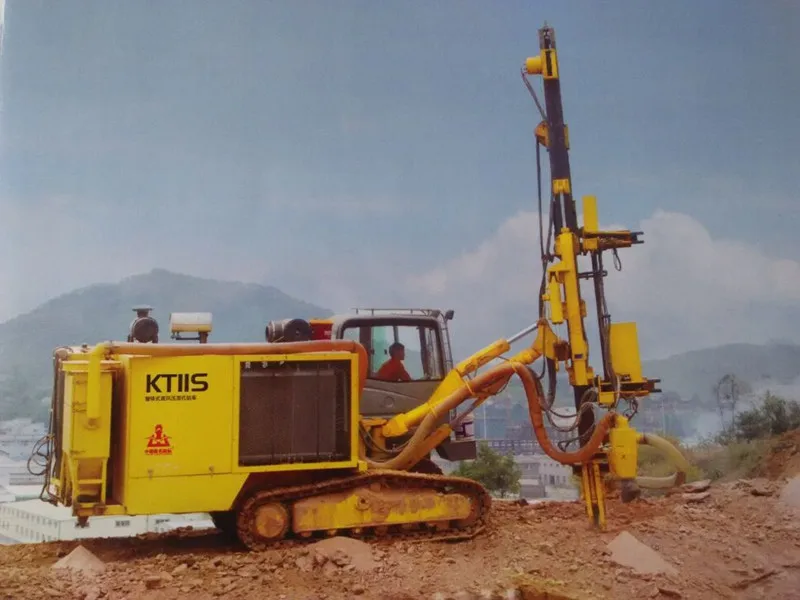

Application Area

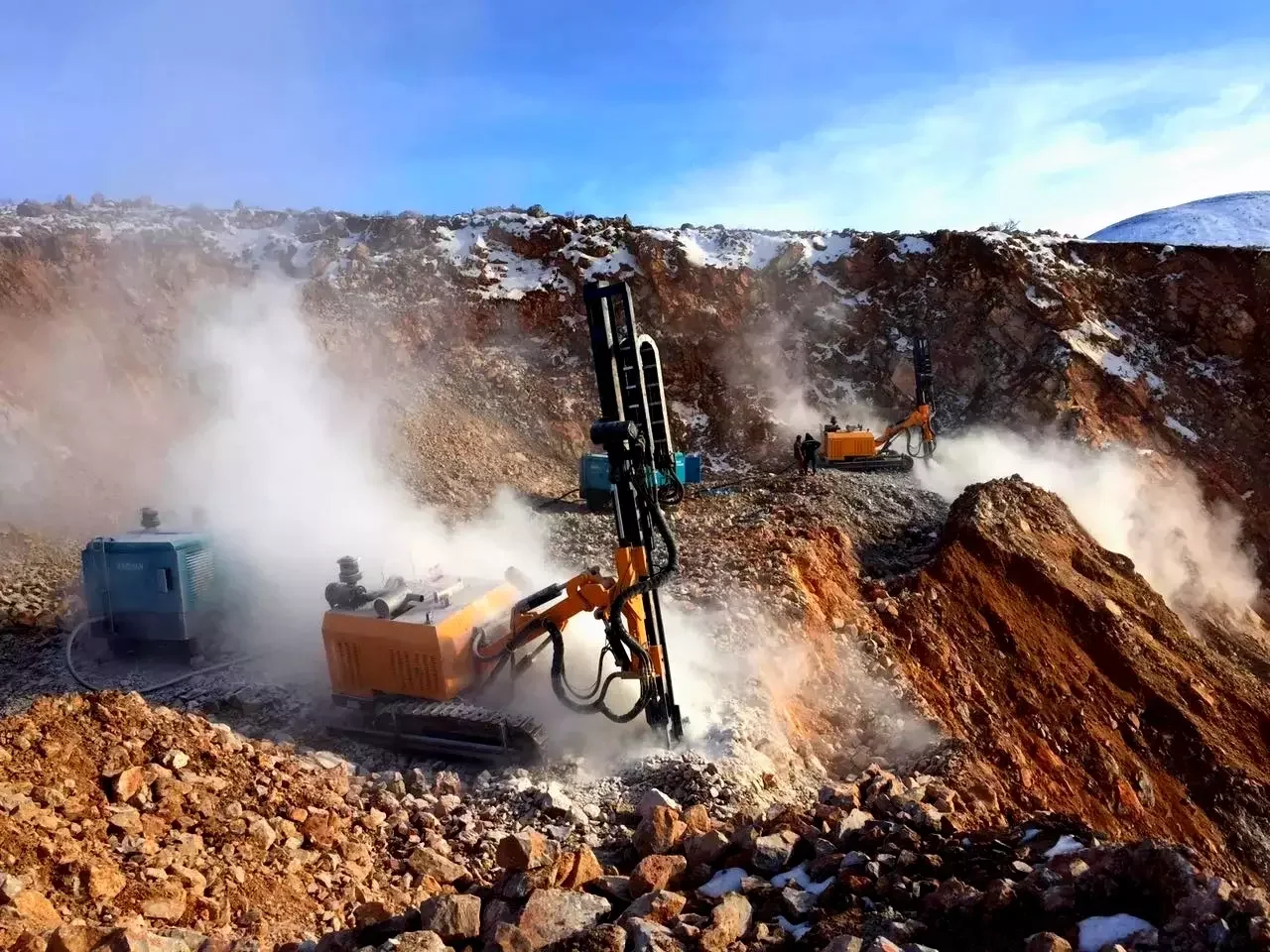

KT15 integrated open-air DTH drilling rig is an efficient and energy-saving advanced drilling equipment specially developed for small and medium-sized open pit mining, quarry and infrastructure construction projects.
