Blower heavy bearing base for factory bearing housing
US $80.00-$300.00
TK308 159 штамповки корпус подшипника для Конвейерного Ролика
- Category: Housings >>>
- Supplier: Shandong Mairui Heavy Industry Co. Ltd.
Share on (62406197092):
Product Overview
Description
Product Description

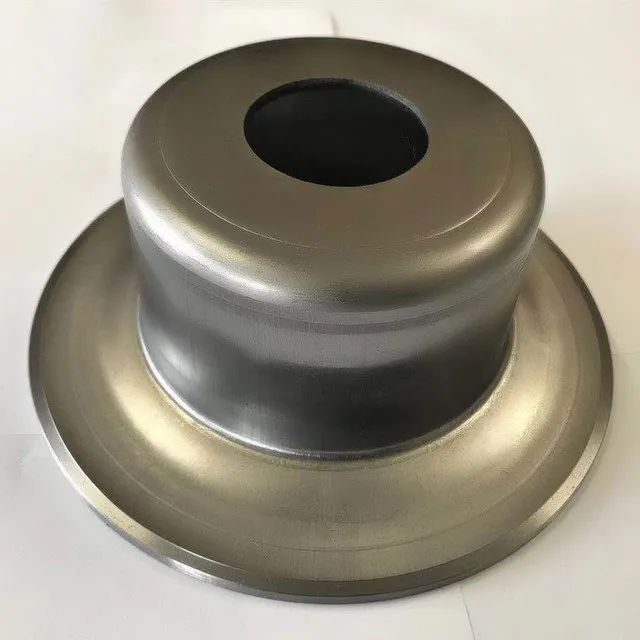

Precise belt conveyor roller bearing housing,
·100% good raw material from Shanghai Baoshan Iron&Steel | |
·High precision & high gloss | |
·Own mold development center, accept customize and lettering | |
·History--Develop from military factories, focus on stamping and injection products since 1988. | |
·Certificate--ISO9001:2008 | |
·Quality--Tolerance accurate to 0.001mm. | |
·Global Market--Export to 36 coutries and areas. |

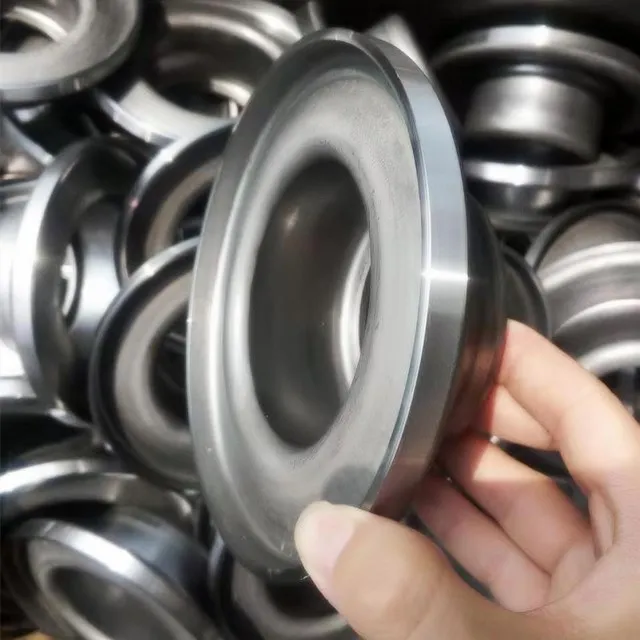

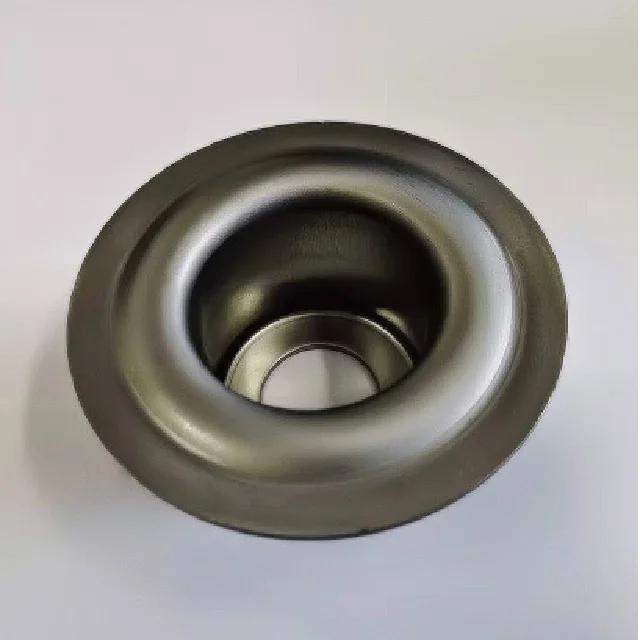

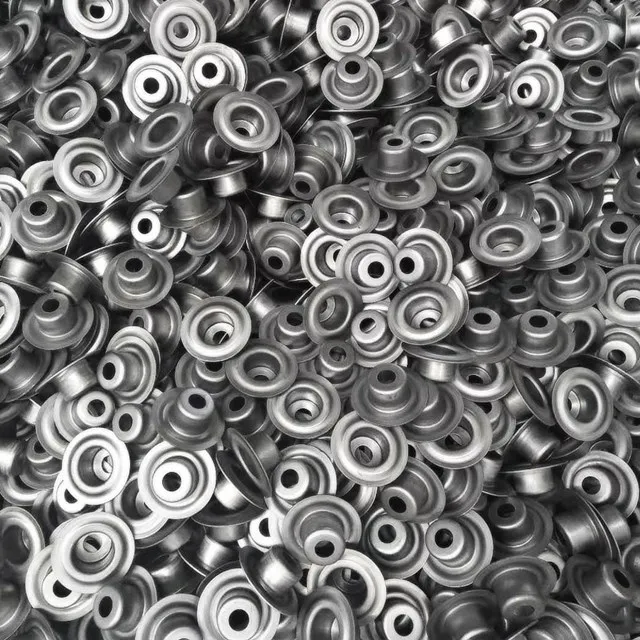

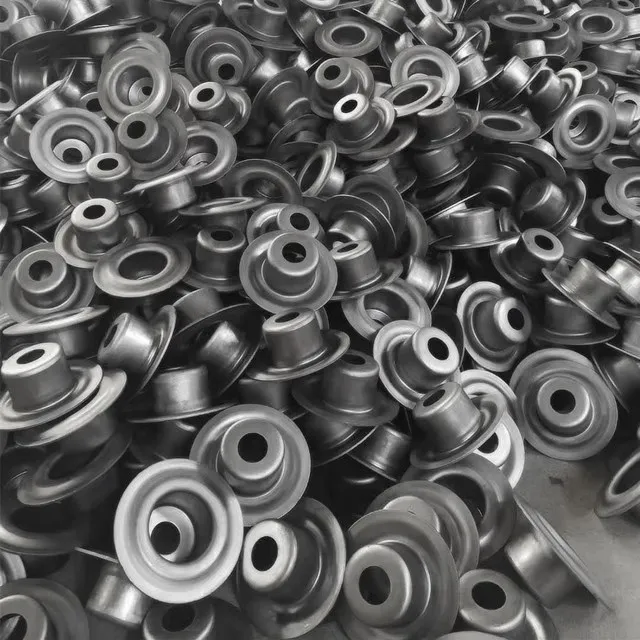

Detailed Images
There are more than 200 kinds of DTII, TK, TKII, rumeika and DT75 series.
Size Information
Size of This Design
Type | Related parameters | Bearing indoor diameter tolerance |
60-204 | thickness：2.5mm(133-204 is 3.0) Bearing：204 The inner diameter：47mm The depth of the：45mm | 0~-0.025 |
89-204 | ||
108-204 | ||
133-204 | ||
89-205 | thickness：The thickness of 89-205 and 108-205 plates is 2.5mm 133-205 and 159-205 plates are 3mm thick Bearing：205 The innerdiameter：52mm The depth of the：46mm | 0~-0.03 |
108-205 | ||
133-205 | ||
159-205 | ||
76-305 | thickness：3mm（176-305 is 4mm） Bearing：305 The inner diameter：62mm The depth of the：49mm | 0~-0.03 |
108-305 | ||
133-305 | ||
159-305 | ||
176-305 | ||
108-306 | thickness：108-306、133-306、159-306 is 3mm 176-306 and 194-306 is 4mm Bearing：306 The inner diameter：72mm The depth of the：51mm | 0~-0.03 |
133-306 | ||
159-306 | ||
176-306 | ||
194-306 | ||
108-307 | thickness：108-307、133-307、159-307 is 3mm 176-307 and 194-307 is 4mm Bearing：307 The inner diameter：80mm The depth of the：52mm | 0~-0.03 |
133-307 | ||
159-307 | ||
176-307 | ||
194-307 | ||
133-308 | thickness：133-308、159-308 is 3mm 176-307 and 194-307 is 4mm Bearing：308 The inner diameter：90mm The depth of the：55mm | 0~-0.03 |
159-308 | ||
176-308 | ||
194-308 |

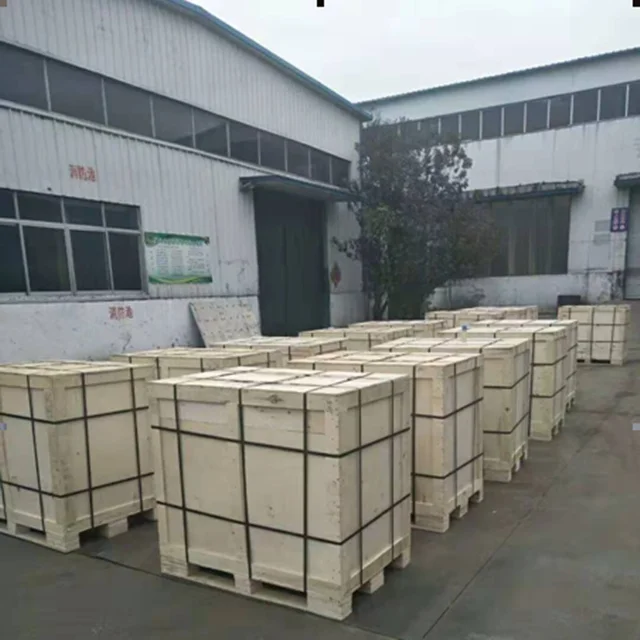

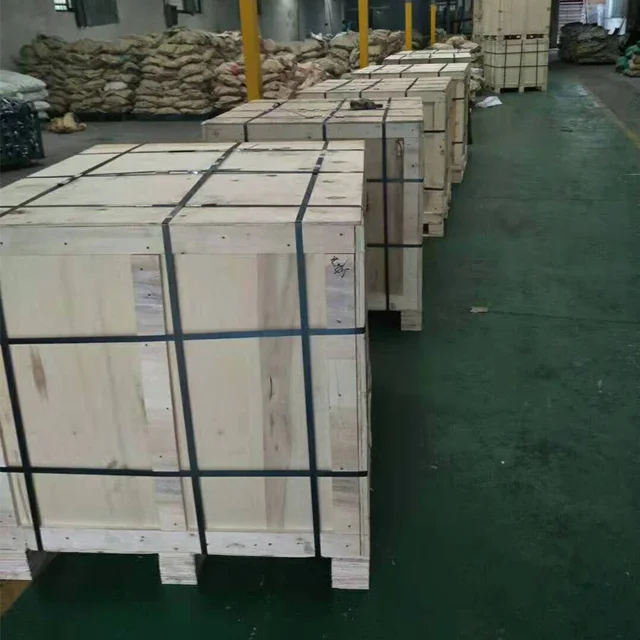

Packing&Shipping
Wooden Box and Water Proof Paper ( or according your requirement)
Dimension: 1050*1050*1050 mm / 1100*1100*1100 mm / Customized size
Dimension: 1050*1050*1050 mm / 1100*1100*1100 mm / Customized size
Company Introduction
Shandong Mairui heavy industry co., LTD. Is located in qufu, shandong province, the hometown of Confucius.Is a production of all kinds of precision stamping parts, roller stamping bearing seat, a variety of roller special shaft, automotive stamping parts, all kinds of injection parts and mold manufacturing professional manufacturers, set r & d, production, sales in one, is China's belt conveyor stamping bearing seat accessories industry standards setting unit.
