lanyu factory best price ac motor biomass briquette machine sawdust briquette press machine price

Share on:

Price in USD:Details


Product Overview


lanyu factory best price ac motor biomass briquette machine sawdust briquette press machine price

Product Description


Introduction of charcoal briquette machine

Raw material:
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 5%-12%,size3-5mm


If moisture>12% may need dryer,We have air flow dryer and drum dryer.
If material size >5mm will need hammer mill or wood crusher.
When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawust forward,extrusion into a rod-shaped solid rod with center hole.


Features of charcoal briquette machine

1.High efficiency:20 seconds 60cm briquette,250-300kg/h

2.Screw propeller adopts precision casting, special wear-resisting material life for more than ten times higher than that of traditional thrusters.Forming sleeve adopts special formula alloy precision casting, life can be up to 3 month; This cutting-edge technology not only makes the cost is greatly reduced, but also saves manpower.


IMG_4591 (2).jpgIMG_4592 (2).jpg



Working principles and the classification of charcoal briquetting machine

There are two approaches to briquetting, both of which require the loose biomass to be ground into a coarse powder like sawdust.


High pressure briquetting

High pressure briquetting uses a power-driven press to raise the pressure of dry, powdered biomass to about 1,500 bar (150 MPa). This compression heats the biomass to a temperature of about 120°C, which melts the lignin in the woody material. The press forces the hot material through a die at a controlled rate. As the pressure decreases, the lignin cools and re-solidifies, binding the biomass powder into uniform, solid briquettes.



 \u007Fpictures 1 .jpgQQ20140710105944.jpg

Benefits of charcoal briquetting machine

Charcoal briquetting machine makes use of biomass residues that would otherwise go to waste, this can bring a useful income stream to the farms and sawmills that produce residues.  By replacing the use of wood and charcoal (often produced unsustainably) and fossil fuels, briquettes cut greenhouse gas emissions and deforestation.


Briquettes made by Lanyu charcoal briquetting machine are easier to store and use for cooking than wood or charcoal, because they are uniform in size and composition. They are cleaner to handle than charcoal or coal, and produce less local air pollution.


There are some concerns about using field waste for briquettes, because they are also valuable as a soil improver. However, residues like sawdust and rice husk have limited agricultural use and can be a fire hazard, as can pine needles.


In many countries there are significant resources of biomass residues, which are not needed for agriculture. Thus as the cost of conventional fuels increases, the use of biomass briquettes and pellets is likely to grow with the assistant of Lanyu charcoal briquetting machine.

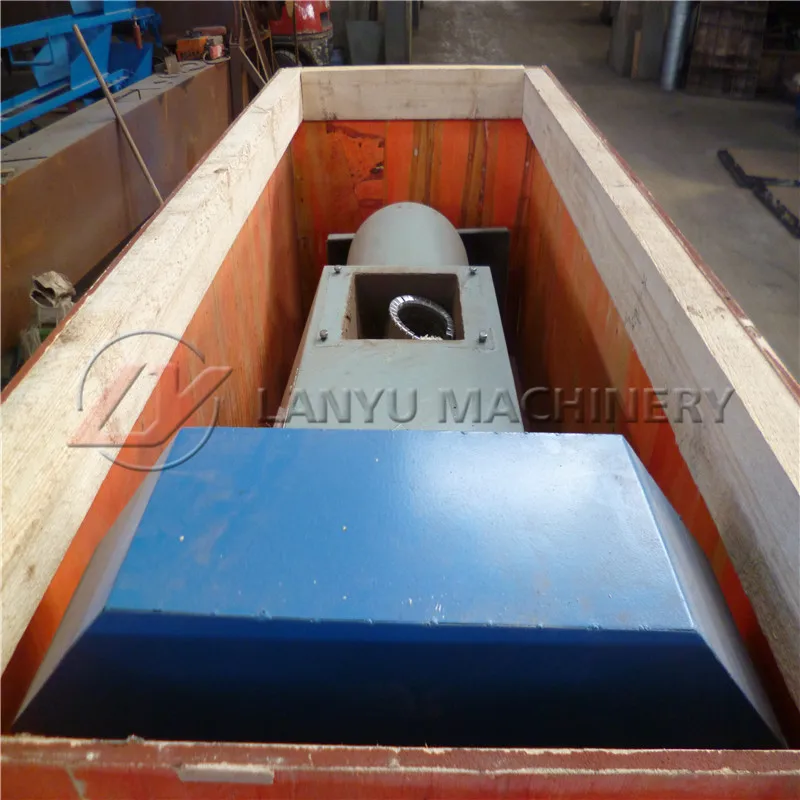

Packaging & Shipping

 wood packing.jpgwood packing2.jpg

Our Services


ü Technical services

1. Designing production line and equipments layout according to your specific workshop.

2. Supplying drawings of equipments youve purchased.

3. Supplying technical parameters of peripheral equipments.

4. Offering technical service freely on request for adjusting the layout in your workshop.

5. Updating your equipments on request if necessary.


ü After-sales services

6. During the installation and commissioning of the sawdust briquette machine, we will send our technician to your site for guiding the installation and we will also offer training service for your party if requested.

7. If anything goes wrong with the sawdust briquette machine because of improper handling, we’ll take care of the maintenance if requested, and material and labor costs will be charged at cost price.

8. We’ll offer spare parts for the sawdust briquette machine with favorable price and perdurable maintenance. After the warranty expires, only material and labor costs will be charged if the equipments need to be repaired.IMG_3265.jpgOZPV0449.jpgQQ20150806172108.jpg

Company Information


Who we are

Established in 1980, Henan Lanyu Machinery is a professional the sawdust briquette machine manufacturer based in Henan Province. Every year, we exported hundreds of the sawdust briquette machine to Sudan, Egypt, and Zimbabwe etc.

What we do

We are specialized in manufacturing and exporting different models of the sawdust briquette machine, carbonization equipment and many other related the sawdust briquette machineproducts.

Why us

We use stringent quality control measures to ensure the reliability of our products. Our products including the sawdust briquette machine have gained CE and ISO 9001 certificate guarantee. With sound business credit, rich experiences, excellent after-sales services and modern manufacturing facilities, well cooperate with and serve you better.




Q: Why Choose Us?

1). More than 15 Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)And often visit customers to provide services to customers.

2). Manufacturer
Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

Q: How do I know the quality of your machine?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: Will you dispatch the engineer to guide installation?
Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
