AFC2000 Air Pneumatic Air Source Treatment Unit pressure regulator filter dispenser

Share on (62406290748):


Price:$1.00

Quantity:


Product Overview

Description




Product Description

AFC/BFC Series Air Source Treatment Unit(FR.L) Combination
ModelAFC1500AFC2000BFC2000BFC3000BFC4000
Working mediumAIR
Port sizeG1/8G1/4G1/4G3/8G1/2
Filter precision25um(5,40um is optional)
Adjusting pressure range0.05~0.85Mpa
Max.Adjusting pressure0.95Mpa
Guaranteed.pressure1.5Mpa
Working temperature5~60°C
Filter bowl capacity15(CC)60(CC)
Lubricator bowl capacity25(CC)90(CC)
Recommended OilISO VG32 or equicalent Oil
Weight0.7kg0.9kg
componentsFilter RegulatorAFR1500AFR2000BFR2000BFR3000BFR4000
LubricatorAL1500AL2000BL2000BL3000BL4000



  •   Temperature Range: 5-60 Degree
  •   Filter Precision: 25um(5,40um is Optional)
  •   Body Material: Aluminum Alloy
  •   Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
  •   The Filter Removes Solid Particles And Condensates With Compressed Air
  •   Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
  •   Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
  •   Protect Your Air Tools With Much Longer Life

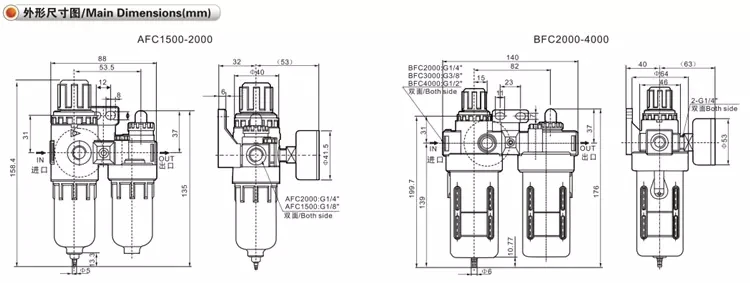

FILTER GAIA.jpg




FAQ

Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.

Q2. What’s the delivery time ?
A2. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.

Q3. What is the standard of package?
A3. Export standard package or special package according to customer requirement.

Q4. what kind of product quality your factory offer?
A4. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.

Q5. Do you accept OEM business?
A5. We do OEM .

Q6. Which market do you already sell?
A6. We already ship to Russia ,German,Mexico,Middle East, Asia, South America , Afria etc.
