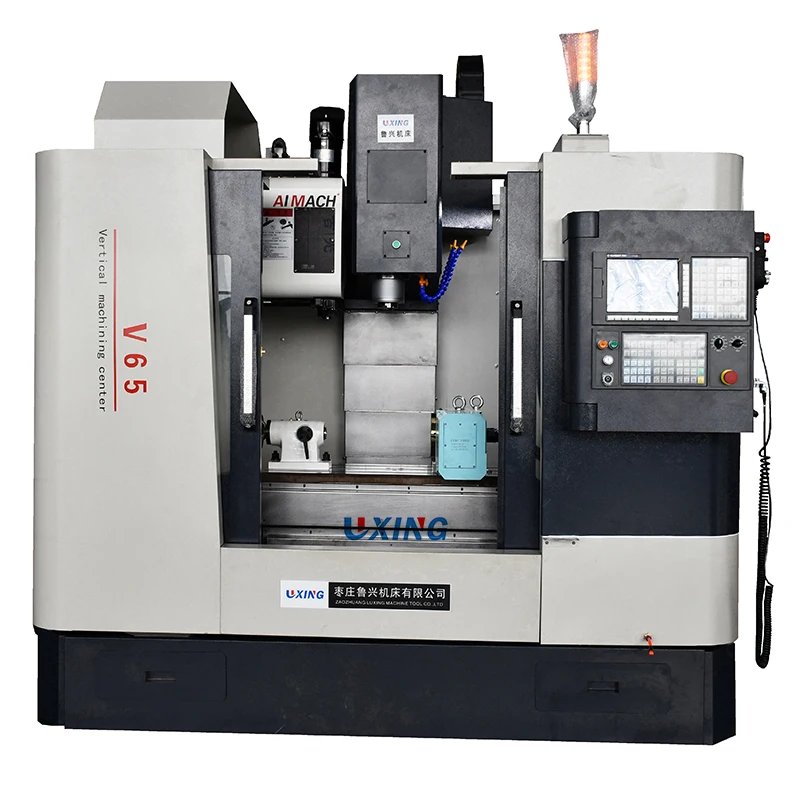

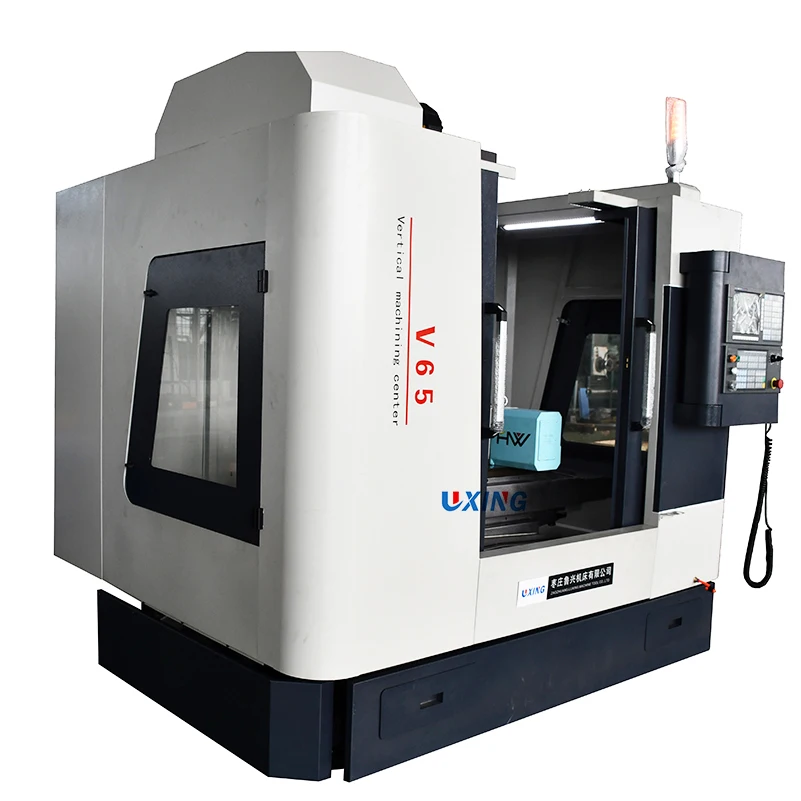

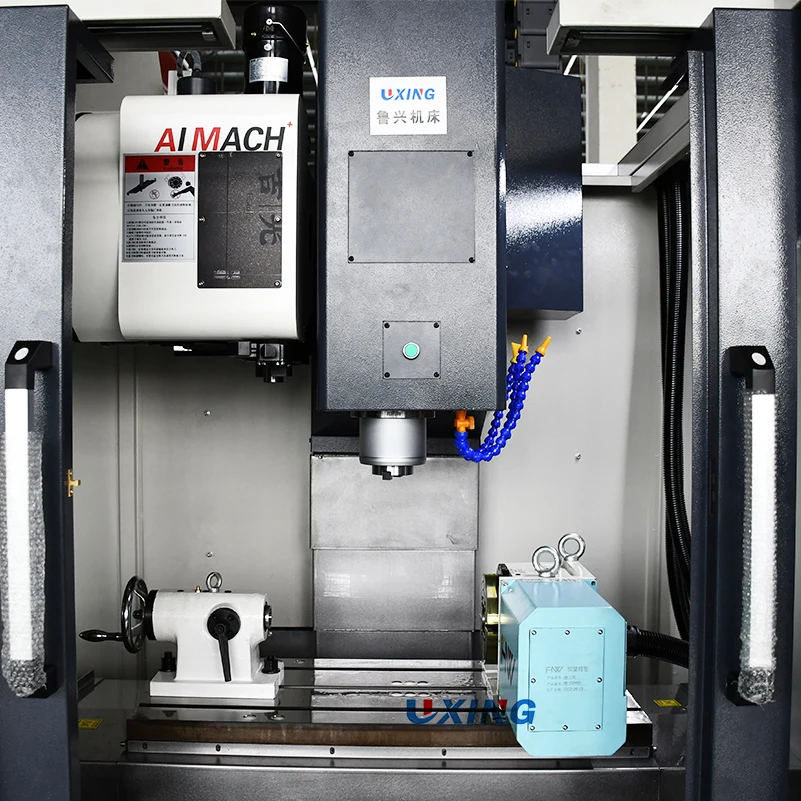

China Siemens fanuc control 3 axis cnc vertical metal milling machine 4th rotary with tailstock V65

Share on (62406408700):


Price:$15,900.00 - $17,900.00

Quantity:


Product Overview

Description


China Siemens fanuc control 3 axis cnc vertical metal milling machine 4th rotary with tailstock V65



Product Description


-3

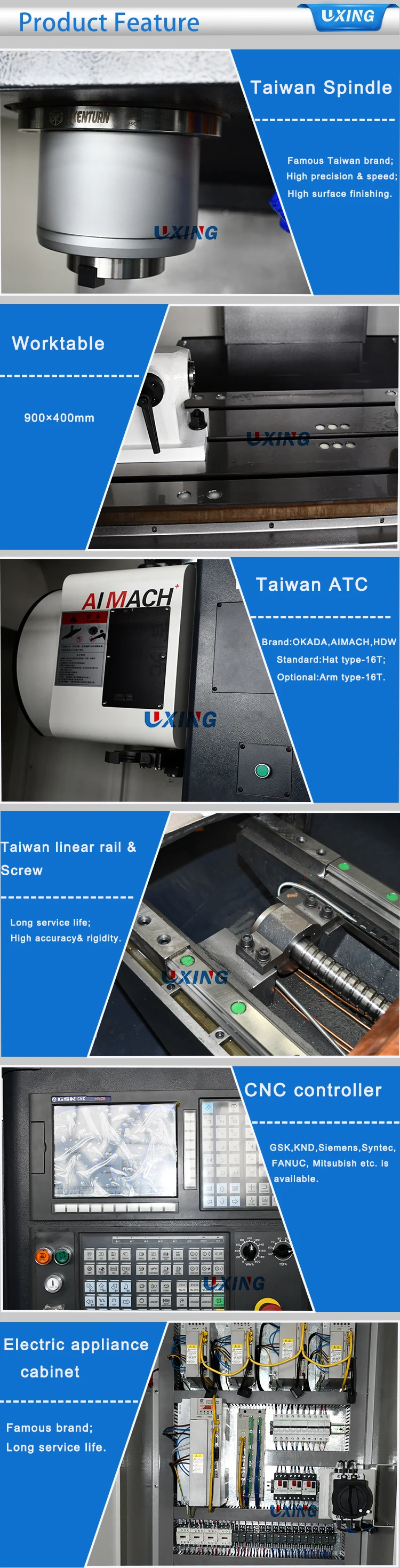

Product Characteristics:


1. Taiwan BT40 Spindle


2. Taiwan ball screw and locking nut


3. Disc type 16T tools


4. Fully-guarded type machine


Product Main Specifications:





































































































Specifications



Unit



V65



Table Size (L*W)



mm



900×400



Max. table load



kg



400



T-slot Size



mm



3-18-125



Travel of x,y,z axis



mm



650/400/500



Spindle nose to table surface distance



mm



150-650



Spindle center to Column guide distance



mm



496



Spindle taper



 --



BT40



Spindle speed range



rpm



80-8000



Spindle motor power



KW



5.5/7.5



Spindle drive



 --



Belt transmission



Rapid traverse X/Y/Z axis



m/min



24/24/24



Cutting feed of X/Y/Z axis



mm/min



1-10000



Tool Magazine Capacity



tools



16 Disc type



Positioning accuracy



mm



0.01



Repeat Positioning accuracy



mm



0.005



Machine Weight



Kg



4500



Dimension



mm



2350×2200×2300



Voltage



 --



Customized






Details


V65





Optional accessory(It need add extra cost.):


The 4th axis.


Chip conveyor.


Tool setter.

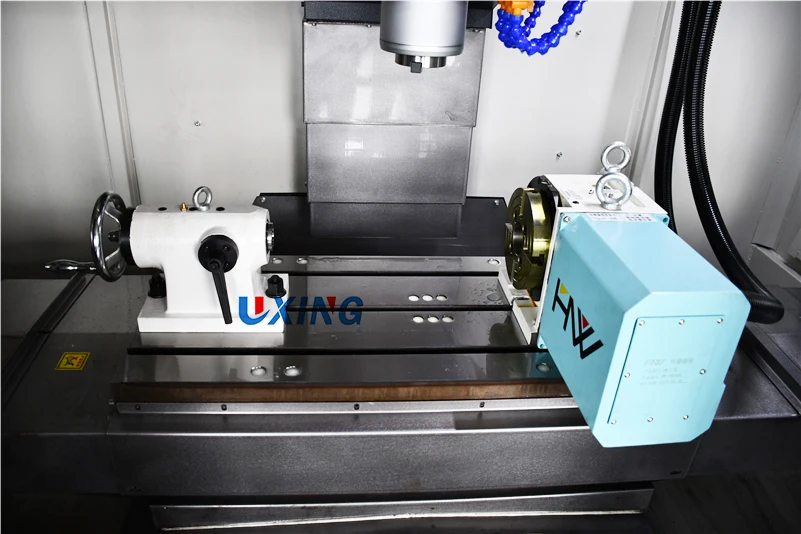

DSC_0781

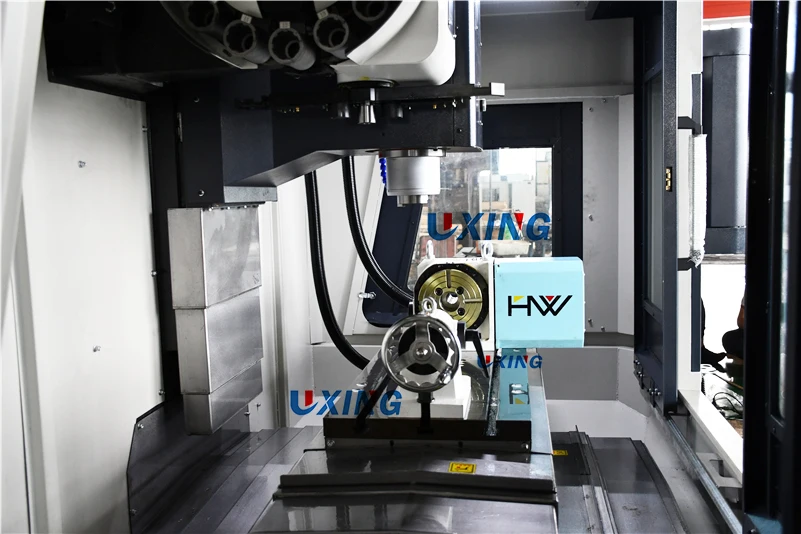

DSC_0768


About Us Customers





FAQ


 1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .





2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .



3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.



4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.



5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .



7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
