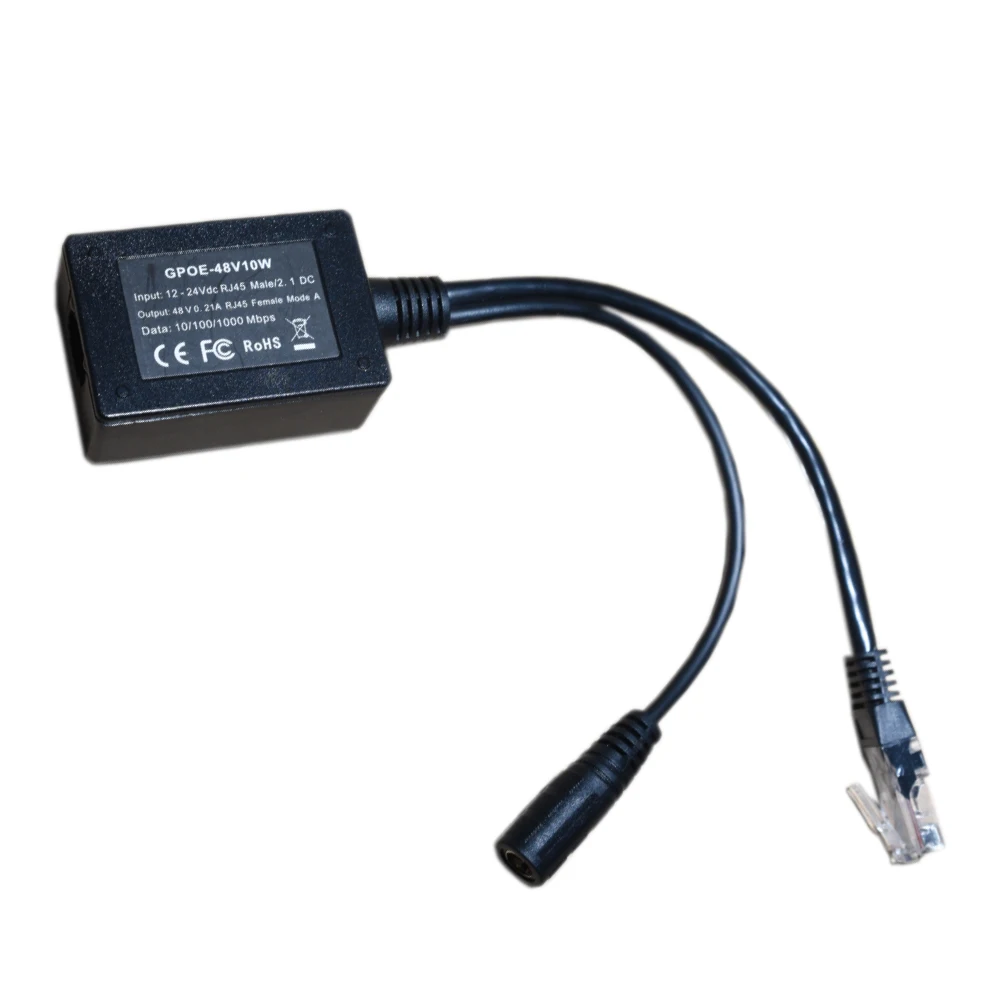

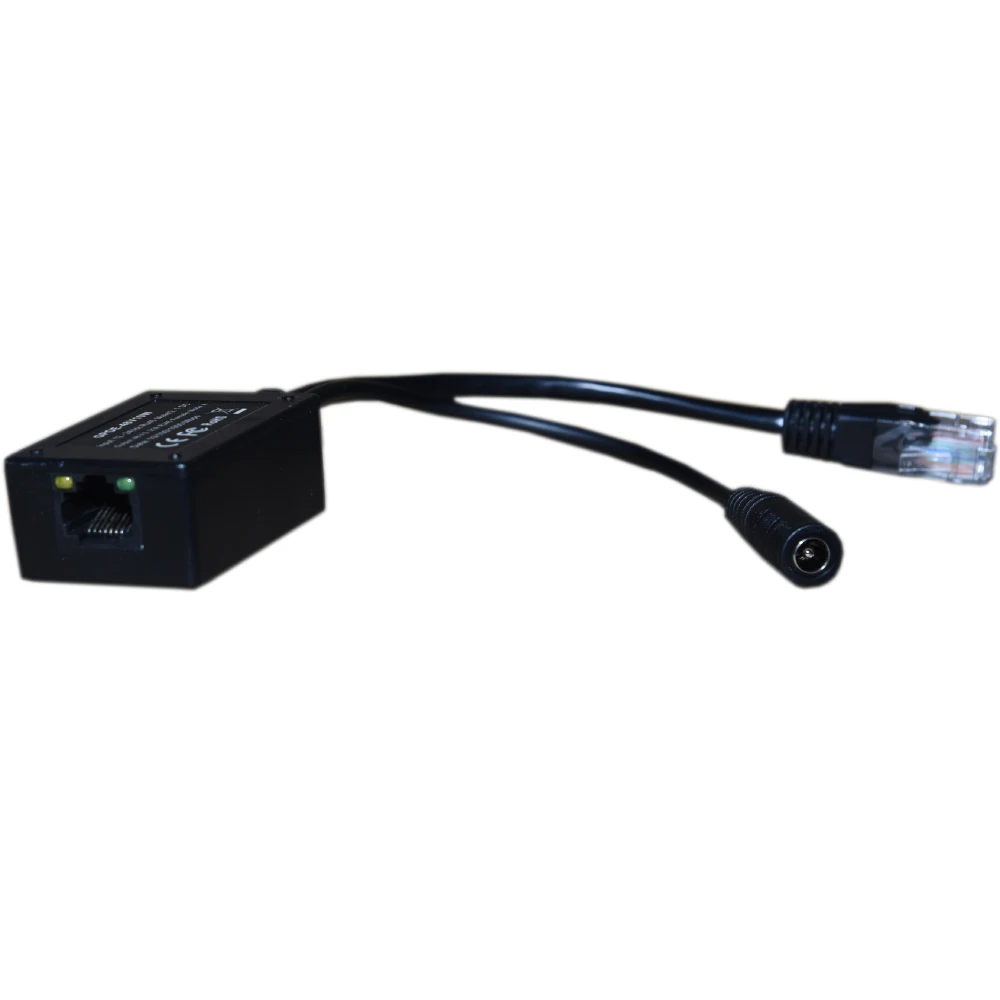

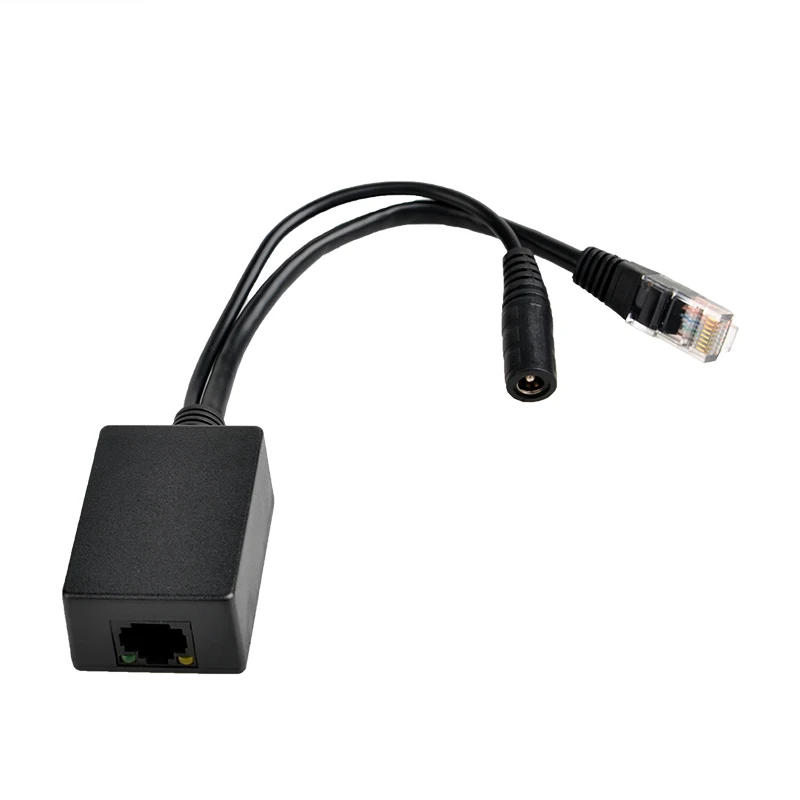

GPOE 48v10w Gigabit 802.3af Power over Ethernet 48 volt step up injector
- Category: >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (62406434998):
Product Overview
Description
Product Description
This device provides a low cost solution for delivering power to an 802.3af or 48 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks on CAT5E, CAT6 or CAT7 Ethernet network cable. The source power is any supply from 10v to 30v, and the output voltage is 48 volts.
Power into the device is either from the 2.1mm DC connector – OR – from the RJ45 male pins 4,5 + (plus) and 7,8 –
(minus). The device passes 10/100/1000 Ethernet.
(minus). The device passes 10/100/1000 Ethernet.
Any battery (12v or 24v) or passive PoE injector can now power a 48 volt device directly. Plug it into spare ports on a multi
port Passive PoE injector, or connect it to any 12v to 30 volt power source – and power a Phone, WiFi-Access Point,
camera or other device. The higher DC voltage of 48 volts compared to 12 volts, means the wire loss is reduced by a
factor of 16 , thus carried with less loss over the spare pairs of the 10BASE-T or 100BASE-T network cable. The remote
device extracts the DC voltage from the network cable and powers it’s internal electronics.
port Passive PoE injector, or connect it to any 12v to 30 volt power source – and power a Phone, WiFi-Access Point,
camera or other device. The higher DC voltage of 48 volts compared to 12 volts, means the wire loss is reduced by a
factor of 16 , thus carried with less loss over the spare pairs of the 10BASE-T or 100BASE-T network cable. The remote
device extracts the DC voltage from the network cable and powers it’s internal electronics.
If power is applied to the 2.1mm input – power will be isolated from the male RJ-45 – so it can be plugged into a switch or
router. The output voltage of 48 volts comes on pins 3,6 + (plus) and 1,2 –(minus) of the female RJ-45 in order to power
any 802.3af device.
router. The output voltage of 48 volts comes on pins 3,6 + (plus) and 1,2 –(minus) of the female RJ-45 in order to power
any 802.3af device.

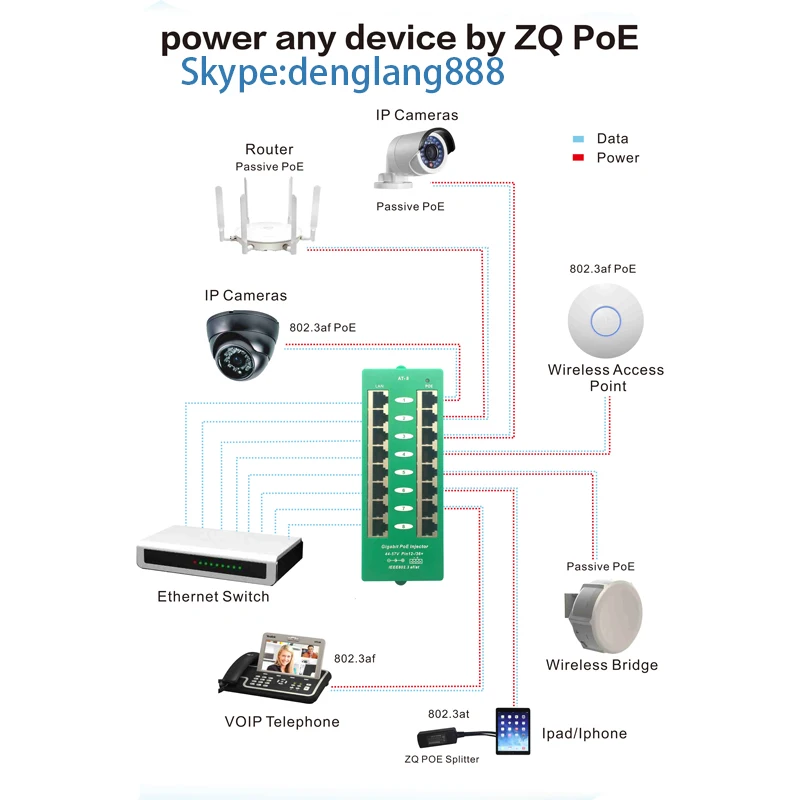

Typical Devices
IP VoIP Phone
IP Cameras
WiFi Access Points
IP Time Clocks
Any 48 volt device
Any 802.3af device
SPECIFICATIONS
Data + Power in | RJ45 Male Connector | ||||||
DC Input connector | 2.1mm x 5.5mm adapter | ||||||
Data + Power out | RJ45 Female Connector | ||||||
Network Type | 10/100/1000 | ||||||
Data Pins | All 4 pairs | ||||||
Power Pins Input | 4 & 5 + and 7 & 8 - | ||||||
Input Voltage | 10v to 30VDC | ||||||
Output Voltage | 48v +- 2% at .2 amps | ||||||
Power Pins Out | 3 & 6 + and 1 & 2 - | ||||||
Operating Temperature | 0°C ~ 50°C | ||||||
More details, welcome to contact us.
