Automatic functional drink water filling line sports Special bottle type drinking bottlling filling machine
- Category: >>>
- Supplier: Zhangjiagang Sokos Machinery Co. Ltd.
Share on (62406482880):
Product Overview
Description
GOOD QUALITY COMES FROM DETAILS.
We are confident about our product quality because of the Quality Assurance System backed by technical capabilities and productioncapacity. We believe “all steps in production are quality control processes”.
Products Description
Automatic 3 in 1 PET Bottle Washing Filling Capping Machine.
This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.

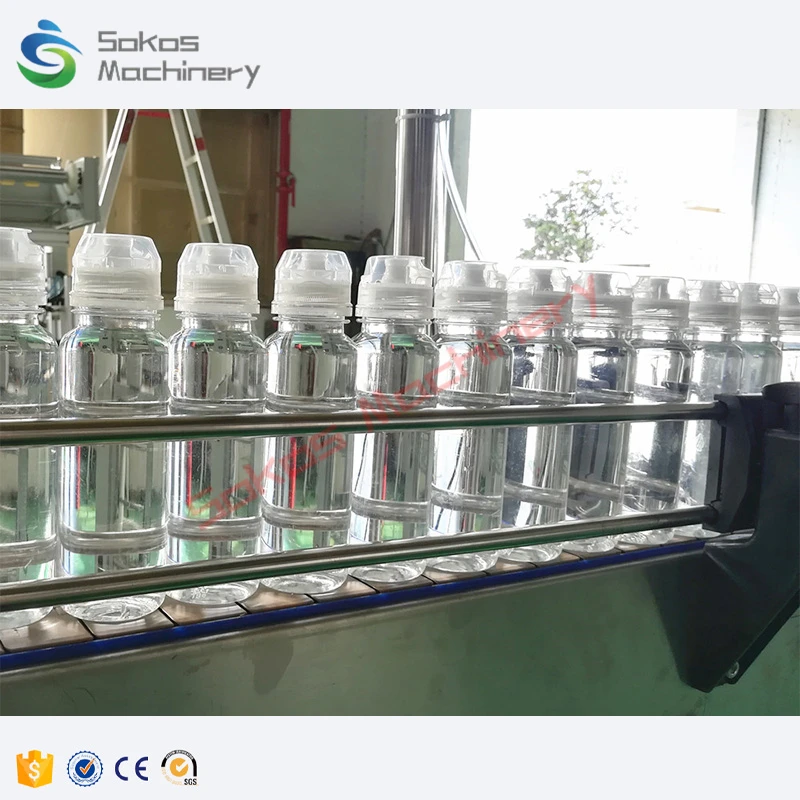

Final Products
Details Images

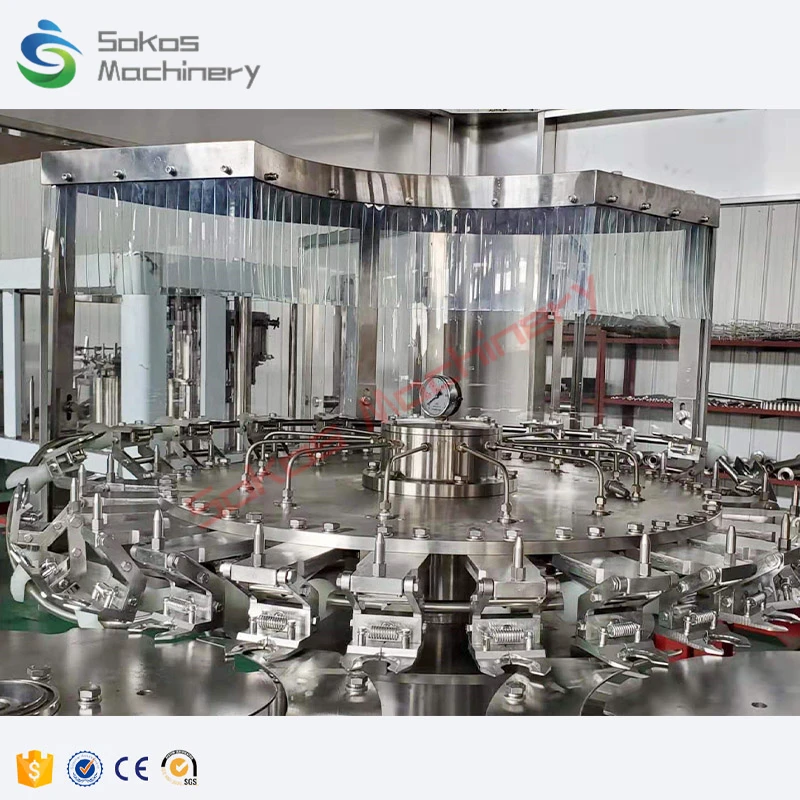

Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

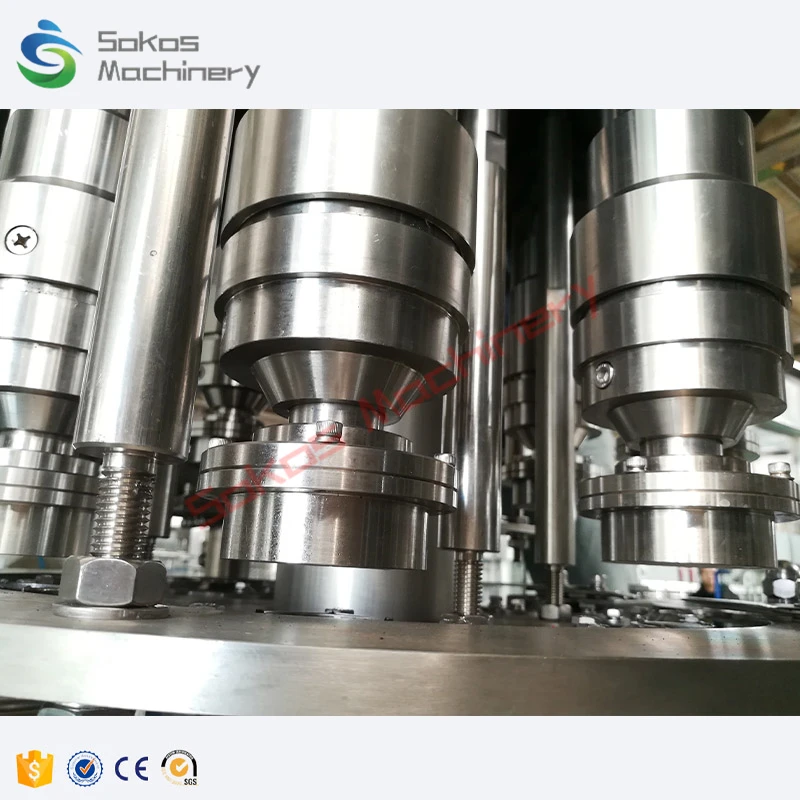

Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Product Paramenters
Model | CGF14125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | ||||
Number of washing, filling and capping heads | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | ||||
Production capacity(600ml) (B/H) | 4000-5000 | 5000-6000 | 8000-12000 | 12000-15000 | 16000-20000 | ||||
suitable bottle specification(mm) | φ=50-110 H=170 volume=330-2250ml | ||||||||
Washing pressure(kg/cm2 ) | 2~3 | ||||||||
Motor power(kw) | Main motor 2.2kw | Main motor 3kw | Main motor 3.8kw | Main motor 5.5kw | Main motor 7.5kw | ||||
Overall dimensions (mm) | 2400×1650 ×2500 | 2400×1830 ×2400 | 3100×2200 ×2400 | 3800×2800 ×2900 | 4600×2800 ×2900 | ||||
Weight (kg) | 2500 | 3500 | 4000 | 6500 | 8500 | ||||
Why Choose Us
Zhangjiagang Sokos Machinery Co., Ltd.
Zhangjiagang Sokos Machinery Co., Ltd. is a professional manufacturer of beverage machinery and Plastic Machinery. We are located in Zhangjiagang City, near Shanghai City.Best technical support, superior products and perfect after-sales services are our specific advantages in the market competitions. With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas markets.

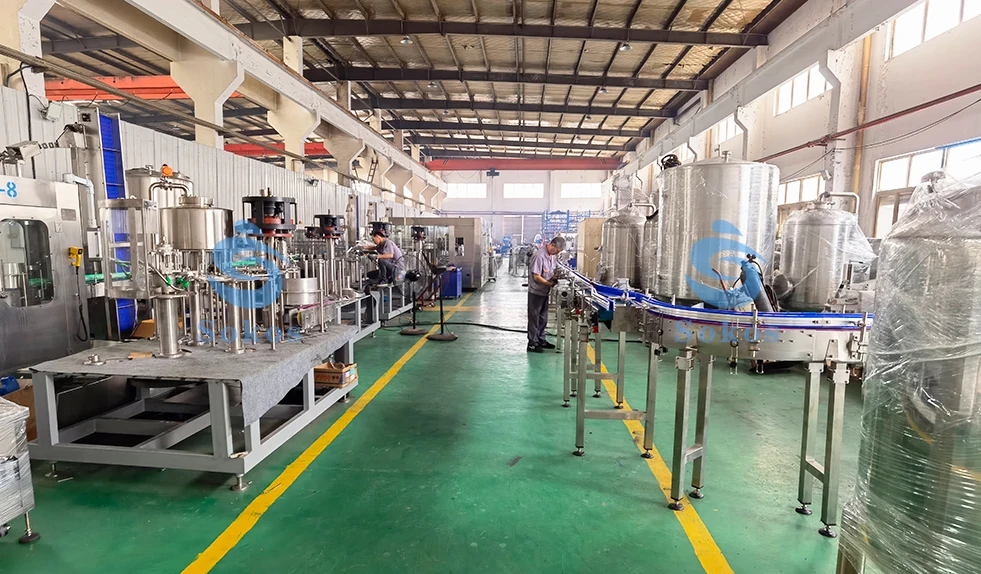

Our Manufacturer Factory.
At present, we manufacture and provide the following lines to our customers:Beverage Filling Complete Line -water treatment plants-water filling machine-beverage filling machine-beverage preration system-pckages equipments -coding machine-labeling machine-Pe Film Shrink Wrapping ,Machine -Injection machine -Blow Moulding Machine We welcome distributors and factory owners from around the world to cooperate with us and look forward to receiving your inquiries in the near future.
Cooperation Partners.
We have many cooperation partners over the world,such as Mitsubishi,NSK,SIEMENS,SEW,DEMARK,OMRON,FESTO and so on.Product quality assurance is our biggest pursuit.
Certificates.
We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to all over the world, Such as: Africa, Mid East, South Asia, South America. We believe
truthfulness,conscientiousness, enterprising spirit, continuous improvement and creativeness in running business, which helps our finest products enter the market.
truthfulness,conscientiousness, enterprising spirit, continuous improvement and creativeness in running business, which helps our finest products enter the market.
Exhibitions.
FAQ
SOKOS MACHINERY - Alibaba Verified Packaging Machinery Supplier - CE SGS
Q: Are you a manufacturer or a trading company?
A: We are the source factory with 24 years of manufacturing experience in beverage machinery. Located in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. The transportation is convenient, very close to Pudong Airport and Sunan Shuofang Airport. If your itinerary includes a factory visit, we will pick you up.
Q: Do you have relevant certificates?
A: We have SGS, ISO, CE
Q: How long is your delivery cycle after you order the machinery?
Ar: Generally it is 40 working days.
Q: What kind of bottles can your filling machine fill? What is the capacity? How much output can be achieved?
A: The bottles can be glass bottles, plastic bottles, special-shaped bottles, cans, etc. The capacity can be from 200~2000ml. The output can meet 1000~20000BPH
Q: Do you have a relevant after-sales system?
A: We have a Perfect after-sales system.
1: 12 months warranty.
2: Many-to-one service, we will solve basic problems through phone, email, whatsapp, WeChat and video calls. The operation manual will be sent with the machine or via e-mail.
3: If conditions permit, the engineer will go to the buyer's factory to install and test the machine, and train the buyer's staff on how to operate and maintain the machine.
Q: If our bottle size changes, can we make some adjustments on the machine according to our new bottle?
A: Yes. We will customize the mechanical design according to the customer's needs and make the final confirmation.
Q: If I want to buy a machine, what information do I need to tell you?
A:
1: What liquid do you want to fill?
2: What is the capacity and height of the bottle?
3: What is the output in one hour?
4: Related water quality analysis reports, etc.
5: Required mechanical voltage
Q: What kind of products do you offer?
A: We provide drinking water/juice/carbonated drinks/energy drinks/sparkling water/5 gallons/20L whole line solutions.
The machinery includes: water treatment system, blending system, bottle blowing machine, filling machine, labeling machine, film wrapping machine, inkjet printer, carton packaging machine, etc.
Q:How to ensure that you deliver goods on time and ensure the safety of my funds?
1:We guarantee the on-time delivery and quality of the equipment you purchase through the credit insurance service of the Alibaba platform.
2:With the letter of credit, you can easily lock in the delivery time.
3:After visiting the factory/video watching the factory, you can ensure the authenticity of our bank account.
Q：How do you ensure the quality of the machine?
1:To ensure the accuracy of parts. We are equipped with a variety of professional processing equipment, plus professional processing methods accumulated over the years.
2:Before the machine is assembled, each part is inspected by the inspector.
3:Assemble machines, all with masters with more than 5 years of work experience to operate.
4:After all the equipment is completed, we will connect all the machines and allow at least 12 hours for a complete production line. To test its stability
Q: Are you a manufacturer or a trading company?
A: We are the source factory with 24 years of manufacturing experience in beverage machinery. Located in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. The transportation is convenient, very close to Pudong Airport and Sunan Shuofang Airport. If your itinerary includes a factory visit, we will pick you up.
Q: Do you have relevant certificates?
A: We have SGS, ISO, CE
Q: How long is your delivery cycle after you order the machinery?
Ar: Generally it is 40 working days.
Q: What kind of bottles can your filling machine fill? What is the capacity? How much output can be achieved?
A: The bottles can be glass bottles, plastic bottles, special-shaped bottles, cans, etc. The capacity can be from 200~2000ml. The output can meet 1000~20000BPH
Q: Do you have a relevant after-sales system?
A: We have a Perfect after-sales system.
1: 12 months warranty.
2: Many-to-one service, we will solve basic problems through phone, email, whatsapp, WeChat and video calls. The operation manual will be sent with the machine or via e-mail.
3: If conditions permit, the engineer will go to the buyer's factory to install and test the machine, and train the buyer's staff on how to operate and maintain the machine.
Q: If our bottle size changes, can we make some adjustments on the machine according to our new bottle?
A: Yes. We will customize the mechanical design according to the customer's needs and make the final confirmation.
Q: If I want to buy a machine, what information do I need to tell you?
A:
1: What liquid do you want to fill?
2: What is the capacity and height of the bottle?
3: What is the output in one hour?
4: Related water quality analysis reports, etc.
5: Required mechanical voltage
Q: What kind of products do you offer?
A: We provide drinking water/juice/carbonated drinks/energy drinks/sparkling water/5 gallons/20L whole line solutions.
The machinery includes: water treatment system, blending system, bottle blowing machine, filling machine, labeling machine, film wrapping machine, inkjet printer, carton packaging machine, etc.
Q:How to ensure that you deliver goods on time and ensure the safety of my funds?
1:We guarantee the on-time delivery and quality of the equipment you purchase through the credit insurance service of the Alibaba platform.
2:With the letter of credit, you can easily lock in the delivery time.
3:After visiting the factory/video watching the factory, you can ensure the authenticity of our bank account.
Q：How do you ensure the quality of the machine?
1:To ensure the accuracy of parts. We are equipped with a variety of professional processing equipment, plus professional processing methods accumulated over the years.
2:Before the machine is assembled, each part is inspected by the inspector.
3:Assemble machines, all with masters with more than 5 years of work experience to operate.
4:After all the equipment is completed, we will connect all the machines and allow at least 12 hours for a complete production line. To test its stability
