butyl rubber pond liner pond liner underlay for fish pond
- Category: Earthwork Products >>>
- Supplier: The Best Project Material Co. Ltd.
Share on (62406511204):
Product Overview
Description
butyl rubber pond liner pond liner underlay for fish pond
BPM Brand
The Best Project Material Co., Ltd (BPM) is the leading geomembrane manufacturer, supplier, wholesaler and exporter. Our main innovative products include Smooth Geomembrane HDPE Liner, Textured HDPE Geomembrane, Composite Geomembrane Liner and other geosynthetics, etc. All of them had been certificated by the ISO9001, ISO14001, Soncap, SASO and BV certificates and passed SGS and Intertek test.
Product Description
butyl rubber pond liner is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications. BPM square pond liner is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.
Our 0.5mm fish farm pond linerare fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, pond liner underlay has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.
\
Geomembrane Technical Parameter
We also can produce pond liner underlay according to your request.
| HDPE Geomembrane -Smooth GRI GM13 Standard | |||||||
| Properties | Test Method | Test Value | |||||
| 0.75mm | 1.00 mm | 1.50 mm | 2.00 mm | 2.50mm | 3.00mm | ||
|
Thickness - mils (min. ave.)· lowest individual of 10 values |
D5199 |
nom. (mil) -10% |
nom. (mil) -10% |
nom. (mil) -10% |
nom. (mil) -10% |
nom. (mil) -10% |
nom. (mil) -10% |
| Density (min.) | D 1505/ D 792 |
0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc |
| Tensile Properties (1) (min. ave.)· yield strength· break strength· yield elongation· break elongation |
D 6693 Type IV |
11 kN/m 20 kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37 kN/m 67 kN/m 12% 700% |
44 kN/m 80 kN/m 12% 700% |
| Tear Resistance (min. ave.) | D 1004 | 93N | 125 N | 187 N | 249 N | 311 N | 374 N |
| Puncture Resistance (min. ave.) | D 4833 | 240N | 320 N | 480 N | 640 N | 800 N | 960 N |
| Stress Crack Resistance (2) | D 5397(App.) | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content - % | D 4218 (3) | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) |
|
Oxidative Induction Time (OIT) (min. ave.) (5) |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
|
Oven Aging at 85°C (5), (6) - % retained after 90 days— or — - % retained after 90 days |
D 5721 D 3895 D 5885 |
55% 80% |
55% 80% |
55% 80% |
55% 80% |
55% 80% |
55% 80% |
|
UV Resistance (7) - % retained after 1600 hrs |
D 3895 D 5885 |
N.R. (8) 50% |
N.R. (8) 50% |
N.R. (8) 50% |
N. R. (8) 50% |
N. R. (8) 50% |
N. R. (8) 50% |

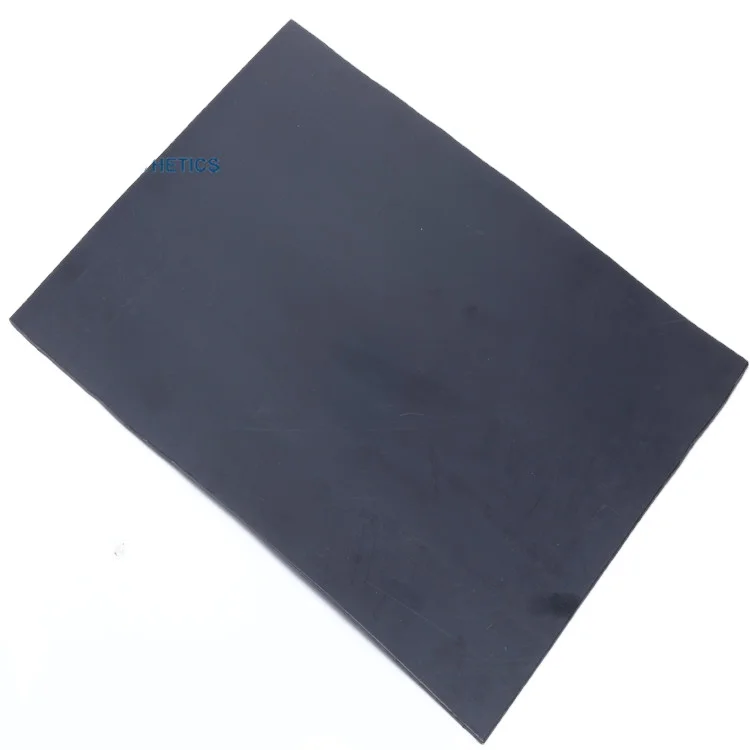

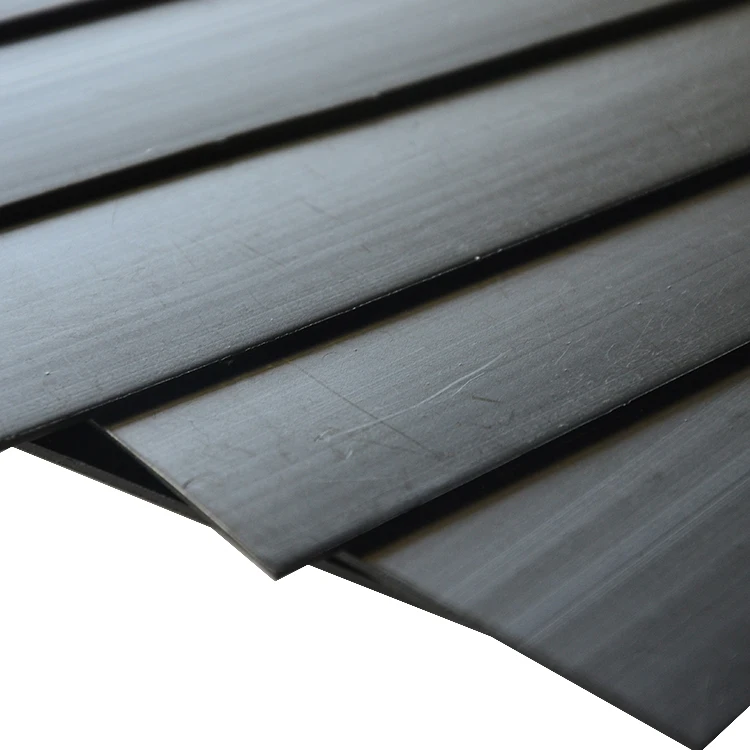

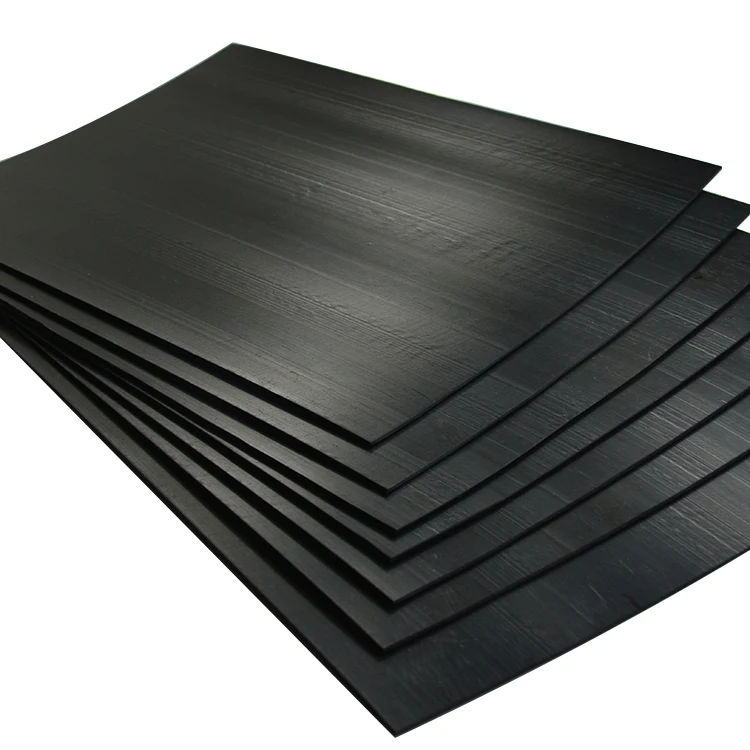

Our Products Photos
Packaging & Shipping

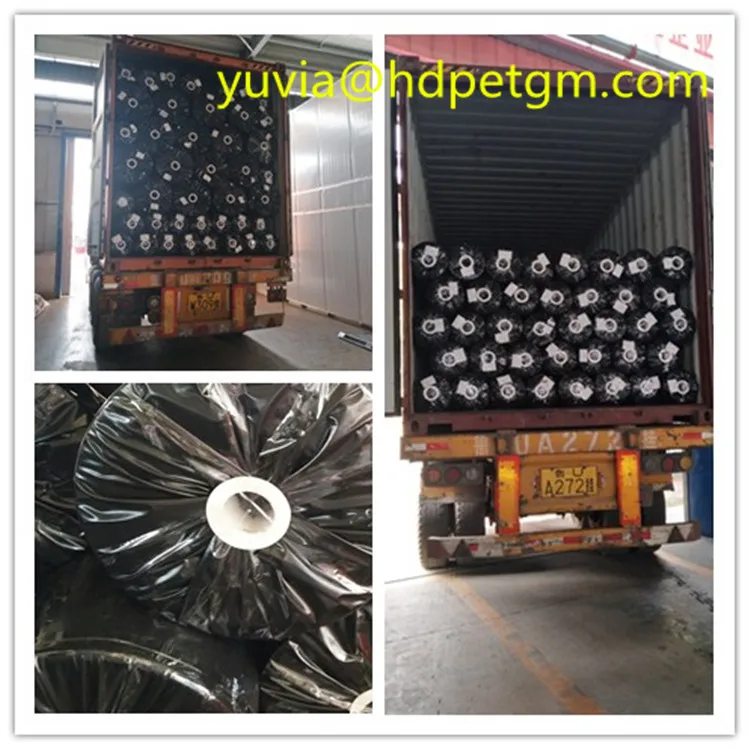

Our Packing
Geomembranes are wrapped double layers woven geotextile.
and added two strips at both ends.
Geotextiles are wrapped double layers woven geotextile.
Of course, If you have any requests, we will package products as your request.
All products will be loaded container safely.
Our Services
Our Certificates
We have obtained SASO, SONCAP, BV, ISO and other certificates.
And we also have passed DEKRA, Intertek, CNAS and other tests.
Our quality is reliable.
If you have any other test or certificate, we can do it for you.

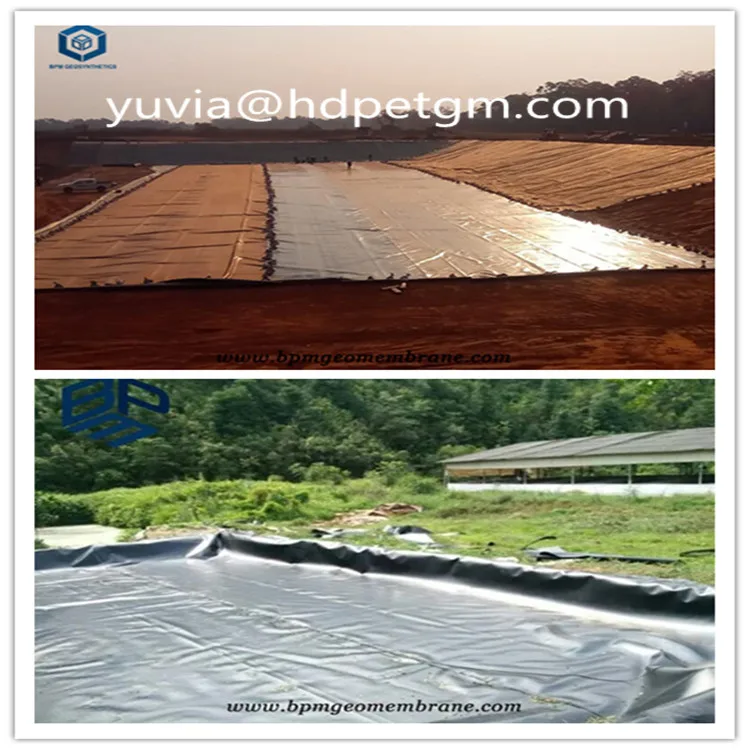

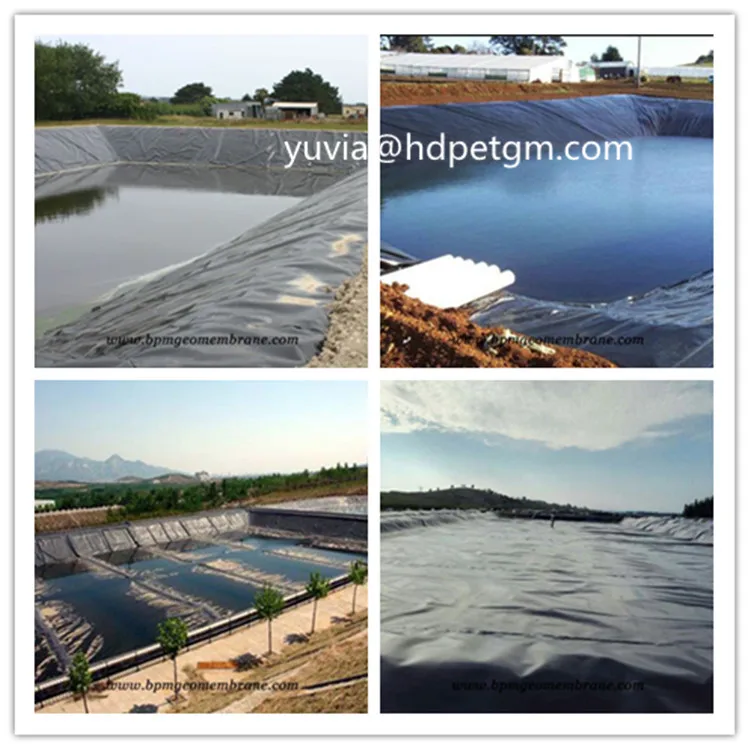

Our Project Cases

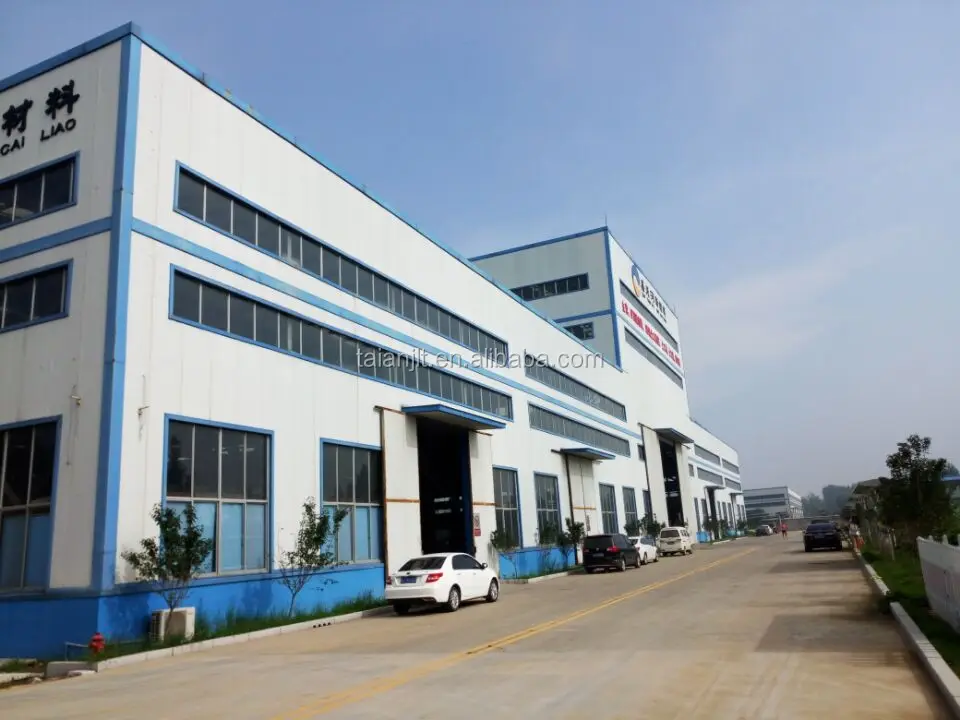

Company Information
