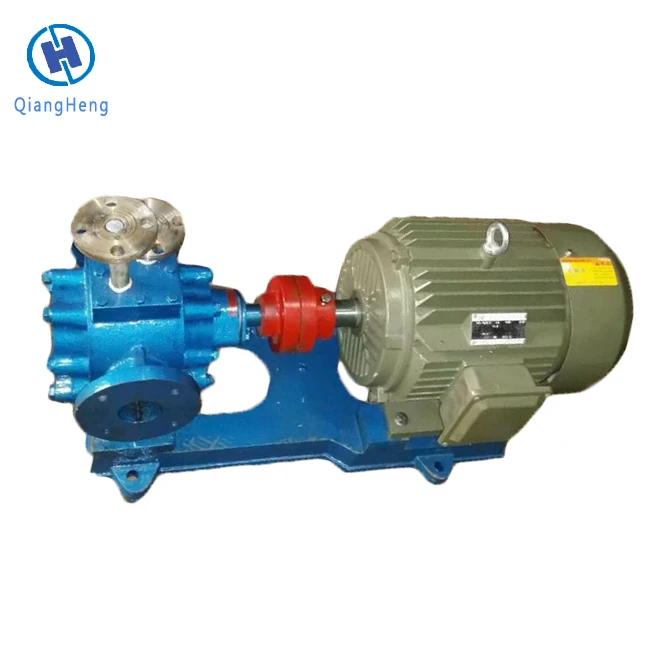

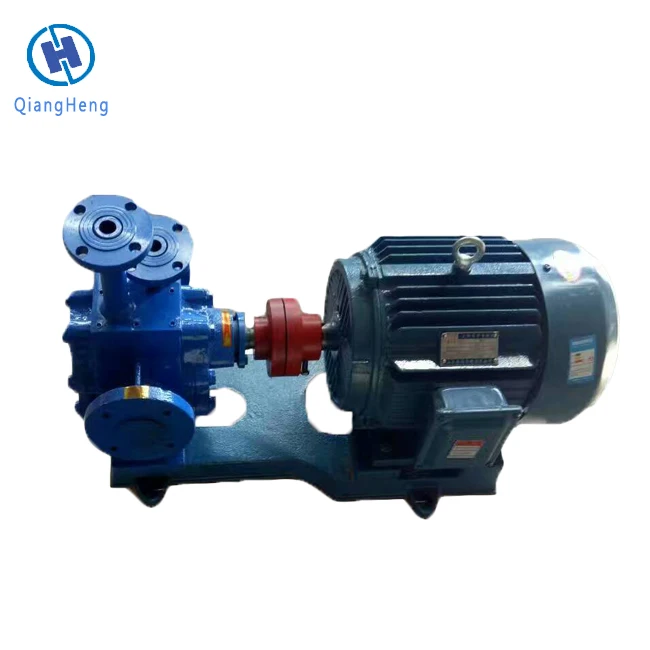

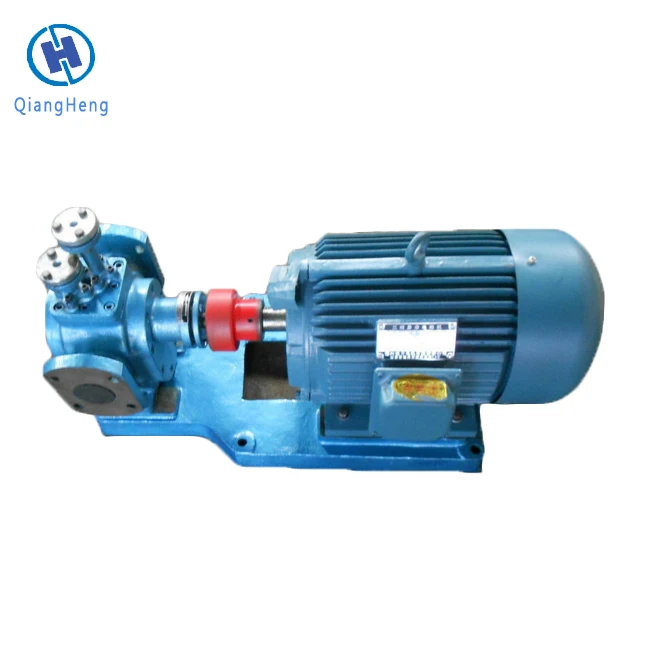

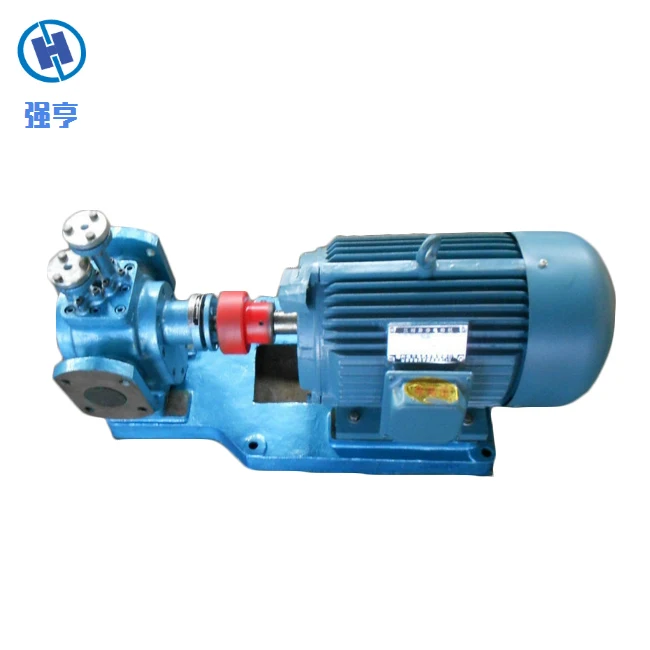

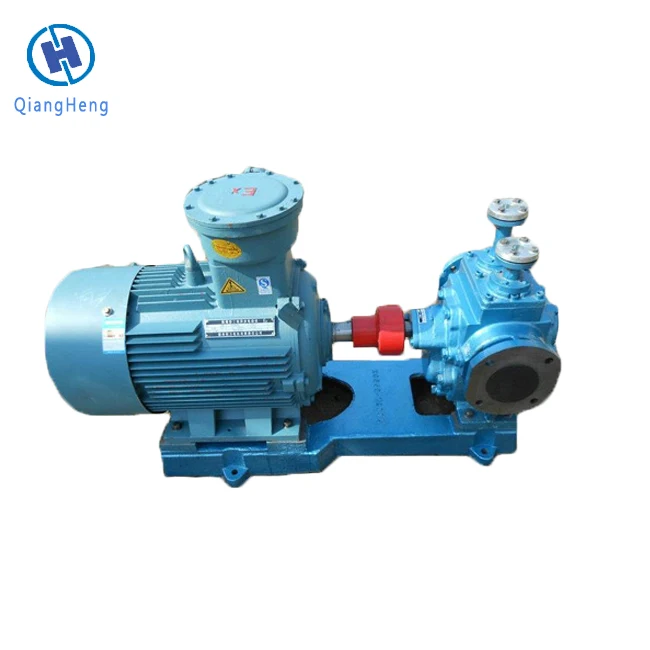

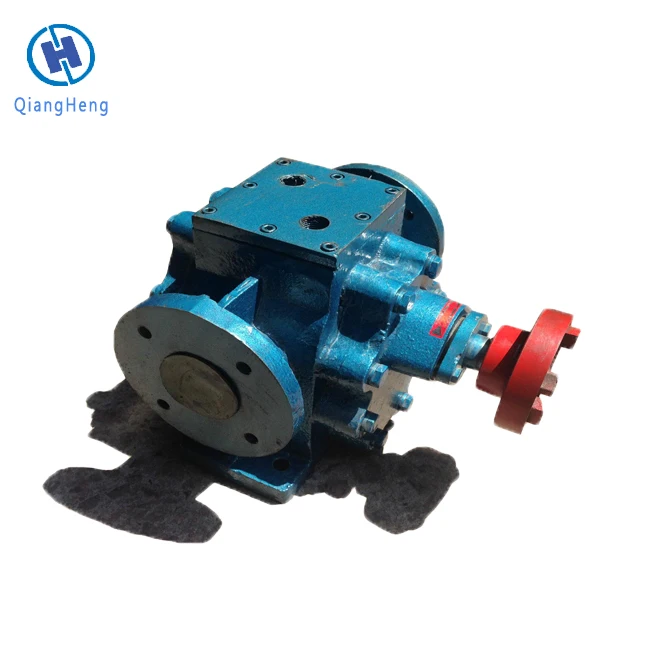

High temperature resin heavy oil special gear pump heating circulation asphalt gear pump
- Category: >>>
- Supplier: Hebei Qiangheng Machinery Equipment Manufacturing Co. Ltd.
Share on (62406521215):
Product Overview
Description
Product Description
The main flow passage parts of the pump are equipped with hollow interlayer, which can be used for steam, heat/hot water, heat conducting oil, etc. to heat and keep warm the conveying liquid and pump. When the conveying viscosity is high, the speed reducer, speed regulating motor or belt pulley should be adopted to reduce the speed of the pump.·

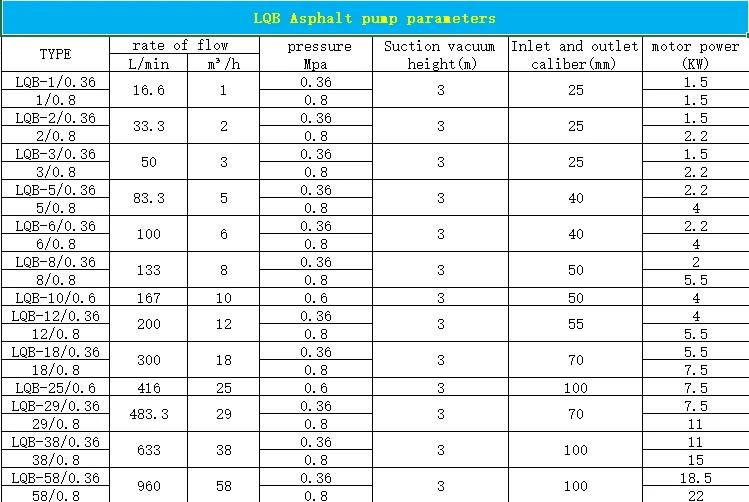

type | LQB Asphalt Insulation Pump |
material | cast steel or Customize to your needs |
transmission medium | Heavy oil, asphalt, rubber, resin, detergent, etc |
connect | Clamp, thread, welding, flange |
The motor power | 1.5KW-22 kW |
Delivery details | Usually within 15 days after payment |
1) After installation of asphalt insulation pump, the following items should be inspected for the first start-up:
Whether the valve on the inlet and outlet pipeline is open or not;
Whether the valve on the inlet and outlet pipeline is open or not;
(2) Whether the steering of the pump is correct (from the aspect of motor, the pump is clockwise) (80, 100 RCB is counter-clockwise rotation);
(3) Pay attention to whether the pressure gauge at the outlet of the pump is within the specified technical specifications;
(4) Pay attention to the abnormal noise or overheating in the movement of the pump.
1) If the seal of asphalt temperature pump leaks, please tighten the bolts or nuts on the sealing cap with even micro-pressure, but be sure not to adjust too tightly to avoid severe fever and reduce the use of the pump shaft and sealing ring.
2) Vibration, noise and intermittent sound will occur when the medium viscosity of asphalt heat preservation pump is high. The medium should be heated in time to reduce the viscosity, otherwise the bearing of the pump will be damaged.
3) After the shutdown of asphalt insulation pump, first cut off the power supply, and then close the valve on the discharge pipeline to avoid causing pump reversal.
2) Vibration, noise and intermittent sound will occur when the medium viscosity of asphalt heat preservation pump is high. The medium should be heated in time to reduce the viscosity, otherwise the bearing of the pump will be damaged.
3) After the shutdown of asphalt insulation pump, first cut off the power supply, and then close the valve on the discharge pipeline to avoid causing pump reversal.
Other sizes are available for you reference.if you would like more details click on the link below to contact us.
Scope of application
Related Products
Company Introduction
Hebei Qiangheng Machinery and Equipment Manufacturing Co., Ltd. is located in Botou City, Hebei Province, which is a famous
foundry town in China. It is located in Beijing and Tianjin in the north, Bohai Sea in the east, Qilu in the South and Taihang in
the west. Beijing-Shanghai Railway, Beijing-Shanghai and Shihuang Expressway, 104 and 106 National Highways run through the whole
territory, with superior geographical location, convenient transportation and accessible roads.
Our company produces high-viscosity pump series, cam rotor pump series, stainless steel rotor pump series, high-viscosity rotor
pump series, high-viscosity gear pump series, stainless steel magnetic gear pump series, explosion-proof arc gear pump series,
single-screw pump series, three-screw pump series and so on. The product specifications are complete, the performance is reliable
and the quality is excellent. Low price, won the trust of our customers. Products are sold all over the country and widely used in
petroleum, chemical, shipping, power, grain and oil, food, medicine, building materials, metallurgy and national defense
scientific research and other industries.
foundry town in China. It is located in Beijing and Tianjin in the north, Bohai Sea in the east, Qilu in the South and Taihang in
the west. Beijing-Shanghai Railway, Beijing-Shanghai and Shihuang Expressway, 104 and 106 National Highways run through the whole
territory, with superior geographical location, convenient transportation and accessible roads.
Our company produces high-viscosity pump series, cam rotor pump series, stainless steel rotor pump series, high-viscosity rotor
pump series, high-viscosity gear pump series, stainless steel magnetic gear pump series, explosion-proof arc gear pump series,
single-screw pump series, three-screw pump series and so on. The product specifications are complete, the performance is reliable
and the quality is excellent. Low price, won the trust of our customers. Products are sold all over the country and widely used in
petroleum, chemical, shipping, power, grain and oil, food, medicine, building materials, metallurgy and national defense
scientific research and other industries.
FAQ
一、how do find the most suitable pump?
please inform us details of the product inquire
1 medium medium temperature viscosity corrosivity
2 pump capasity
3 pump presure (head)
4 outlet and inlet diameter
if possible,please also provide the model you are using now,if not,we will recommend revelant product for reference
二、Are you a manufacture or a trading company?
We have our factory and also we cooperate with other companies.
三、Can you accept OEM make?
OK. We can print your brand or logo on the products, and also can make the packing as per your request.
四、Does your company provide customized service?
Yes, We could produce according to cusotmer's drawing and requirement
五、How about your quality?
We have a dedicated quality department, responsible for overseeing all the production process to ensure that the product percent
of pass, we also have the international advanced equipment to ensure the quality of the products, we offer one year warranty, have
professional technical engineers to provide technical support for life, our products are passed the CE certification, the company
had been passed ISO multiple environmental certification.
六、How do insure your after-sale services?
produce refund and replacements are guaranteed for all the produts within 3000 hours
after purchase.(under normal use,except special medium and environment)
How long would it take to receive your orders?
we will arrange the shipment within a week after receive payment.(according to order QTY)
How do we deal with clients' quality complaints?
All complaints about quality will be recorded into documents immediately. Our service engineer will contact you once we find out
the problems and help you out
七、Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
八、What is your MOQ?
We do not have MOQ requirement for most of our products.
九、How does your company do the quality control and what is your warranty period?
We are ISO certified factory, and also have CE&ISO certificate.Our warranty is 1 year (Except the wearing parts)
十、Can you provide price list or quotation?
Usually we have a price list,but it's just prices for original types,it's may not fit to your requests,so we suggest you to tell
us the details of the model that you need,such as flowrate,motor power,pressure etc..Then we offer you a precise quotation
十一、What is your trade terms, payment terms and delivery time
FOB/CFR/CIF etc.30% before production and 70% before shipping.We'd like to 100%T/T if you can accept,also we can accept L/C.We can
arrange the shipping in 10-15days if we have the model that you need in stock,otherwise 25-30days we will arrange the shipping.
十二、Logistics mode
Shipping by Sea, By air, By Courier (DHL/UPS/FEDEX/TNT)
十三、Payment
T/T, L/C, PAYPAL, ALIBABA ONLINE ORDER, CREDIT CARD, WESTERN UNION
please inform us details of the product inquire
1 medium medium temperature viscosity corrosivity
2 pump capasity
3 pump presure (head)
4 outlet and inlet diameter
if possible,please also provide the model you are using now,if not,we will recommend revelant product for reference
二、Are you a manufacture or a trading company?
We have our factory and also we cooperate with other companies.
三、Can you accept OEM make?
OK. We can print your brand or logo on the products, and also can make the packing as per your request.
四、Does your company provide customized service?
Yes, We could produce according to cusotmer's drawing and requirement
五、How about your quality?
We have a dedicated quality department, responsible for overseeing all the production process to ensure that the product percent
of pass, we also have the international advanced equipment to ensure the quality of the products, we offer one year warranty, have
professional technical engineers to provide technical support for life, our products are passed the CE certification, the company
had been passed ISO multiple environmental certification.
六、How do insure your after-sale services?
produce refund and replacements are guaranteed for all the produts within 3000 hours
after purchase.(under normal use,except special medium and environment)
How long would it take to receive your orders?
we will arrange the shipment within a week after receive payment.(according to order QTY)
How do we deal with clients' quality complaints?
All complaints about quality will be recorded into documents immediately. Our service engineer will contact you once we find out
the problems and help you out
七、Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
八、What is your MOQ?
We do not have MOQ requirement for most of our products.
九、How does your company do the quality control and what is your warranty period?
We are ISO certified factory, and also have CE&ISO certificate.Our warranty is 1 year (Except the wearing parts)
十、Can you provide price list or quotation?
Usually we have a price list,but it's just prices for original types,it's may not fit to your requests,so we suggest you to tell
us the details of the model that you need,such as flowrate,motor power,pressure etc..Then we offer you a precise quotation
十一、What is your trade terms, payment terms and delivery time
FOB/CFR/CIF etc.30% before production and 70% before shipping.We'd like to 100%T/T if you can accept,also we can accept L/C.We can
arrange the shipping in 10-15days if we have the model that you need in stock,otherwise 25-30days we will arrange the shipping.
十二、Logistics mode
Shipping by Sea, By air, By Courier (DHL/UPS/FEDEX/TNT)
十三、Payment
T/T, L/C, PAYPAL, ALIBABA ONLINE ORDER, CREDIT CARD, WESTERN UNION
