Automatic Plastic Thermoforming Machine for Disposable Cup
Product Description
SPECIFICATIONS
This model adopts Servo motor feeding and PLC control system. It produces various kind of disposable plastic cups, plastic bowls and other plastic containers for all kinds of cool and hot drinks, ice cream, fast food etc. It is also widely used in package of medical, light industrial and electronic fields.
NU660/350
Sheet Materials
PP.PS.PET.PE.ABS
Sheet Width
500-660mm
Sheet Thickness
0.3-2mm
Max. Forming Area
660*320mm
Max. Cup Height
140mm
Forming Pressure
0.5-0.8Mpa
Productivity(cycles)
10-35cycles/min
Motor Power
8.5kw
Heading Power
80kw
Total Weight
4.2ton
Water Consumption
35-40L/min
Air Consumption
2500-3500L/min
Overall Dimensions
3500x1500x2200mm
CONFIGURATION LIST:
PARTS NAME
ORIGIN
Oil Pump
USA (PARKER)
Motor
CHINA
Hydro-cylinder
JAPAN (Yuciyuken)
Reversing Valve
JAPAN (Yuciyuken)
Spill Valve
JAPAN (Yuciyuken)
Magnetic Valve
Japan (SMC)
Air Cylinder
China Taiwan (Airtac)
Relay
Schneider
Temperature controller
Japan (YAMATAKE)
PLC
Japan (Panasonic)
Touch screen
Taiwan (WeinView)
Other Electrical equipment
Schneider
Remarks: The standard offer does not include servo motor, if customer need to change to servo motor, the offer will be different, for Robot Hand System, it is the same case.
MACHINE PHOTOS CE CERTIFICATE

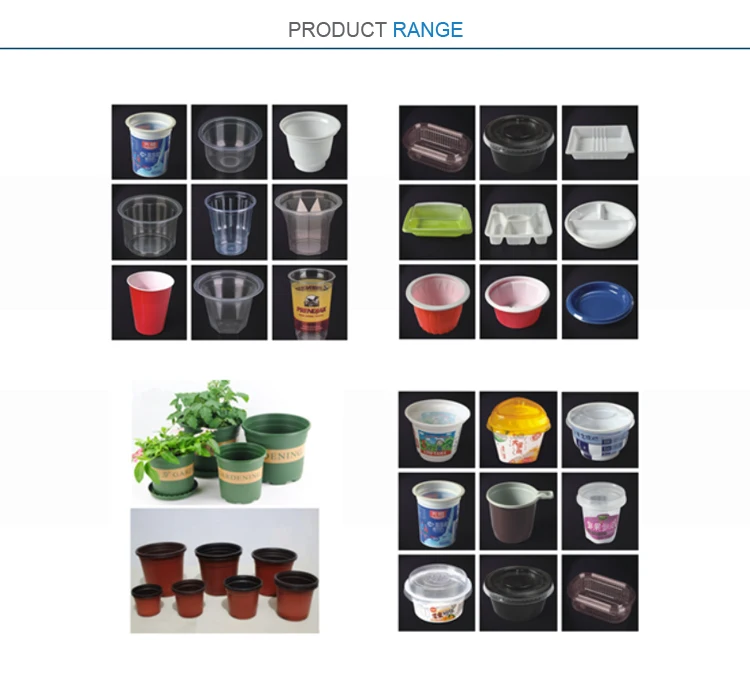

Products Range
CE CERTIFICATE
Company Information
FACTORY OVERLOOK
EXHIBITIONS AND FAIRS CE CERTIFICATE
Packaging & Shipping
MACHINE LOADING
FAQ
QUESTIONS YOU MAY ASK
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation.
Q5: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
Q6: What is the capacity of the thermoforming machine?
Reply: Working 20 hrs/day, the capacity is 300,000-500,000 pcs/day. The accurate capacity depends on the size and material of the products.
Q7: How much space it needs for the thermoforming machine?
Reply: 5 meters in length (if need stacking machine, require another 3.5 meters), 2.5 meters in width.
Q8: What kinds of products can the thermoforming machine produce?
Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc.
Q9: What material can be used in the thermoforming machine?
Reply: PP/PS/PVC/PET. Thickness 0.3-2mm.
Q10: What is the requirements of the machine for the electricity?
Reply: It needs three phase four wire. The copper core cable should be big than 25 mm³, aluminium core cable should be bigger than 50 mm³.
Q11: What is the requirements of the machine for the air?
Reply: The output volume of the compressed air should be higher than 2.4 mm³/min. The pressure should be higher than 6 kgs.
Q12: What is the requirements of the machine for the water?
Reply: The displacement of the water should be higher than 1.5 m³/min, and the pressure should be higher than 2kg. The temperature should be between 30°-50 °.
