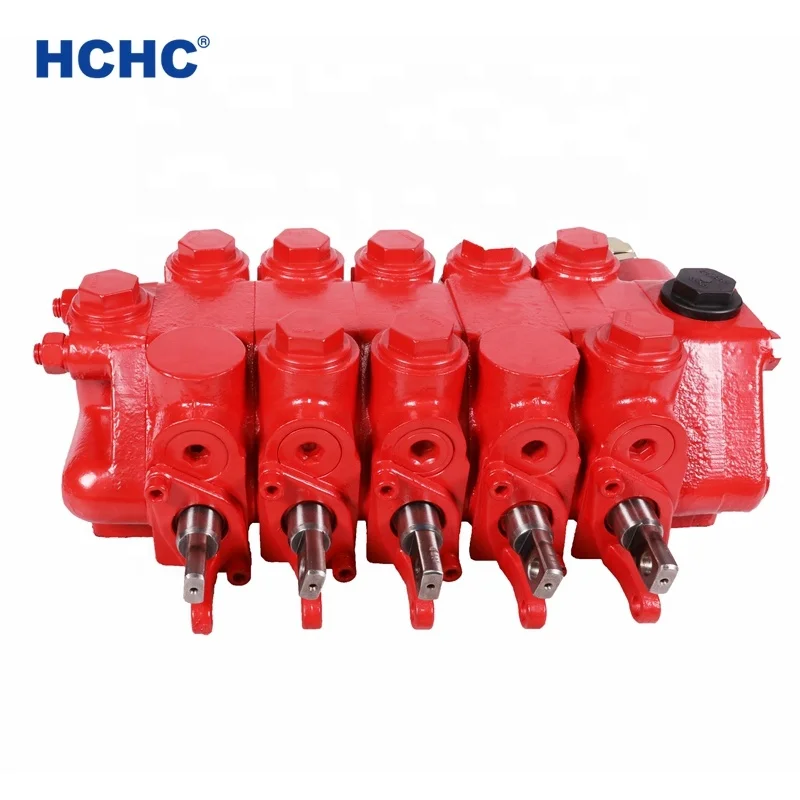

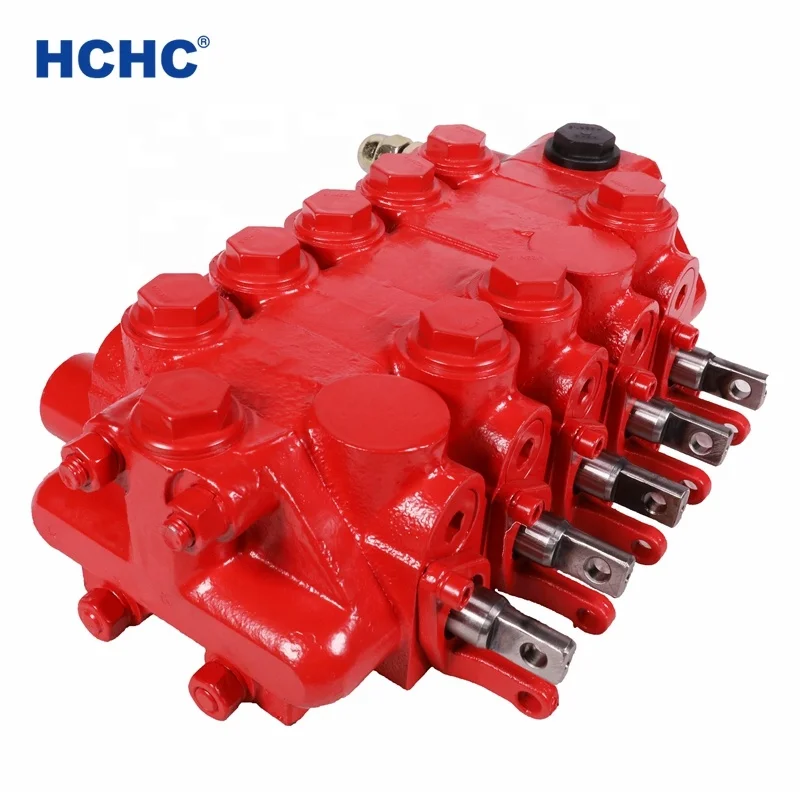

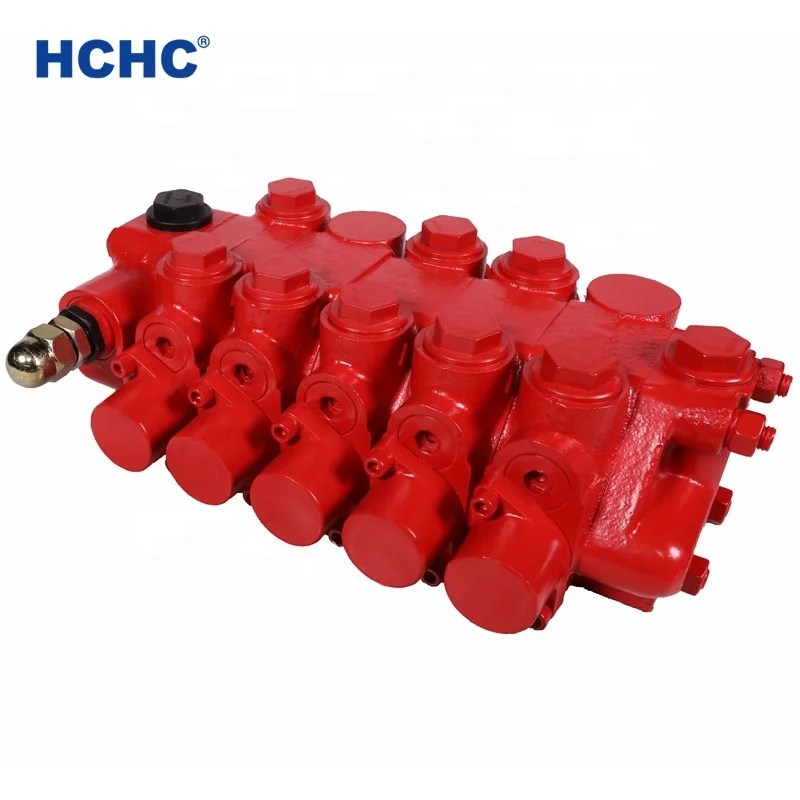

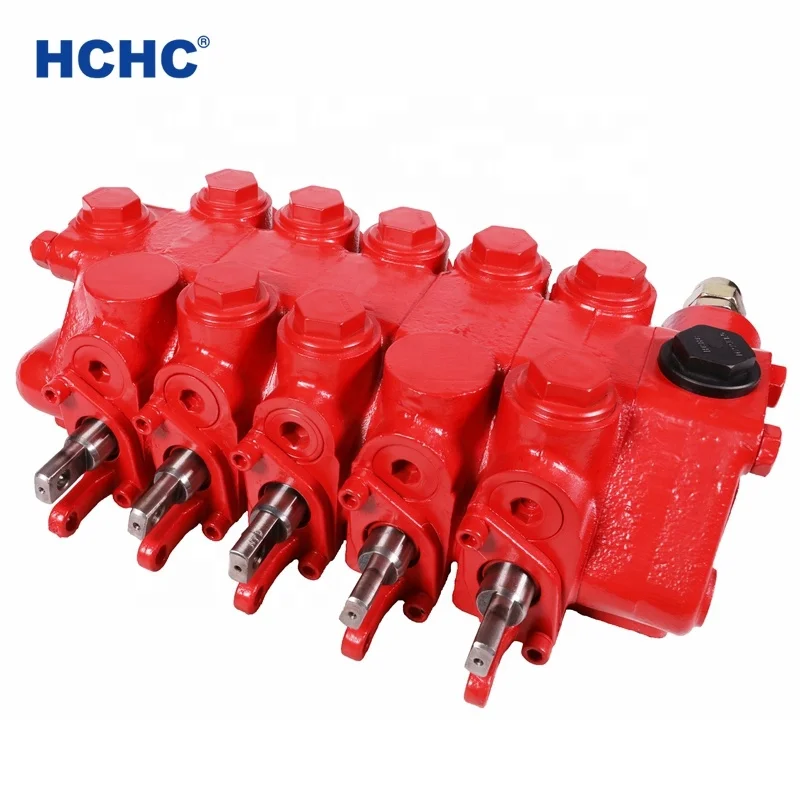

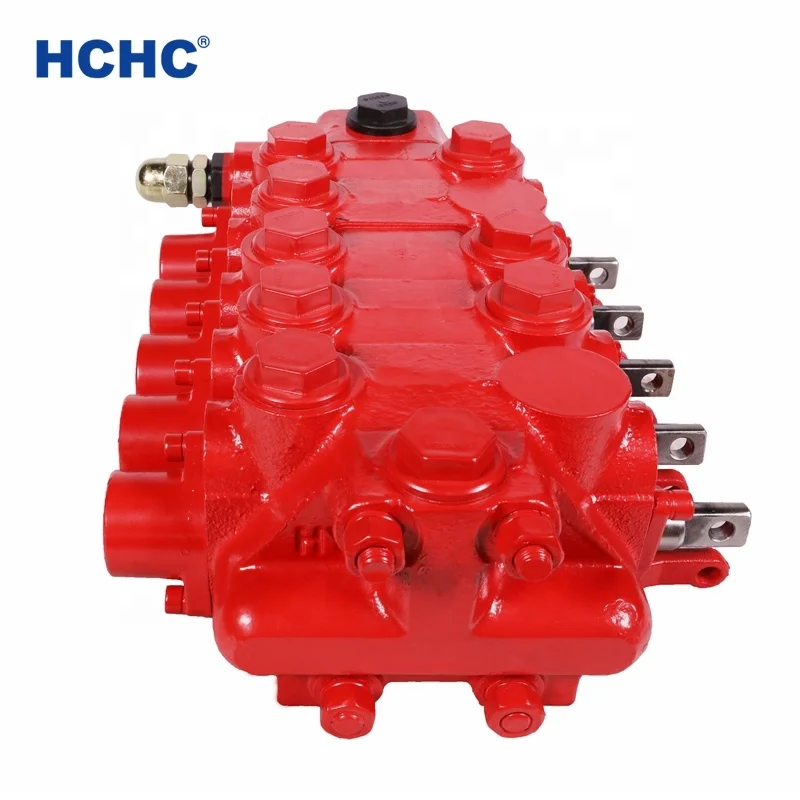

HCHC hydraulic multi way directional control valve DLSL15E

HCHC hydraulic multi-way valve DLS2a-L15E for construction machinery

DLS2a-L15E series multi-way valve is a combination of oil inlet valve, reversing valve and oil return valve. Its oil return body is equipped with pressure outlet which can be used together with other hydraulic components. There are three types of reversing valve for selection: A type valve, O type valve and reversing lock. It is widely used in hydraulic system of engineering machinery, mining machinery and other machinery.

Internal hydraulic lock: the reversing lock has built-in a hydraulic lock to achieve the function of dual lock or monolock.
Integral overflow valve: the oil inlet valve built-in an overflow valve to control system pressure.
Oil circuit: parallel connection.
Structure type: sectional valve, any 1~10 sections may combine upon customer’s requirement.
Spool function at neutral position: A, O, Y, A1, Y2.

Product Characteristics:
★ compact structure
★ high working pressure
★ good performance
★ reliable work
★ realization of close and remote control of multiple actuators

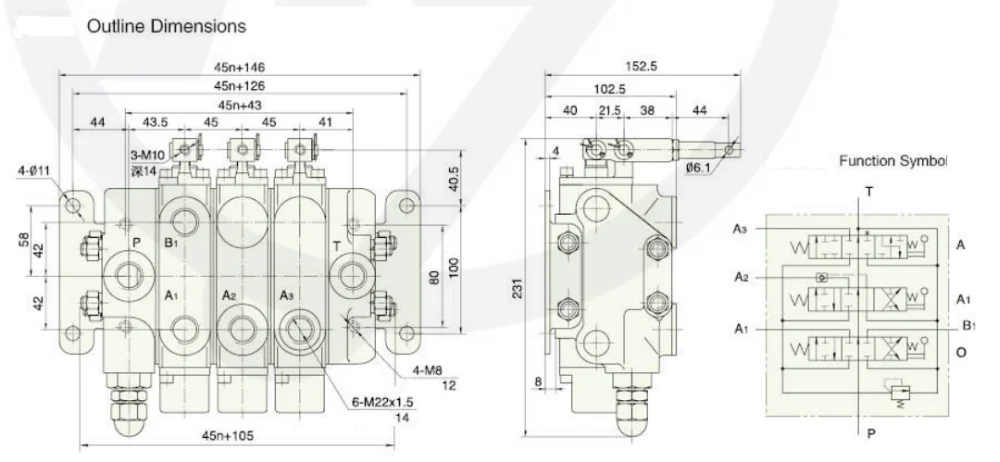

Model Code

DLS  * ­  L  15  E - * / * - * / * …

①    ② ③ ④ ⑤  ⑥ ⑦ ⑥ ⑧

① Product code
② Design code
3 means with pressure outlet, if it is the basic type, it will be omitted.
③ Joining port type: L=thread
④ Nominal size: 15mm
⑤ Pressure grade: E=160 bar
⑥ Spool control type: T=spring, W=ball
⑦ Spool function type of block 1
⑧ Spool function type of block 2
