A press brake is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
Model | WC67K/Y |
Nominal Pressure | 1600KN |
Length of Worktable | 3200MM |
Capacity | 8mm*3200mm Steel Plate |
Accuracy | 0.05mm |
Size(L*W*H) | 3200mm*2000mm*26500mm |
More Models, Please Refer To The Technical Data Sheet
Direction For Use
The Machine Has Been Shakedown Test In The Factory, After The Machine Arrives At The Customer's Factory. Only Need To Add 46 # Hydraulic Oil, And After Electrification, Do A Simple Test, It Can Work. Along With The Machine Are Operating System Instructions And Machine Instructions, Installation Video, Operation Video And So On.
Description Of Application Effect

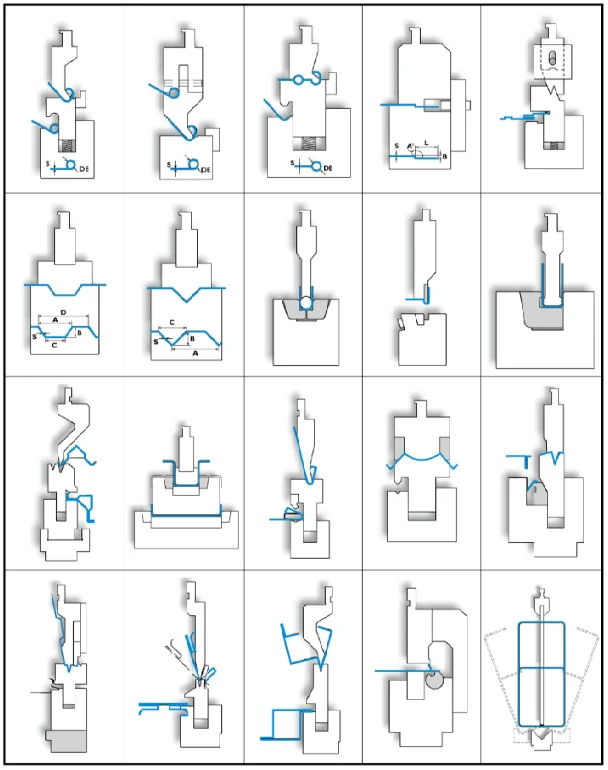

WC67K/Y Series Cnc Press Brake Machine Is Suitable For Various Fields Of Sheet Metal Processing. Different Molds Can Be Selected. Through Programming In The Operating System, Various Shapes Of Product Bending Can Be Realized.
Detailed Images

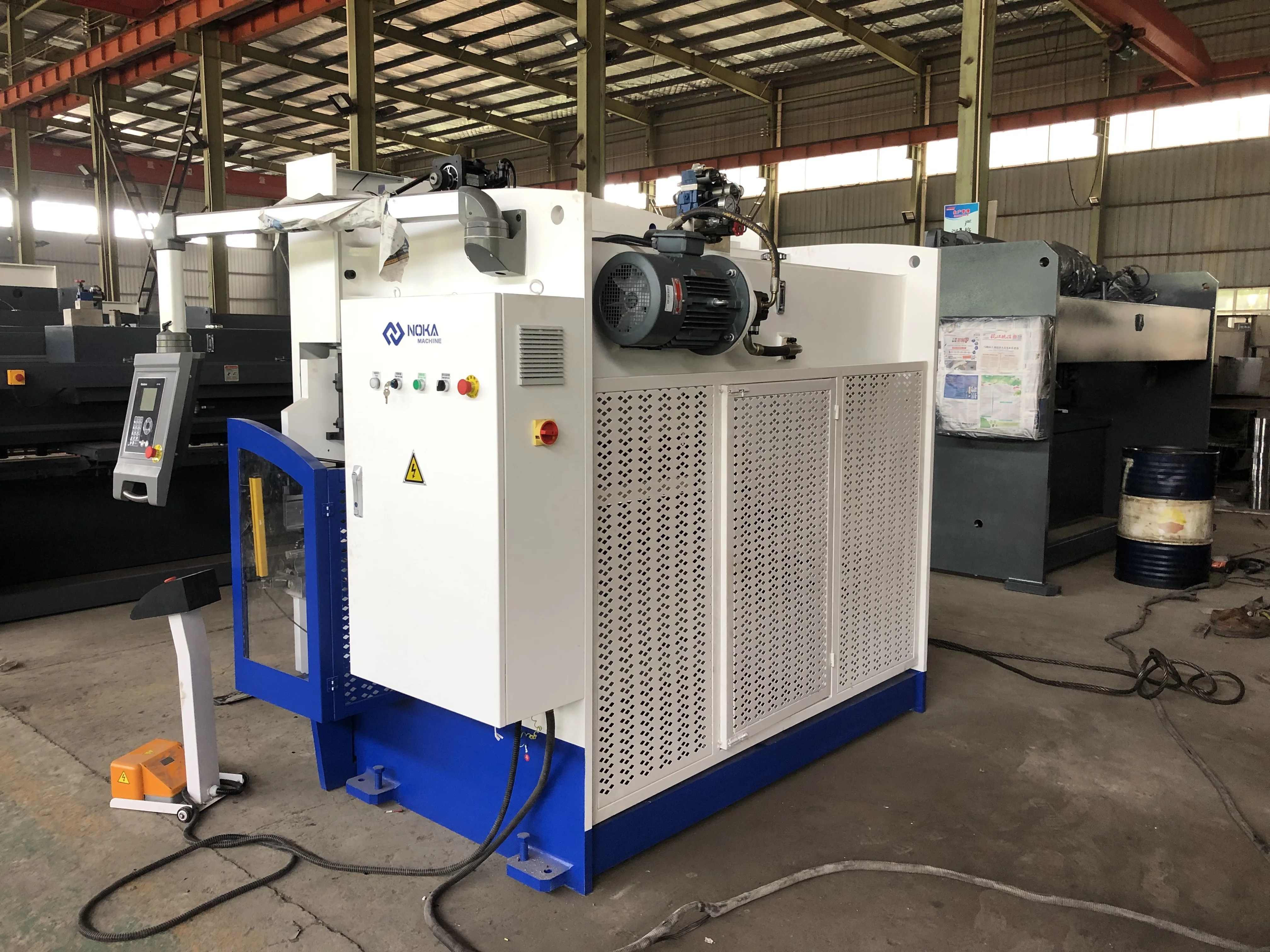

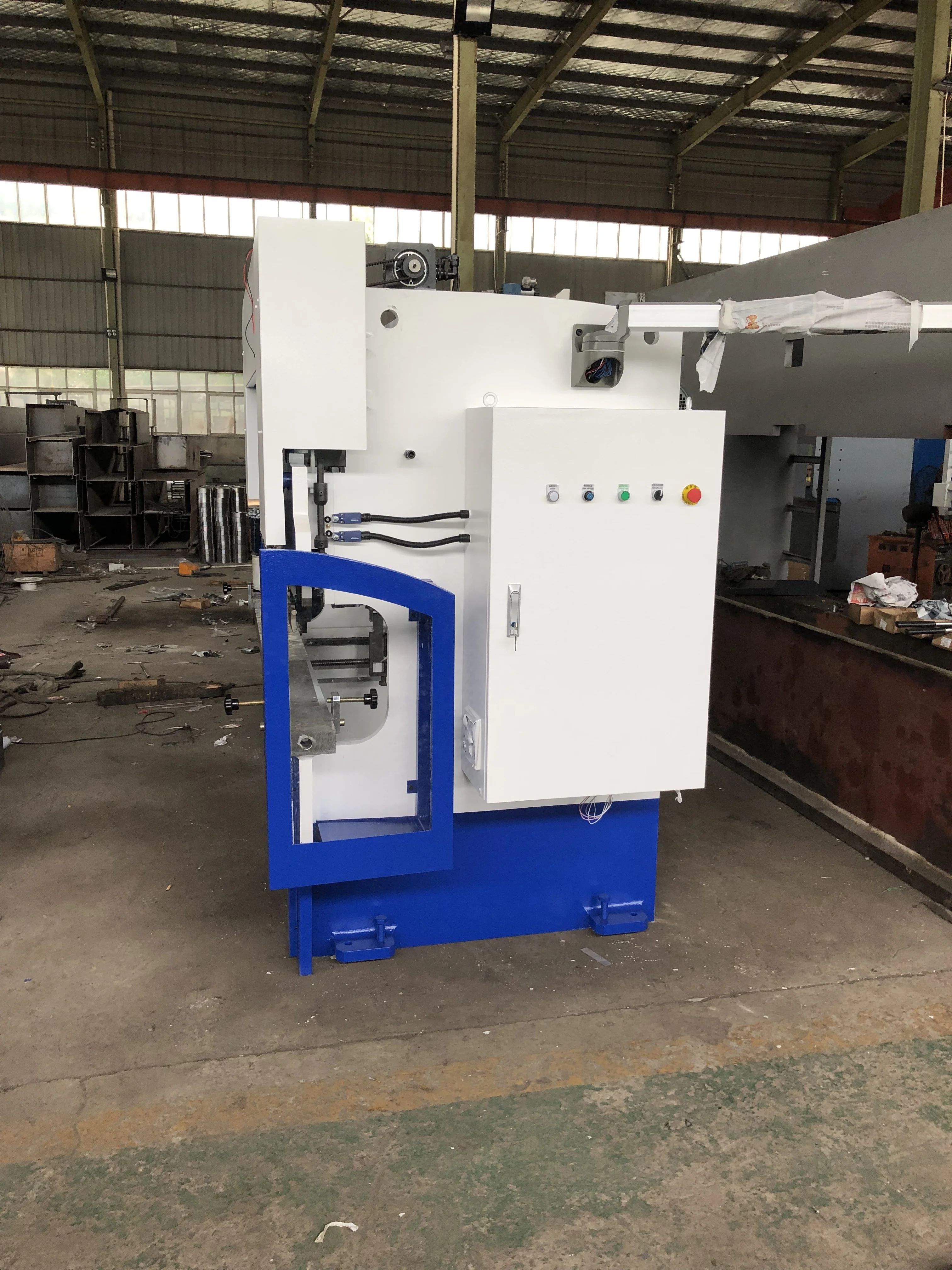

Electrical Cabinet
The Distribution Box Has A Scientific Design And A Heat Sink. With Ground Protection. Standard Schneider Electric And Omron Power Switch Safe And Efficient
Metal Fence
The Machine Is Equipped With Metal Guardrails As Standard, Which Is Safe And Beautiful. It Guarantees The Quality Of The Machine And Gives The Worker The Protection As Much As Possible.
Four-level Stop Finger
The Four-level Stop Finger Refers To The More Extensive Use,
Using 2, 3, 4-level Stoppers Refers Can Play A Supporting Role In Thin Sheet Metal Workpiece.
Using 2, 3, 4-level Stoppers Refers Can Play A Supporting Role In Thin Sheet Metal Workpiece.

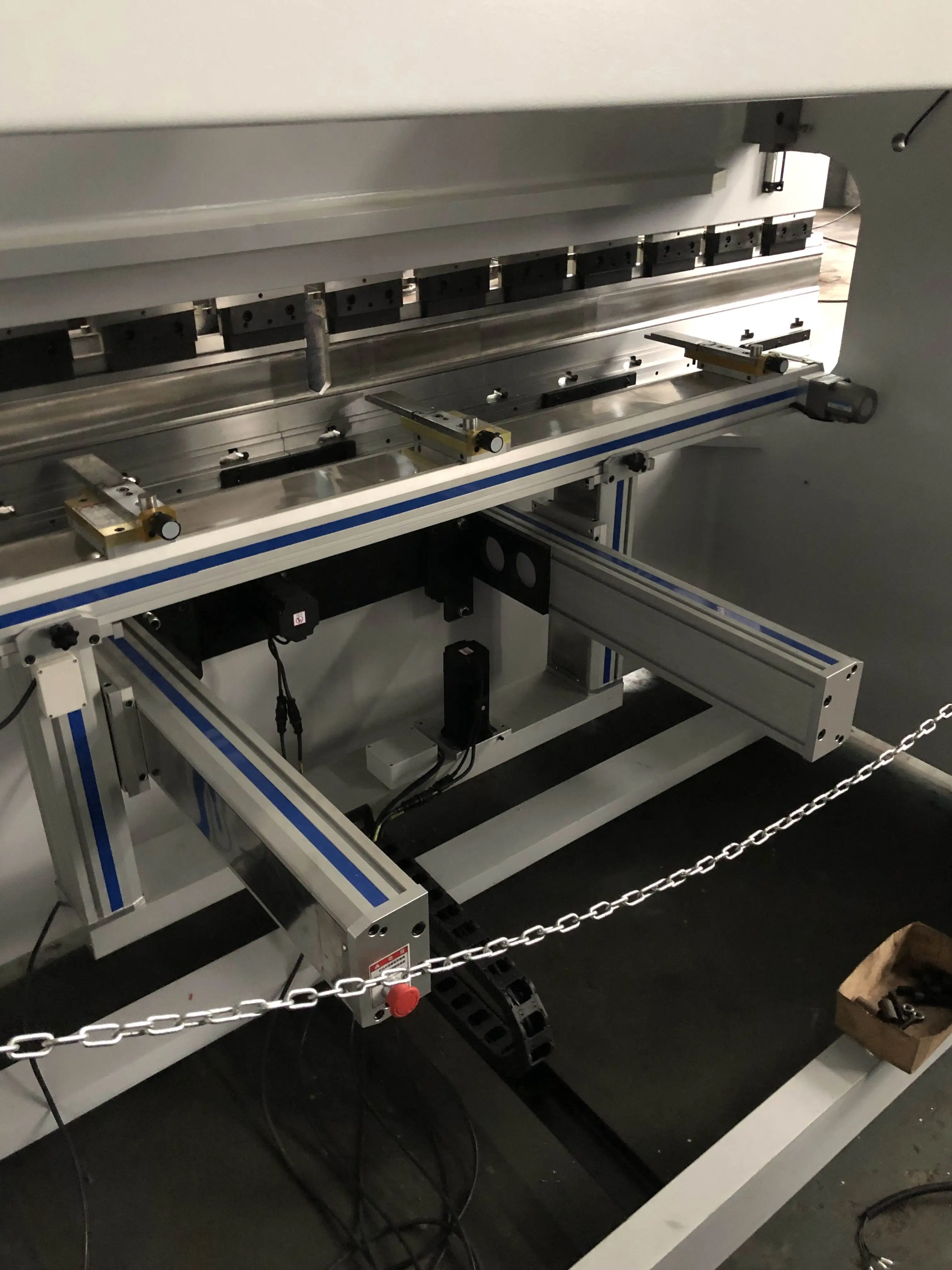

Automatic Axis

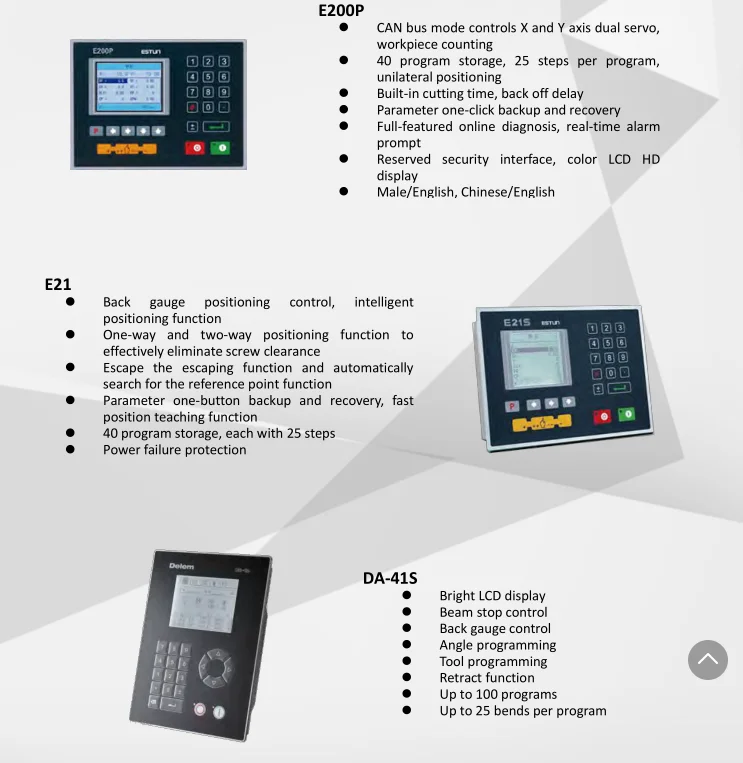

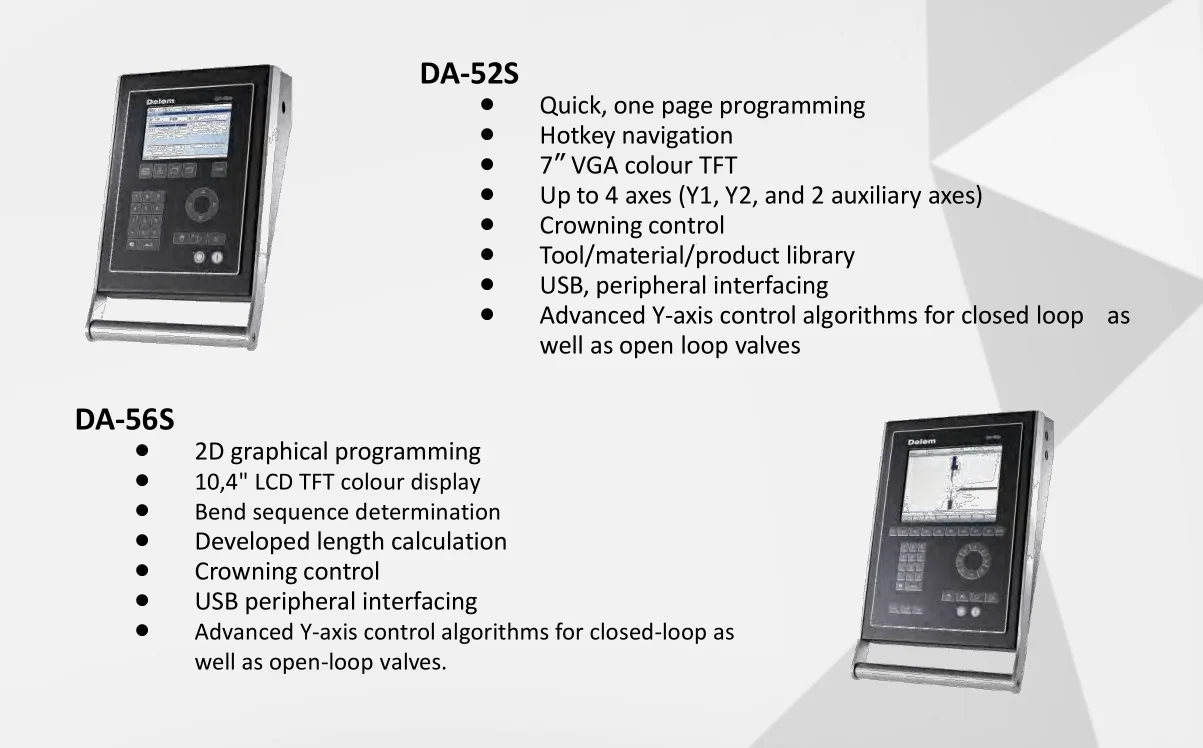

The Choice Of Automatic Axis Can Greatly Improve The Precision Of Machining, And The Combination Of X, Y, Z And V Axes Can Be Used To Form Different Combinations Of 3+1 Axis, 4+1 Axis, 6+1 Axis, Etc.

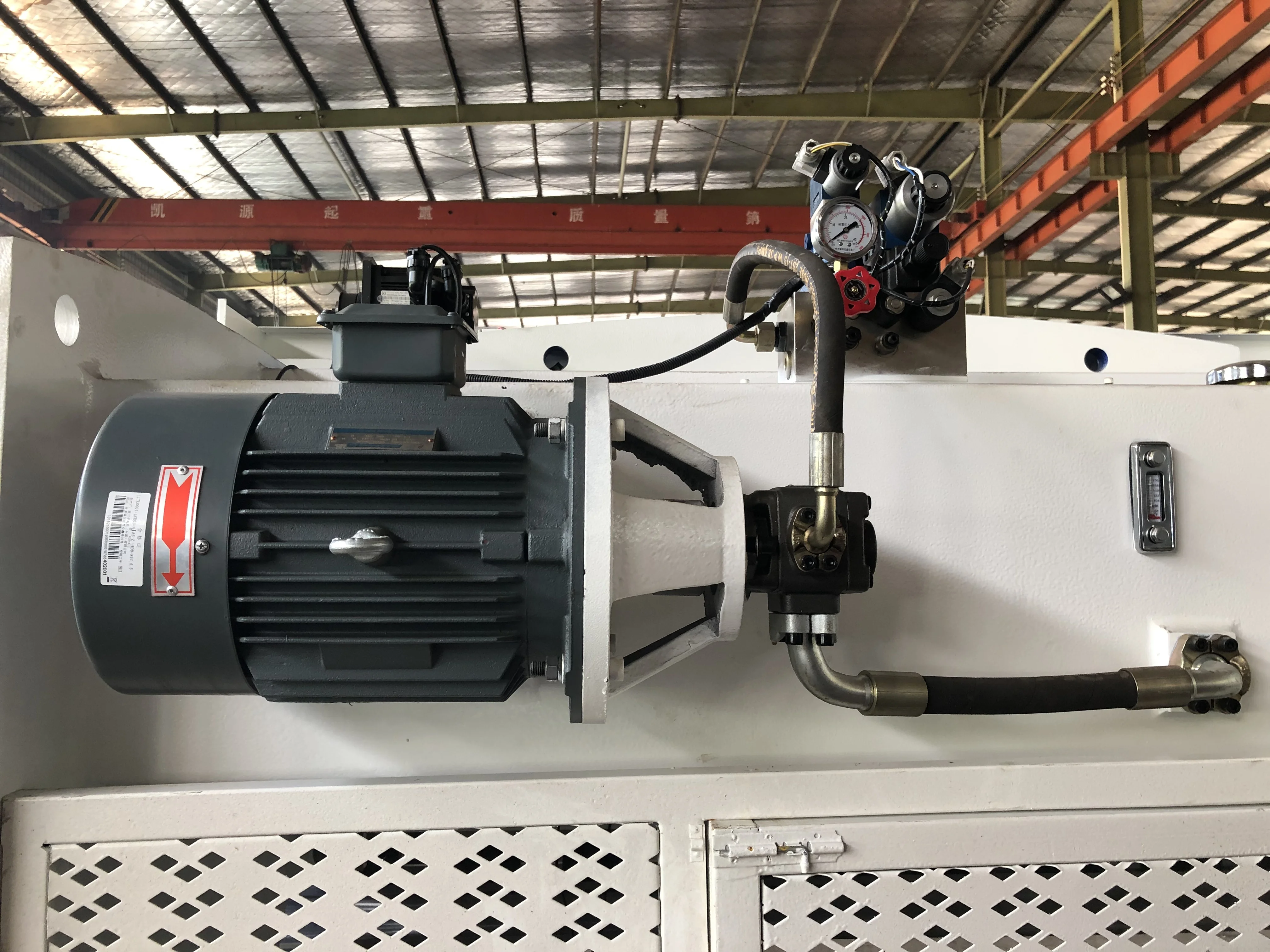

Main Motor From Siemens
Siemens motors ensure continuous and long-term reliable operation of key components. The heat dissipation ribs are horizontally and vertically distributed: all motors are designed with IP55 protection and are customized according to Siemens requirements. Excellent rotor processing technology, high surface blasting finish
Hydraulic Oil Pump from SUNNY
1. The ability to achieve high working pressure in a compact form factor ensures high power-to-weight ratio and reduced installation costs.
2. The inherent low noise characteristics of the daughter blade mechanism improve operator comfort.
3.12 The blade system ensures that the amplitude of the flow pulsation is small and the system noise characteristics are low.
2. The inherent low noise characteristics of the daughter blade mechanism improve operator comfort.
3.12 The blade system ensures that the amplitude of the flow pulsation is small and the system noise characteristics are low.
Hydraulic Valve From RexRoth
Rexroth oil pump has slotted control swashplate design, continuously variable displacement, good self-priming, allowing continuous working pressure of 350 bar, low noise, long service life, drive shaft can absorb axial and radial loads, modular Design, through-axis drive control time is short, pump position is optional, installation position can also be selected, can work with HFC liquid under reduced operating parameters.
NOK Seal
NOK seals are used in the reciprocating motion of hydraulic, air pressure and hydraulic machines. The seal made of NOK material surpasses the performance of the previous products. The sealing product series developed on the basis of this material greatly improves the sealing reliability of industrial machines.
Steel Plate Thickness
The machine's high-strength steel plate structure is very strong, the average steel plate thickness reaches the width of 4 adult fingers, about 65mm, so the machine's structural performance is perfect, the thickness of the steel plate can be comparable to armored vehicles and tanks.
Laser Protector
The laser protector protects the safety of the worker to the greatest extent. If the foreign object is detected and the working range of the machine is detected, the machine will stop working immediately, and the humanized design has won the praise of the customer.
Related Products
Packing&Shipping
Before the machine is shipped, the mould will be coated with antirust oil. Special and effective packing. The machine is
transported by standard container, and the common ones are 40 OT / 20 OT / 40 HQ / 40 GP / 20 GP. Inside the container, there will
be more wire rope and multiple angle fixing machines.
We will also make videos to let you know how the equipment is loaded into the container.
Please contact our sales consultant for the best shipping plan and accurate quotation
transported by standard container, and the common ones are 40 OT / 20 OT / 40 HQ / 40 GP / 20 GP. Inside the container, there will
be more wire rope and multiple angle fixing machines.
We will also make videos to let you know how the equipment is loaded into the container.
Please contact our sales consultant for the best shipping plan and accurate quotation
After Sales Service
After-sale Protection
1--Provide detailed operation and installation files and videos with the machine.
2--Free training for customers in the factory.
3--Engineers and sales consultants 24 hours online video with you, troubleshooting machine.
4-- Replace the problem accessories for you free of charge during the warranty period.
5-- The dealer goes to repair .
6-- The engineer goes to serve.
2--Free training for customers in the factory.
3--Engineers and sales consultants 24 hours online video with you, troubleshooting machine.
4-- Replace the problem accessories for you free of charge during the warranty period.
5-- The dealer goes to repair .
6-- The engineer goes to serve.
Company Introduction
Anhui NOKA Machinery Manufacturing Co., Ltd. was established in 1994, located in the ancient capital of Nanjing, the steel city Maanshan junction point to see a lot of industrial parks.
The company specializes in CNC machine tools, forging machinery, mechanical blade molds, mechanical parts, mechanical presses,
hydraulic presses, hydraulic presses, ironwork, mechanical bending and so on.
Here, NOKA has a long and strong engineering experience, and hopes to become a quality-oriented professional machinery
manufacturing company that serves the industry.
The company specializes in CNC machine tools, forging machinery, mechanical blade molds, mechanical parts, mechanical presses,
hydraulic presses, hydraulic presses, ironwork, mechanical bending and so on.
Here, NOKA has a long and strong engineering experience, and hopes to become a quality-oriented professional machinery
manufacturing company that serves the industry.
