SINOMACH LSS1902 2 19Ton roller compactor vibratory single drum road roller or parts

Product Overview

Description

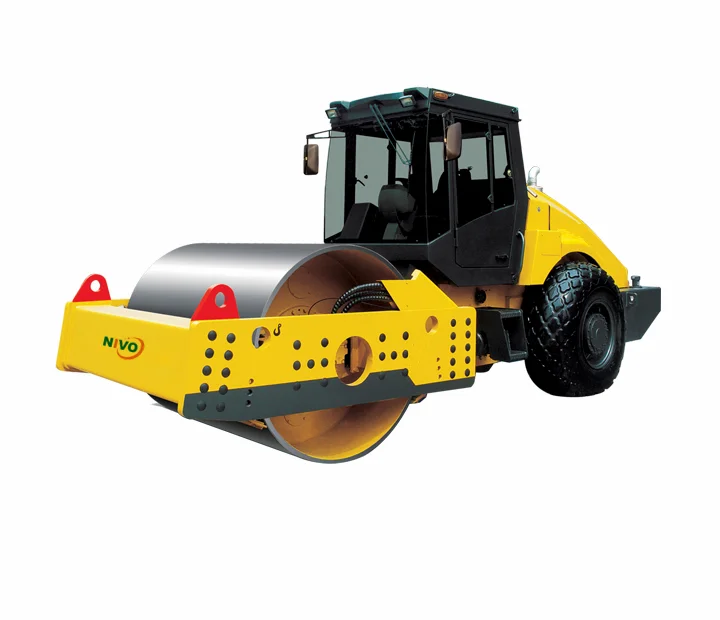

 LSS1902-2 Single Drum Vibratory Rollers

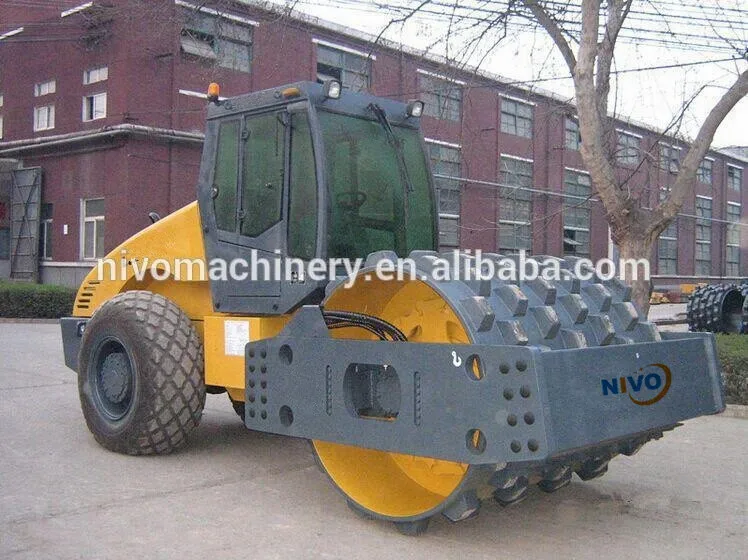

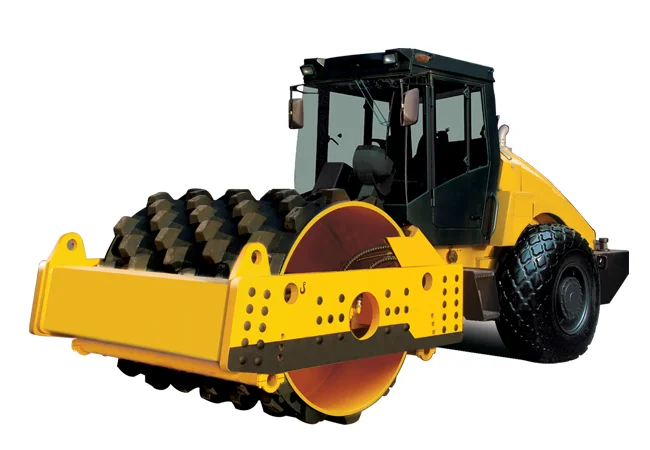

Optional part: Intergrated padfoot drum

Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.



Main Features

1.GUO II emission standard engine. Engine cooling air-path structure and large capacity of fuel tank.

3.Driving axle with greater braking torque, parking brake by cutting air, safety and reliability

4.Dual amplitude setting of vibration. New types of vibration device and drum travel bearing structure. Heavy-duty gearbox.

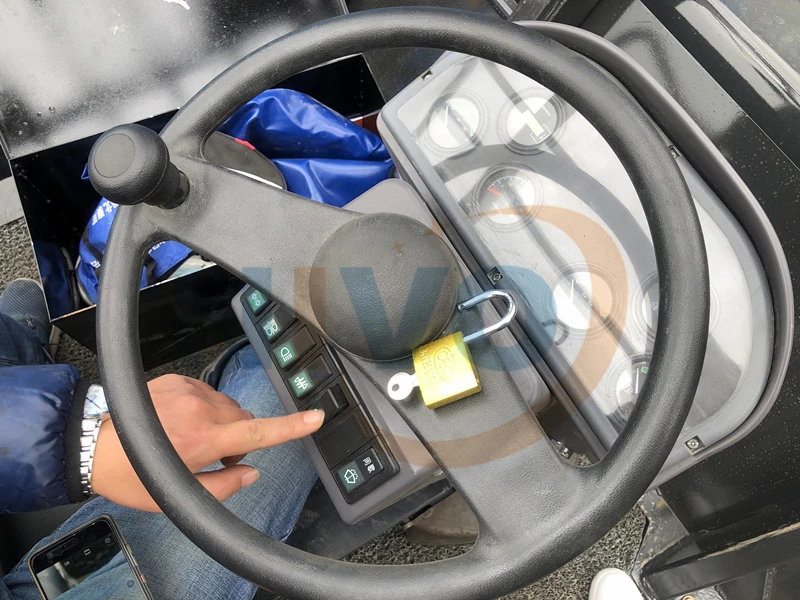

5.Joint-moving mechanism of the clutch pedal with engine throttle. Adjustable instrument desk with liquid crystal instrument panel.

6.MP3 supported music system with USB and SD interface. Modernized style overall appearance. Driver's cabin with T type angular glasses.



Technical Specifications

Model: LSS1902-2

Operating mass: 19000kg

Static linear load: 437N/cm

Vibration amplitude: 2.0/1.0mm

Vibration frequency: 28/35Hz

Centrifugal force: 340/260kN

Travel speed: 10.5km/h

Gradeability: 35%

Turning radius: 7500mm

Drum width: 2130mm

Drum diameter: 1600mm

Wheelbase: 3430mm

Ground clearance: 445mm

Diesel engine model: SC8D180

Diesel engine power: 132kW

Overall dimensions: 6600*2300*3000mm
