JNLINK backpack laser cleaning machine / rust removal laser clean metal machine

Product Overview

Description

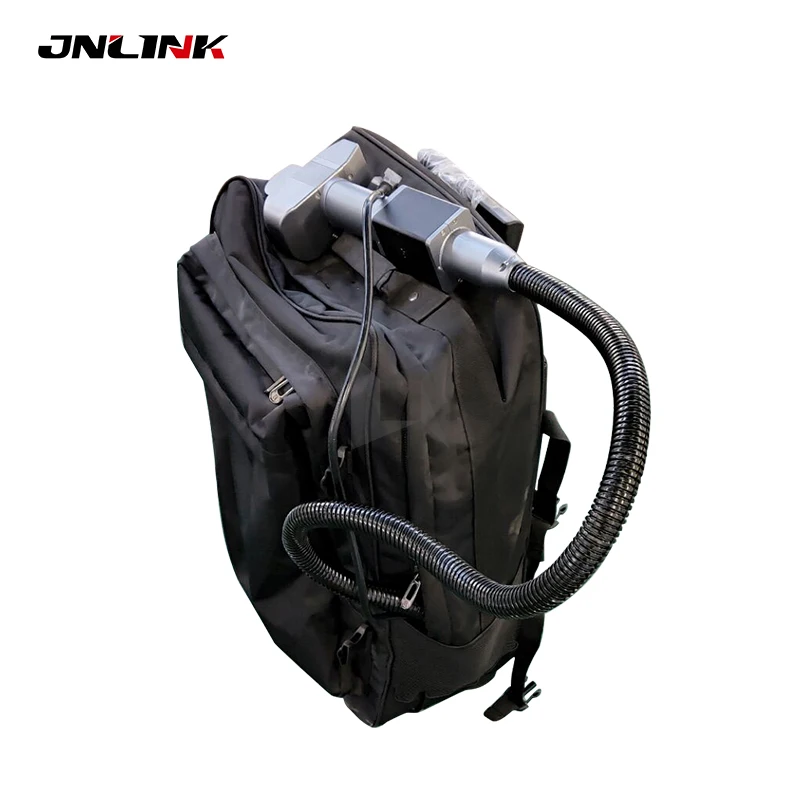

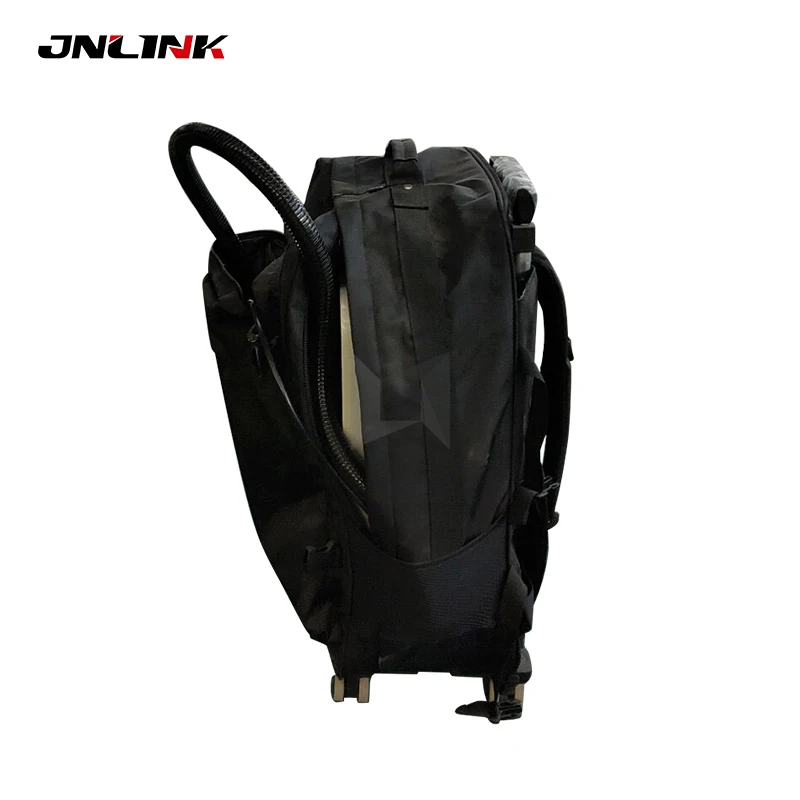

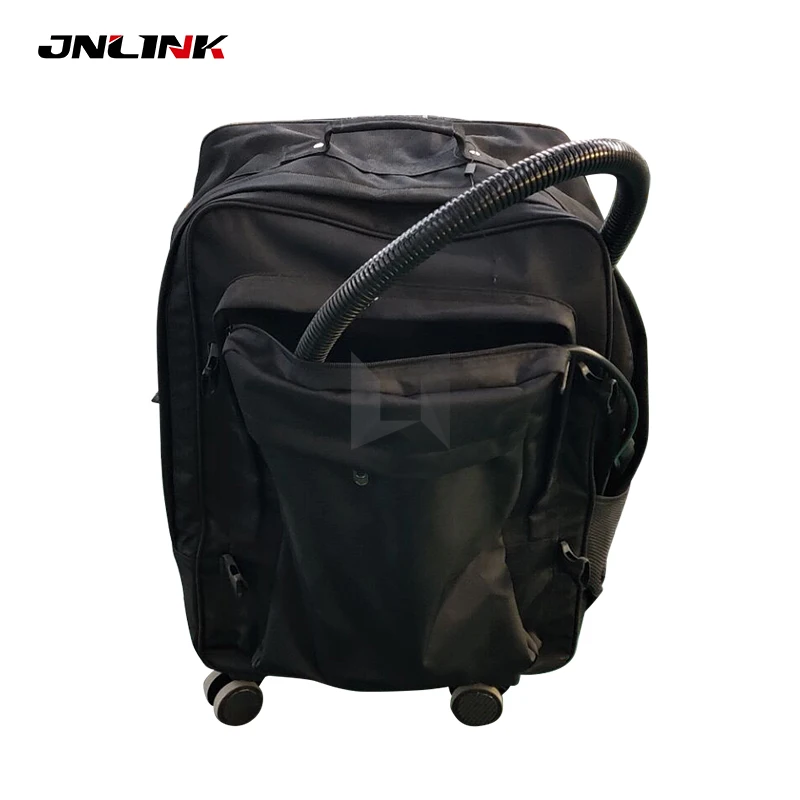

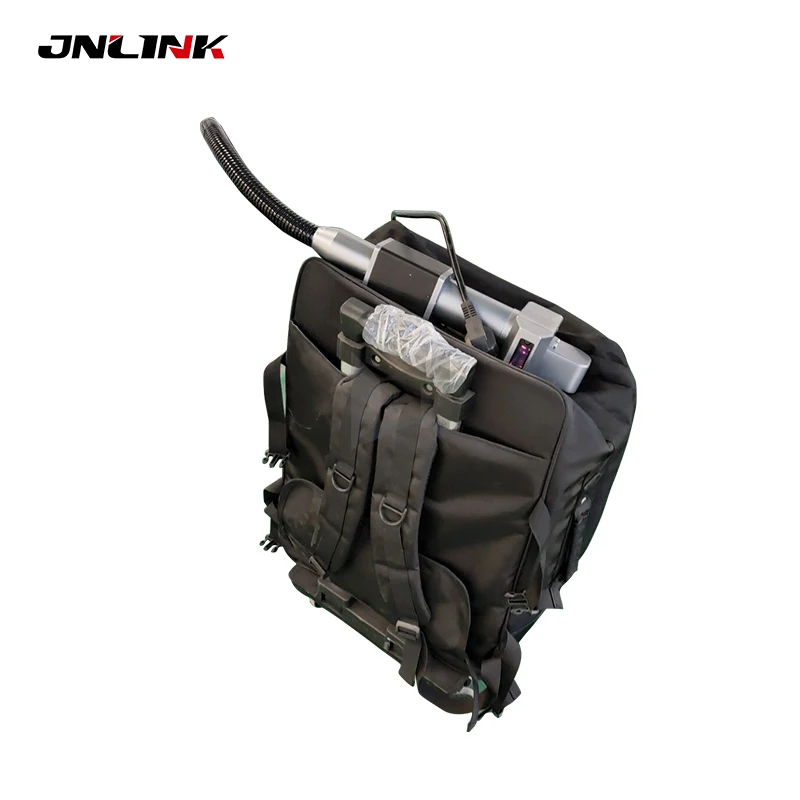

JNLINK backpack laser cleaning machine / rust removal laser clean metal machine











• Backpack Fiber laser cleaning machine Main configuration:


• 50W MAX Laser Generator


• Laser cleaning head


• Air cooling system


• LX controller


• Backpack





Fiber laser cleaning machine, It is suitable for the cleaning of the rust layer, thick-layer paint, deep oil stain, rough surface and weld cleaning, which will affect the surface of the substrate. The efficiency is very high.

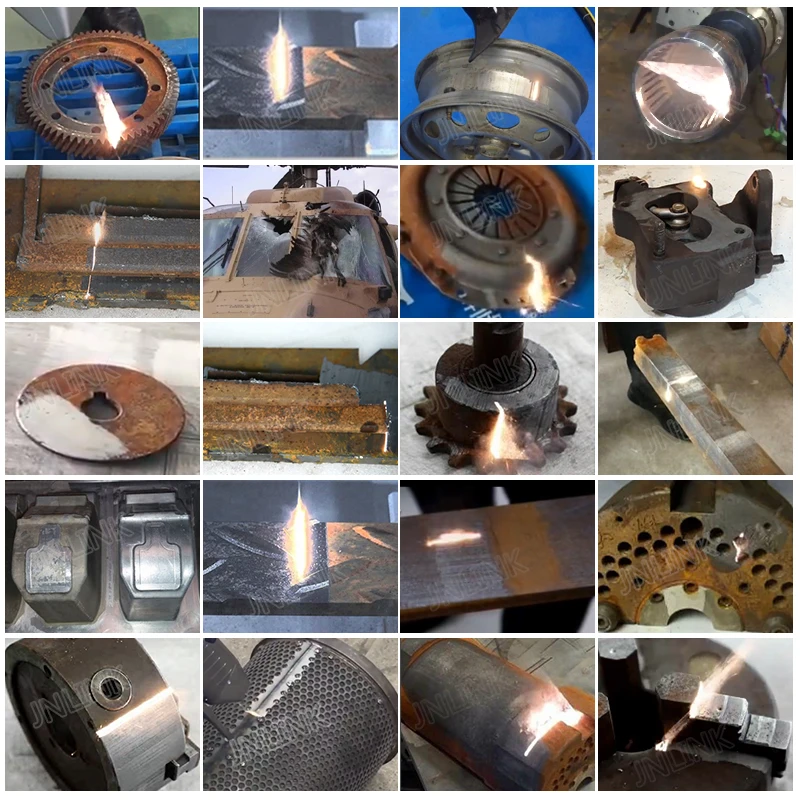

Application
Rust Removal	Oxide Removal	Molding Cleaning	Surface Preparation
Coatings Removal	Weld Pre-treatment	Gluing Pre-treatment	Removal of Oil and Grease
Paint Removal	Surface Cleaning	Stain Removal	Surface Roughening
Tool Cleaning	Historic Restoration	Selective Paint Removal	Precise Cleaning





Equipment model	LXC-50	LXC-100	LXC-200	LXC-500	LXC-1000
Laser working medium	Yb-doped fiber
Laser power	50W	100W	200W	500W	1000W
Laser wavelength	1064nm
Pulse frequency	20-100KHz	20-100KHz	20-200KHz	20-50KHz	20-50KHz
Cooling method	Air cooling	Air cooling	Water cooling	Water cooling	Water cooling
Dimension	650mmX550X250mm			1100x950x700mm
Total Weight	30kg	60kg	65kg	130kg(Including Water tank)	140kg(Including Water tank)
Total power	350W	600W	1000W	1800W	2000W
Different configuration and design maybe has little difference
Scan width	10-60mm
Optional	Hand/automatic
Working temperature	5-40 degree



Jinan Link Manufacture & Trading Co., Ltd.,

is established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines , passed the European Union CE authent-

ication, American  certificate and are certified to ISO 9001. Products are sold to USA,Cana-

da, Australia, Europe, South east Asia,Africa etc,more than 120 countries and areas,and supply OEM service for more than 30 manufactures.



About our after sale sevice:

1). 2 years quality guaranty, the fiber laser cleaning machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
2). Lifetime maintenance free of charge.
3). Free training course at our plant.
4). 18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine.
5). Machine has been tested and adjusted before delivery.We will take machine photos and make
machine working image for you ,after getting your agreement ,then we will book a ship.
6). Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.
7).if you have any problem during your use.you need our technician to judge
where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.



Our Products includes All kind of
1.Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.
2.CNC knife cutting machine.

3. Fiber laser cleaning machine
4.Fiber cutting machine and so on.



We can also customized non-standard assist equipment as your detailed work requirements.







About our cleaning machine package and shipment, firstly our worker will make sure your fiber laser cleaning machine test well and clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.

Transport:
We will provide various ways of transportation.
1 By sea
2 By air
3 By train
4 By car





Q1 :How about warranty?

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.



Q2:I don’t know which one is suitable for me?

A2:Please tell me your material and what work do you want to finish, then we can recommend the suitable fiber laser cleaning machine style to you.



Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.



Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.



Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
