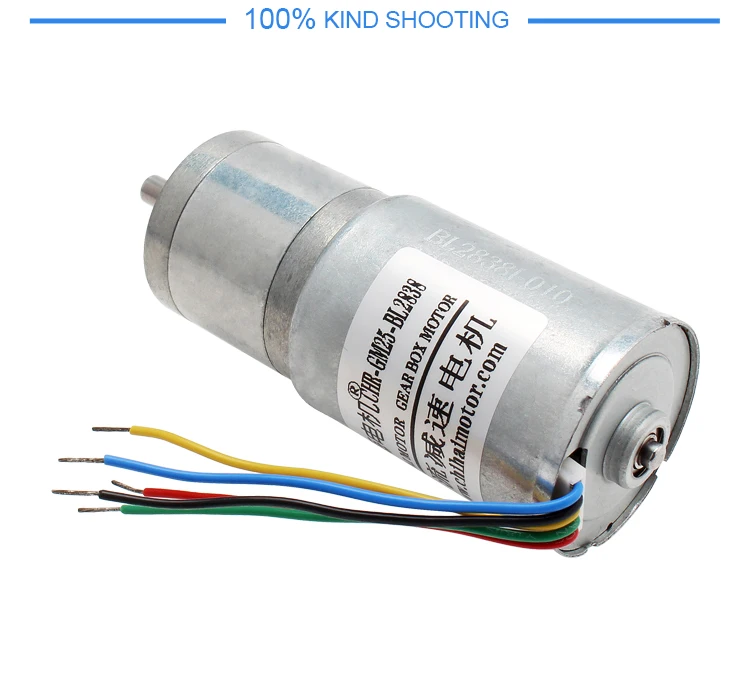

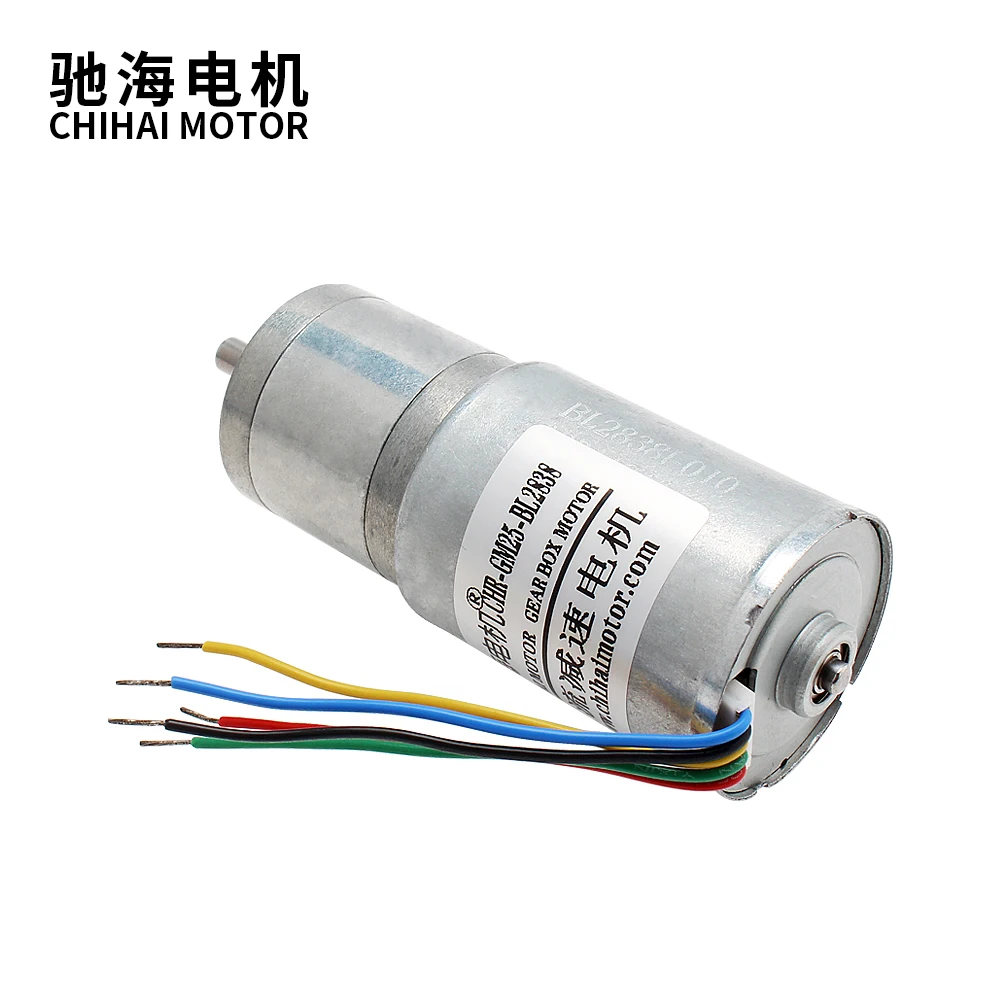

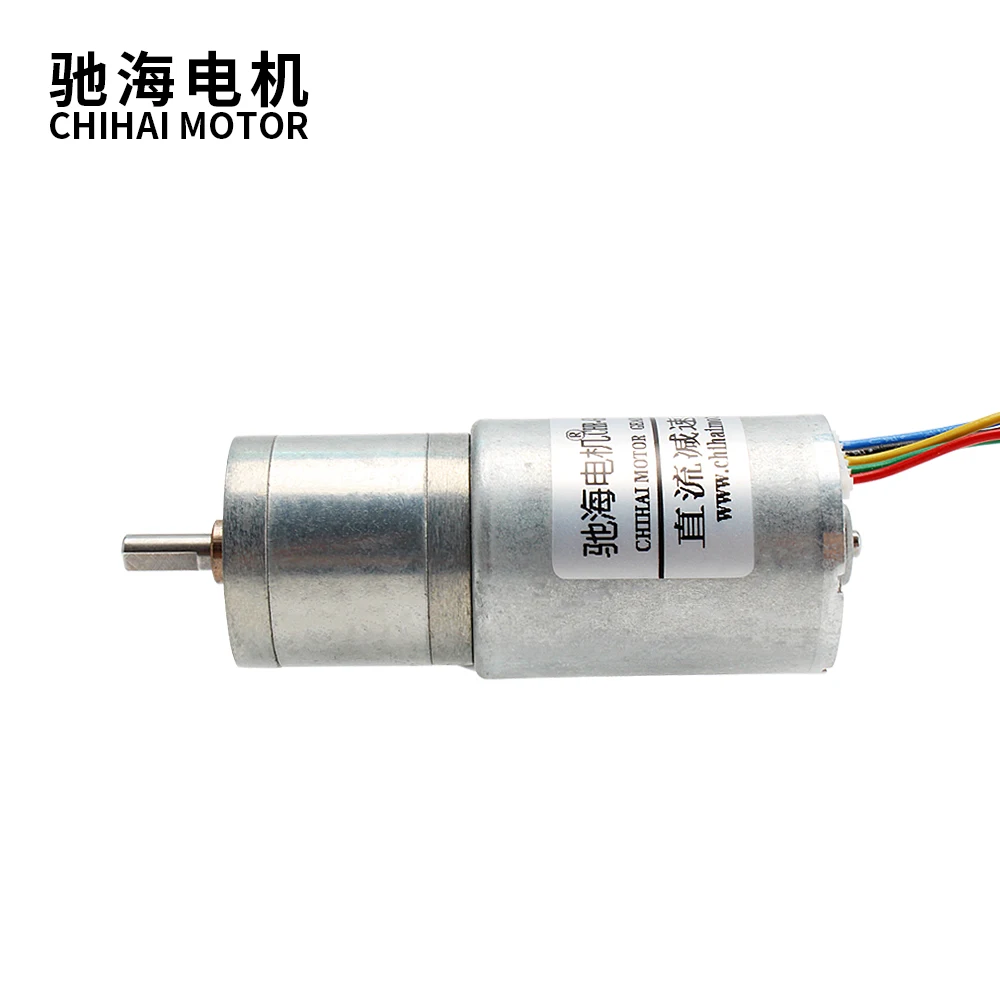

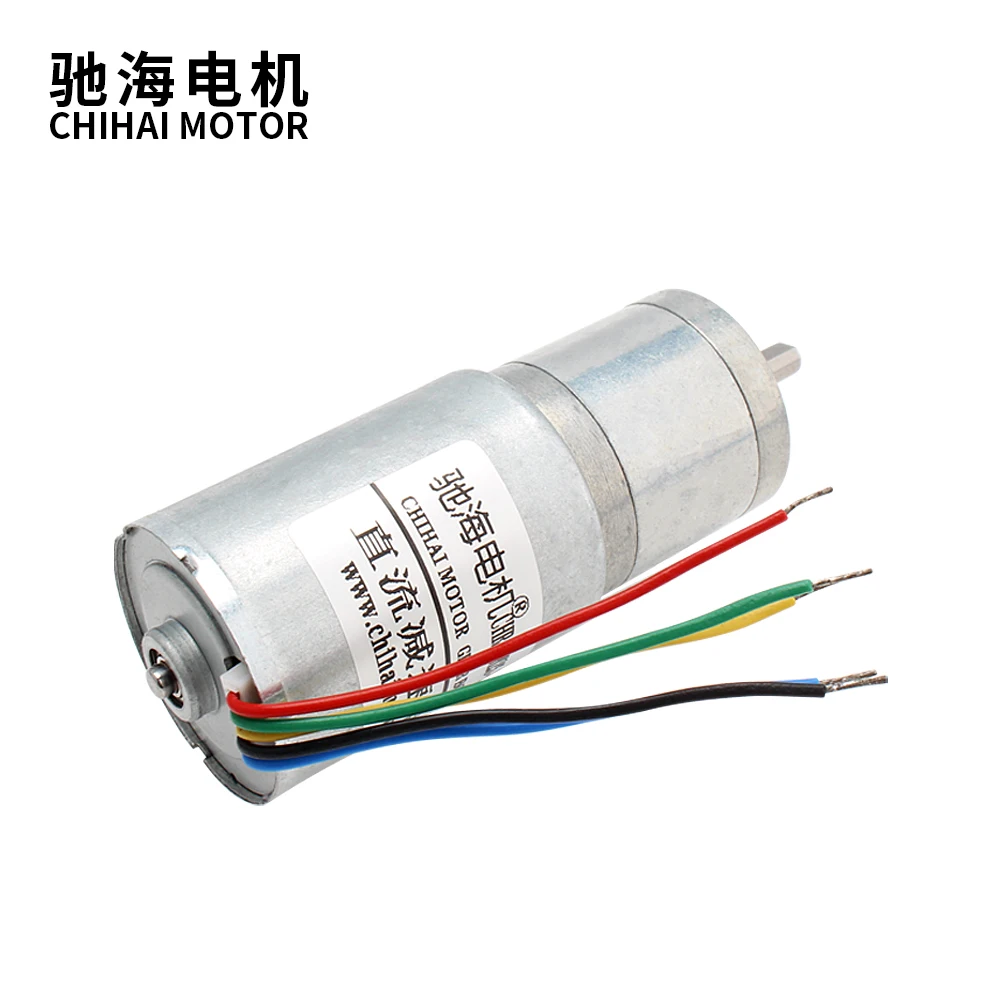

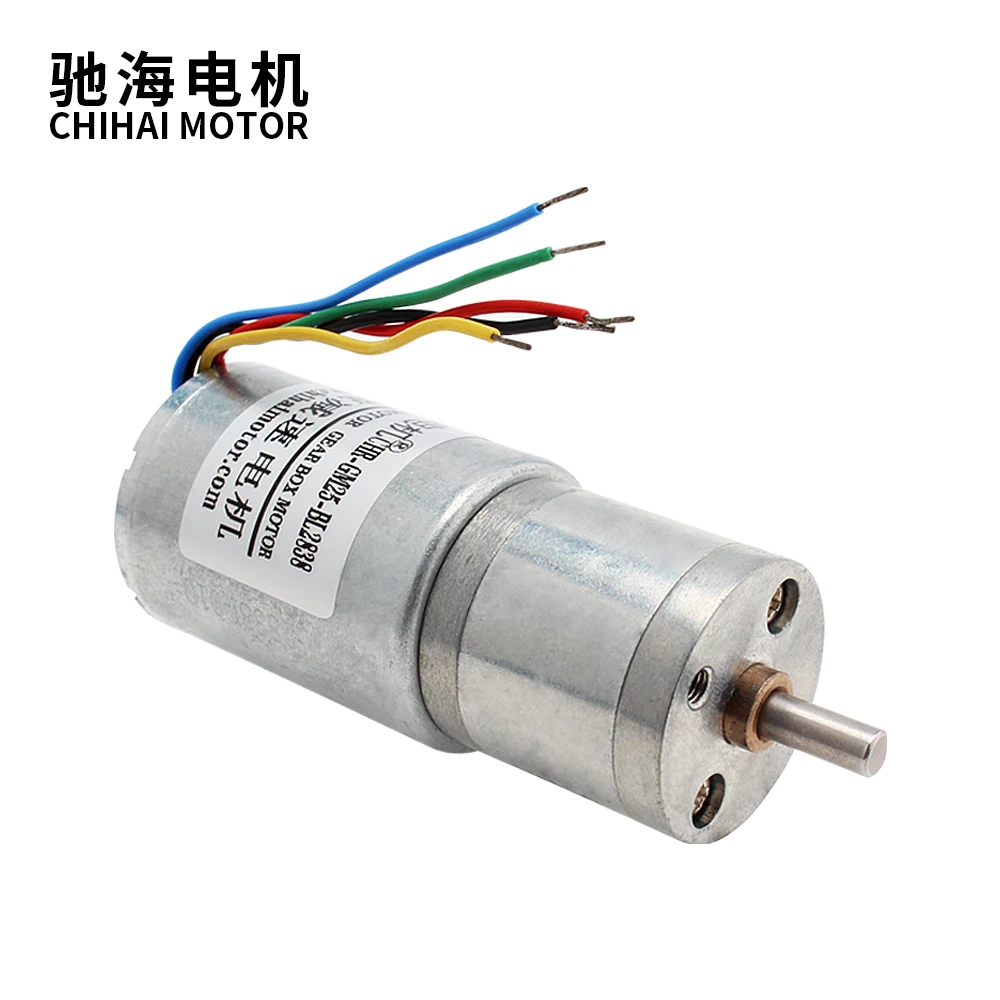

chihai motor CHR GM25 BLDC2838 25mm 12v 24v brushless dc motor with gearbox Silent High Torque Mini BLDC Gear Motor
- Category: >>>
- Supplier: Shenzhen Chihai Motor Co. Ltd.
Share on (62406801843):
Product Overview
Description
Product Description
brand | chihai motor | ||||||
product name | CHR-GM25-BLDC2838 dc permanent magnet brushless gear reduction motor | ||||||
features | all metal gear structure, built-in hall drive brushless motor | ||||||
outer diameter size | diameter 25mm×Lmm (different ratios have different lengths) | ||||||
shaft diameter | shaft diameter 4mmD type D thickness 3.5mm (batch customizable) | ||||||
shaft length | length 12mmD, length 8mm (batch customizable) | ||||||
Hall signal | the motor outputs 3 signals per turn | ||||||
weight | about 120g (different ratio different weight ) | ||||||
application | intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc | ||||||

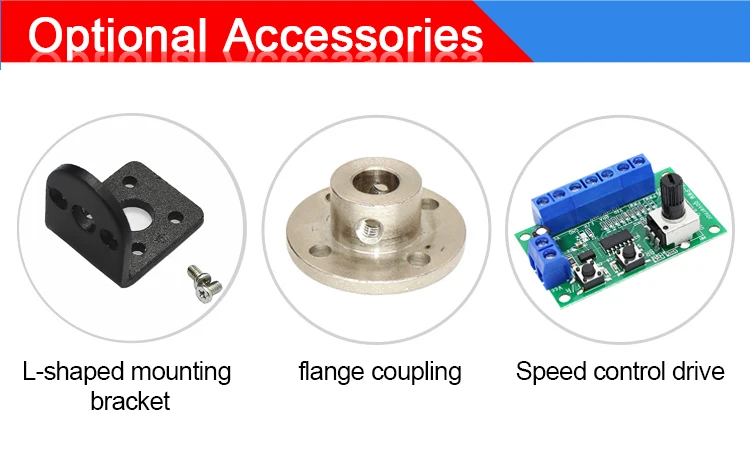

optional accessories | mounting bracket , flange coupling, drive tire, etc | ||||||
product details
The stator is made of pure copper, with small resistance and strong electrical conductivity
2. D type shaft
D type shaft, more convenient installation, not easy to slip, save installation time
3. Adopt all-metal structure
Wear - resistant, anti - torsion, long life, smooth operation
4. Adopt full ball bearing structure
Small friction resistance, low noise, long life, fast heat dissipation, high precision, strong compound ability
5. Service life of over 2000H within rated torque range, free from maintenance.(overtorque life will be greatly shortened)

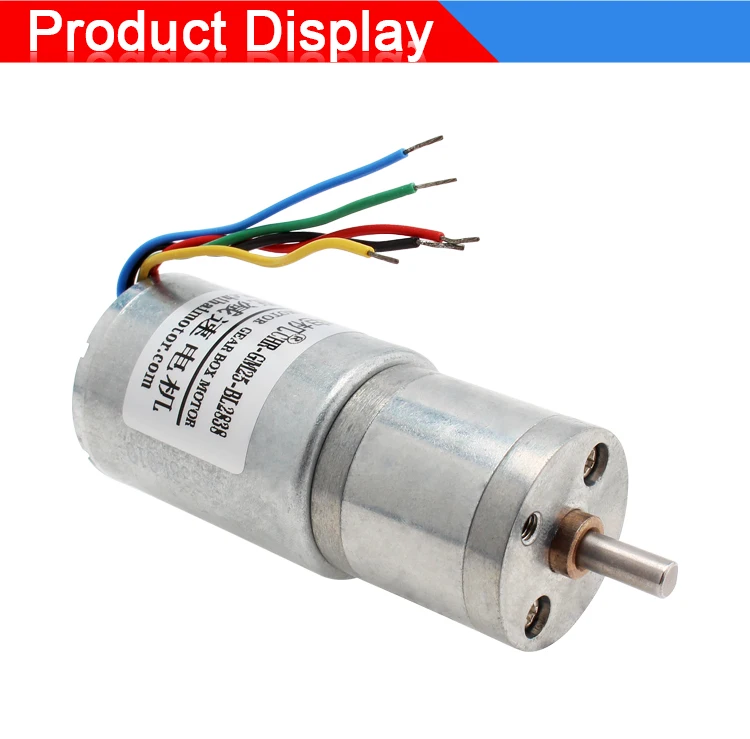

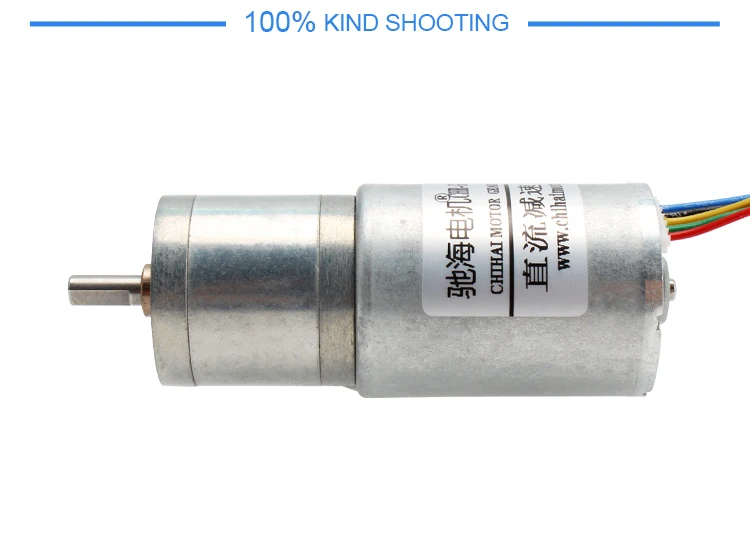

Detailed Images

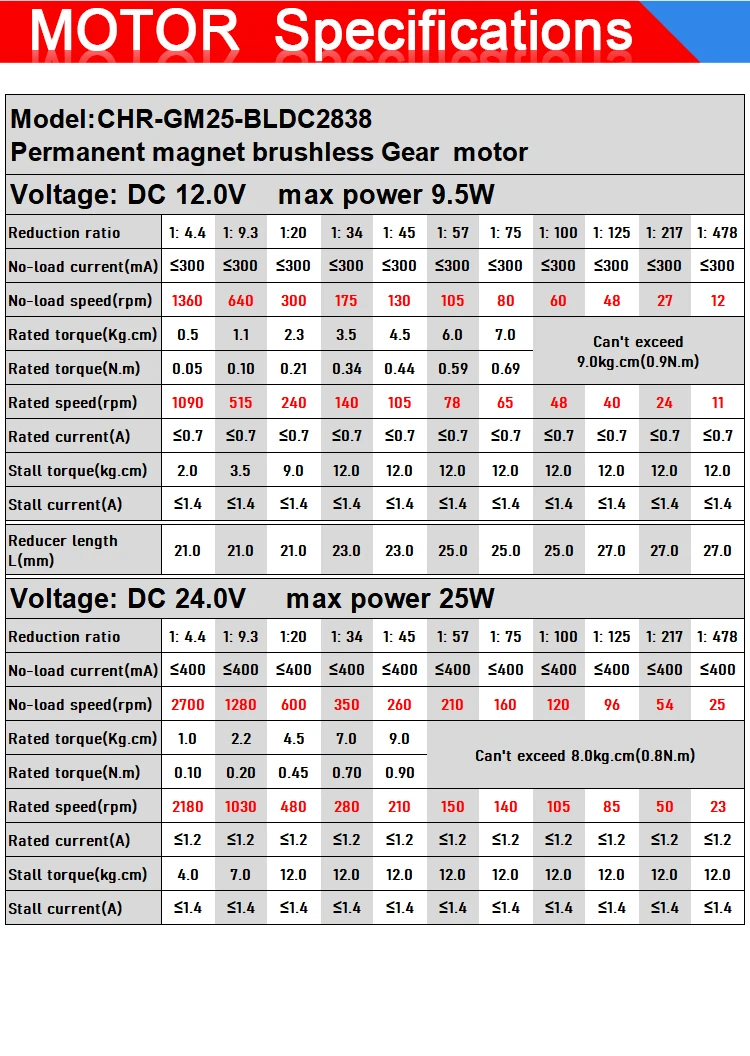

Product Paramenters
Application
Certifications
Company Profile
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
