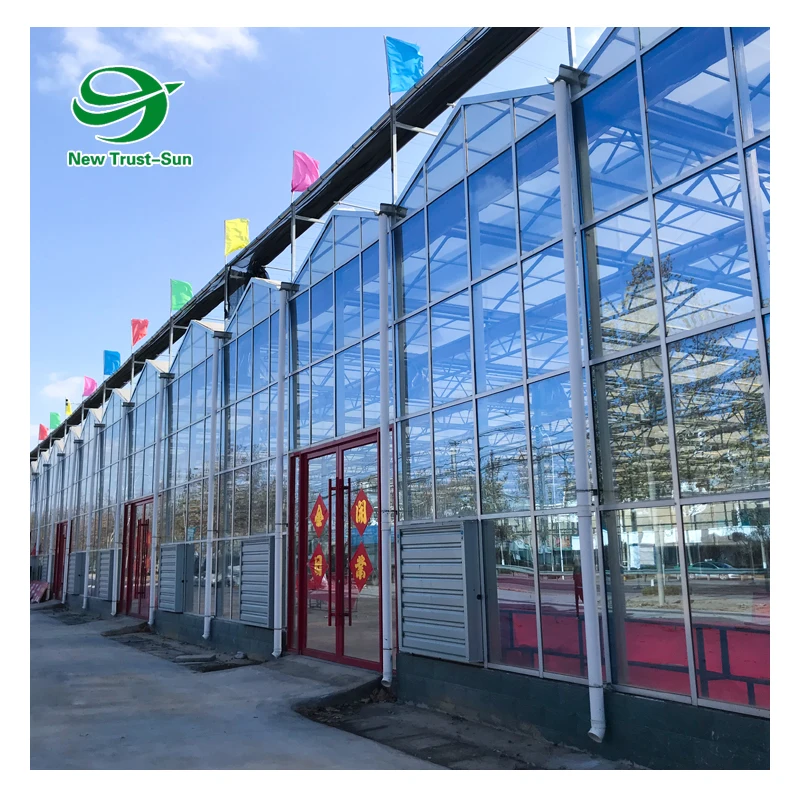

Agricultural Vegetable Intelligent Glass Greenhouse with Hydroponics System Price
- Category: Other Greenhouses >>>
- Supplier: Qingzhou New Trust-Sun Environmental Technology Co. Ltd. [Shandong China]Qingzhou
Share on (62406854487):
Product Overview
Description

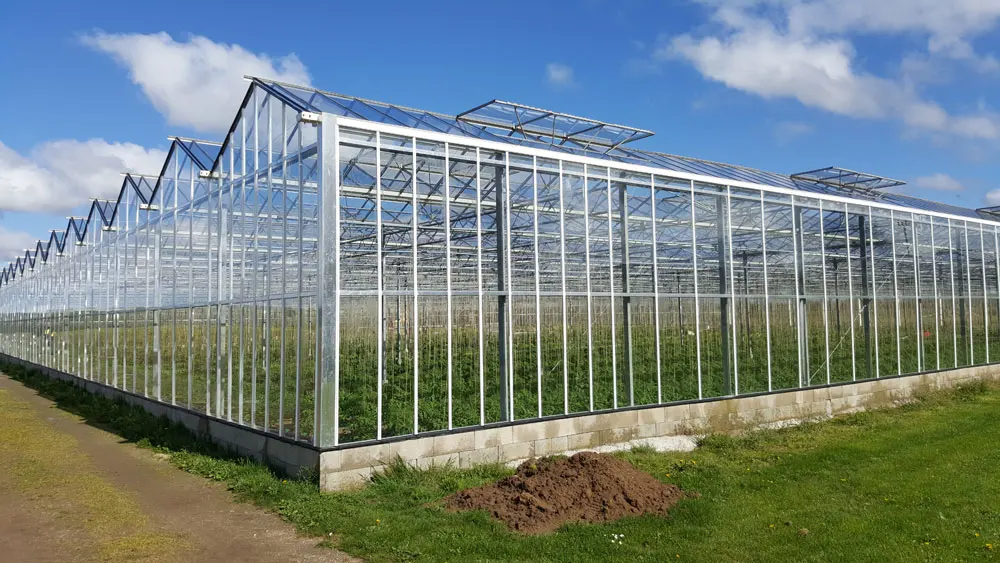

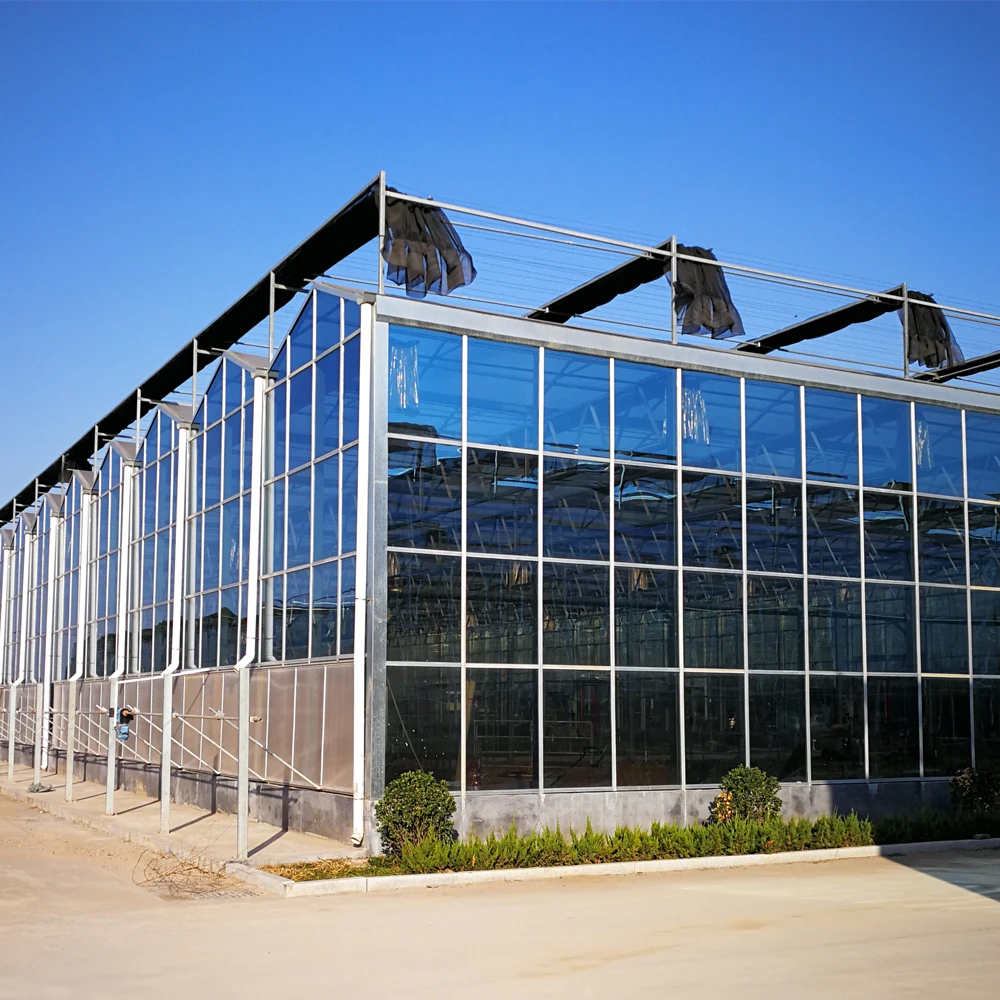

multi-span greenhouse
A more scientific definition is "a covered structure that protects the plants from extensive external climate con-ditions and diseases, creates optimal growth microenvironment, and offers a flexible solution for sustainableand efficient year-round cultivation." A modern greenhouse operates as a system, therefore it is also referred toas controlled environment agriculture (CEA), controlled environment plant production system (CEPPS), or phy-tomation system.
Detailed Images
★Cover materials 4+9+4、5+6+5、5+9+5 float single layer glass or hollow glass (or tempered).
★Span：6.4m/8.0m/9.0m/9.6m/10.8m/12m.
★Eaves height：3m-9m etc.
★Column space：4m/8m.
★Top window：long or staggered.
★Side window：rack out-tuning window, sliding window, electricial vertical push-pull window.
★Related facilities: Different facility can be provided according to the greenhouse functions.
Size Information

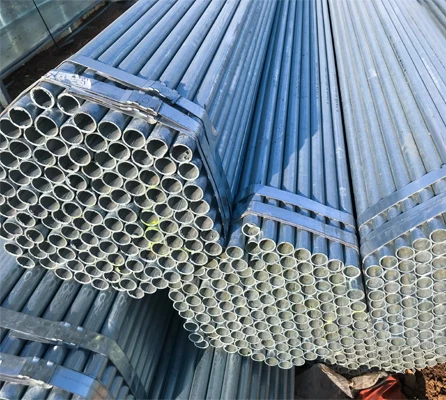

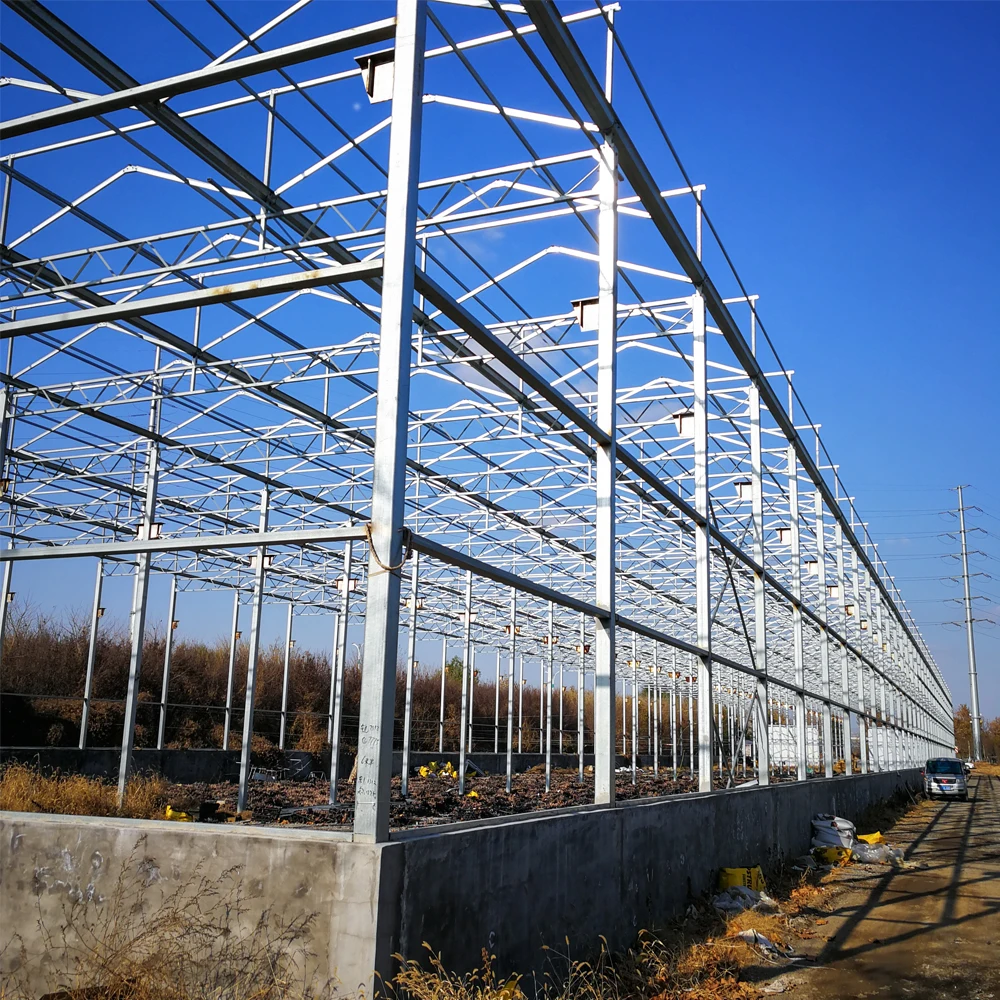

★ It adopts high-quality hot-dip galvanized steel, and all components are
welded first and then processed with galvanizing.
★ Twenty (20) years quality assurance is provided. Zinc adhesion is
more than 490g per square meter, and the thickness is more than 70 microns.
★ All components are assembled on site, and the connectors and fasteners are anti-rust for 20 years.★Roofing and covering materials 4+9+4、5+6+5、5+9+5 float single layer glass or hollow
glass, glass can be completely tempered.Top covered 5 mm tempered glass.

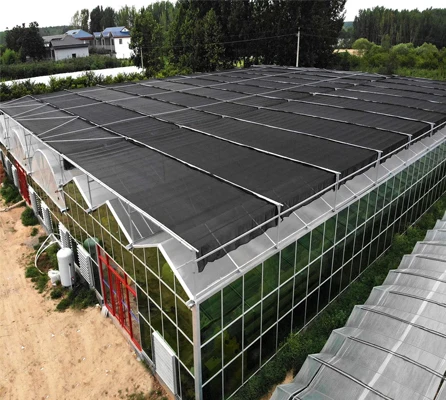

External Shading System
★ Anti-UV, anti-icing, reducing the damage to the top of the greenhouse.
★ According to different crops, different curtains are used to meet the needs of different crops for sunlight.
★ Shading and cooling: In the summer, the closed curtain can effectively reflect part of the sunlight. The greenhouse temperature can be lowered by 4 ° C ~ 6 ° C.
★The A-shaped gear is driven by the drive shaft for the gear motor，Realize full automatic control

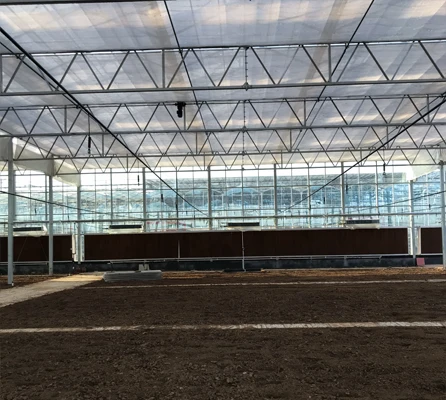

Inner Shading System
★Anti-fogging and anti-dripping: when inner
shading system is closed, the greenhouse can form two independent space, and it can effectively prevent dew formation and the mist in the greenhouse.
★Energy saving and heat preservation: in winter and at night, it can effectively prevent the heat inside the greenhouse from overflowing through radiation or heat exchange, so as to reduce energy consumption and reduce the operating cost of greenhouse．
★Water saving: Reducing the evaporation of indoor crops and soil moisture, so as to maintain air humidity effectively and reduce irrigation water.

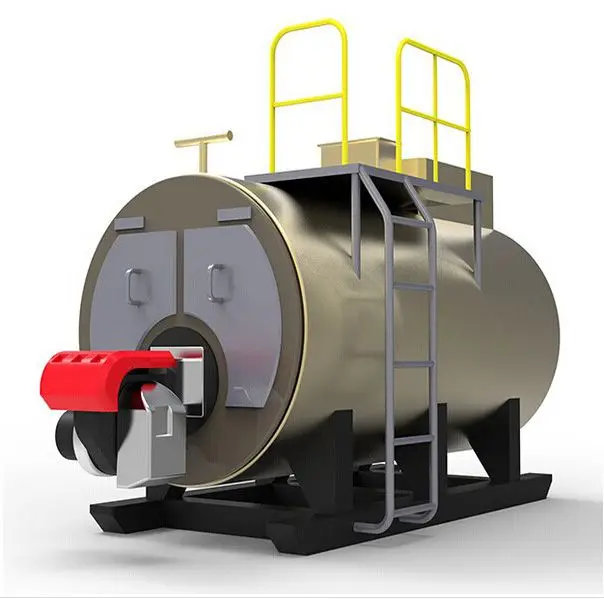

Heating System
★Avoiding the defects like uneven boiler temperature, incomplete combustion,
exhaust gas overflow, part damage caused by the positive pressure combustion.
Multilevel heat recycling technology is adopted, so the heat can be exchanged
completely.
★ Fresh air, uniform temperature, controllable: It is a comfortable and warm
farming environment. New unique dual fan design (energy saving + standby)..
★The furnace of the new boiler is made of special high temperature resistant cast
steel pipe and seamless pipe. It adopts secondary heating with features like high
thermal efficiency, fast heating, clean hot air, semi-automatic temperature control, easy to install and so on.

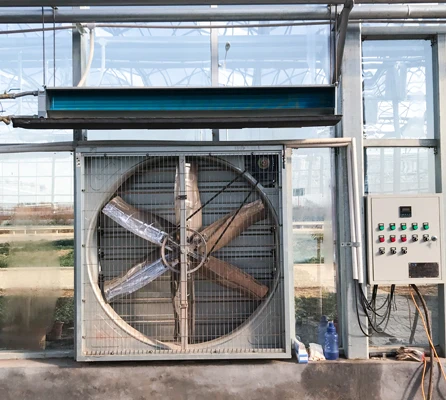

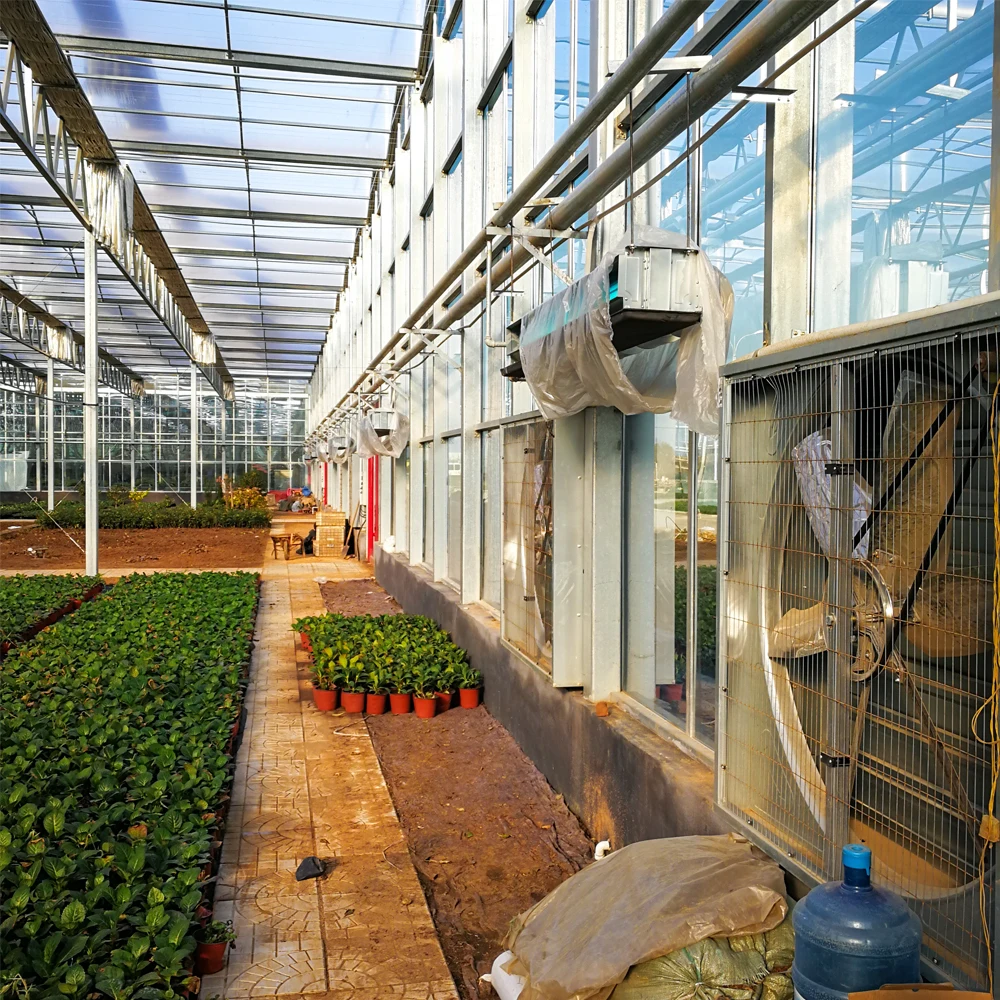

Greenhouse Fan
★ High-strength alloy casting hubs, new twist-formed fan blades, and a large amount of airflow generated at a reasonable
angle of the blade.
★ Strict quality inspection procedures: voice monitoring, vibration detection, rotation concentric performance detection,
blade speed detection, air volume detection, machine efficiency detection.
★ High-performance 380V three-phase motor. Two kinds of air collectors: iron collectors and glass collectors. The rear safety
net is easy to disassemble. CAD design is optimized.

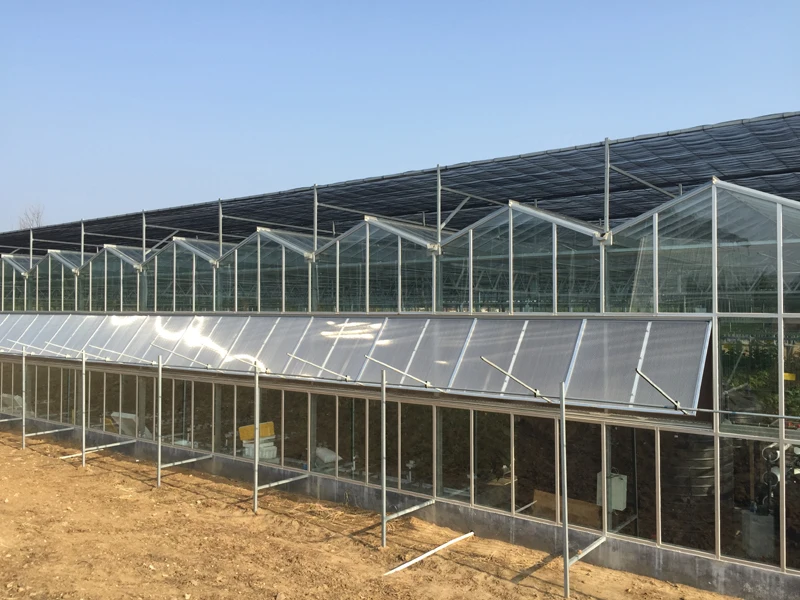

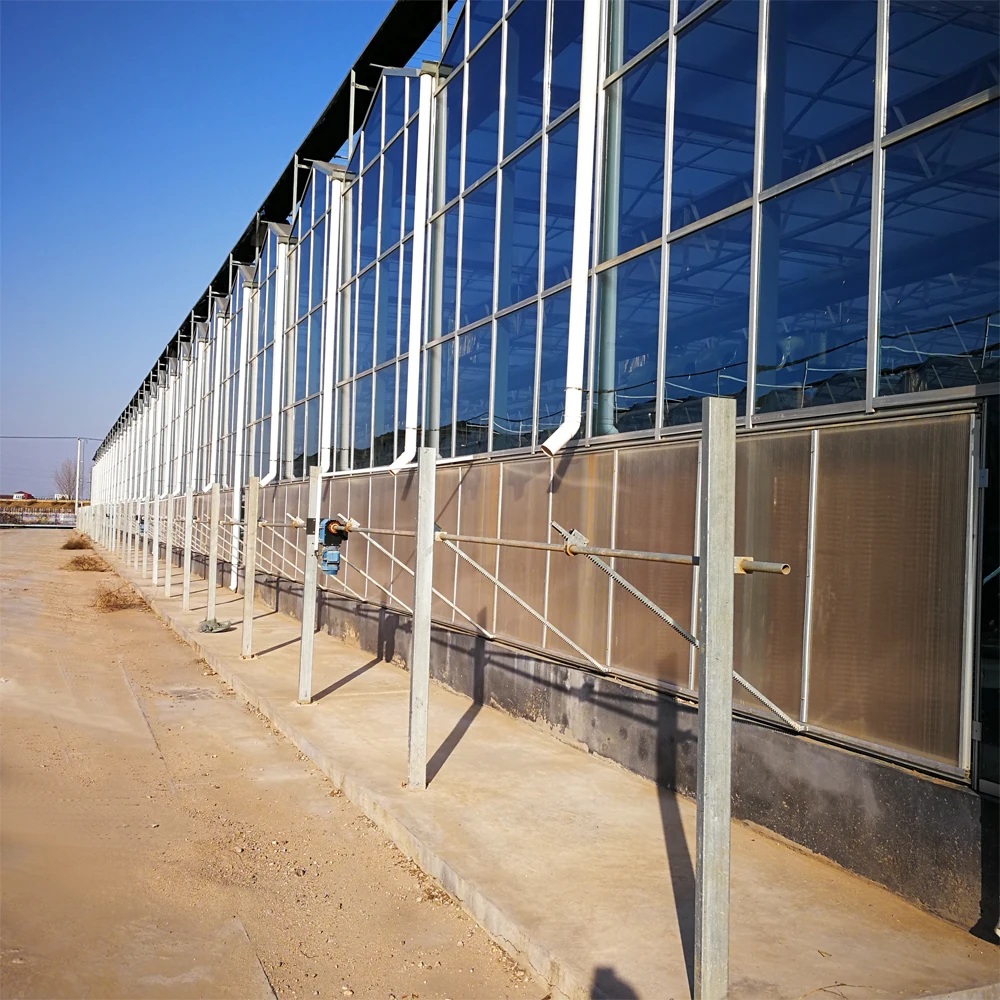

Skylight Side Opening System
★The side window adopts the integral mechanical transmission mode, which cooperates with the sunroof
to cool down, and adopts the externally-turned or push-pull side window.
★ Unique anti-insect net design can prevent insects and debris from entering the greenhouse and reduce
infection towards greenhouse crops.
★The skylight and side window adopt gear and rack transmission mode and electric control system.

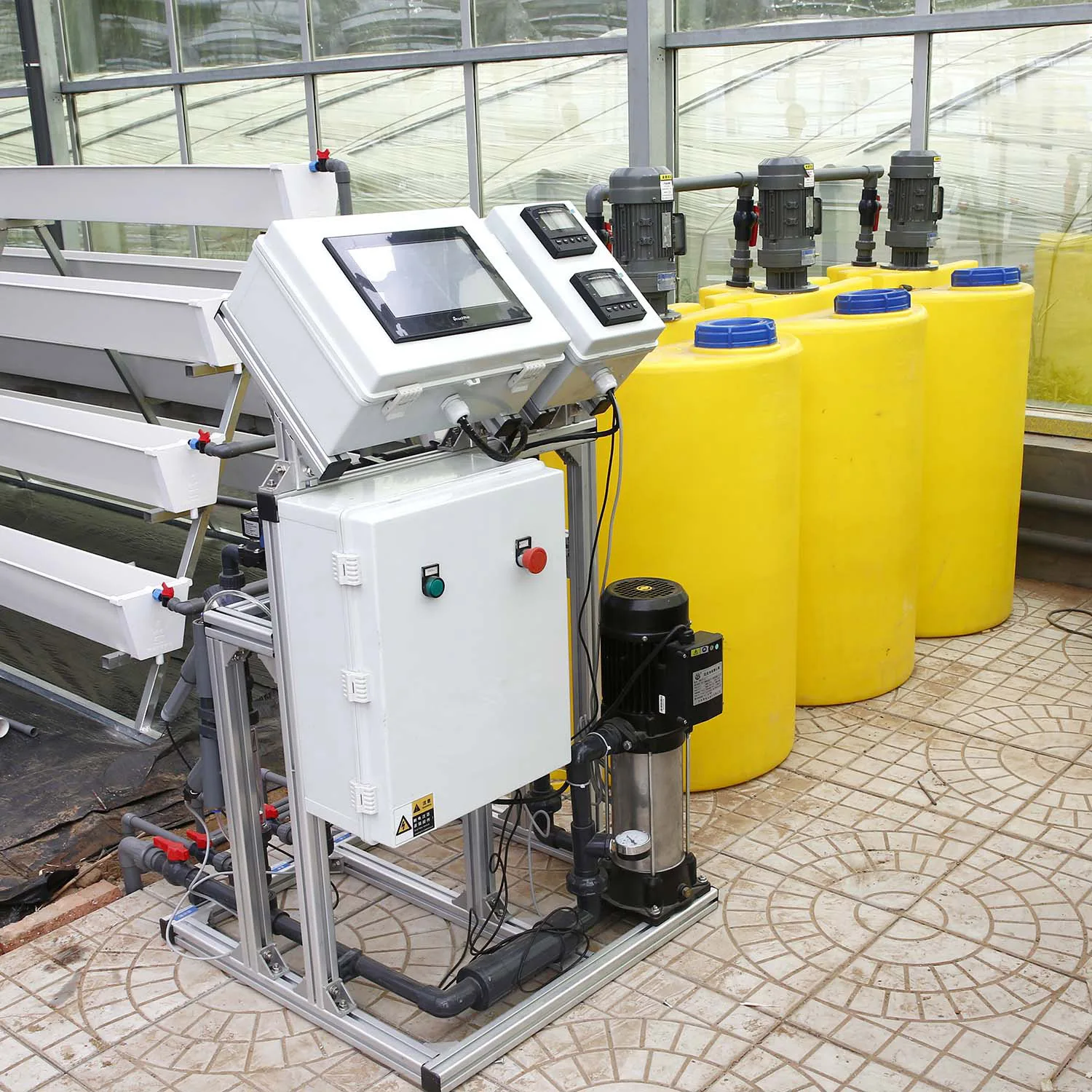

Irrigation/fertilization System
★ A well-designed irrigation and fertilization water treatment system improves the absorption function of crops and improves
the quality of crops.
★ It is especially suitable for the areas with poor water quality and for greenhouses which have high requirements towards the water quality.
★ The advanced treatment process is effectively combined with the greenhouse production process.

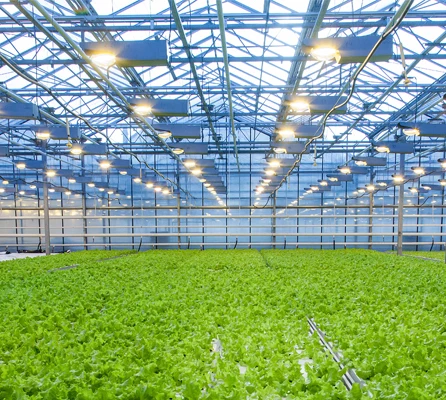

Lighting System
★Remote monitoring and service capability.
★Reliability and anti-interference.
★Humanized design.
★Intelligent greenhouse computer control system consists of : "weather station" + "indoor environment sensor" + "greenhouse control software".
★Greenhouse control software: it will provide automatic control for the greenhouse shading system,cooling system, skylight system and other devices. At the same time, it will collect, record the environment
data for the greenhouse, and form the data report and curve graph automatically.

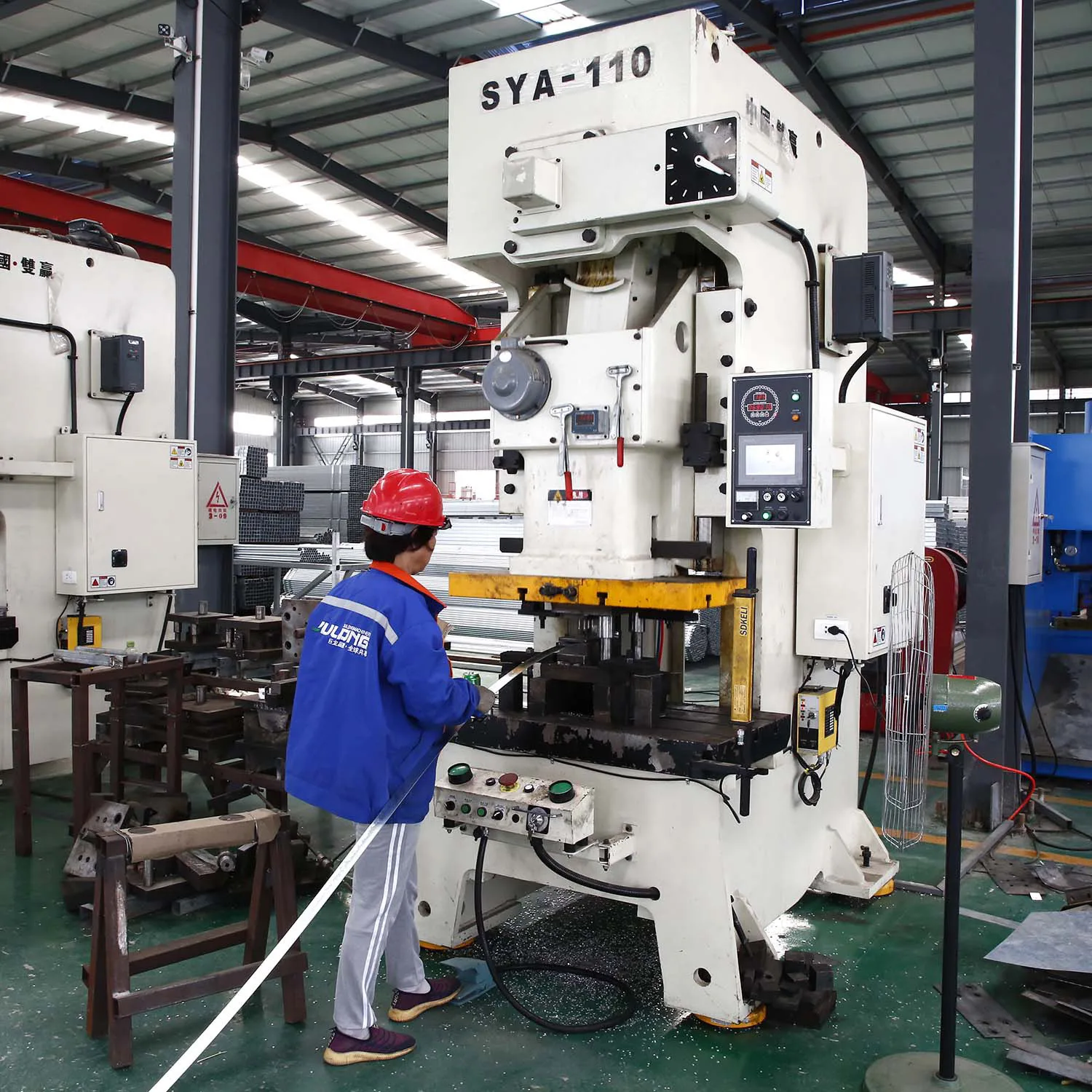

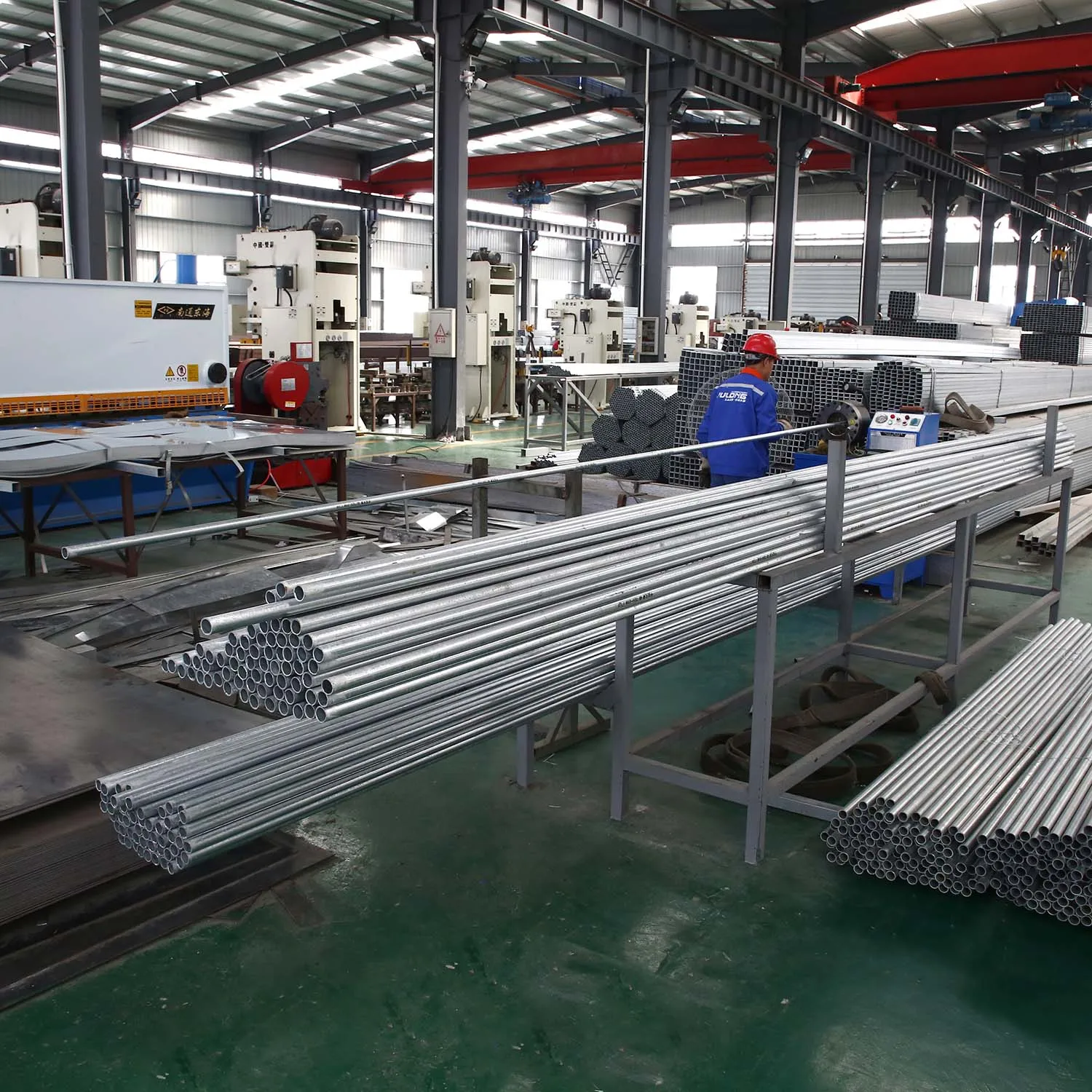

Company Introduction
Start the business of greenhouse structure design from 1990
Become the integrated greenhouse solution supplier since 2000. Engaged in the technology improvement and innovation, we can offer the comprehensive greenhouse system like cooling system, ventilation system, shading system, heating system and other system for
Exploit the overseas market from 2010. One stop service. design, manufacture, installation, after-sale guidance can be offered.
For now, we have exported more than 20 countries like Turkmenistan, Uzbekistan, Saudi, Australia, New Zealand and so on. The high quality product has won the trust of clients
Related Products
Reducer
volume curtain machine
electrical film rolling machine
Electric Motor for Curtain
shading parts
pinion
PO film
heat insulation blanket
round wire shading net

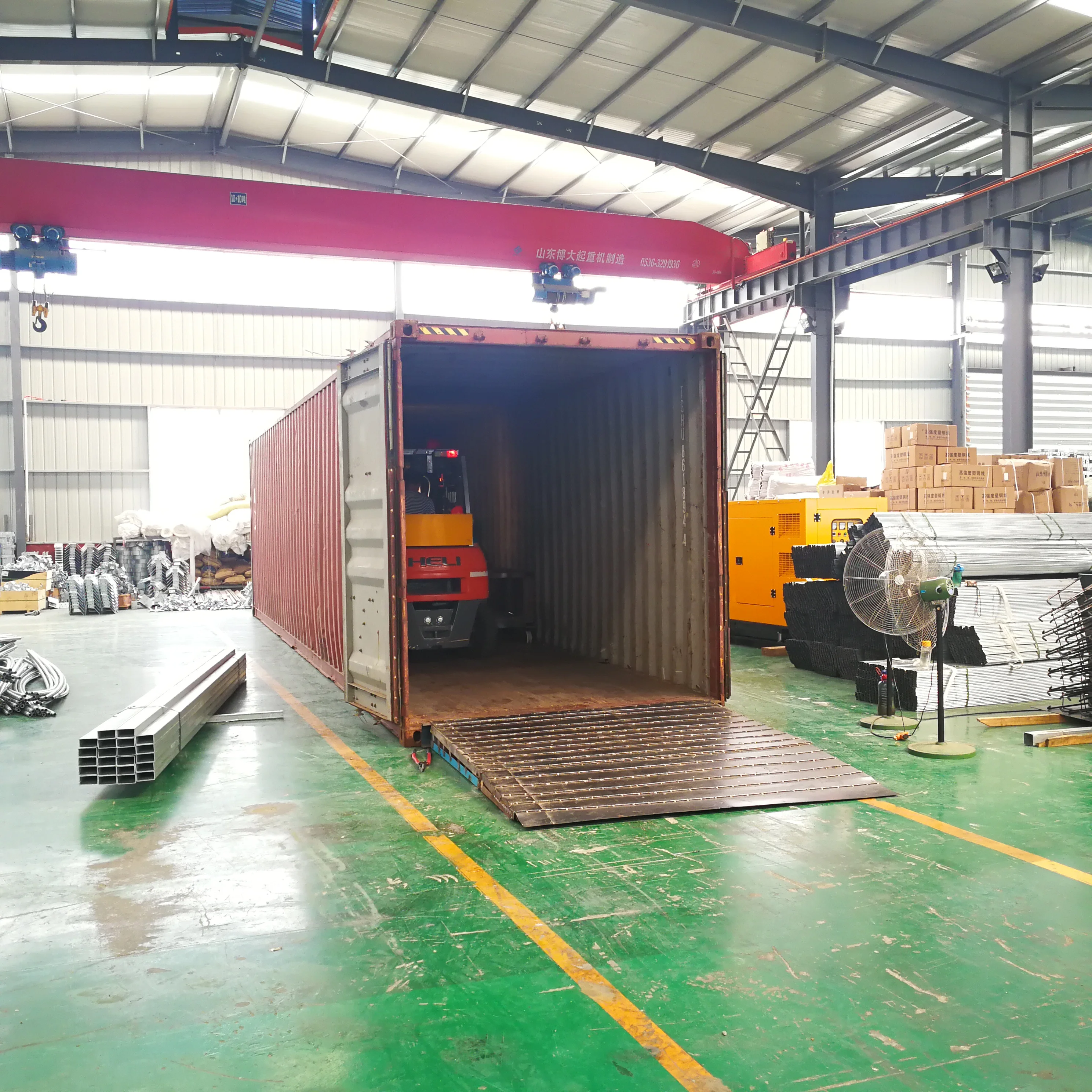

Packing&Shipping
