20 30 tons capacity complete set rice milling machine/ rice processing line

20 30 tons capacity complete set rice milling machine/ rice processing line

Category: Rice Mill >>>
Supplier: Hubei Pinyang Technology Co. Ltd.

Price:$19,800.00

Quantity:

Product Overview

Description

Mini Capacity Combined Rice Mill Machine For 20 Tons Per Day

91.8% Response Rate

15 Tons Auto Combined Rice Processing Line Rice Milling Equipment

91.8% Response Rate

30-40 Tons Automatic Rice Mill Plant Machine Paddy Machinery

91.8% Response Rate

Product Description

Product Application

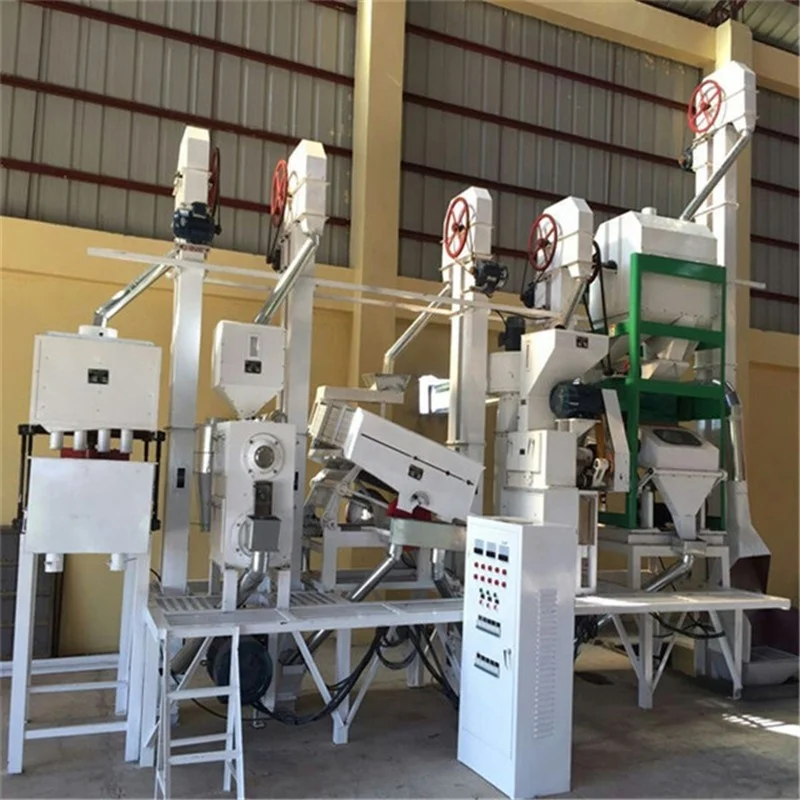

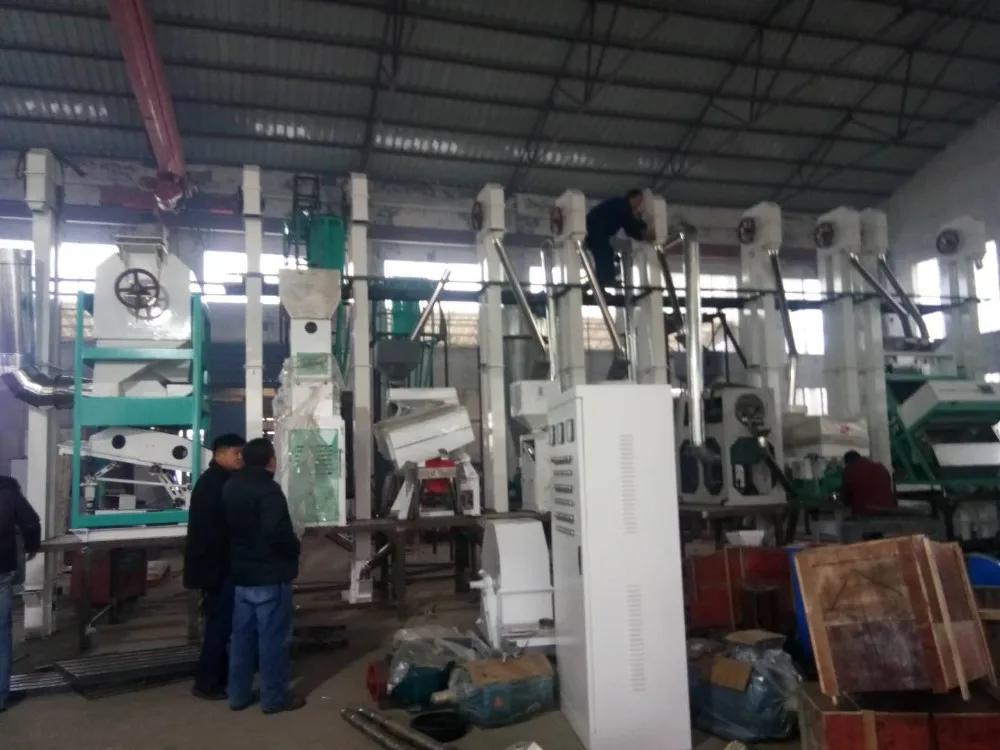

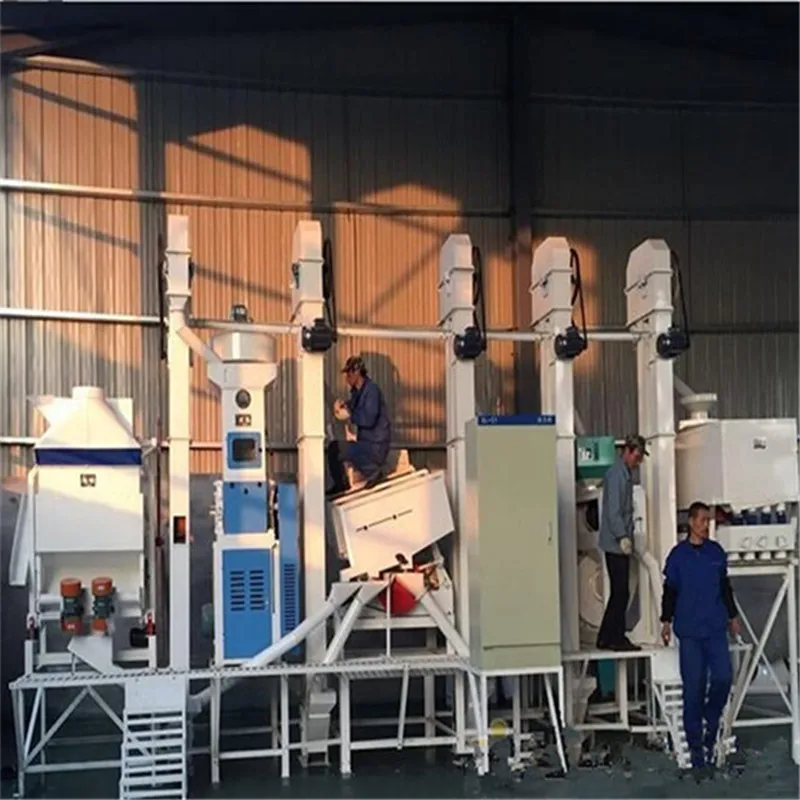

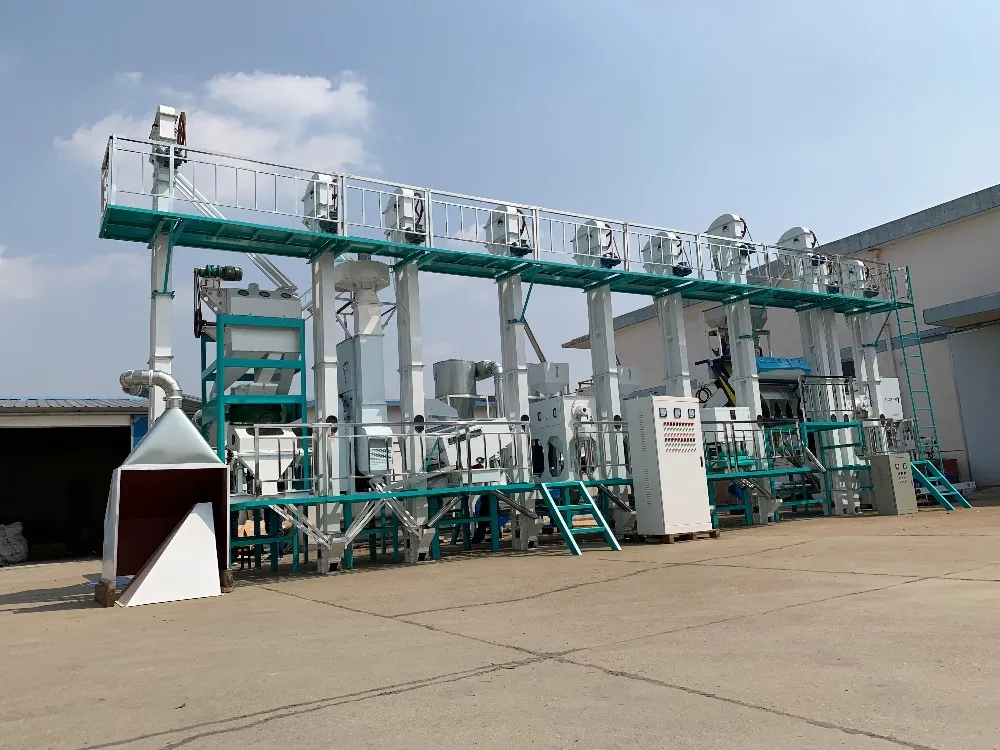

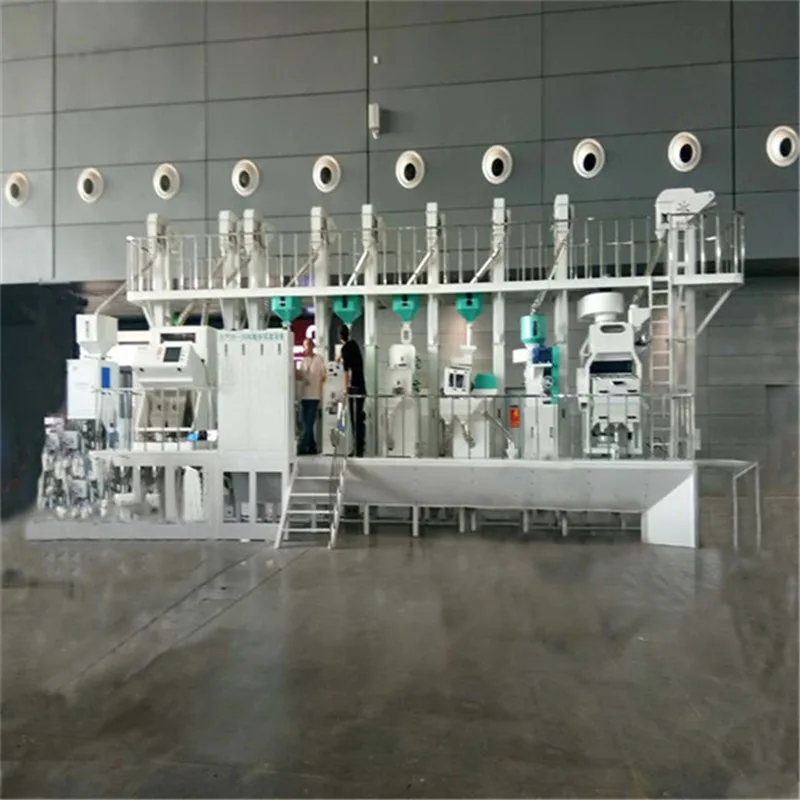

20-30 tons/day complete set rice mill machinery from cleaner ,destoner ,husker ,whitener .grader .mist polisher to color sorter ,packing machinery .input capacity will be 5-6 tons per hour ,out put will be 3-4 tons per hour.
This rice mill machine is choose excellent vibratory sieve,destoner, rubber roller husker, paddy separator, rice whitener, white rice plan sifter and high efficient for the bucket elevator and electrical console of complete sets of rice milling machine, whole process of rice cleaning, hulling, husking, roughing and milling is carried out automatically and continuously.

SPECIFICATIONS FOR 20-30 TON PER DAY COMBINED RICE MILL MACHINE
Item	Description of goods	Quantity
1	TZQY/QSX75/65 Combined Cleaner	1
2	LTB20 Husker	1
3	MGCZ100*5 Separator	1
4	MNMF15B Rice Whitener	1
5	MJP63*3 Rice Grader	1
6	Elevators	5
7	Electrical Control Cabinet	1

Main Features

1. This complete set rice mill machine cover an area of an area small, small investment, and apply the latest technology of rice milling, improve the milled rice rate, reduce broken, lower temperature meters, good bran removal effect, stable mechanical performance, convenient operation and maintenance.
2. Every major operation unit is driven by an indepandent ganerator, which is controlled by an independent control panel.
3. Craft work can be designed specially, combined flexibly and processed into different kinds of excellet rice according to different client's need.
4. The device is coated with a technique of static spray coating; the coating looks smooth and finr and is Weatherproof.
5. The feeding pipes are made of smooth glass, which looks good and very durable, too.
6. What's more, it is environment-friendly inters of adopting high-effective dust collecting unit to get rif of dust.

Detailed Images

Machine Parts

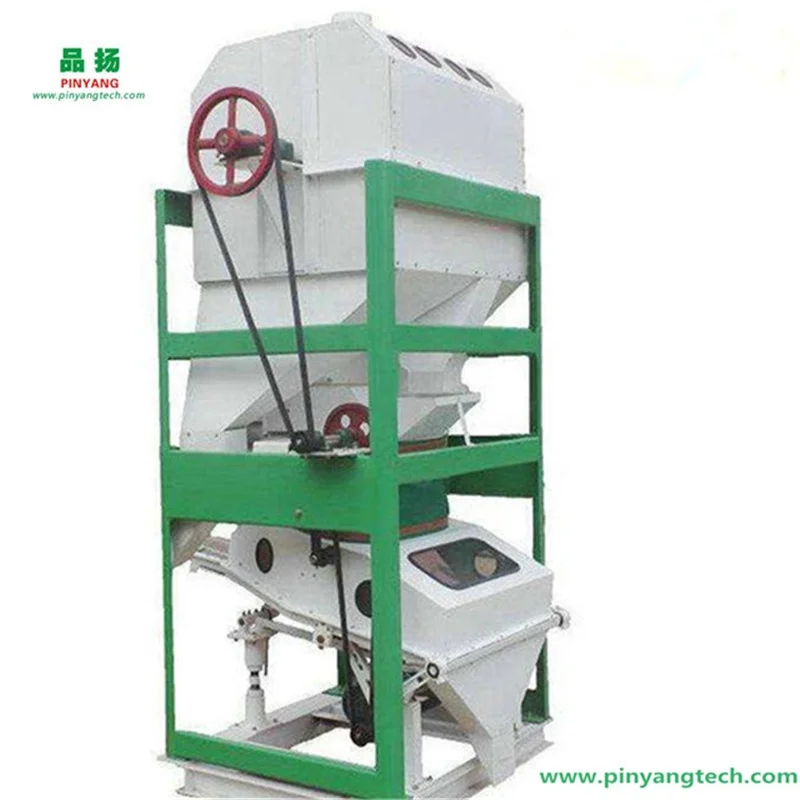

Name: Combined Cleaner

Brand: Pinyang

Original: China

The machine is used primarily for grain cleaning in grain mills and grain storage facilities. It remove coarse and fine impurities from the grain by sieving.

Main Features

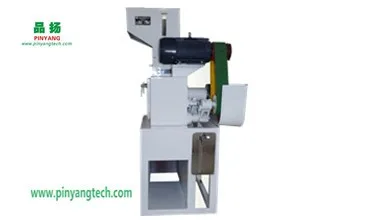

Name: New-Type Split Patty Husker
Brand: Pinyang
Original: China
The equipment is D&R by the German miller company, exclusive domestic production. It replaces the traditional intermesiate gear control rubber roll wiring harness with split independent drive. It is with the lowest noise and the shelling ratio increases up to 95%. Furthermore, it is efficient, wareable and maintenance-free for 5 years. It's a re-formative product in the line of rice huller.

Machine Parts

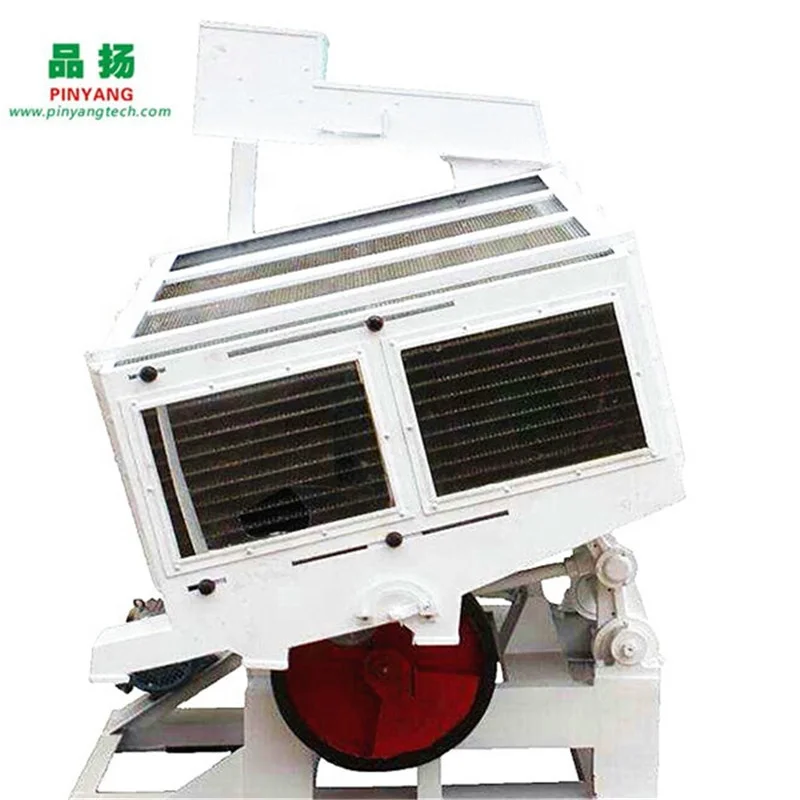

Name: Paddy Separator
Brand: Pinyang
Original: China
This equipment adopts production principle of large polished rice plant and it is equipped with unique MGCZ. Making sure that there are no rice and husk in the finished ones regardless of the type of grain or excessive water. Furthermore, there is no rice and unprocessed grain in the screen body. Rice can be processed on the equipment regardless of its quailty and complete screening can be reached, which is in leading position in the industry.

Main Features

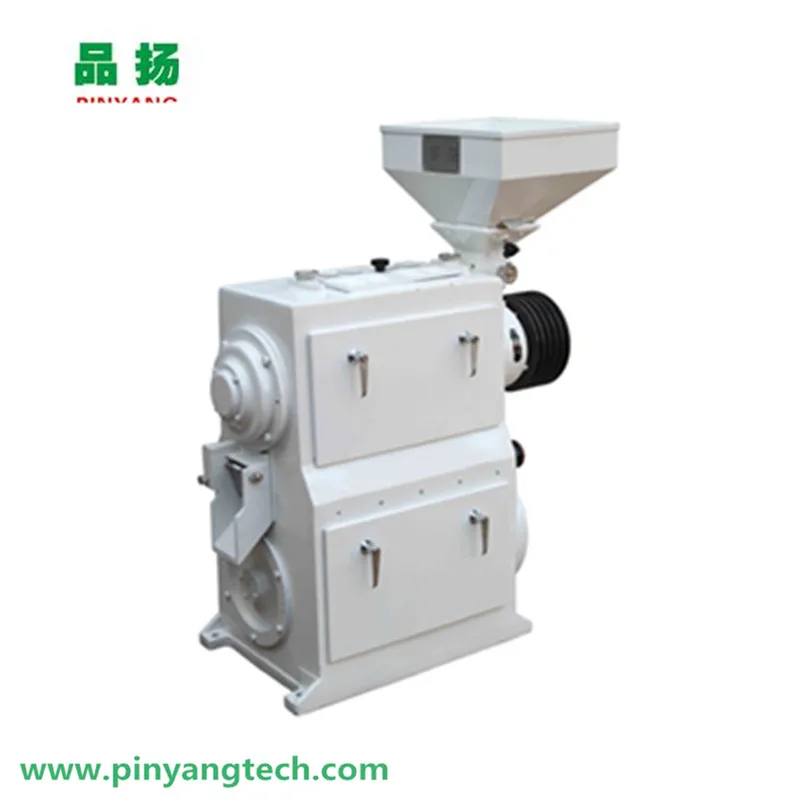

Name: Negative Pressure Emery Rice Mill(Whitener)
Brand: Pinyang
Original: China
This equipment features low noise and smooth operation. With its unique rice milling technique, each grain of rice can be evenly unshelled, whitened and polished while keeping close contact with the emery roller, producting very few broken rice grains and making higher rice milling rate.

Main Features

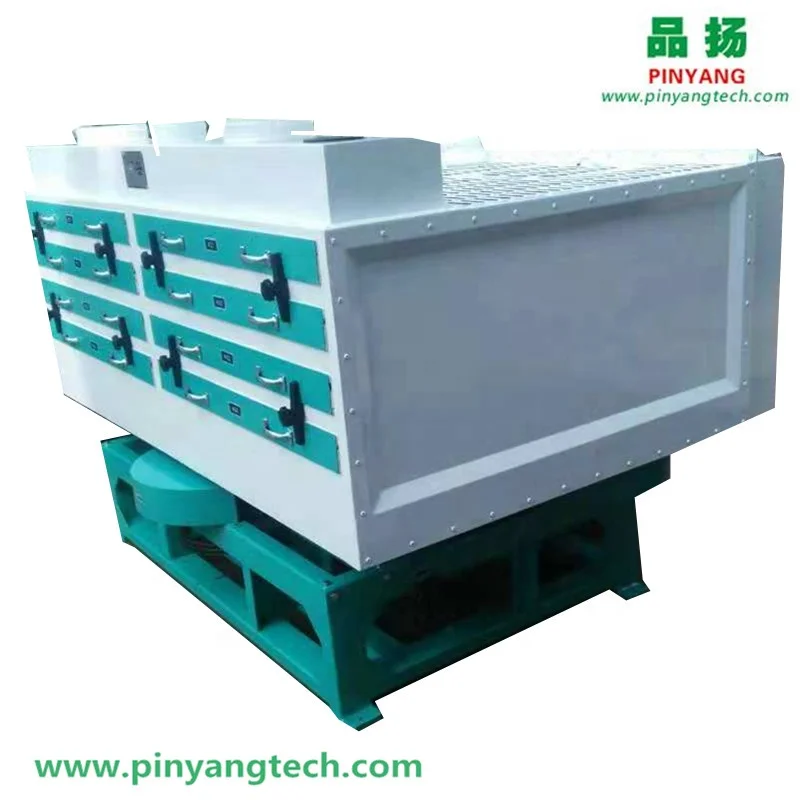

Name: Plan sifter
Brand: Pinyang
Original: China

The machine is used to grade rice into different levels for rice processing through the rotating on the sieves. rice is automatically graded into different rates, according to the shapes of rice.

Main Features

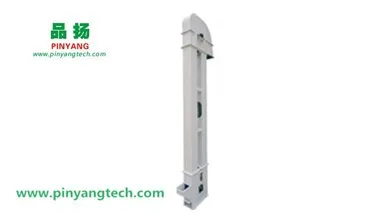

Name: TDTG/25 Double Elevating Conveyor
Brand: Pinyang
Original: China

Supported by 0.75kw 6-level low speed motor, it is suitable for synchronous vertical lifting of two different granular materials double-in and double-out. The lifting output is 2.0-3.0T/H.

Our Service

We have the professional engineer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from per-sale to after-sale.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Company

Hubei PinYang Technology co.,ltd is a manufacturer and trader specialied in the research, development and production of rice mill machinery, from the cleaner, de-stoner, husker, whitener, mist polisher, grader, packing machinery to the color soter. Complete set of rice mill from 20 tons to 200 tons per day. We localed in the Yunmeng city, Hubei province, China. With convenient transporation access, all of our products comply with internationan quality standards and are greatly appreciated in a variety of different markets through the world.
