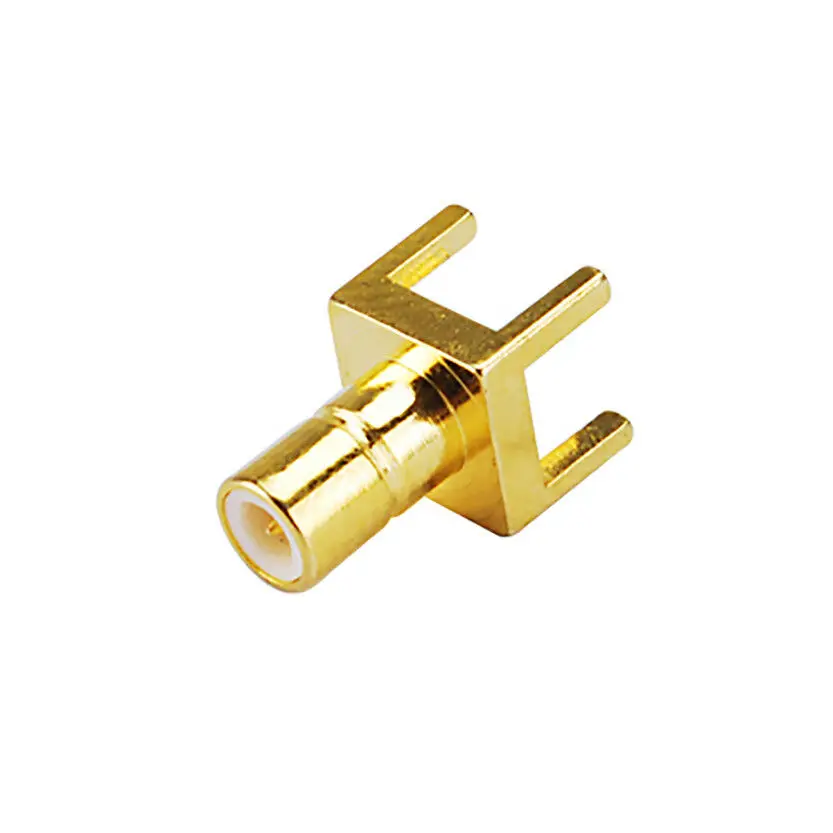

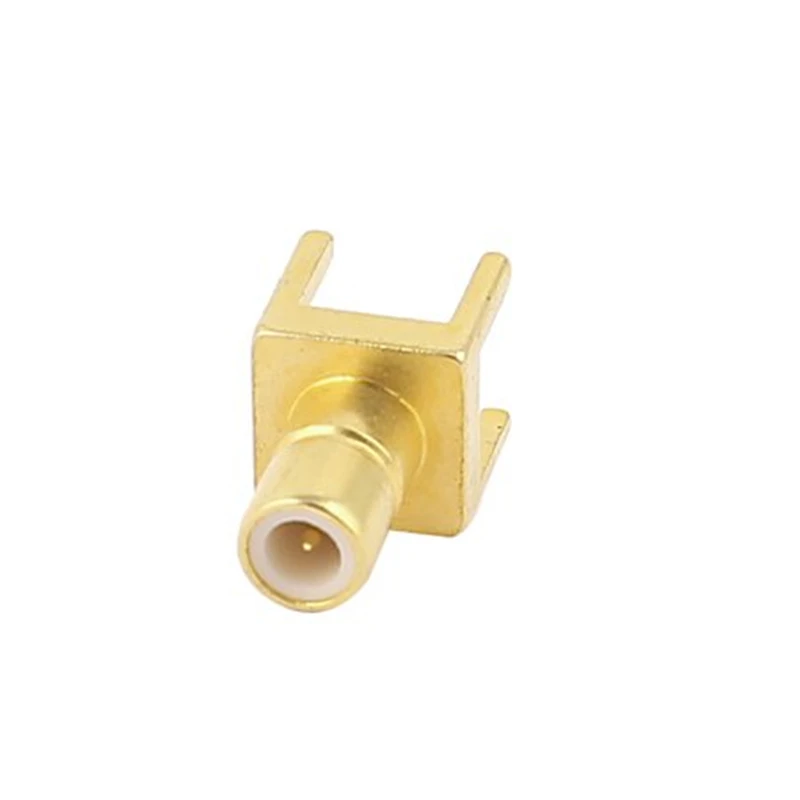

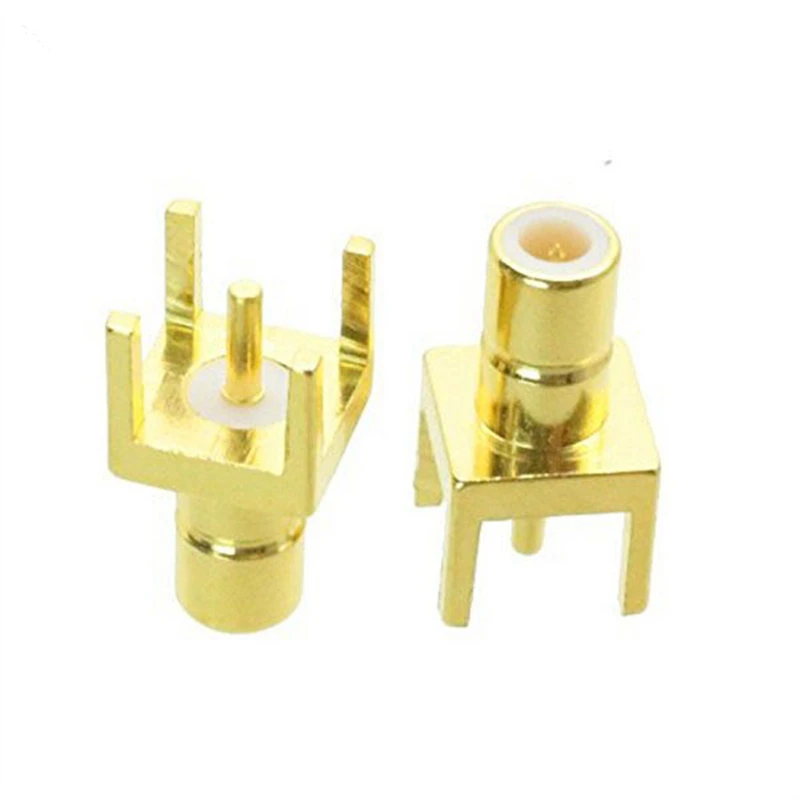

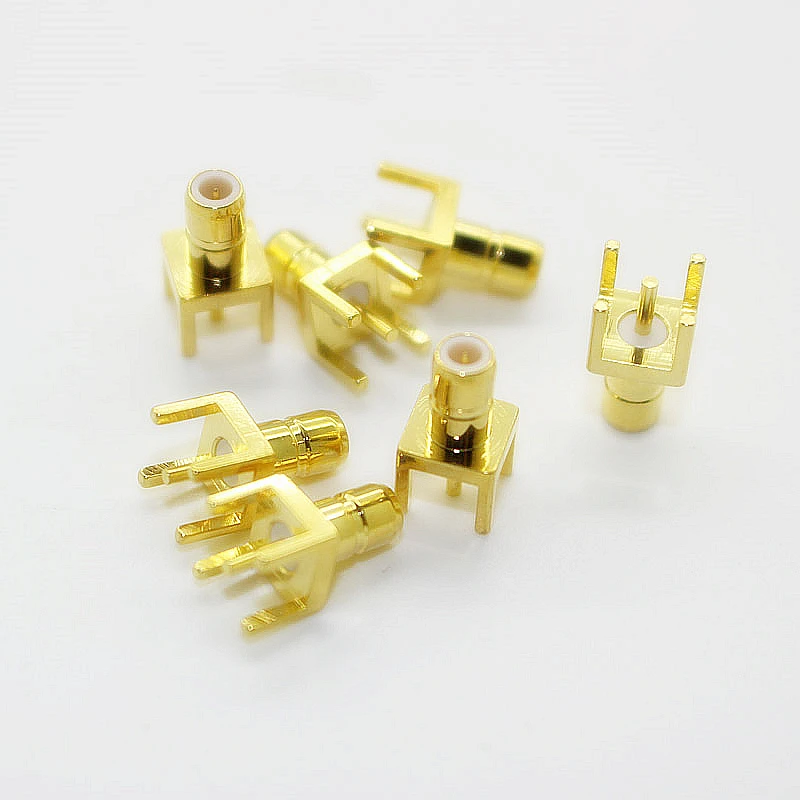

High quality SMB Male Center Solder For PC Board PCB Mount Straight RF Connector
- Category: >>>
- Supplier: Danyang Hengtong Electronic Co. Ltd.
Share on (62406900164):
Product Overview
Description
Product Description
Type SMB:with inner diameter of outer conductor 3mm(0.12in)with snap-on coupling-Characteristic impedance 50Ω The series connectors are one kind of low power mininature connectors with snap-on coupling mechanism and have the characteristics of light weight,small size,convenient tconnection and excellent characteristics.They are for connect cobles in RF circuits of electronic equipment.
Temp.range | -55~ + 155℃ Polyethylene cable-40 ~ +85℃ |
Vibration | 100/S2 (10 ~ 500Hz) |
Impedance | 50 Ω |
Frequency range | 0 ~ 3 GHz |
Center conductor withdrawal force | ≥ 0.28 N |
Contact resistance | Center conductor ≤ 5 mΩ Outer conductor ≤ 2.5 mΩ |
Insulation resistance | ≥ 1000 MΩ |
Withstand voltage | 500 V rms ( At seal level ) 100V ( At 4.4KPa) |
Working voltage | 700V rms ( At seal level ) 100V ( At 4.4KPa) |
VSWR | Straight 0 ~1GHz ≤ 1.22 0 ~3GHz ≤ 1.35 Angle 0 ~1GHz ≤ 1.5 0 ~3GHz ≤ 1.63 |
Durability | 500 cycles |
Connector Part | Material | Plating |
Bodies | Brass | Gold |
Socket Contact | Beryllium-copper | Gold |
Insulator | PTFE | Natural |
Size Information
Applicable Standard: CECC 22340
Size: International Standard Or Customized
Application
They are for connect cobles in RF circuits of electronic equipment.
Related Products
Packing&Shipping
Can provide various sizes and packing according to specific requirements; Packing material: PP bag,copy
paper,carton,wooden box,palltes; Meet export requirement; According to customer's required.
