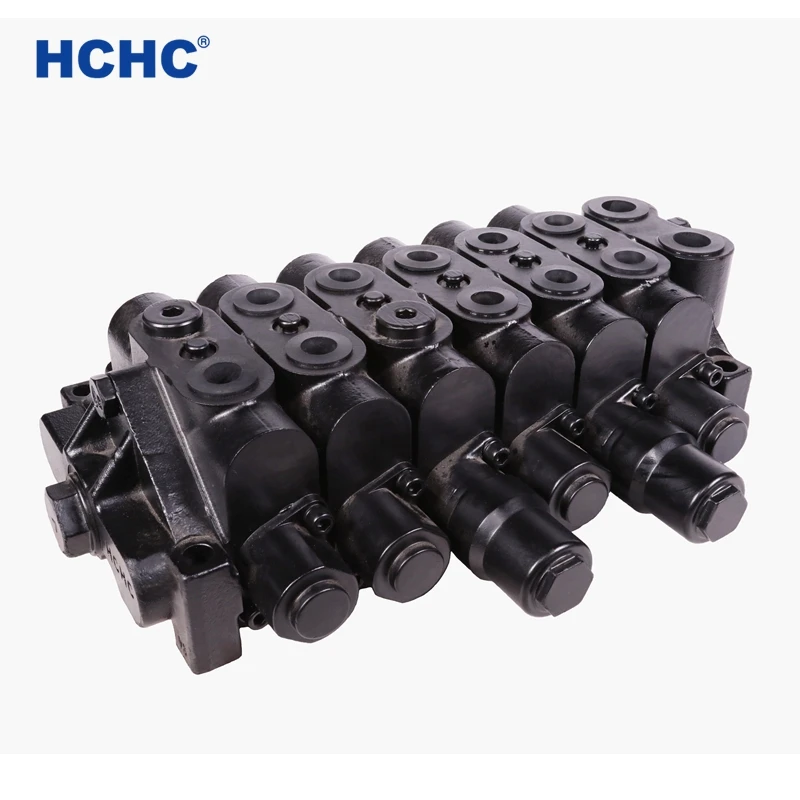

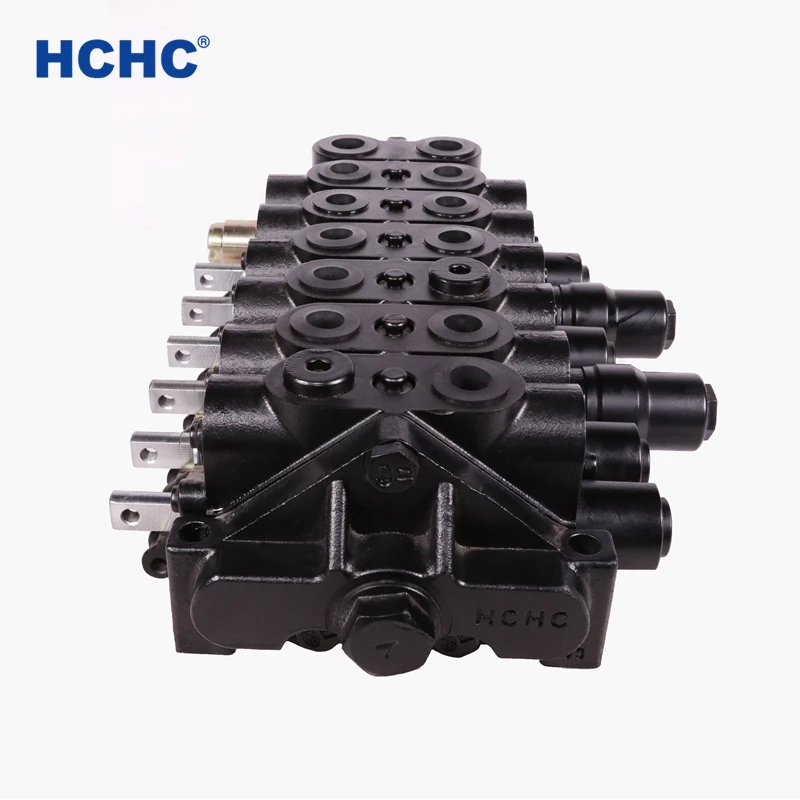

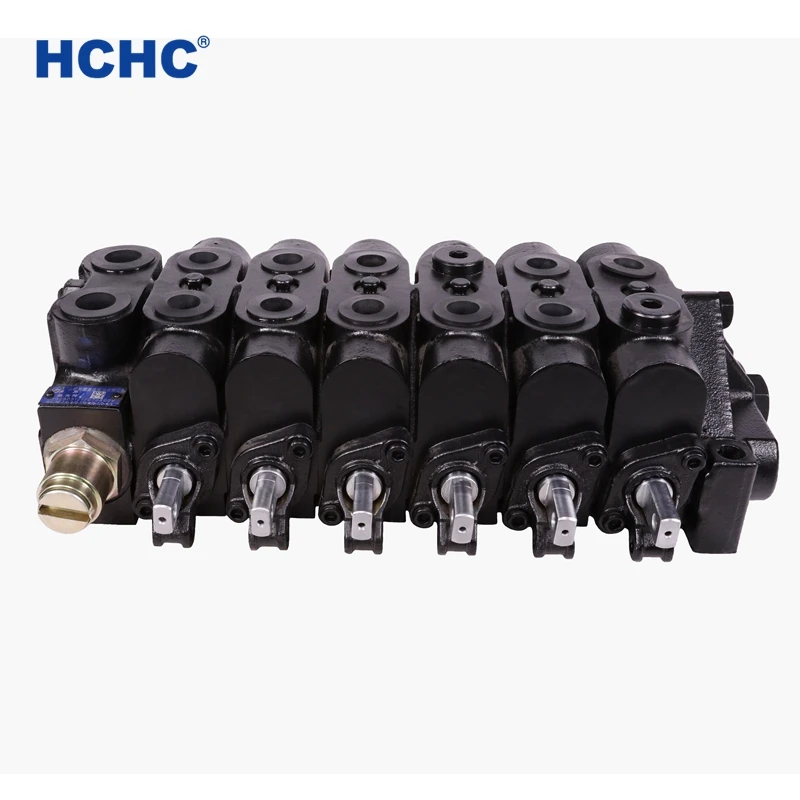

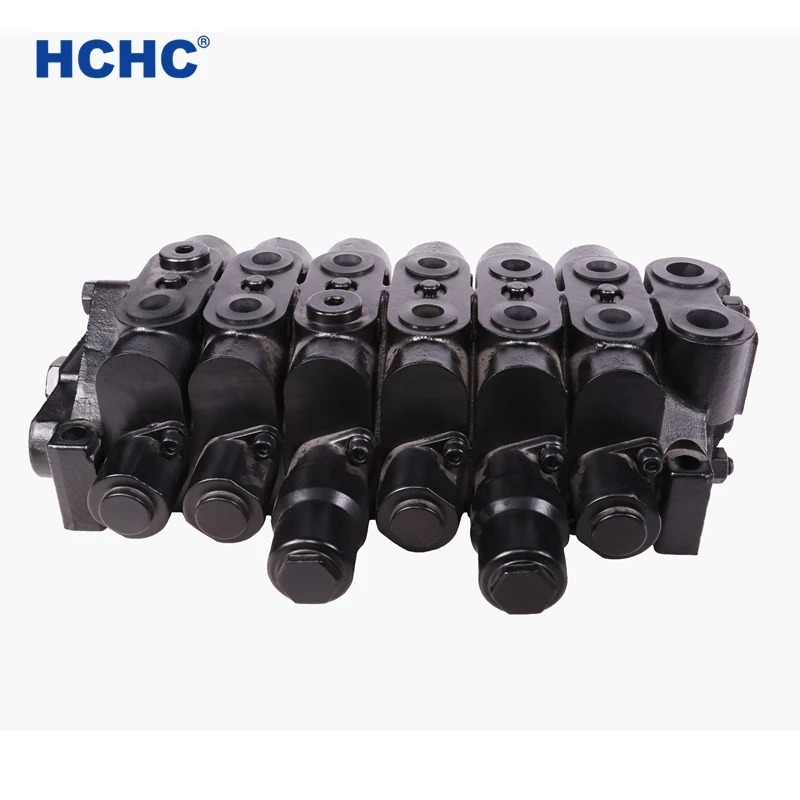

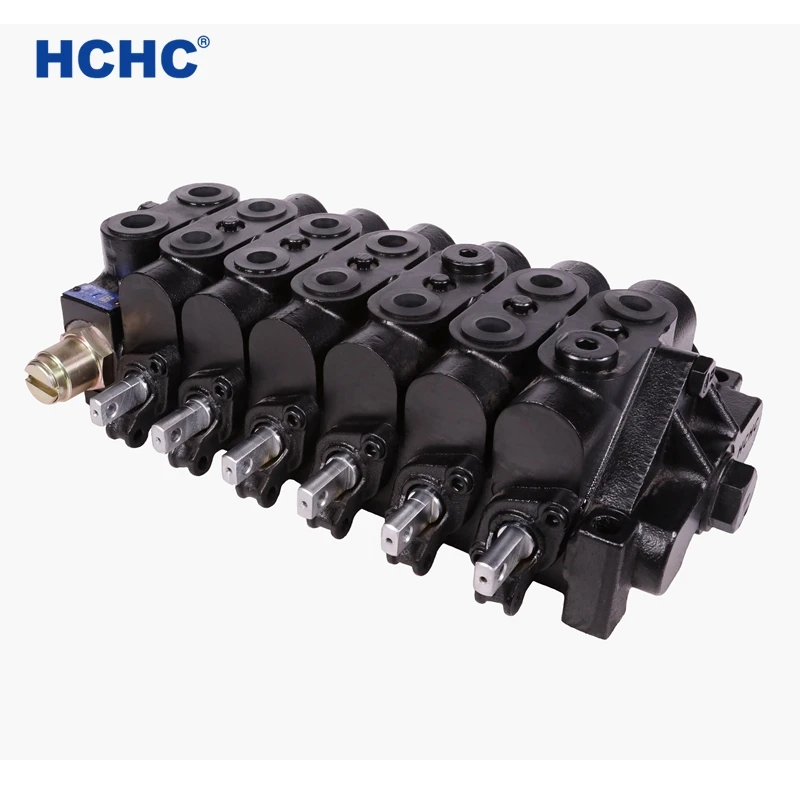

China manufacturer hydraulic flow control valve DF2-L5F
DF2-L15E is a sectional type multi-directional valve with parallel oil circuit which consists of inlet valve plate and a number of commutator valve plates. There is a safety valve on the inlet valve plate. Each commutator is equipped with an independent one-way valve, which can also be loaded with an overload valve or a single-double acting conversion valve to load or unload the oil port of the side.
This valve has spring retain and steel ball positioning which can achieve A, O, Y and Q functions in accordance with according to user's needs and are widely used in engineering machinery and agricultural machinery industries.

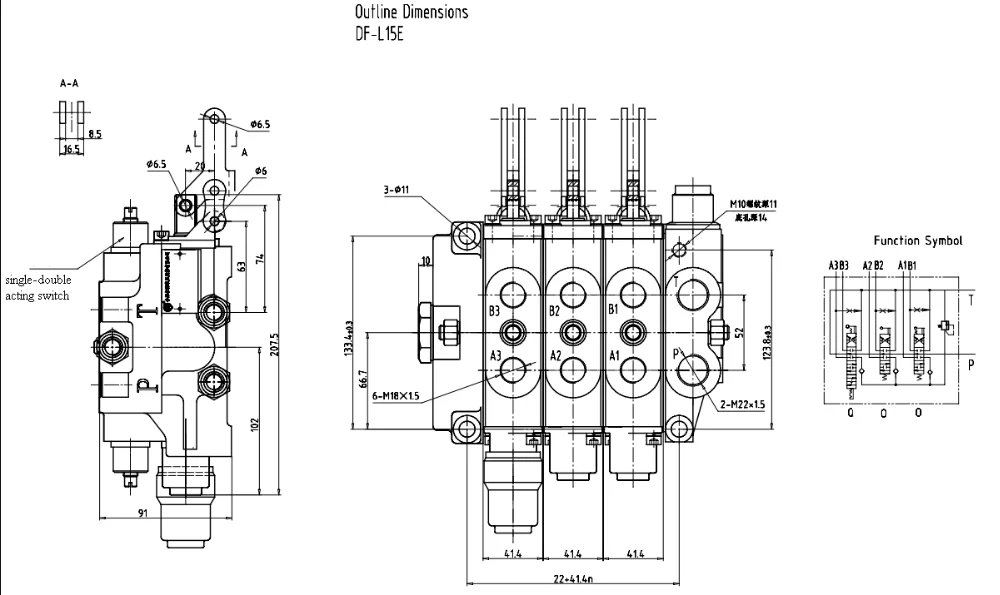

Specification
Model Code
DF2－L15E－ * / *－ * / *
① ② ③④ ⑤ ⑥ ⑦ ⑥ ⑧
① Product code ② Design code 1 means pressure output, if no pressure output, it will be omitted. ③ Joining port type: L=thread ④ Nominal size: 15mm ⑤ Pressure grade: E=160bar ⑥ Spool control type: T=spring, W=ball ⑦ Spool function type of block 1 ⑧ Spool function type of block 2
