Amazing heat shrink wrap machine / pallet stretch wrapping machine / shrink wrapping machine film

Product Overview

Description

 Suzhou PET Bottle Shrink Wrapping Machine/Shrink Wrap Package Machine Without Tray



Application range:

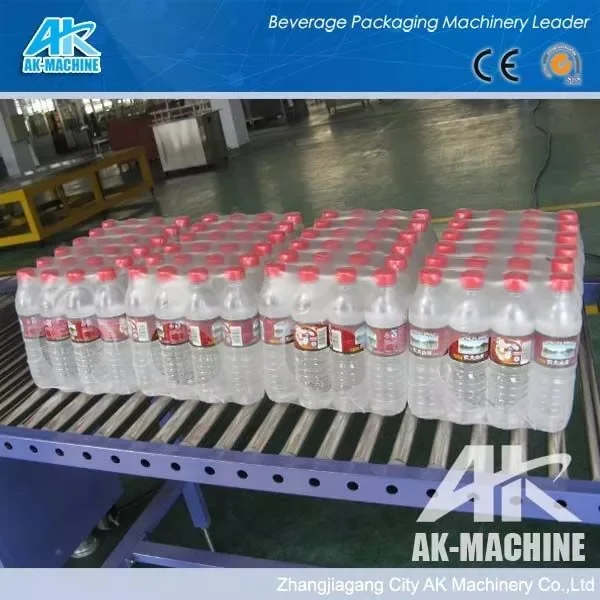

This type ot machine is suit for beverage, drinking water,beer wine and infusion bottle ect. packaging,which can be packed without tray and with a firm and beautiful  appearance

Advantages:
Applying imported PLC which can control the machine automatically,
with stabIe performance precise control
With the capacity of feeding and sorting bottles shrinking and cooling
shaping automatically

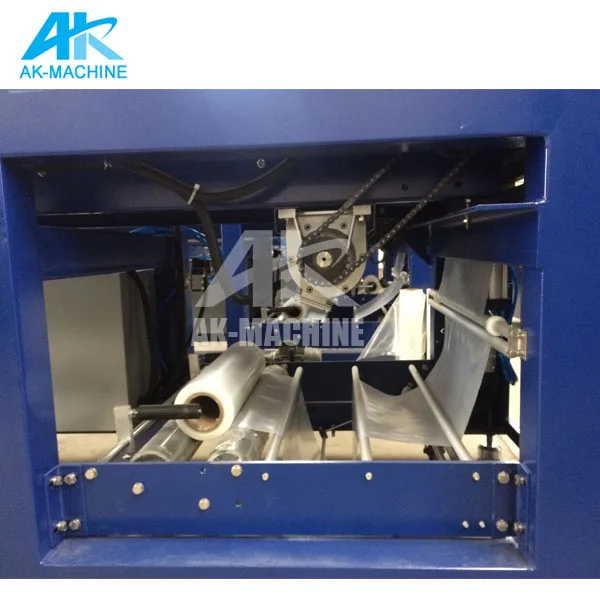

Inductive switch control the feeding of film wrich can control the
length of film and reduce the consumption
Imported tranducer control for the convey motor, which can can
realize stepless speed reguation



The machine dimension	L12000*W3300*H2100mm
The weight	1.2t
Heat shrinkable furnace size	L4000*W1020*H1750mm
The biggest package size	L600*W600*H350mm
Packing speed	18-22package/min
Conveyor belt height	920(adjustable100mm)
The rated power	380V 50HZ
Work pressure	0.6-0.8Mpa
The engine power	30kw
