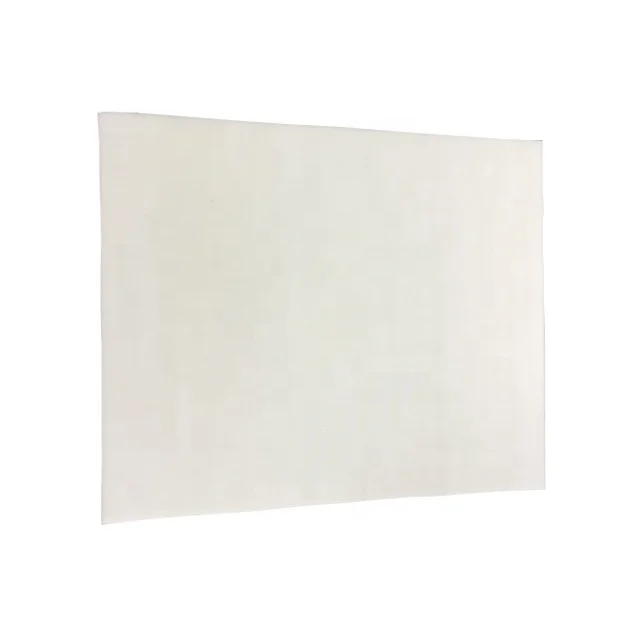

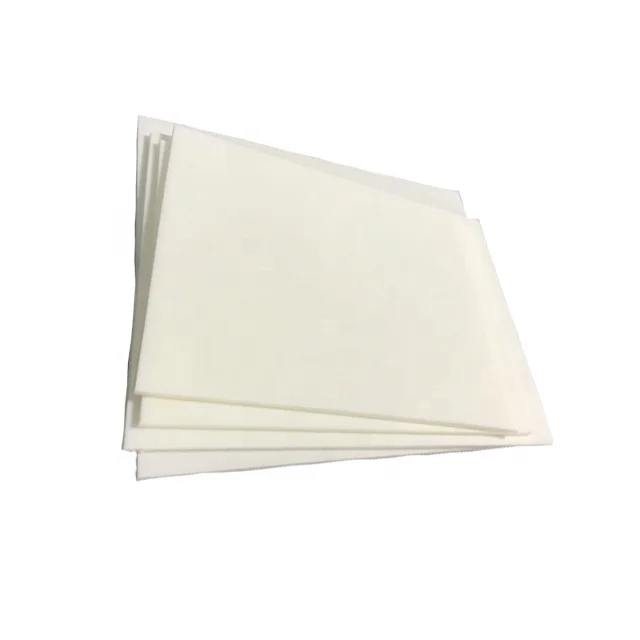

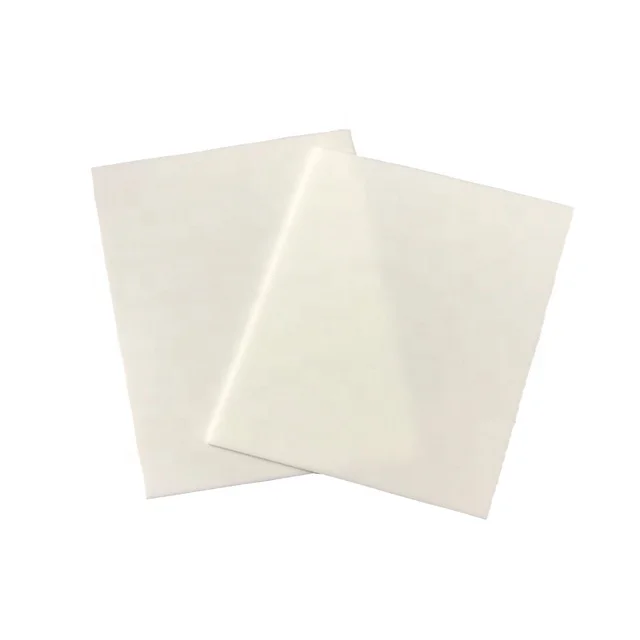

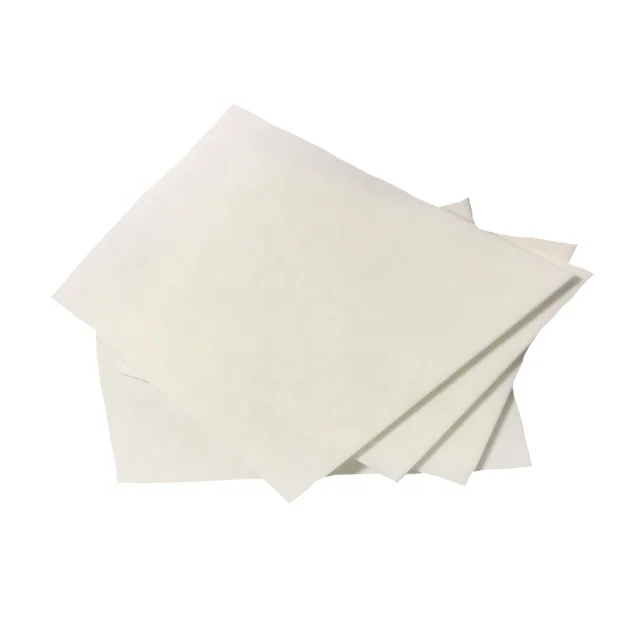

Aerogel Nano insulation Buffer Foam for Flexible Display and Heat insulation construction
- Category: >>>
- Supplier: Dalian Yingshi International Trading Co. Ltd.
Share on (62407207244):
Product Overview
Description
Product Description
Aerogel Buffer Foam
Aerogel nano-insulation foam is a new type of nano-insulation material that helps the electronics industry, new energy battery,automotive industry,shipbuilding,military and other industries to solve the needs of thermal insulation,fire prevention,cushioning and shock adsorption,noise reduction,lightweight and other aspects. It can be combined with heat-dissipating materials such as graphite sheets,copper foils and aluminum foils. One side of heat conduction and one side of thermal insulation buffer, to meet the actual needs of customers in a variety of different use scenarios.
New high and low temperature resistance,flame retardant,heat insulation buffer multifunctional foam
○ Low Thermal Conductivity: 0.024-0.030W/(m.k)
○ Temperature Resistance: -80-300℃
○ Anti-permanent Deformation: <10%
○ Buffer Compression Ratio: >75%
○Sound Insulation and Noise Reduction: 0.085-0.095 NRC
○ Flame Retardancy: UL94-V0
○ Low Density: 0.04g/cm³
Product Data
Thickness (mm) | 0.2-5mm | 0.5±10% | 1.0±10% | 2.0±10% | 3.0±10% | 4.0±10% | 5.0±10% | / | ||||||
Color | White | / | ||||||||||||
Density (g/cm³) | 0.04 | / | ||||||||||||
Hardness (Shore C/1S) | 6-12 | KSM6518 | ||||||||||||
Tensile Rate (%) | >5 | |||||||||||||
Under Compression Deformation Conditions (%) | <10 | GB/T6344-1996 | ||||||||||||
Compression Ratio （%） | >75 | GB/T6669-1986 | ||||||||||||
Tensile Strength (KPa) | 110-160 | GB/T6344-2008 | ||||||||||||
Silencing Coefficient (NRC) | 0.89-0.95 | ISO 354:2003 | ||||||||||||
Thermal Conductivity W/(m.k) | 0.024-0.030 | GB/T1029 5-2008 | ||||||||||||
Water Absorption Rate (%) | ≤3 | / | ||||||||||||
Operating Temperature Range (℃) | -80-300 | / | ||||||||||||
Product Form | Sheet | / | ||||||||||||
Storage Conditions (℃) | Stored in a dry environment at room temperature,shelf life of 1 year | / | ||||||||||||
